#04978

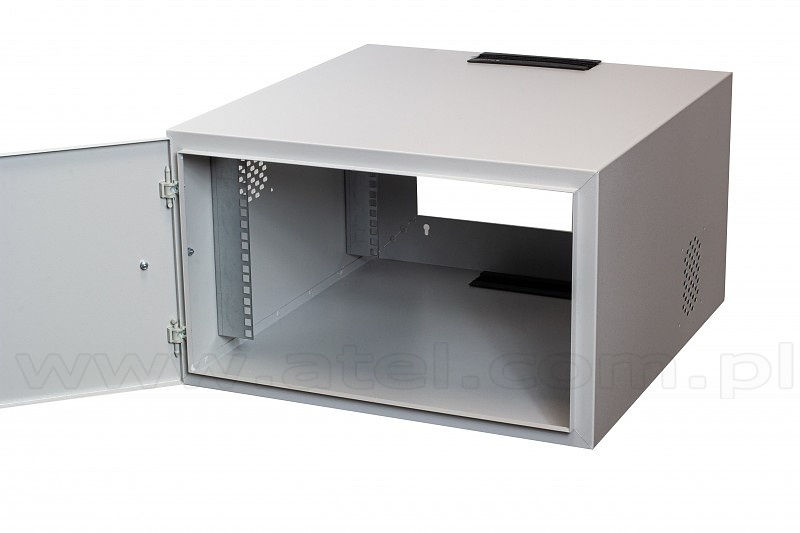

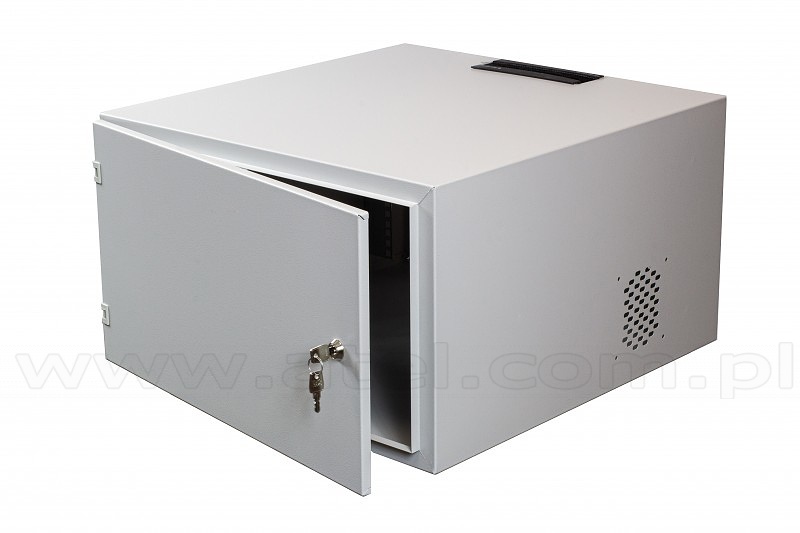

Wall-mounted 19" cabinet, 6U, steel door, 340 x 560 x 600 mm
Wall-mounted rack cabin with a 6U working height and a depth of 500mm from the mounting bars to the rear wall of the cabinet.
Steel doors, cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
Steel doors, cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
| Dimensions |
6U 19", 340x560x600 mm, (H x W x D), 500mm working depth, (distance from bars to rear panel) |
|---|---|
| Type |
wall-mounted, welded body |
| Door | metal |
| Cable entry |

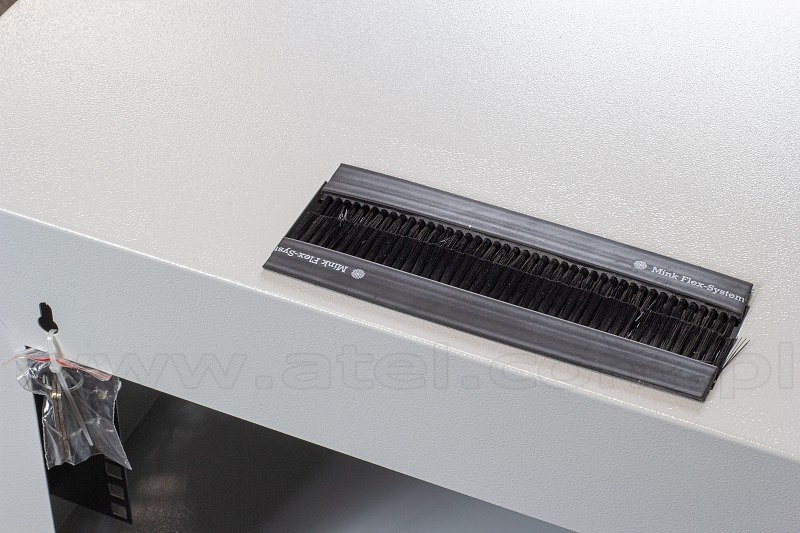

top + bottom, with brush cover |
| Mounting profiles | 1 pair (front) |
| Fan openings |
yes, at side |
| Colour | RAL 7035 (grey) |
| Protection degree | IP 20 |
#04959

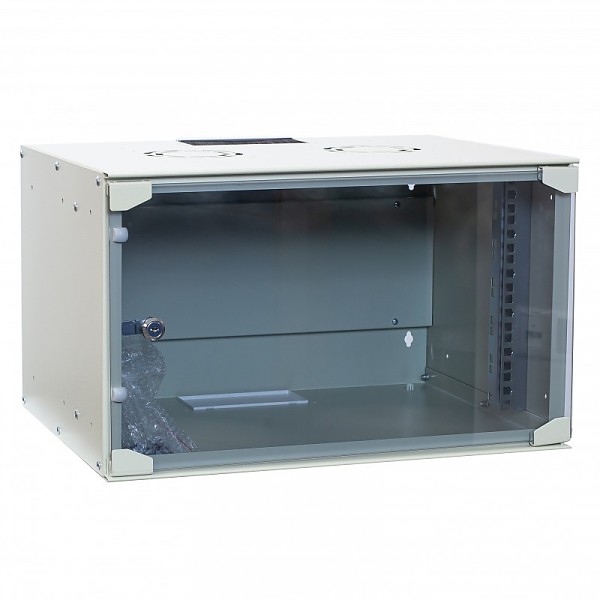

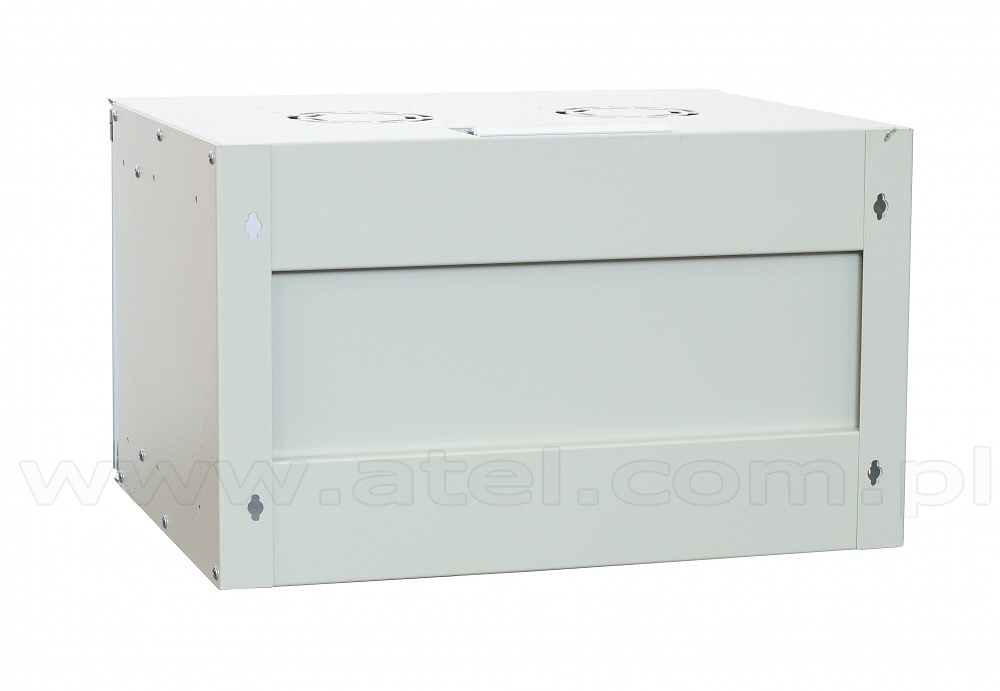

Wall-mounted 19" cabinet, 6U, glass door, 340 x 520 x 400 mm
Wall-mounted rack cabin with a 6U working height and a depth of 300mm from the mounting bars to the rear wall of the cabinet.

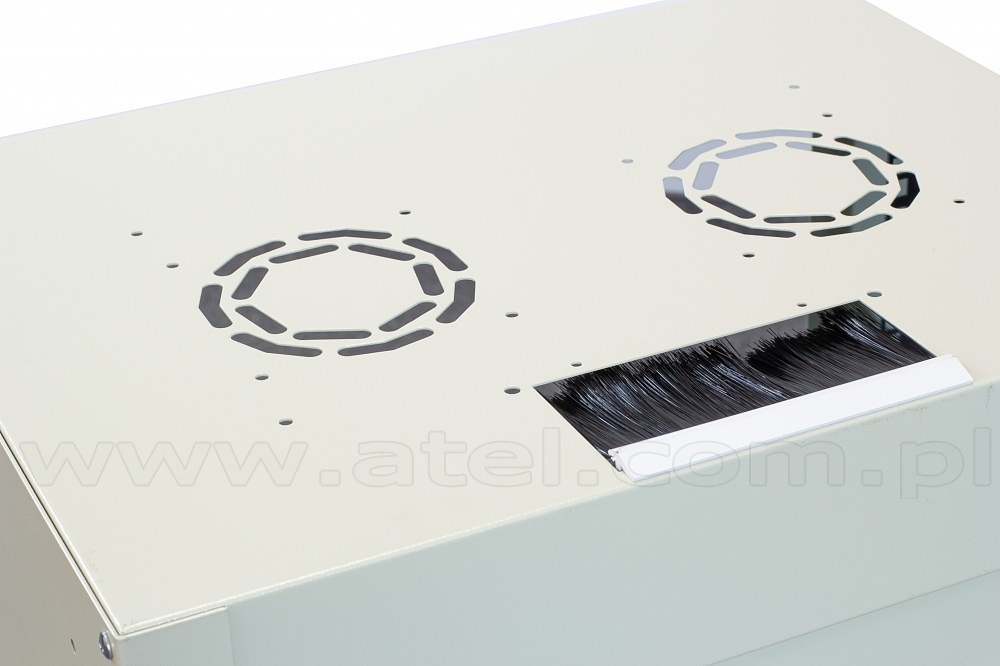

Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
| Dimensions |
6U 19", 340x520x400 mm, (H x W x D), 300mm working depth, (distance from bars to rear panel) |
|---|---|
| Type |
wall-mounted, welded body |
| Door | 4mm toughened glass |
| Cable entry | top + bottom |
| Mounting profiles | 1 pair (front) |
| Fan openings | yes |
| Colour | RAL 7035 (grey) |
| Protection degree | IP 20 |
| Additional equipment | 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting |
#04929
Wall-mounted 19" cabinet, 6U, glass door, 355 x 600 x 540 mm
Wall-mounted rack cabinet with a 6U working height. Glass doors, removable sides and cable openings both at the top and the bottom make installation and usage of the cabinet easier.
| Dimensions |
6U 19", 355x600x440+100mm, (H x W x D) |
|---|---|
| Type |
wall-mounted, welded body, removable sides |
| Door | 4mm toughened glass |
| Cable entry | top + bottom (260 x 50 mm) |
| Mounting profiles | 2 pairs (first section front & back) |
| Fan openings | yes |
| Colour | RAL 7035 (grey) |
| Protection degree | IP 20 |
| Additional equipment | 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting |
#05583
Wall-mounted 19" cabinet, 6U, glass door, 355 x 600 x 440 mm
Wall-mounted rack cabinet with a 6U working height and a 370mm distance from mounting bars to rear cabinet wall.
Glass doors, removable sides and cable openings make installation and usage of the cabinet easier.
Glass doors, removable sides and cable openings make installation and usage of the cabinet easier.
| Dimensions |
6U 19", 355x600x440 mm, (H x W x D), 3770mm working depth, (distance between bars and rear panel) |
|---|---|
| Type |
wall-mounted, welded body |
| Door |
4mm toughened glass, removable sides |
| Cable entry | top + bottom |
| Mounting profiles | 1 pair (front) |
| Fan openings | yes |
| Colour | RAL 7035 (grey) |
| Protection degree | IP 20 |
| Additional equipment | 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting |
#04962
Wall-mounted 19" cabinet, 6U, glass door, 355 x 600 x 600 mm
Wall mounted rack cabinet with a 6U working height and 500mm width between the mounting bars.
Glass doors, removable sides and cable openings both at the top and the bottom make installation and usage of the cabinet easier.
Glass doors, removable sides and cable openings both at the top and the bottom make installation and usage of the cabinet easier.
| Dimensions |
6U 19", 355x600x600 mm, (H x W x D), 500mm working depth (distance from the bars to the back wall) |
|---|---|
| Type |
wall-mounted, welded body |
| Door | 4mm toughened glass |
| Cable entry | top + bottom |
| Mounting profiles | 1 pair (front) |
| Fan openings | yes |
| Colour | RAL 7035 (grey) |
| Protection degree | IP 20 |
| Additional equipment | 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting |
#02565

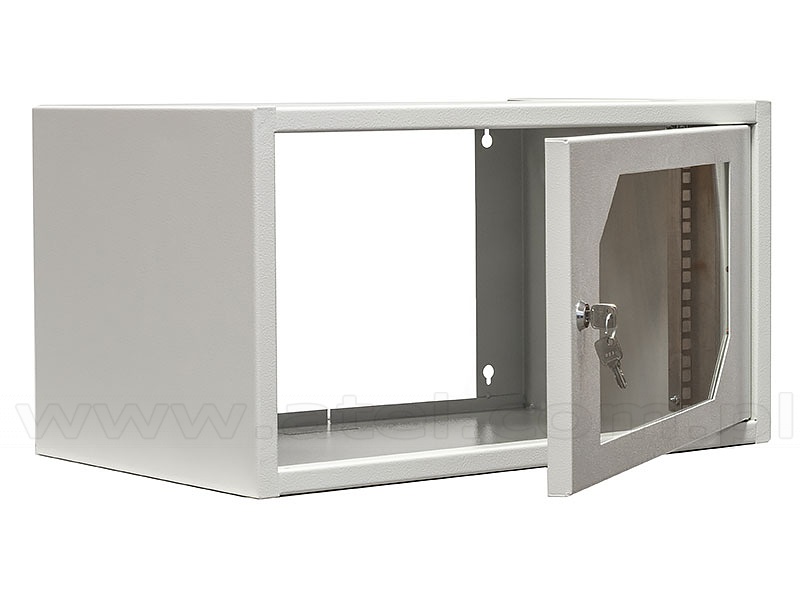

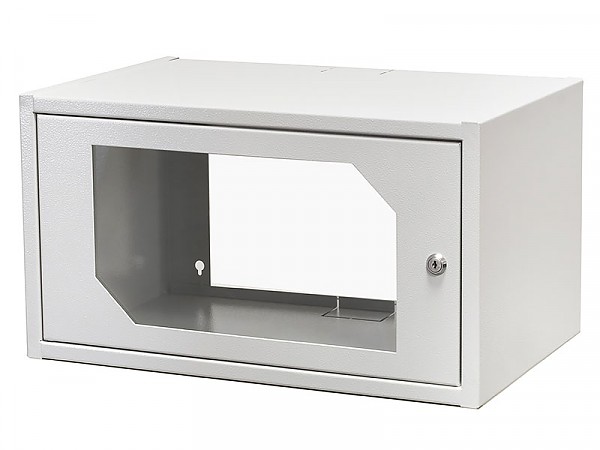

Wall-mounted 19" cabinet, 6U, glass door, 320 x 545 x 350 mm
| Dimensions |
6U 19", 320x545x350 mm, (H x W x D) |
|---|---|
| Type |
wall-mounted, welded body |
| Door | glass |
| Cable entry |
top + bottom, 120x60mm |
| Mounting profiles | 1 pair (front) |
| Fan openings | no |
| Colour | RAL 7035 (grey) |
| Maximum load capacity | 25kg |
| Protection degree | IP 20 |
#04499

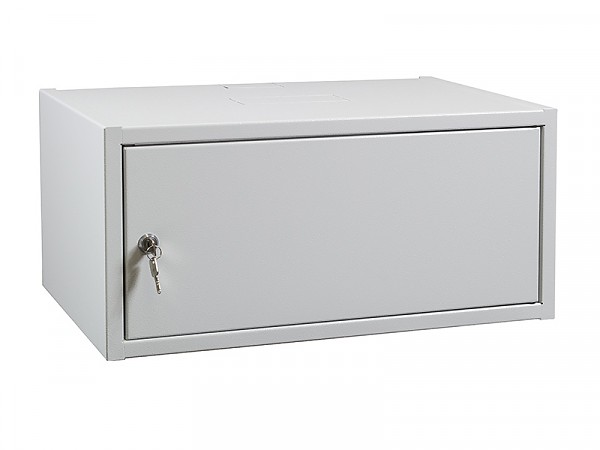

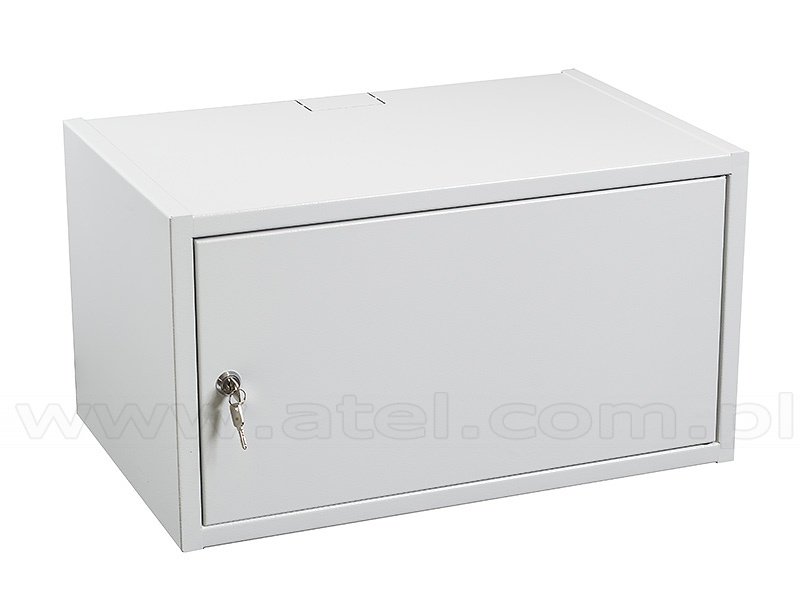

Wall-mounted 19" cabinet, 6U, steel door, 320 x 545 x 350 mm
| Dimensions |
6U 19", 320x545x350 mm, (H x W x D) |
|---|---|
| Type |
wall-mounted, welded body |
| Door | steel |
| Cable entry | top + bottom |
| Mounting profiles | 1 pair (front) |
| Fan openings | no |
| Colour | RAL 7035 (grey) |
| Protection degree | IP 20 |
#04963
Wall-mounted 19" cabinet, 9U, glass door, 480 x 600 x 600 mm
Wall-mounted rack cabin with 9U working height and a depth of 500mm from the mounting bars to the rear wall of the cabinet.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
| Dimensions |
9U 19", 480x600x600 mm, (H x W x D), 500mm working depth, (distance from bars to rear panel) |
|---|---|
| Type |
wall-mounted, welded body, removable sides |
| Door | 4mm toughened glass |
| Cable entry |
top + bottom, 50 x 260mm |
| Mounting profiles | 1 pair (front) |
| Fan openings | yes |
| Colour | RAL 7035 (grey) |
| Protection degree | IP 20 |
| Additional equipment | 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting |
#04960
Wall-mounted 19" cabinet, 9U, glass door, 450 x 520 x 400 mm
Wall-mounted rack cabin with a 9U working height and a depth of 350mm from the mounting bars to the rear wall of the cabinet.
Glass doors and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
Glass doors and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
| Dimensions |
9U 19", 450x520x400 mm, (H x W x D), 350mm wotking depth, (distance from bars to rear panel) |
|---|---|
| Type | wall-mounted |
| Door | 4mm toughened glass |
| Cable entry | top + bottom |
| Mounting profiles | 1 pair (front) |
| Fan openings | yes |
| Colour | RAL 7035 (grey) |
| Protection degree | IP 20 |
| Additional equipment | 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting |
#04930
Wall-mounted 19" cabinet, 9U, glass door, 470 x 600 x 540 mm
Wall-mounted rack cabin with a 9U working height.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
| Dimensions |
9U 19", 470x600x440+100 mm, (H x W x D) |
|---|---|
| Type |
wall-mounted, welded body, removable sides |
| Door | 4mm toughened glass |
| Cable entry | top + bottom |
| Mounting profiles | 1 pair (front) |
| Fan openings | yes |
| Colour | RAL 7035 (grey) |
| Protection degree | IP 20 |
| Additional equipment | 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting |
