- Communication for industry
-
- » GIGABIT ETHERNET MEDIA CONVERTERS#07673
Industrial Media converter 1x 100/1000TX (RJ-45) + 1x 1000FX (SFP) (Wave Industrial WO-IC-M1GF1GT)
Physical Ports 100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 1 1000Base-FX SFP ports 1 Technology Ethernet Standards IEEE 802.3u for 100Base-TX and 100Base-FX,
IEEE 802.3ab for 1000Base-T,
IEEE 802.3z for 1000Base-XLED Indicators power,
RJ45,
SFP slotPower Dual DC inputs. 9÷48VDC on 4-pin terminal block Power consumption (typical) 3.3W Physical Characteristic Enclosure IP-40 Dimension (W x H x D) 33mm x 115mm x 85mm Weight 330g Environmental Storage Temperature -40÷85°C Operating Temperature -40÷85°C Operating Humidity 5%÷95% Non-condensing Regulatory approvals EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11Shock IEC60068-2-27 Free Fall IEC60068-2-32 Vibration IEC60068-2-6 Safety EN60950-1 Warranty Warranty period 5 years
- » INJECTORS#06539

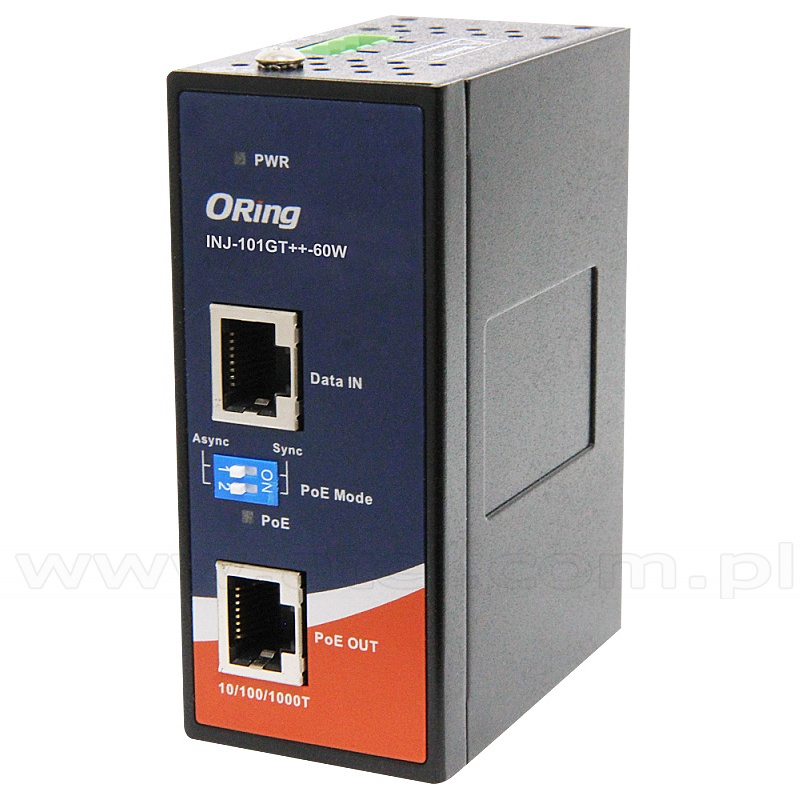

Industrial Gigabit High Power Injector, 1x10/1000 RJ-45 PoE + 1x10/1000 RJ-45 (ORing INJ-101GT++-60W-24V)
The INJ-101GT++ PoE Injector series is not only an IEEE802.3at compliant device but also an advanced high power PoE injector. It is intelligent detection that provided 1-ports 10/100/1000Base-T (X) PoE outputs. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream on the Ethernet cable. This protection against damage to non-PoE compliant equipment which may be connected to the Ethernet cable. Therefore, only an IEEE 802.3at/802.3af compliant device can be powered with the INJ-101GT++ PoE Injector. Typically in Gigabit networks the maximum allowable CAT5 cable length is about 100 meters, due to the limitation of the Ethernet standards. The INJ-101GT++ PoE Injector can function with any PoE P.D. equipment which is fully compliant with the IEEE 802.3af/at PoE standards, and provide the DIP switch configurator for High power PoE management.Physical Ports 10/100/1000Base-T(X) in RJ-45 Ethernet Port Input 1 10/100/1000Base-T(X) in RJ-45 Ethernet Port with P.S.E. Output 1 Operating Voltage Input Voltage 9 ~ 57 VDC / 4-pin terminal block Power Consumption 1 Watts (Not include PD's device) PoE Power Budget 60 Watts max LED Indicators Power indicator PWR / Ready 1 x LED,
Green On - Power is on and functioning NormallyPoE Indicators 1 x LED,
Blue On - PoE Device Link,
Blue Off - None PoE Device Detected,
Blink (Blue) - Overload presentProtection Short Circuit Protection present Over Load Protection present Physical Characteristic Enclosure IP-30 Dimension (W x D x H) 26.1(W)x70(D)x95(H)mm (1.03 x 2.76 x 3.74 inch) Weight 188g Environmental Storage Temperature -40÷85°C(-40÷185°F) Operating Temperature -40÷75°C (-40÷165°F) Operating Humidity 5%÷95% Non-condensing Regulatory approvals EMC EN55032,
EN55024(CE EMC),
FCC Part 15B,
EN61000-3-2,
EN61000-3-3EMI CISPR 32,
EN55032,
FCC Part 15B class AEMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11Shock IEC60068-2-27 Free Fall IEC60068-2-32 Vibration IEC60068-2-6 Safety EN60950-1 Warranty Warranty period 5 years
-
