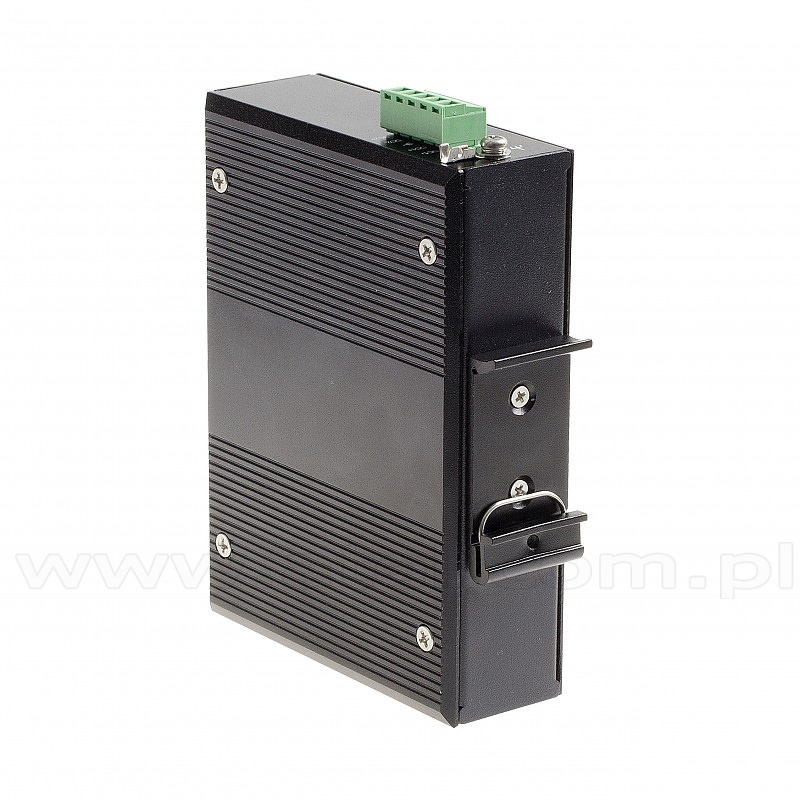

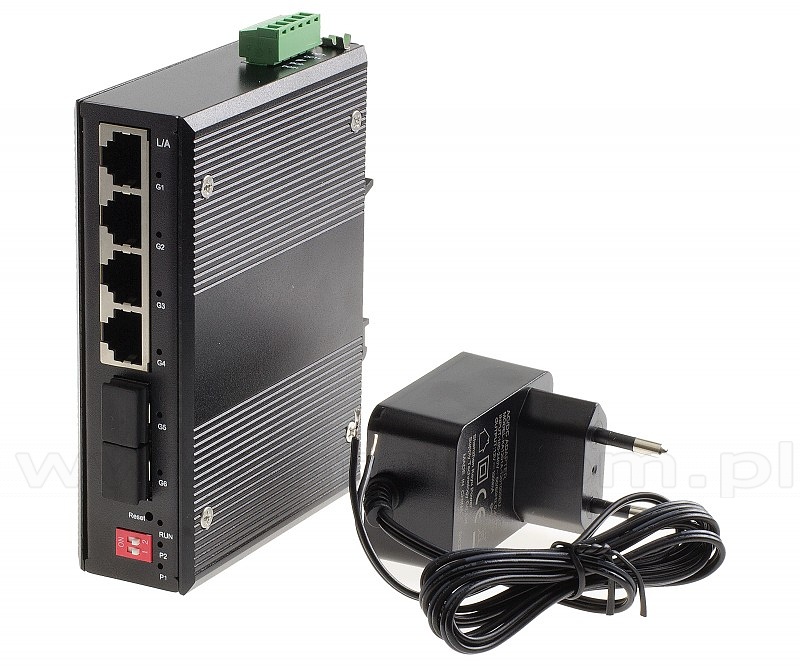

Unmanaged switch, 4x 10/1000 RJ-45 + 2x 1000 SFP (Wave Industrial WO-IS-2GF4GC)
WO-IS-2GF4GC is an industrial Ethernet switch with extended temperature ranges developed by Wave Optics to fulfill needs in industries including
smart traffic, expressways, smart cities, safe cities, new energy, smart manufacturing, and so on. The two Gigabit fiber port and four Gigabit copper ports provide a high packet forwarding rate and an ample back plane bandwidth, making the transmission of images clear and smooth.
Having an IP40 rated aluminum enclosure, a rail base designed to withstand severe vibration, and good EMC electromagnetic compatibility, this series of product is capable of working stably and reliably in extreme-temperature (-40°C to 85°C) and rugged industrial environments.Physical Ports 10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 4 100/1000Base-X SFP Ports 2 Technology Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3z for 1000Base-XMAC Table 2048 MAC addresses Power Input power Dual DC inputs. 9÷48VDC on 5-pin terminal block Power consumption (typical) 6W Physical Characteristic Enclosure IP-40 Dimension (W x D x H) 37mm x 85m x 116mm Weight 430g Environmental Storage Temperature -40÷85°C (-40÷185°F) Operating Temperature -40÷85°C (-40÷185°F) Operating Humidity 5%÷95% Non-condensing Regulatory approvals EMS IEC61000-4-2(ESD) level 4,
IEC 61000-4-4 (EFT) level 4,
IEC61000-4-5(Surge) level 4Shock IEC60068-2-27 Free Fall IEC60068-2-32 Vibration IEC60068-2-6 MTBF 500000h
-
