TP-LINK

TP-LINK Products

TP-LINK - Networking products

TP-LINK
TP-LINK
TP-LINK is a largest Chinese network hardware manufacturer for SOHO market. Company was founded in 1996. Their market share in networking products is still growing. TP-LINK cooperates with over 600 distributors in China and rest of the world. There are over 100 experienced engineers working for TP-LINK in two factories with 21 production lines. Perfect technical support and management system compliant with ISO9001:2000 gives warranty of reliability and stability of their devices. Quality of products was confirmed with a lot of awards in many independent device tests. TP-LINK is also manufacturing OEM versions of hardware for other network device manufacturers.

TP-LINK offers includes:
  • access points
  • routers
  • network cards
  • switches
  • media converters
  • modems

Manufacturer's website: http://www.tp-link.com

  • Computer Network Accessories
    • Routers
        #09318

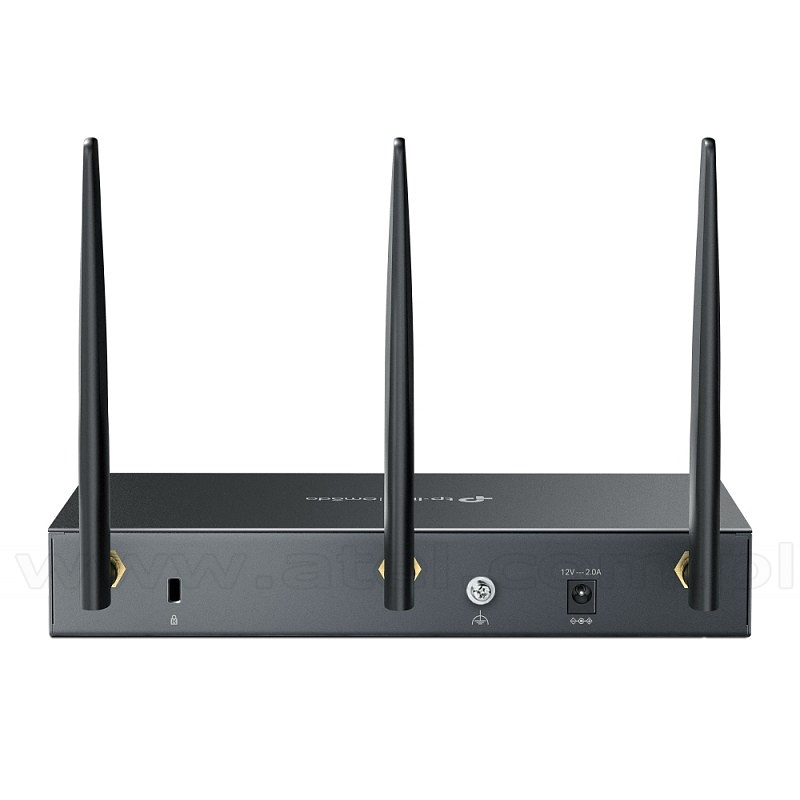

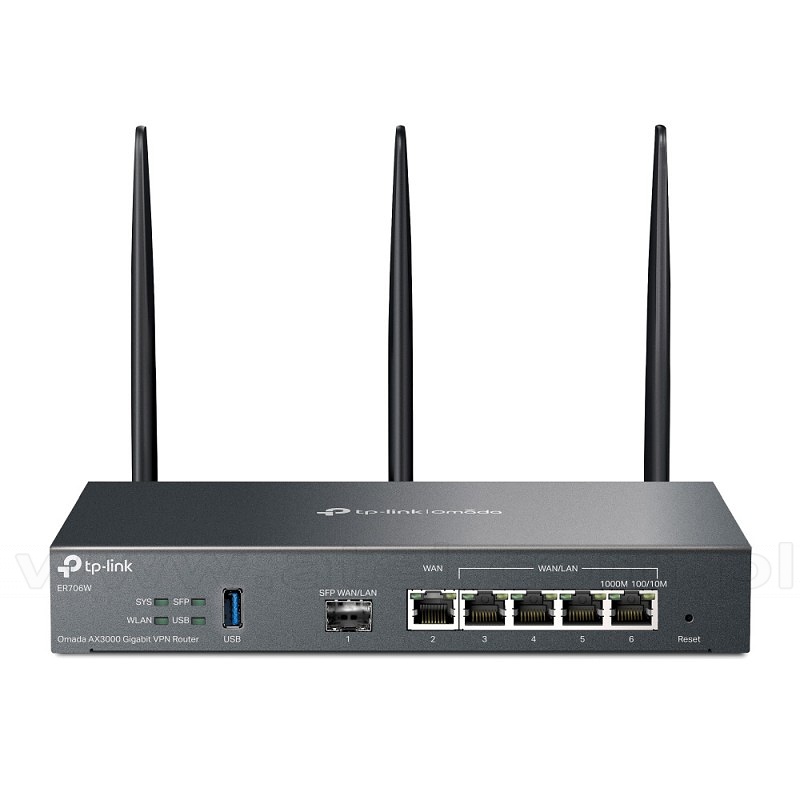

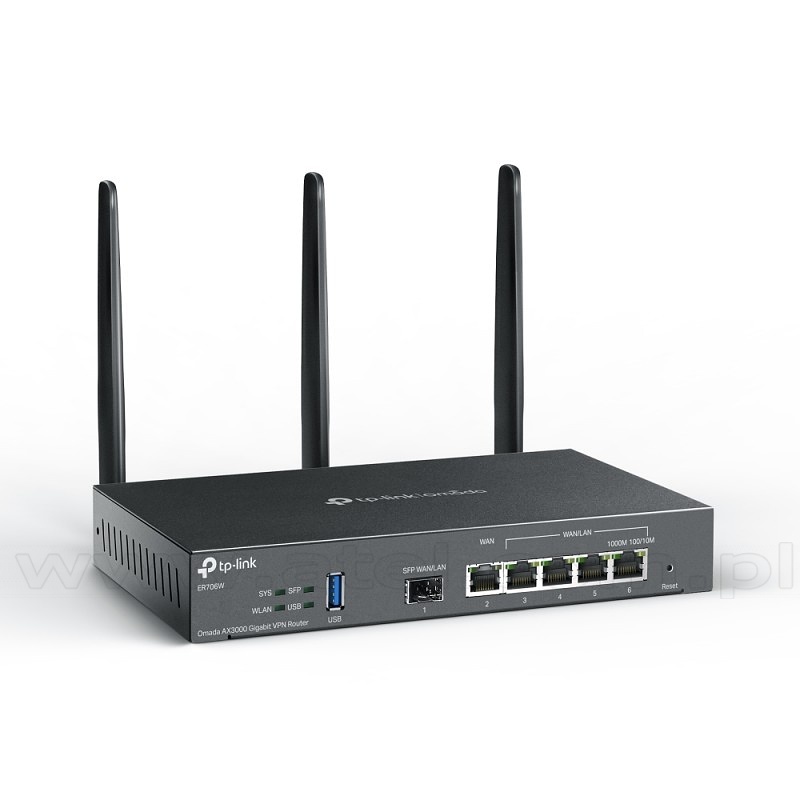

        3000Mbps Wireless gigabit VPN Router Omada, 5x 10/100/1000 RJ-45, 1 SFP slots, desktop (TP-Link ER706W)

        • AX3000 Dual-Band WiFi: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
        • 6 Gigabit Ethernet Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
        • Omada Mesh Technology: Seamlessly connects to EAPs that support mesh technology, ideal for large-scale scenarios.
        • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
        • Boosted Coverage: Triple external antennas extend and concentrate the Wi-Fi signals.
        • High-Security VPN: Supports multiple VPN protocols including IPSec / SSL / Wireguard / PPTP / L2TP VPN, helping users to establish remote connections more flexibly.
        • Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
        Standards IEEE 802.3u/ab/z/x/q
        Copper ports 1 Gigabit SFP WAN/LAN Port,
        1 Gigabit WAN Port,
        4 Gigabit LAN/WAN Ports,
        1 USB3.0 (supports USB LTE dongle and USB Storage)
        Flash 128 MB NAND
        DRAM 512 MB DDR4
        Antenna 2.4 GHz 2x 3 dBi dual-band detachable antennas,
        5 GHz 3x 4.5 dBi dual-band detachable antennas
        Performance
        GRE Unencrypted 624,2 Mb/s,
        Encrypted 301,5 Mb/s
        WireGuard VPN 393,5 Mb/s
        Concurrent Session 150,000
        New Sessions /Second 5,100
        NAT (Static IP) 937,2 Mb/s / 936,1 Mb/s
        NAT(DHCP) 945,8 Mb/s / 940,6Mb/s
        NAT(PPPoE) 942,9 Mb/s / 942,9Mb/s
        NAT (L2TP) 837,4 Mb/s / 881,5 Mb/s
        NAT (PPTP) 803,0 Mb/s / 910,5 Mb/s
        IPsec VPN Throughput ESP-SHA1-AES256 646,9 Mb/s,
        ESP-SHA256-AES256 642,8 Mb/s,
        ESP-SHA384-AES256 648,9 Mb/s,
        ESP-SHA512-AES256 658,4 Mb/s
        OpenVPN 129,3 Mb/s
        L2TP VPN Throughput Unencrypted 1034,0 Mb/s,
        Encrypted 570,0 Mb/s
        PPTP VPN Throughput Unencrypted 1165,0 Mb/s,
        Encrypted 209,0 Mb/s
        SSL VPN Throughput 126,7 Mb/s
        66 Byte Packet forwarding rate 1,453,489 p/s / 1,453,488 p/s
        1,518 Byte Packet forwarding rate 81,274 p/s / 91,275 p/s
        Basic functions
        WAN Connection Type Static/Dynamic IP,
        PPPoE,
        PPTP,
        L2TP
        MAC Clone Modify WAN/LAN MAC Address
        DHCP DHCP Server,
        DHCP Address Reservation,
        Multi-IP Interfaces,
        Multi-Net DHCP
        IPv6 Developing
        VLAN 802.1Q VLAN
        IPTV IGMP v2/v3 Proxy
        Advanced functions
        ACL IP/Port/Protocol/Domain Name Filtering
        Advanced Routing Static Routing,
        Policy Routing
        Bandwidth Control IP/Port-based Bandwidth Control,
        Guarantee & Limited Bandwidth
        Load Balance Intelligent Load Balance,
        Application Optimized Routing,
        Link Backup (Timing§,
        Failover),
        Online Detection
        NAT One-to-One NAT,
        Multi-Net NAT,
        Virtual Server,
        Port Triggering,
        NAT-DMZ,
        FTP/H.323/SIP/IPSec/PPTP ALG,
        UPnP
        Security SPI Firewall,
        VPN Passthrough,
        FTP/H.323/PPTP/SIP/IPsec ALG,
        DoS Defence,
        Ping of Death,
        Local Management
        Session Limit IP-based Session Limit
        VPN
        IPsec VPN 100 IPSec VPN Tunnels,
        LAN-to-LAN,
        Client-to-LAN,
        Main,
        Aggressive Negotiation Mode,
        DES,
        3DES,
        AES128,
        AES192,
        AES256 Encryption Algorithm,
        IKEv1/v2,
        MD5,
        SHA1 Authentication Algorithm,
        NAT Traversal (NAT-T),
        Dead Peer Detection (DPD),
        Perfect Forward Secrecy (PFS)
        PPTP VPN PPTP VPN Server,
        10 PPTP VPN Clients,
        50 Tunnels,
        PPTP with MPPE Encryption
        L2TP VPN L2TP VPN Server,
        10 L2TP VPN Clients,
        50 Tunnels,
        L2TP over IPSec
        OpenVPN OpenVPN Server,
        10 OpenVPN Clients,
        50 OpenVPN Tunnels
        Web Authentication No Authentication,
        Simple Password,
        Hotspot（Local User / Voucher* / SMS* / Radius*）,
        External Radius Sever,
        External Portal Sever,
        Facebook
        Management
        Omada App Yes
        Centralized Management Omada Cloud-Based Controller,
        Omada Hardware Controller (OC300),
        Omada Hardware Controller (OC200),
        Omada Software Controller
        Cloud Access Yes (Through OC300,
        OC200,
        Omada Cloud-Based Controller,
        or Omada Software Controller)
        Service Dynamic DNS (Dyndns,
        No-IP,
        Peanuthull,
        Comexe)
        Maintenance Web Management Interface,
        Remote Management,
        Export & Import Configuration,
        SNMP v1/v2c/v3,
        Diagnostics (Ping & Traceroute),
        NTP Synchronize,
        Syslog Support
        Management Features Automatic Device Discovery,
        Intelligent Network Monitoring,
        Abnormal Event Warnings,
        Unified Configuration,
        Reboot Schedule,
        Captive Portal Configuration,
        ZTP (Zero-Touch Provisioning)
        Dimensions 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
        Operating temperature 0°C ÷ 40°C
        Operating humidity 10% ÷ 90%,
        non-condensing
        Power 12VDC / 2A Power Adapter
        Max Power Consumption EU 16.8W (with USB 3.0 connected),
        11.8W (without USB 3.0 connected),
        US 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)
        Certificates CE,
        FCC,
        RoHS
        Manufacturer TP-Link
        3000Mbps Wireless gigabit VPN Router Omada, 5x 10/100/1000 RJ-45, 1 SFP slots, desktop (TP-Link ER706W)
        Net Price: 127.00 USD
        product card»
      • » SMB BROADBAND ROUTERS
          #08374

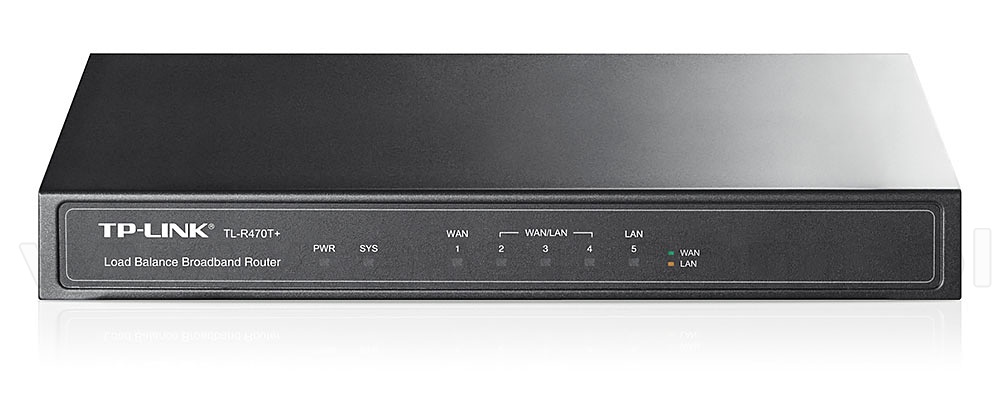

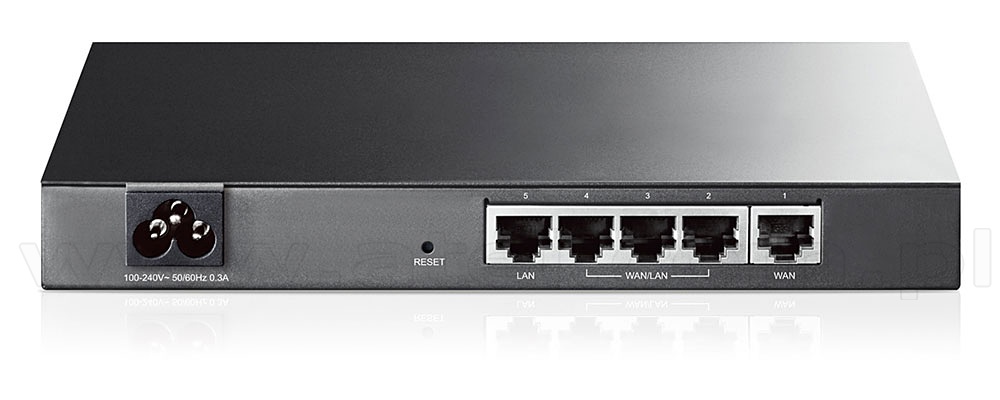

          Load Balance Broadband Router (TP-Link TL-R470T+)

          • Up to 4 WAN ports equipped with advanced load balance to guarantee maximum bandwidth and backup capabilities
          • Provides extensive client account and network management for administrators with supported PPPoE Server
          • Marshals bandwidth resource to specific clients based on their unique application environments
          • Smaller case for cost-effective solution in the small office or Internet cafes network
          HARDWARE FEATURES:
          Standards and Protocols IEEE 802.3, 802.3u,
          802.3x,
          TCP/IP,
          DHCP,
          ICMP,
          NAT,
          PPPoE,
          SNTP,
          HTTP,
          DDNS
          Interface 1 Fixed Ethernet WAN Port,
          1 Fixed Ethernet LAN Port,
          3 Changeable Ethernet WAN/LAN Ports
          Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 328.1feet),
          EIA/TIA-568 100Ω STP (maximum 328.1feet),
          100BASE-TX UTP category 5, 5e cable (maximum 328.1feet),
          EIA/TIA-568 100Ω STP (maximum 328.1feet)
          Flash 4MB
          DRAM 64MB
          LED PWR,
          SYS,
          WAN,
          LAN,
          WAN/LAN
          Button Reset Button
          Dimensions (W X D X H) 8.2*5.0*1.0in. (209*126*26mm)
          Power Supply Internal Universal Power Supply,
          AC100-240V~50/60Hz input
          PERFORMANCE:
          Concurrent Session 10000
          BASIC FUNCTIONS:
          DHCP DHCP Server/Client,
          DHCP Address Reservation
          MAC Clone Modify WAN/LAN MAC Address
          Switch Setting Port Mirror,
          Rate Control,
          Port Configuration,
          Port VLAN
          WAN Connection Type Static/Dynamic IP,
          PPPoE,
          PPTP,
          L2TP,
          Dual Access,
          Bigpond Cable
          ADVANCED FUNCTIONS:
          ACL IP/MAC/URL/WEB Filtering
          Forwarding Virtual Server,
          Port Triggering,
          DMZ
          Load Balance Policy Routing,
          Link Backup
          Routing Static Routing
          Security FTP/SIP/PPTP/IPsec/H.323 ALG,
          DoS Defence,
          Ping of Death,
          IP/MAC Binding
          Traffic Control Bandwidth Control,
          Session Limit
          MANAGEMENT:
          Maintenance Time Setting,
          Diagnostics,
          Firmware Upgrade,
          Factory Defaults/Reboot,
          Backup/Restore,
          System Log,
          Remote Management,
          Statistics
          Service PPPoE Server,
          E-Bulletin,
          Dynamic DNS,
          UPnP
          OTHERS:
          Certification CE,
          FCC,
          RoHS
          Package Contents TL-R470T+,
          Power Cord,
          RJ-45 Ethernet Cable,
          Quick Installation Guide,
          Resource CD
          Environment Operating Temperature 0°~40° (32°~104°),
          Storage Temperature -40°~70° (-40°~158°),
          Operating Humidity 10%~90% non-condensing,
          Storage Humidity 5%~90% non-condensing
          Warranty 5 years limited warranty. Advanced replacement service is available.
          Load Balance Broadband Router (TP-Link TL-R470T+)
          Net Price: 31.60 USD
          product card»
          #09094

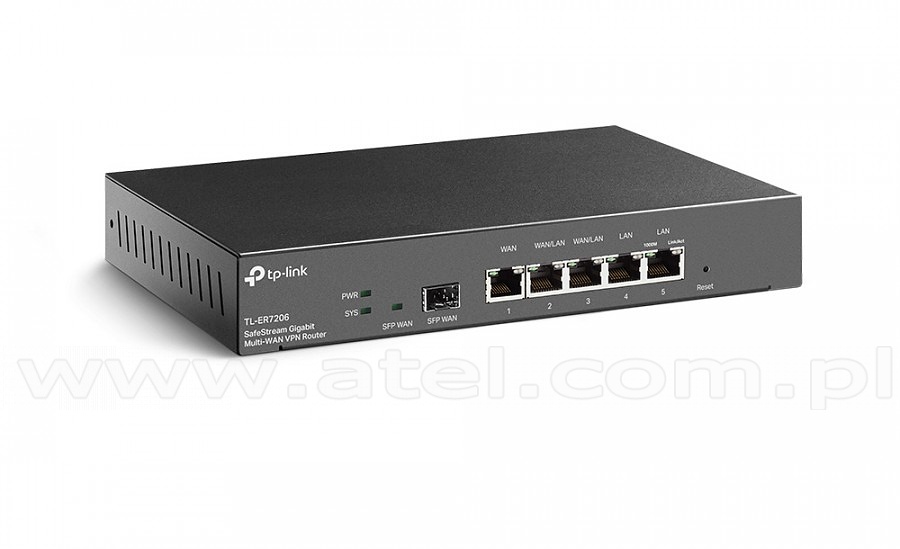

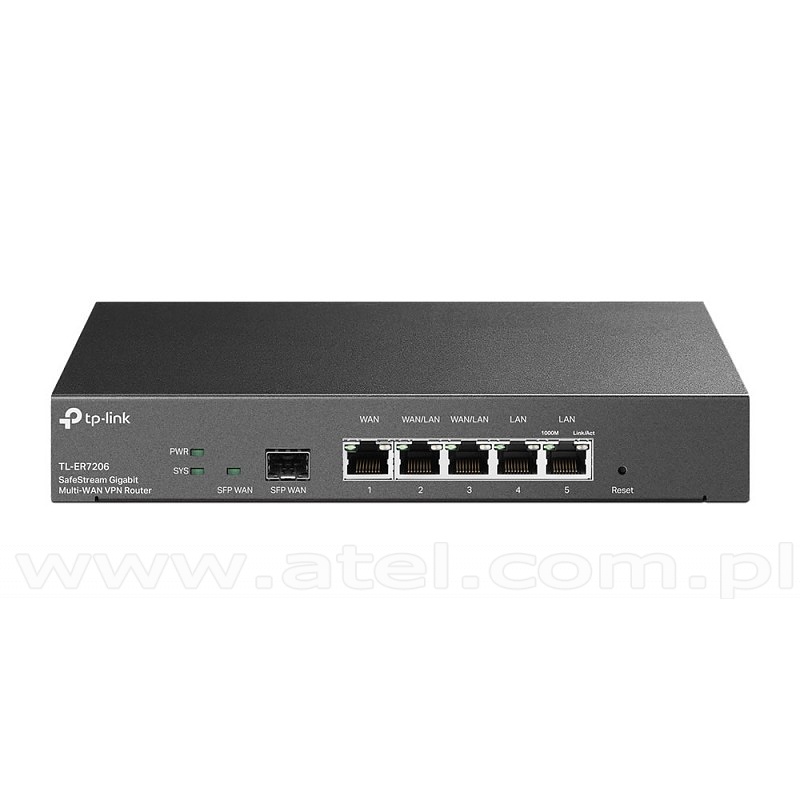

          Gigabit VPN Router, 5x 10/100/1000 RJ-45, 1 SFP slots, desktop (TP-Link TL-ER7206)

          • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
          • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
          • Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
          • Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
          • Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections.
          • Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
          Standards IEEE 802.3u/ab/z/x/q
          Copper ports 1x Fixed Gigabit RJ45 WAN Port,
          2x Fixed Gigabit RJ45 LAN Ports,
          2x Changeable Gigabit RJ45 WAN/LAN Ports
          Free slots 1x Fixed Gigabit SFP WAN Port
          Flash SPI 4MB + NAND 128MB
          DRAM 512MB
          Performance
          Concurrent Session 150,000
          IPsec VPN Throughput 291.6 Mbps
          Basic functions
          WAN Connection Type Static/Dynamic IP,
          PPPoE,
          PPTP,
          L2TP
          MAC Clone Modify WAN/LAN MAC Address
          DHCP DHCP Server,
          DHCP Address Reservation,
          Multi-IP Interfaces,
          Multi-Net DHCP
          IPv6 Developing
          VLAN 802.1Q VLAN
          IPTV IGMP v2/v3 Proxy
          Advanced functions
          ACL IP/Port/Protocol/Domain Name Filtering
          Advanced Routing Static Routing,
          Policy Routing
          Bandwidth Control IP/Port-based Bandwidth Control,
          Guarantee & Limited Bandwidth
          Load Balance Intelligent Load Balance,
          Application Optimized Routing,
          Link Backup (Timing§,
          Failover),
          Online Detection
          NAT One-to-One NAT,
          Multi-Net NAT,
          Virtual Server,
          Port Triggering,
          NAT-DMZ,
          FTP/H.323/SIP/IPSec/PPTP ALG,
          UPnP
          Security SPI Firewall,
          VPN Passthrough,
          FTP/H.323/PPTP/SIP/IPsec ALG,
          DoS Defence,
          Ping of Death,
          Local Management
          Session Limit IP-based Session Limit
          VPN
          IPsec VPN 100 IPSec VPN Tunnels,
          LAN-to-LAN,
          Client-to-LAN,
          Main,
          Aggressive Negotiation Mode,
          DES,
          3DES,
          AES128,
          AES192,
          AES256 Encryption Algorithm,
          IKEv1/v2,
          MD5,
          SHA1 Authentication Algorithm,
          NAT Traversal (NAT-T),
          Dead Peer Detection (DPD),
          Perfect Forward Secrecy (PFS)
          PPTP VPN PPTP VPN Server,
          10 PPTP VPN Clients,
          50 Tunnels,
          PPTP with MPPE Encryption
          L2TP VPN L2TP VPN Server,
          10 L2TP VPN Clients,
          50 Tunnels,
          L2TP over IPSec
          OpenVPN OpenVPN Server,
          10 OpenVPN Clients,
          50 OpenVPN Tunnels
          Web Authentication No Authentication,
          Simple Password,
          Hotspot（Local User / Voucher* / SMS* / Radius*）,
          External Radius Sever,
          External Portal Sever,
          Facebook
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Service Dynamic DNS (Dyndns,
          No-IP,
          Peanuthull,
          Comexe)
          Maintenance Web Management Interface,
          Remote Management,
          Export & Import Configuration,
          SNMP v1/v2c/v3,
          Diagnostics (Ping & Traceroute),
          NTP Synchronize,
          Syslog Support
          Management Features Automatic Device Discovery,
          Intelligent Network Monitoring,
          Abnormal Event Warnings,
          Unified Configuration,
          Reboot Schedule,
          Captive Portal Configuration,
          ZTP (Zero-Touch Provisioning)
          Dimensions 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
          Operating temperature 0°C ÷ 40°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power internal,
          ~230V AC 50Hz
          Certificates CE,
          FCC,
          RoHS
          Manufacturer TP-Link
          Gigabit VPN Router, 5x 10/100/1000 RJ-45, 1 SFP slots, desktop (TP-Link TL-ER7206)
          Net Price: 138.00 USD
          product card»
          #09457
          NEW

          Gigabit VPN Router, 5x 10/100/1000 RJ-45, 1 SFP slots, desktop (TP-Link ER7406)

          • 1× Gigabit SFP WAN/LAN port
          • 5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN)
          • 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
          • Load Balancing on up to 5 WAN ports raises the utilization rate of multi-line broadband
          • High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
          • Centralized cloud management via the web or the Omada app*
          • DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.
          • Rackmount/Desktop
          Standards IEEE 802.3u/ab/z/x/q
          Copper ports 1x Fixed Gigabit RJ45 WAN Port,
          2x Fixed Gigabit RJ45 LAN Ports,
          2x Changeable Gigabit RJ45 WAN/LAN Ports
          Free slots 1x Fixed Gigabit SFP WAN Port
          Flash NAND 128MB
          DRAM 512MB DDR4
          Performance
          Concurrent Session 150,000
          IPsec VPN Throughput ESP-SHA1-AES256 617,1 Mb/s,
          ESP-SHA256-AES256 592,8 Mb/s,
          ESP-SHA384-AES256 592,4 Mb/s,
          ESP-SHA512-AES256 604,5 Mb/s
          Basic functions
          WAN Connection Type Static/Dynamic IP,
          PPPoE,
          PPTP,
          L2TP
          MAC Clone Modify WAN/LAN MAC Address
          DHCP DHCP Server,
          DHCP Address Reservation,
          Multi-IP Interfaces,
          Multi-Net DHCP
          IPv6 Developing
          VLAN 802.1Q VLAN
          IPTV IGMP v2/v3 Proxy
          Advanced functions
          ACL IP/Port/Protocol/Domain Name Filtering
          Advanced Routing Static Routing,
          Policy Routing
          Bandwidth Control IP/Port-based Bandwidth Control,
          Guarantee & Limited Bandwidth
          Load Balance Intelligent Load Balance,
          Application Optimized Routing,
          Link Backup (Timing§,
          Failover),
          Online Detection
          NAT One-to-One NAT,
          Multi-Net NAT,
          Virtual Server,
          Port Triggering,
          NAT-DMZ,
          FTP/H.323/SIP/IPSec/PPTP ALG,
          UPnP
          Security SPI Firewall,
          VPN Passthrough,
          FTP/H.323/PPTP/SIP/IPsec ALG,
          DoS Defence,
          Ping of Death,
          Local Management
          Session Limit IP-based Session Limit
          VPN
          IPsec VPN 100 IPSec VPN Tunnels,
          LAN-to-LAN,
          Client-to-LAN,
          Main,
          Aggressive Negotiation Mode,
          DES,
          3DES,
          AES128,
          AES192,
          AES256 Encryption Algorithm,
          IKEv1/v2,
          MD5,
          SHA1 Authentication Algorithm,
          NAT Traversal (NAT-T),
          Dead Peer Detection (DPD),
          Perfect Forward Secrecy (PFS)
          PPTP VPN PPTP VPN Server,
          10 PPTP VPN Clients,
          50 Tunnels,
          PPTP with MPPE Encryption
          L2TP VPN L2TP VPN Server,
          10 L2TP VPN Clients,
          50 Tunnels,
          L2TP over IPSec
          OpenVPN OpenVPN Server,
          10 OpenVPN Clients,
          50 OpenVPN Tunnels
          Web Authentication No Authentication,
          Simple Password,
          Hotspot（Local User / Voucher* / SMS* / Radius*）,
          External Radius Sever,
          External Portal Sever,
          Facebook
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Service Dynamic DNS (Dyndns,
          No-IP,
          Peanuthull,
          Comexe)
          Maintenance Web Management Interface,
          Remote Management,
          Export & Import Configuration,
          SNMP v1/v2c/v3,
          Diagnostics (Ping & Traceroute),
          NTP Synchronize,
          Syslog Support
          Management Features Automatic Device Discovery,
          Intelligent Network Monitoring,
          Abnormal Event Warnings,
          Unified Configuration,
          Reboot Schedule,
          Captive Portal Configuration,
          ZTP (Zero-Touch Provisioning)
          Dimensions 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
          Operating temperature 0°C ÷ 50°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power internal,
          ~230V AC 50Hz
          Certificates CE,
          FCC,
          RoHS
          Manufacturer TP-Link
          Gigabit VPN Router, 5x 10/100/1000 RJ-45, 1 SFP slots, desktop (TP-Link ER7406)
          Net Price: 144.00 USD
          product card»
          #09319

          Gigabit VPN Router Omada, 2x 2.5G, 4x 10/100/1000 RJ-45, 1 SFP slots, desktop (TP-Link ER707-M2)

          • Two 2.5G Ports: 1× 2.5G WAN and 1× 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.
          • Up to 6 WAN Ports: 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
          • Highly Secure VPN: Enterprise-standard SSL/IPSec/GER§/PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
          • Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP),** Centralized Cloud Management, Intelligent Monitoring, and more.
          • Centralized Management: Cloud access and Omada app provide the utmost in management convenience.
          • Extensive Security Features: Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.
          Standards IEEE 802.3u/ab/z/x/q
          Copper ports 1× 2.5G RJ45 WAN Port,
          1× 2.5G RJ45 WAN/LAN Port,
          1× Gigabit SFP WAN/LAN Port,
          4× Gigabit RJ45 WAN/LAN Ports,
          1× USB 2.0 Port (Supports USB storage,
          and LTE backup with LTE dongle)
          Flash 128 MB NAND
          DRAM 1 GB DDR4
          Performance
          Concurrent Session 500,000
          New Sessions /Second 6,000
          NAT (Static IP) 2365,17 Mb/s / 2364,45 Mb/s
          NAT(DHCP) 2364,45 Mb/s / 2366,04 Mb/s
          NAT(PPPoE) 2347,14 Mb/s / 2348,29 Mb/s
          NAT (L2TP) 1308,86 Mb/s / 974,10 Mb/s
          NAT (PPTP) 1236,27 Mb/s / 1280,99 Mb/s
          IPsec VPN Throughput ESP-SHA1-AES256 673.3 Mb/s,
          ESP-SHA256-AES256 650.2 Mb/s,
          ESP-SHA384-AES256 629.3 Mb/s,
          ESP-SHA512-AES256 633.8 Mb/s
          L2TP VPN Throughput Unencrypted 1243,7 Mb/s,
          Encrypted 561,0 Mb/s
          SSL VPN Throughput 132,24 Mb/s
          66 Byte Packet forwarding rate 1832,69 Mb/s / 1741,84 Mb/s
          1,518 Byte Packet forwarding rate 2461,18 Mb/s / 2457,32 Mb/s
          Basic functions
          WAN Connection Type Static/Dynamic IP,
          PPPoE,
          PPTP,
          L2TP
          MAC Clone Modify WAN/LAN MAC Address
          DHCP DHCP Server,
          DHCP Address Reservation,
          Multi-IP Interfaces,
          Multi-Net DHCP
          IPv6 Developing
          VLAN 802.1Q VLAN
          IPTV IGMP v2/v3 Proxy
          Advanced functions
          ACL IP/Port/Protocol/Domain Name Filtering
          Advanced Routing Static Routing,
          Policy Routing
          Bandwidth Control IP/Port-based Bandwidth Control,
          Guarantee & Limited Bandwidth
          Load Balance Intelligent Load Balance,
          Application Optimized Routing,
          Link Backup (Timing§,
          Failover),
          Online Detection
          NAT One-to-One NAT,
          Multi-Net NAT,
          Virtual Server,
          Port Triggering,
          NAT-DMZ,
          FTP/H.323/SIP/IPSec/PPTP ALG,
          UPnP
          Security SPI Firewall,
          VPN Passthrough,
          FTP/H.323/PPTP/SIP/IPsec ALG,
          DoS Defence,
          Ping of Death,
          Local Management
          Session Limit IP-based Session Limit
          VPN
          IPsec VPN 100 IPSec VPN Tunnels,
          LAN-to-LAN,
          Client-to-LAN,
          Main,
          Aggressive Negotiation Mode,
          DES,
          3DES,
          AES128,
          AES192,
          AES256 Encryption Algorithm,
          IKEv1/v2,
          MD5,
          SHA1 Authentication Algorithm,
          NAT Traversal (NAT-T),
          Dead Peer Detection (DPD),
          Perfect Forward Secrecy (PFS)
          PPTP VPN PPTP VPN Server,
          10 PPTP VPN Clients,
          50 Tunnels,
          PPTP with MPPE Encryption
          L2TP VPN L2TP VPN Server,
          10 L2TP VPN Clients,
          50 Tunnels,
          L2TP over IPSec
          OpenVPN OpenVPN Server,
          10 OpenVPN Clients,
          50 OpenVPN Tunnels
          Web Authentication No Authentication,
          Simple Password,
          Hotspot（Local User / Voucher* / SMS* / Radius*）,
          External Radius Sever,
          External Portal Sever,
          Facebook
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Service Dynamic DNS (Dyndns,
          No-IP,
          Peanuthull,
          Comexe)
          Maintenance Web Management Interface,
          Remote Management,
          Export & Import Configuration,
          SNMP v1/v2c/v3,
          Diagnostics (Ping & Traceroute),
          NTP Synchronize,
          Syslog Support
          Management Features Automatic Device Discovery,
          Intelligent Network Monitoring,
          Abnormal Event Warnings,
          Unified Configuration,
          Reboot Schedule,
          Captive Portal Configuration,
          ZTP (Zero-Touch Provisioning)
          Dimensions 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
          Operating temperature 0°C ÷ 40°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power 12V/1,5A Power Adapter
          Max Power Consumption 14.2 W (with USB2.0 connected),
          7.1 W (without USB2.0 connected)
          Certificates CE,
          FCC,
          RoHS
          Manufacturer TP-Link
          Gigabit VPN Router Omada, 2x 2.5G, 4x 10/100/1000 RJ-45, 1 SFP slots, desktop (TP-Link ER707-M2)
          Net Price: 147.00 USD
          product card»
          #09255

          Gigabit VPN Router Omada 3-in-1, 10x 10/100/1000 RJ-45, 2 SFP slots, PoE+, desktop (TP-Link ER7212PC)

          • 3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether.

            • -Professional Hardware: Dual-Core CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.

          • Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
          • 110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W.
          • Centralized Management: Cloud access and the Omada app offer convenience and easy management.
          • Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
          • Easy Installation: Fanless and compact design for desktop and wall mounting.
          Standards IEEE 802.3u/ab/z/x/q
          Copper ports 1x Fixed Gigabit RJ45 WAN Port,
          10x Fixed Gigabit RJ45 LAN Ports,
          1x Gigabit RJ45 WAN/LAN Ports
          Free slots 2x Fixed Gigabit SFP WAN Port
          PoE Budget 8 ports PoE+ output,
          110 W PoE Budget
          Flash 8Mb NOR + 4 GB EMMC
          DRAM 1 GB DDR3
          Protection 4 kV surge protection
          Enclosure Steel
          Performance
          Concurrent Session 24,980
          IPsec VPN Throughput 291.6 Mbps
          New Sessions /Second 1,900
          NAT (Static IP) 935,5 Mb/s / 942,1 Mb/s
          NAT(DHCP) 940,2 Mb/s / 941,7 Mb/s
          NAT(PPPoE) 913,1 Mb/s / 935,2 Mb/s
          NAT (L2TP) 545,0 Mb/s / 912,7 Mb/s
          NAT (PPTP) 523,0 Mb/s / 912,8 Mb/s
          IPsec VPN Throughput (AES256) 168,5 Mb/s
          OpenVPN 34 Mb/s
          L2TP VPN Throughput Unencrypted- 845,3 Mb/s,
          Encrypted- 333,2 Mb/s
          PPTP VPN Throughput Unencrypted- 1012,6 Mb/s,
          Encrypted- 401,4 Mb/s
          66 Byte Packet forwarding rate 154,069 pps / 156,977 pps
          1,518 Byte Packet forwarding rate 81,193 pps / 81,193 pps
          Basic functions
          WAN Connection Type Static/Dynamic IP,
          PPPoE,
          PPTP,
          L2TP
          MAC Clone Modify WAN/LAN MAC Address
          DHCP DHCP Server,
          DHCP Address Reservation,
          Multi-IP Interfaces,
          Multi-Net DHCP
          IPv6 Developing
          VLAN 802.1Q VLAN
          IPTV IGMP v2/v3 Proxy
          Advanced functions
          ACL IP/Port/Protocol/Domain Name Filtering
          Advanced Routing Static Routing,
          Policy Routing
          Bandwidth Control IP/Port-based Bandwidth Control,
          Guarantee & Limited Bandwidth
          Load Balance Intelligent Load Balance,
          Application Optimized Routing,
          Link Backup (Timing§,
          Failover),
          Online Detection
          NAT One-to-One NAT,
          Multi-Net NAT,
          Virtual Server,
          Port Triggering,
          NAT-DMZ,
          FTP/H.323/SIP/IPSec/PPTP ALG,
          UPnP
          Security SPI Firewall,
          VPN Passthrough,
          FTP/H.323/PPTP/SIP/IPsec ALG,
          DoS Defence,
          Ping of Death,
          Local Management
          Session Limit IP-based Session Limit
          VPN
          IPsec VPN 100 IPSec VPN Tunnels,
          LAN-to-LAN,
          Client-to-LAN,
          Main,
          Aggressive Negotiation Mode,
          DES,
          3DES,
          AES128,
          AES192,
          AES256 Encryption Algorithm,
          IKEv1/v2,
          MD5,
          SHA1 Authentication Algorithm,
          NAT Traversal (NAT-T),
          Dead Peer Detection (DPD),
          Perfect Forward Secrecy (PFS)
          PPTP VPN PPTP VPN Server,
          10 PPTP VPN Clients,
          50 Tunnels,
          PPTP with MPPE Encryption
          L2TP VPN L2TP VPN Server,
          10 L2TP VPN Clients,
          50 Tunnels,
          L2TP over IPSec
          OpenVPN OpenVPN Server,
          10 OpenVPN Clients,
          50 OpenVPN Tunnels
          Web Authentication No Authentication,
          Simple Password,
          Hotspot（Local User / Voucher* / SMS* / Radius*）,
          External Radius Sever,
          External Portal Sever,
          Facebook
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Service Dynamic DNS (Dyndns,
          No-IP,
          Peanuthull,
          Comexe)
          Maintenance Web Management Interface,
          Remote Management,
          Export & Import Configuration,
          SNMP v1/v2c/v3,
          Diagnostics (Ping & Traceroute),
          NTP Synchronize,
          Syslog Support
          Management Features Automatic Device Discovery,
          Intelligent Network Monitoring,
          Abnormal Event Warnings,
          Unified Configuration,
          Reboot Schedule,
          Captive Portal Configuration,
          ZTP (Zero-Touch Provisioning)
          Dimensions 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
          Operating temperature 0°C ÷ 45°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power 53.5VDC/2.43A Adapter
          Certificates CE,
          FCC,
          RoHS
          Manufacturer TP-Link
          Gigabit VPN Router Omada 3-in-1, 10x 10/100/1000 RJ-45, 2 SFP slots, PoE+, desktop (TP-Link ER7212PC)
          Net Price: 184.00 USD
          product card»
          #09456
          NEW

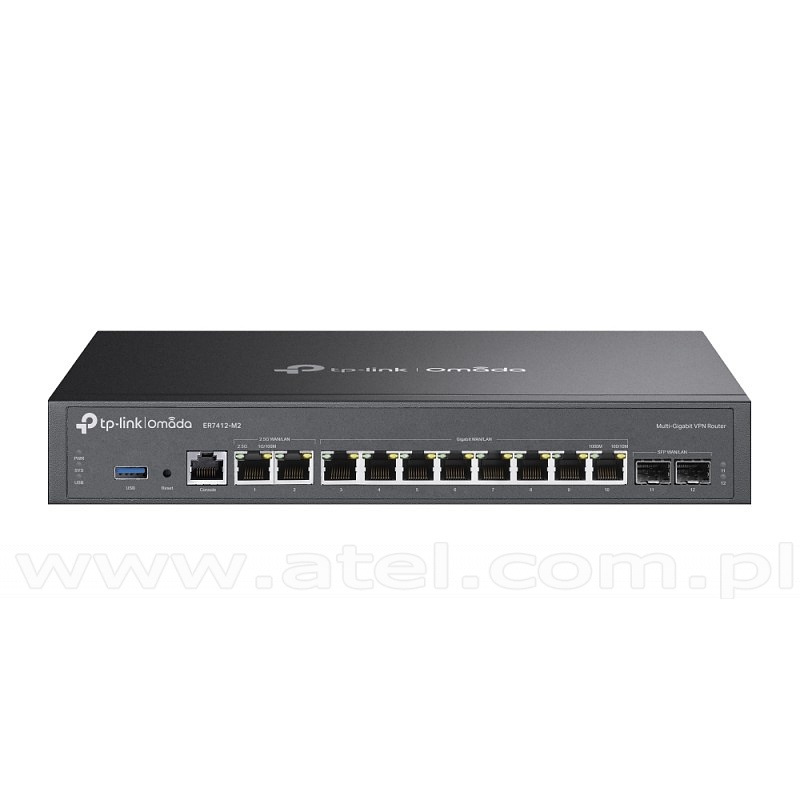

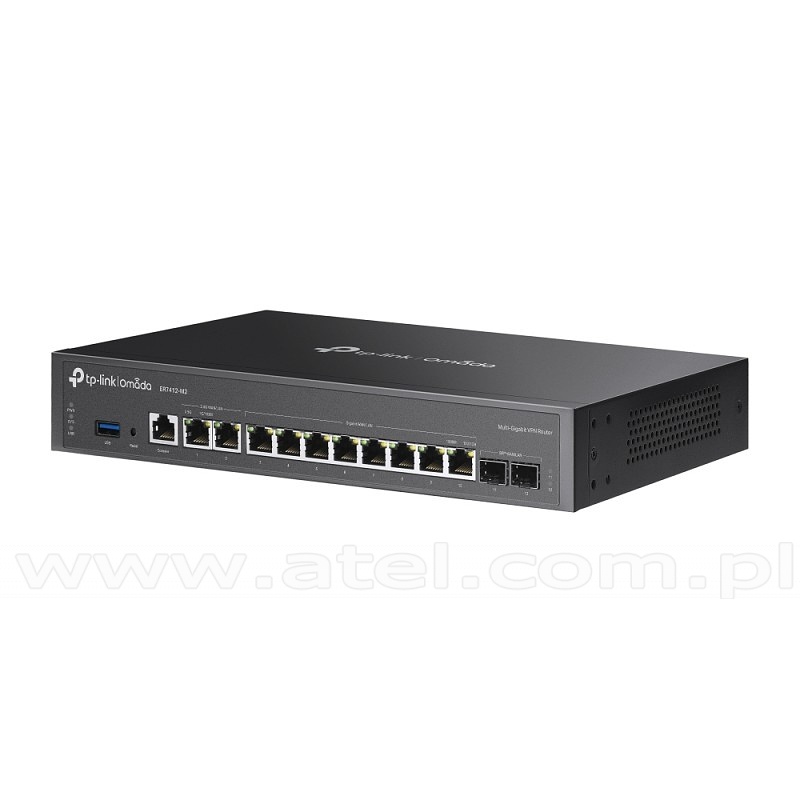

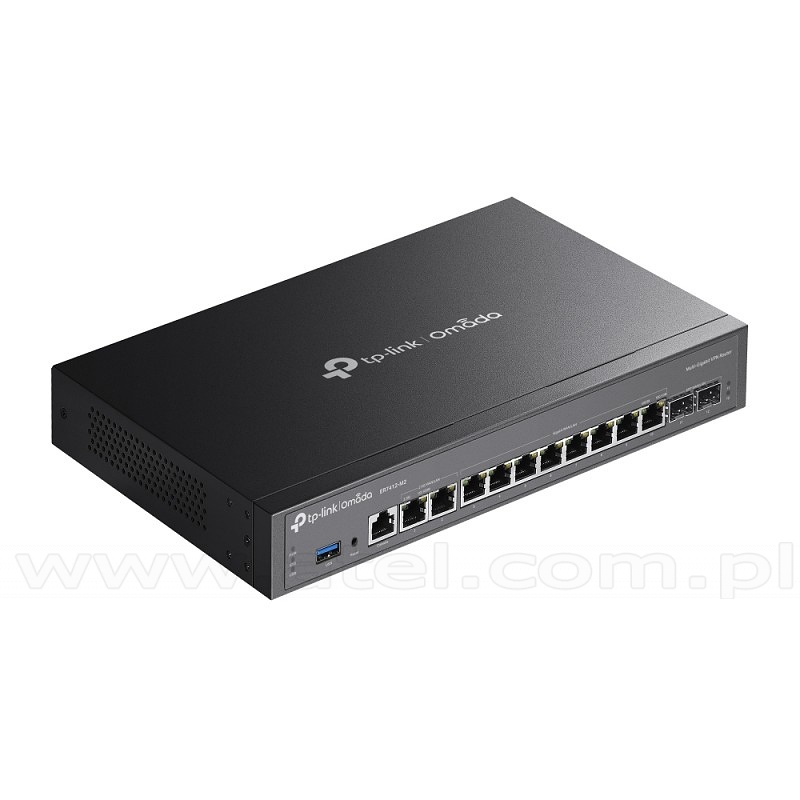

          Gigabit VPN Router Omada, 2x 2.5G, 8x 10/100/1000 RJ-45, 2 SFP slots, 19" (TP-Link ER7412-M2)

          • Quad-core @2.0GHz CPU
          • 2× 2.5G RJ45 WAN/LAN ports
          • 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
          • 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
          • Load Balancing on up to 11 WAN ports△ increases the utilization rate of multi-line broadband
          • High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
          • Centralized cloud management via the web or the Omada app
          • DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
          Standards IEEE 802.3u/ab/z/x/q
          Copper ports 1× 2.5G RJ45 WAN/LAN Port,
          1× 2.5G RJ45 WAN/LAN Port,
          2× Gigabit SFP WAN/LAN Ports,
          8× Gigabit RJ45 WAN/LAN Ports,
          1× USB 3.0 Port ,
          1× RJ45 Console Port
          Flash 128 MB NAND
          DRAM 1 GB DDR4
          Performance
          Concurrent Session 1000000
          New Sessions /Second 7000
          NAT (Static IP) 2345,71 Mb/s / 2351,22 Mb/s
          NAT(DHCP) 2353,41 Mb/s / 2353,40 Mb/s
          NAT(PPPoE) 2336,52 Mb/s / 2336,08 Mb/s
          NAT (L2TP) 1937,53 Mb/s / 1761,82 Mb/s
          NAT (PPTP) 1757,54 Mb/s / 2011,33 Mb/s
          IPsec VPN Throughput ESP-SHA1-AES256 1125,60 Mb/s,
          ESP-SHA256-AES256 1133,1 Mb/s,
          ESP-SHA384-AES256 1126,6 Mb/s,
          ESP-SHA512-AES256 1132,8 Mb/s
          L2TP VPN Throughput Unencrypted 2724.5 Mbps,
          Encrypted 1018.4Mbps
          SSL VPN Throughput 263,1 Mb/s
          66 Byte Packet forwarding rate 1833 Mb/s / 1835 Mb/s
          1,518 Byte Packet forwarding rate 2461 Mb/s / 2461 Mb/s
          Basic functions
          WAN Connection Type Static/Dynamic IP,
          PPPoE,
          PPTP,
          L2TP
          MAC Clone Modify WAN/LAN MAC Address
          DHCP DHCP Server,
          DHCP Address Reservation,
          Multi-IP Interfaces,
          Multi-Net DHCP
          IPv6 Developing
          VLAN 802.1Q VLAN
          IPTV IGMP v2/v3 Proxy
          Advanced functions
          ACL Source/Destination IP-Based ACL,
          Stateful ACL,
          IPv4/IPv6 ACL,
          Location Based ACL
          Advanced Routing Static Routing,
          Policy Routing
          Bandwidth Control IP/Port-based Bandwidth Control,
          Guarantee & Limited Bandwidth
          Load Balance Intelligent Load Balance,
          Application Optimized Routing,
          Link Backup (Timing§,
          Failover),
          Online Detection
          NAT One-to-One NAT,
          Multi-Net NAT,
          Virtual Server,
          Port Triggering,
          NAT-DMZ,
          FTP/H.323/SIP/IPSec/PPTP ALG,
          UPnP
          Security SPI Firewall,
          VPN Passthrough,
          FTP/H.323/PPTP/SIP/IPsec ALG,
          DoS Defence,
          Ping of Death,
          Local Management
          Session Limit IP-based Session Limit
          VPN
          IPsec VPN 100 IPSec VPN Tunnels,
          LAN-to-LAN,
          Client-to-LAN,
          Main,
          Aggressive Negotiation Mode,
          DES,
          3DES,
          AES128,
          AES192,
          AES256 Encryption Algorithm,
          IKEv1/v2,
          MD5,
          SHA1 Authentication Algorithm,
          NAT Traversal (NAT-T),
          Dead Peer Detection (DPD),
          Perfect Forward Secrecy (PFS)
          PPTP VPN PPTP VPN Server,
          10 PPTP VPN Clients,
          50 Tunnels,
          PPTP with MPPE Encryption
          L2TP VPN L2TP VPN Server,
          10 L2TP VPN Clients,
          50 Tunnels,
          L2TP over IPSec
          OpenVPN OpenVPN Server,
          10 OpenVPN Clients,
          50 OpenVPN Tunnels
          Web Authentication No Authentication,
          Simple Password,
          Hotspot（Local User / Voucher* / SMS* / Radius*）,
          External Radius Sever,
          External Portal Sever,
          Facebook
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Service Dynamic DNS (Dyndns,
          No-IP,
          Peanuthull,
          Comexe)
          Maintenance Web Management Interface,
          Remote Management,
          Export & Import Configuration,
          SNMP v1/v2c/v3,
          Diagnostics (Ping & Traceroute),
          NTP Synchronize,
          Syslog Support
          Management Features Automatic Device Discovery,
          Intelligent Network Monitoring,
          Abnormal Event Warnings,
          Unified Configuration,
          Reboot Schedule,
          Captive Portal Configuration,
          ZTP (Zero-Touch Provisioning)
          Dimensions 11.6×7.1×1.7 in (294×180×44 mm)
          Operating temperature 0°C ÷ 45°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Max Power Consumption 18.5W (With USB 3.0 connected)
          Certificates CE,
          FCC
          Manufacturer TP-Link
          Gigabit VPN Router Omada, 2x 2.5G, 8x 10/100/1000 RJ-45, 2 SFP slots, 19" (TP-Link ER7412-M2)
          Net Price: 196.00 USD
          product card»
          #09458
          NEW

          3000Mbps Wireless gigabit VPN Router Omada, 5x 10/100/1000 RJ-45, 1 SFP slots, desktop (TP-Link ER706W-4G)

          • Support 4G+ Cat6 up to 300 Mbps (Not compatible with AT&T's Text & Data plans in the US).
          • AX3000 Dual-Band WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
          • 1× Gigabit WAN Port, 5× Gigabit WAN/LAN Ports
          • 5 × High-Gain Detachable Antennas
          • Centralized Management
          • Omada Mesh Technology.
          • IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN.
          Standards IEEE 802.3u/ab/z/x/q
          Copper ports 1 Gigabit SFP WAN/LAN Port,
          1 Gigabit WAN Port,
          4 Gigabit LAN/WAN Ports
          Flash 128 MB NAND
          DRAM 512 MB DDR4
          Antenna Wi-Fi Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas,
          LTE Two 4.0dBi omnidirectional detachable antennas
          4G
          Network Type LTE Band of EU,
          4G LTE-FDD B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz),
          4G LTE-TDD B38/B40/B41 (2600/2300/2500 MHz),
          3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA B1/B3/B5/B8 (2100/1800/850/900 MHz),
          Carrier Aggregation of EU- B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41,
          B3+B3/B5/B7/B8/B20/B28/B38/B40/B41,
          B5+B5/B7/B38/B40/B41,
          B7+B7/B8/B20/B28/B32,
          B8+B32/B38/B40/B41,
          B20+B32/B38/B40,
          B28+B32/B38/B40/B41,
          B38+B38,
          B40+B40,
          B41+B41,
          LTE Band of US- 4G LTE-FDD B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71,
          (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz),
          4G LTE-TDD B41/B48 (2500/3600 MHz),
          Carrier Aggregation of US- B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71,
          B4+B4/B5/B7/B12/B13/B29/B30/B71,
          B5+B5/B7/B25/B30/B41/B66,
          B7+B7/B12/B66,
          B12+B12/B25/B30/B66,
          B13+B66,
          B14+B30/B66,
          B25+B25/B26/B41,
          B26+B41,
          B29+B30/B66,
          B30+B66,
          B41+B41,
          B48+B48,
          B66+B66/B71
          SIM Type 1× Nano SIM Card
          Frequency Downlink 300 Mbps; Uplink 50 Mbps
          Performance
          GRE Unencrypted 545.3Mbps,
          Encrypted 282.6Mbps
          WireGuard VPN 387,7Mb/s
          Concurrent Session 150,000
          New Sessions /Second 5,100
          NAT (Static IP) 947,1Mb/s / 940,1Mb/s
          NAT(DHCP) 949,2Mb/s / 941,1Mb/s
          NAT(PPPoE) 942,6Mb/s / 941,1Mb/s
          NAT (L2TP) 875,4Mb/s / 892,0Mb/s
          NAT (PPTP) 881,2Mb/s / 895,8Mb/s
          IPsec VPN Throughput ESP-SHA1-AES256 646,9 Mb/s,
          ESP-SHA256-AES256 642,8 Mb/s,
          ESP-SHA384-AES256 648,9 Mb/s,
          ESP-SHA512-AES256 658,4 Mb/s
          OpenVPN 115,5Mb/s
          L2TP VPN Throughput Unencrypted 990.0Mbps,
          Encrypted 475.0Mbps
          PPTP VPN Throughput Unencrypted 1177.9Mbps,
          Encrypted 177.4Mbps
          SSL VPN Throughput 122,5Mb/s
          66 Byte Packet forwarding rate 1,453,489 p/s / 1,453,488 p/s
          1,518 Byte Packet forwarding rate 81274 pps / 91275 pps
          Basic functions
          WAN Connection Type Static/Dynamic IP,
          PPPoE,
          PPTP,
          L2TP
          MAC Clone Modify WAN/LAN MAC Address
          DHCP DHCP Server,
          DHCP Address Reservation,
          Multi-IP Interfaces,
          Multi-Net DHCP
          IPv6 Developing
          VLAN 802.1Q VLAN
          IPTV IGMP v2/v3 Proxy
          Advanced functions
          ACL IP/Port/Protocol/Domain Name Filtering
          Advanced Routing Static Routing,
          Policy Routing
          Bandwidth Control IP/Port-based Bandwidth Control,
          Guarantee & Limited Bandwidth
          Load Balance Intelligent Load Balance,
          Application Optimized Routing,
          Link Backup (Timing§,
          Failover),
          Online Detection
          NAT One-to-One NAT,
          Multi-Net NAT,
          Virtual Server,
          Port Triggering,
          NAT-DMZ,
          FTP/H.323/SIP/IPSec/PPTP ALG,
          UPnP
          Security SPI Firewall,
          VPN Passthrough,
          FTP/H.323/PPTP/SIP/IPsec ALG,
          DoS Defence,
          Ping of Death,
          Local Management
          Session Limit IP-based Session Limit
          VPN
          IPsec VPN 100 IPSec VPN Tunnels,
          LAN-to-LAN,
          Client-to-LAN,
          Main,
          Aggressive Negotiation Mode,
          DES,
          3DES,
          AES128,
          AES192,
          AES256 Encryption Algorithm,
          IKEv1/v2,
          MD5,
          SHA1 Authentication Algorithm,
          NAT Traversal (NAT-T),
          Dead Peer Detection (DPD),
          Perfect Forward Secrecy (PFS)
          PPTP VPN PPTP VPN Server,
          10 PPTP VPN Clients,
          50 Tunnels,
          PPTP with MPPE Encryption
          L2TP VPN L2TP VPN Server,
          10 L2TP VPN Clients,
          50 Tunnels,
          L2TP over IPSec
          OpenVPN OpenVPN Server,
          10 OpenVPN Clients,
          50 OpenVPN Tunnels
          Web Authentication No Authentication,
          Simple Password,
          Hotspot（Local User / Voucher* / SMS* / Radius*）,
          External Radius Sever,
          External Portal Sever,
          Facebook
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Service Dynamic DNS (Dyndns,
          No-IP,
          Peanuthull,
          Comexe)
          Maintenance Web Management Interface,
          Remote Management,
          Export & Import Configuration,
          SNMP v1/v2c/v3,
          Diagnostics (Ping & Traceroute),
          NTP Synchronize,
          Syslog Support
          Management Features Automatic Device Discovery,
          Intelligent Network Monitoring,
          Abnormal Event Warnings,
          Unified Configuration,
          Reboot Schedule,
          Captive Portal Configuration,
          ZTP (Zero-Touch Provisioning)
          Dimensions 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
          Operating temperature 0°C ÷ 40°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power 12VDC / 2A Power Adapter
          Max Power Consumption EU 15.4W,
          US 17.3W
          Certificates CE,
          FCC,
          RoHS
          Manufacturer TP-Link
          3000Mbps Wireless gigabit VPN Router Omada, 5x 10/100/1000 RJ-45, 1 SFP slots, desktop (TP-Link ER706W-4G)
          Net Price: 288.00 USD
          product card»
          #09256

          Gigabit VPN Router Omada, 8x 10/100/1000 RJ-45, 2 SFP 10G slots, 19" (TP-Link ER8411)

          • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*3, Centralized Cloud Management, and Intelligent Monitoring.
          • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
          • Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
          • Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
          • Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.
          • Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.
          Standards IEEE 802.3u/ab/z/x/q
          Copper ports 2× 10GE SFP+ Ports (1 WAN,
          1 WAN/LAN),
          1× 1GE SFP WAN/LAN Ports,
          8× 1GE RJ45 WAN/LAN Ports,
          1× RJ45 Console Ports,
          2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
          Flash 4MB SPI NOR + 256 MB NAND
          DRAM 4 GB DDR4
          LED PWR,
          SYS,
          WAN,
          LAN,
          USB,
          FAN
          Max Power Consumption 26.36 W (with USB 3.0 connected),
          19.12 W (without USB 3.0 connected)
          Protection 4 kV surge protection
          Performance
          Concurrent Session 2,300,000
          New Sessions /Second 20,000
          NAT (Static IP) Upload- 9445.82 Mbps,
          Download- 9449.26 Mbps
          NAT(DHCP) Upload- 9426.83 Mbps,
          Download- 9426.20 Mbps
          NAT(PPPoE) Upload- 9413.96 Mbps,
          Download- 9102.01 Mbps
          NAT (L2TP) Upload- 4230.62 Mbps,
          Download- 4169.53 Mbps
          NAT (PPTP) Upload- 3933.86 Mbps,
          Download- 3821.97 Mbps
          64 Byte Packet Forwarding Rate Upload- 1080 Mbps,
          Download- 1030 Mbps
          IPsec VPN Throughput SHA1-AES256- 2140.45 Mbps,
          SHA2-AES256- 2080.20 Mbps
          OpenVPN 1665.64 Mbps
          L2TP VPN Throughput Unencrypted- 5013.50 Mbps,
          Encrypted- 2274.74 Mbps
          PPTP VPN Throughput Unencrypted- 3933.86 Mbps,
          Encrypted- 3821.97Mbps
          SSL VPN Throughput 1511.10 Mbps
          1,518 Byte Packet forwarding rate Upload- 9970 Mbps,
          Download- 9970 Mbps
          Basic functions
          WAN Connection Type Static/Dynamic IP,
          PPPoE,
          PPTP,
          L2TP,
          6to4 Tunnel,
          Pass-Through,
          Mobile Broadband- 4G/3G modem for backup via USB port
          MAC Clone Modify WAN/LAN MAC Address
          DHCP DHCP Server,
          DHCP Address Reservation,
          Multi-IP Interfaces,
          Multi-Net DHCP
          IPv6 WAN Connection
          VLAN 802.1Q VLAN
          IPTV IGMP v2/v3 Proxy
          Advanced functions
          ACL IP/Port/Protocol/Domain Name Filtering
          Advanced Routing Static Routing,
          Policy Routing
          Bandwidth Control IP/Port-based Bandwidth Control,
          Guarantee & Limited Bandwidth
          Load Balance Intelligent Load Balance,
          Application Optimized Routing,
          Link Backup (Timing§,
          Failover),
          Online Detection
          NAT One-to-One NAT,
          Multi-Net NAT,
          Virtual Server,
          Port Triggering,
          NAT-DMZ,
          FTP/H.323/SIP/IPSec/PPTP ALG,
          UPnP
          Security SPI Firewall,
          VPN Passthrough,
          FTP/H.323/PPTP/SIP/IPsec ALG,
          DoS Defence,
          Ping of Death,
          Local Management
          Session Limit IP-based Session Limit
          VPN
          SSL VPN SSL VPN Server,
          SSL VPN Client,
          500 SSL VPN Tunnels
          IPsec VPN 300 IPSec VPN Tunnels,
          LAN-to-LAN,
          Client-to-LAN,
          Main,
          Aggressive Negotiation Mode,
          DES,
          3DES,
          SHA1,
          SHA2,
          AES128,
          AES192,
          AES256 Encryption Algorithm,
          IKE v1/v2,
          MD5,
          SHA1 Authentication Algorithm,
          NAT Traversal (NAT-T),
          Dead Peer Detection (DPD),
          Perfect Forward Secrecy (PFS)
          PPTP VPN PPTP VPN Server,
          PPTP VPN Client (32),
          300 Tunnels (Shared with L2TP),
          PPTP with MPPE Encryption
          L2TP VPN L2TP VPN Server,
          L2TP VPN Client (32),
          300 Tunnels (Shared with PPTP),
          L2TP over IPSec
          OpenVPN OpenVPN Server,
          OpenVPN Client (10),
          110 OpenVPN Tunnels
          Web Authentication No Authentication,
          Simple Password,
          Hotspot（Local User / Voucher* / SMS* / Radius*）,
          External Radius Sever,
          External Portal Sever,
          Facebook
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Service Dynamic DNS (Dyndns,
          No-IP,
          Peanuthull,
          Comexe)
          Maintenance Web Management Interface,
          Remote Management,
          Export & Import Configuration,
          SNMP v1/v2c/v3,
          Diagnostics (Ping & Traceroute),
          NTP Synchronize,
          Syslog Support
          Management Features Automatic Device Discovery,
          Intelligent Network Monitoring,
          Abnormal Event Warnings,
          Unified Configuration,
          Reboot Schedule,
          Captive Portal Configuration,
          ZTP (Zero-Touch Provisioning)
          Dimensions 17,3 × 8,7 × 1,7 in (440 × 220 × 44 mm)
          Operating temperature 0°C ÷ 40°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power Redundant Dual Power Supplies (100–240 VAC,
          50/60 Hz)
          Certificates CE,
          FCC,
          RoHS
          Manufacturer TP-Link
          Gigabit VPN Router Omada, 8x 10/100/1000 RJ-45, 2 SFP 10G slots, 19" (TP-Link ER8411)
          Net Price: 413.00 USD
          product card»
      • » DSL ROUTERS
          #09126

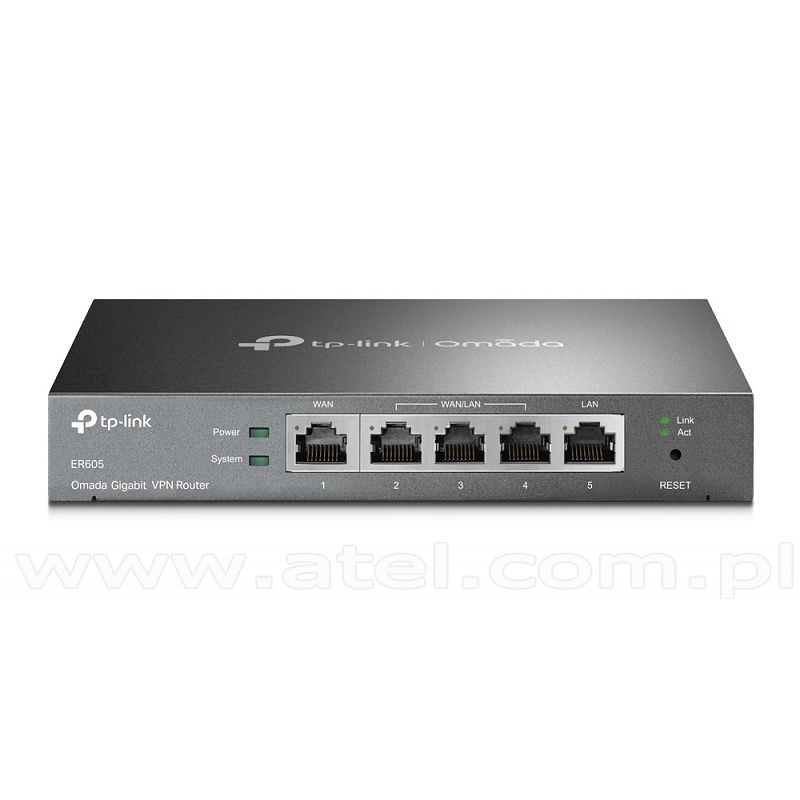

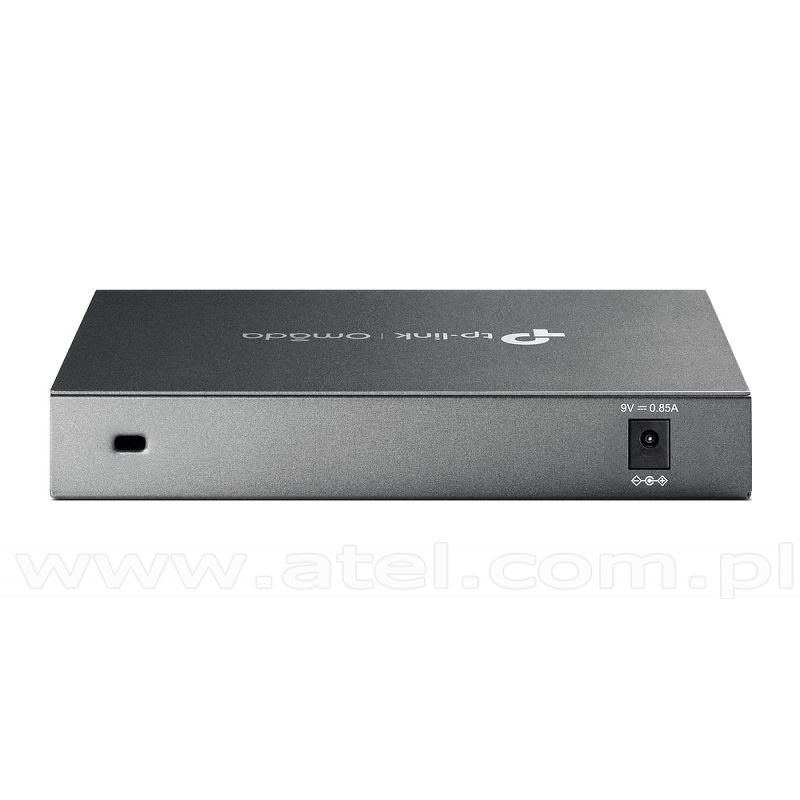

          Gigabit VPN Router Omada, 5x 10/100/1000 RJ-45, desktop (TP-Link TL-ER605 (TL-R605))

          • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
          • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
          • Five Gigabit Ports: High-speed wired connectivity.

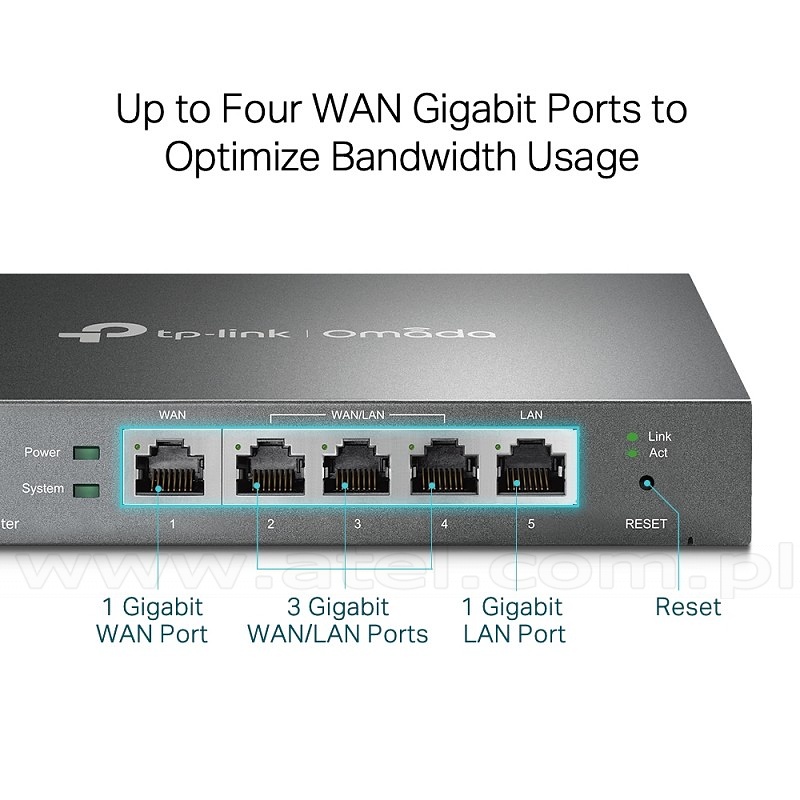

          • Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
          • Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
          • Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
          Standards IEEE 802.3u/ab/x/q
          Copper ports 1x Fixed Gigabit RJ45 WAN Port,
          1x Fixed Gigabit RJ45 LAN Ports,
          3x Changeable Gigabit RJ45 WAN/LAN Ports
          Flash SPI 16MB
          DRAM 128MB
          Performance
          Concurrent Session 25,000
          IPsec VPN Throughput 41,5 Mbps
          Basic functions
          WAN Connection Type Static/Dynamic IP,
          PPPoE,
          PPTP,
          L2TP
          MAC Clone Modify WAN/LAN MAC Address
          DHCP DHCP Server,
          DHCP Address Reservation,
          Multi-IP Interfaces,
          Multi-Net DHCP
          IPv6 Developing
          VLAN 802.1Q VLAN
          IPTV IGMP v2/v3 Proxy
          Advanced functions
          ACL IP/Port/Protocol/Domain Name Filtering
          Advanced Routing Static Routing,
          Policy Routing
          Bandwidth Control IP/Port-based Bandwidth Control,
          Guarantee & Limited Bandwidth
          Load Balance Intelligent Load Balance,
          Application Optimized Routing,
          Link Backup (Timing§,
          Failover),
          Online Detection
          NAT One-to-One NAT,
          Multi-Net NAT,
          Virtual Server,
          Port Triggering,
          NAT-DMZ,
          FTP/H.323/SIP/IPSec/PPTP ALG,
          UPnP
          Security SPI Firewall,
          VPN Passthrough,
          FTP/H.323/PPTP/SIP/IPsec ALG,
          DoS Defence,
          Ping of Death,
          Local Management
          Session Limit IP-based Session Limit
          VPN
          IPsec VPN 20 IPSec VPN Tunnels,
          LAN-to-LAN,
          Client-to-LAN,
          Main,
          Aggressive Negotiation Mode,
          DES,
          3DES,
          AES128,
          AES192,
          AES256 Encryption Algorithm,
          IKEv1/v2,
          MD5,
          SHA1 Authentication Algorithm,
          NAT Traversal (NAT-T),
          Dead Peer Detection (DPD),
          Perfect Forward Secrecy (PFS)
          PPTP VPN PPTP VPN Server,
          10 PPTP VPN Clients,
          16 Tunnels,
          PPTP with MPPE Encryption
          L2TP VPN L2TP VPN Server,
          10 L2TP VPN Clients,
          16 Tunnels,
          L2TP over IPSec
          OpenVPN OpenVPN Server,
          10 OpenVPN Clients,
          16 OpenVPN Tunnels
          Security
          Filtering WEB Group Filtering,
          URL Filtering,
          Web Security
          ARP Inspection Sending GARP Packets,
          ARP Scanning,
          IP-MAC Binding§
          Attack Defense TCP/UDP/ICMP Flood Defense,
          Block TCP Scan (Stealth FIN/Xmas/Null),
          Block Ping from WAN
          Access Control Source/Destination IP Based Access Control
          Web Authentication No Authentication,
          Simple Password,
          Hotspot（Local User / Voucher* / SMS* / Radius*）,
          External Radius Sever,
          External Portal Sever,
          Facebook
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Service Dynamic DNS (Dyndns,
          No-IP,
          Peanuthull,
          Comexe)
          Maintenance Web Management Interface,
          Remote Management,
          Export & Import Configuration,
          SNMP v1/v2c/v3,
          Diagnostics (Ping & Traceroute),
          NTP Synchronize,
          Syslog Support
          Management Features Automatic Device Discovery,
          Intelligent Network Monitoring,
          Abnormal Event Warnings,
          Unified Configuration,
          Reboot Schedule,
          Captive Portal Configuration,
          ZTP (Zero-Touch Provisioning)
          Dimensions 158 × 101 × 25 mm (6,2 × 4,0 × 1,0 in)
          Operating temperature 0°C ÷ 40°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power internal,
          ~230V AC 50Hz
          Certificates CE,
          FCC,
          RoHS
          Manufacturer TP-Link
          Gigabit VPN Router Omada, 5x 10/100/1000 RJ-45, desktop (TP-Link TL-ER605 (TL-R605))
          Net Price: 49.50 USD
          product card»


top

$ €
