TP-LINK

TP-LINK Products

TP-LINK - Networking products

TP-LINK
TP-LINK
TP-LINK is a largest Chinese network hardware manufacturer for SOHO market. Company was founded in 1996. Their market share in networking products is still growing. TP-LINK cooperates with over 600 distributors in China and rest of the world. There are over 100 experienced engineers working for TP-LINK in two factories with 21 production lines. Perfect technical support and management system compliant with ISO9001:2000 gives warranty of reliability and stability of their devices. Quality of products was confirmed with a lot of awards in many independent device tests. TP-LINK is also manufacturing OEM versions of hardware for other network device manufacturers.

TP-LINK offers includes:
  • access points
  • routers
  • network cards
  • switches
  • media converters
  • modems

Manufacturer's website: http://www.tp-link.com

  • Computer Network Accessories
    • GPON / EPON
        #04693

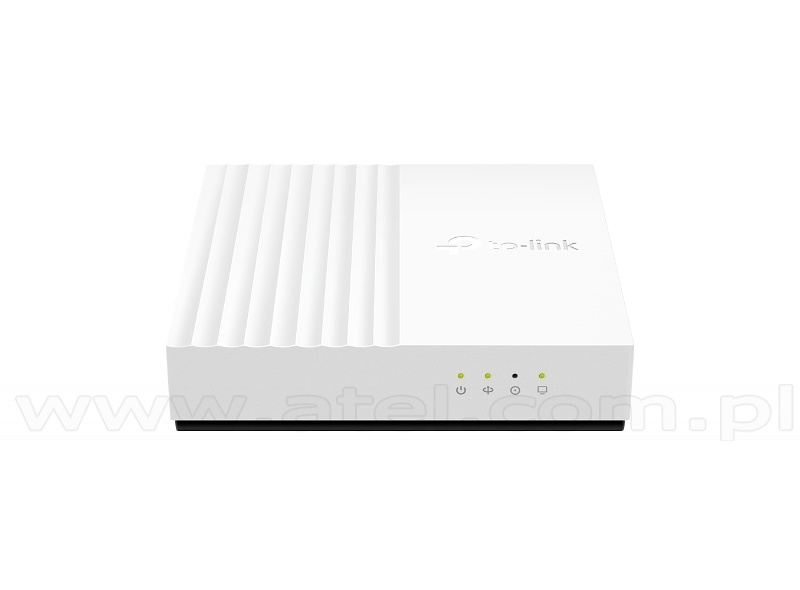

        GPON Terminal, 1-Port Gigabit (TP-Link XZ000-G3)

        • Quality of Service-Quality of Service control for transaction prioritization and bandwidth management
        • Durability-Intelligent power-saving method
        • Easy Remote Management-TR-069 protocol enables an operator to remotely configure and manage end-user devices
        • Full Gigabit Port-Fiber access and gigabit port provide incredibly fast transfer speeds
        HARDWARE FEATURES:
        Standards and Protocols IEEE 802.3, 802.3u,
        802.1Q,
        802.1p
        Interface 1x10/100/1000Mbps RJ45,
        1 SC/APC Port
        Button 1 RESET Button
        External Power Supply 9VDC / 0.6A
        Dimensions (W X D X H) 3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm)
        Distance 0~ 20Km
        Signal Rate Upstream 1.244Gbps,
        Downstream 2.488Gbps
        GPON Standards ITU-T G.984.1,
        G.984.2,
        G.984.3,
        G.984.4
        Optical Module Class B+
        Receiver Super-TIA
        Transmitter DFB Laser
        Wavelength Upstream 1310nm,
        Downstream 1490nm
        SOFTWARE FEATURES:
        Quality of Service Service Flow Classification based on VLAN,
        Schedule rules Support SP/WRR,
        Upstream Priority Label Support 802.1D User Priority,
        Rate Limit and Traffic shaping,
        Congestion Control Support Tail-Drop
        VLAN 802.1Q tag VLAN,
        VLAN transparent mode/VLAN translation mode/VLAN trunk mode,
        Authentication based on SN and Password,
        VLAN Auto Detect
        Security AES Encryption,
        Packet Filter based on VLAN
        Management Managed by Web,
        OMCI and Telnet,,
        Specified the management IP,
        Reset to Factory default by Reset button or Web UI,
        Real-time statistics,
        Optical Diagnostic
        Advanced Features Upstream and Downstream FEC,
        Dynamic Bandwidth Allocation(DBA) support NSR/SR,
        Up to 16 T-CONTs and 256 GEM Ports,
        Optical power detection,
        Dying Gasp,
        Terminal Silent mechanism,
        802.3az EEE Energy Conservation
        IGMP IGMP v1/v2/v3
        OTHERS:
        Certification CE,
        FCC,
        RoHS
        Package Contents XZ000-G3,
        RJ-45 Ethernet Cable,
        Power Adapter,
        Quick Installation Guide
        System Requirements Windows 8/7/Vista/XP or Mac OS or Linux-based operating system.
        Environment Operating Temperature 0°~40° (32°~104°),
        Storage Temperature -40°~70° (-40°~158°),
        Operating Humidity 10%~90% non-condensing,
        Storage Humidity 5%~90% non-condensing
        Warranty 2 years limited warranty. Advanced replacement service is available.
        Manufacturer TP-Link
        GPON Terminal, 1-Port Gigabit (TP-Link XZ000-G3)
        Net Price: 20.10 USD
        product card»
        #09228

        GPON Terminal, 4-Ports 2.5G (TP-Link DS-P7001-04)

        • 8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
        • High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port.
        • Redundant Dual Power Supplies: Carrier-class reliability with dual hot-swapping AC+DC power supplies.
        • Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
        • Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
        • Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.
        HARDWARE FEATURES:
        Interface 4× 2.5G PON Ports,
        1× 10 Gbps SFP+ Uplink Port,
        1× 10/100/1000 Mbps RJ45 Uplink Port,
        1× RJ45 Console Port,
        1× RJ45 MGMT Port,
        1× Alarm Port (Reserved)
        Button 1 RESET Button
        Power Supply Dual Power Supplies,
        AC 100V~240V,
        50/60Hz,
        DC -38.4V~-72V
        Power Consumption Max. 58W
        Dimensions (W X D X H) 17.3 × 7.1 × 1.7 in. (440 × 180× 44 mm)
        Distance 0~ 20Km
        Data rate Downstream 2.5 Gbps,
        Upstream 1.25 Gbps
        Wavelength Tx 1490 nm,
        Rx 1310 nm
        Interface type SC/UPC
        Fiber type 9/125μm SMF (Single Mode Fiber)
        GPON Standards ITU-T G.984.1,
        G.984.2,
        G.984.3,
        G.984.4
        Optical Module Class B+
        Receiver Super-TIA
        Transmitter DFB Laser
        Wavelength Upstream 1310nm,
        Downstream 1490nm
        SOFTWARE FEATURES:
        Quality of Service Service Flow Classification based on VLAN,
        Schedule rules Support SP/WRR,
        Upstream Priority Label Support 802.1D User Priority,
        Rate Limit and Traffic shaping,
        Congestion Control Support Tail-Drop
        VLAN 802.1Q tag VLAN,
        VLAN transparent mode/VLAN translation mode/VLAN trunk mode,
        Authentication based on SN and Password,
        VLAN Auto Detect
        Security AES Encryption,
        Packet Filter based on VLAN
        Management Managed by Web,
        OMCI and Telnet,,
        Specified the management IP,
        Reset to Factory default by Reset button or Web UI,
        Real-time statistics,
        Optical Diagnostic
        Advanced Features Upstream and Downstream FEC,
        Dynamic Bandwidth Allocation(DBA) support NSR/SR,
        Up to 16 T-CONTs and 256 GEM Ports,
        Optical power detection,
        Dying Gasp,
        Terminal Silent mechanism,
        802.3az EEE Energy Conservation
        IGMP IGMP v1/v2/v3
        OTHERS:
        Certification CE,
        FCC
        Environment Operating Temperature 0°~50° (32°~122°),
        Storage Temperature -40°~70° (-40°~158°),
        Operating Humidity 10%~90% non-condensing,
        Storage Humidity 5%~90% non-condensing
        Manufacturer TP-Link
        GPON Terminal, 4-Ports 2.5G (TP-Link DS-P7001-04)
        Net Price: 1 860.00 USD
        product card»
        #09229

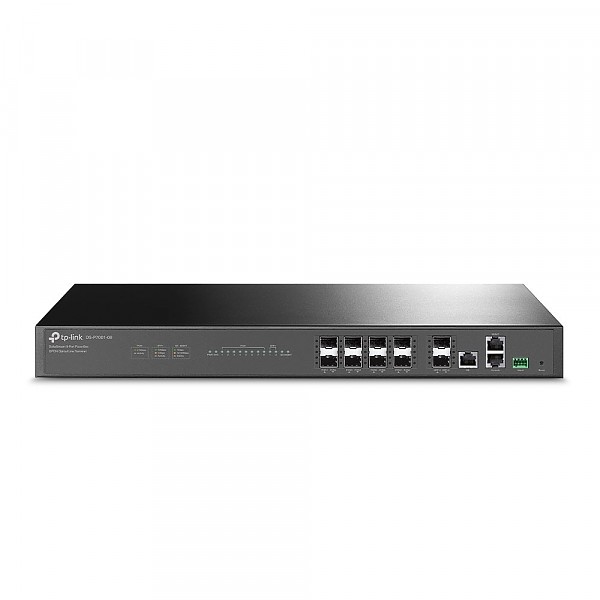

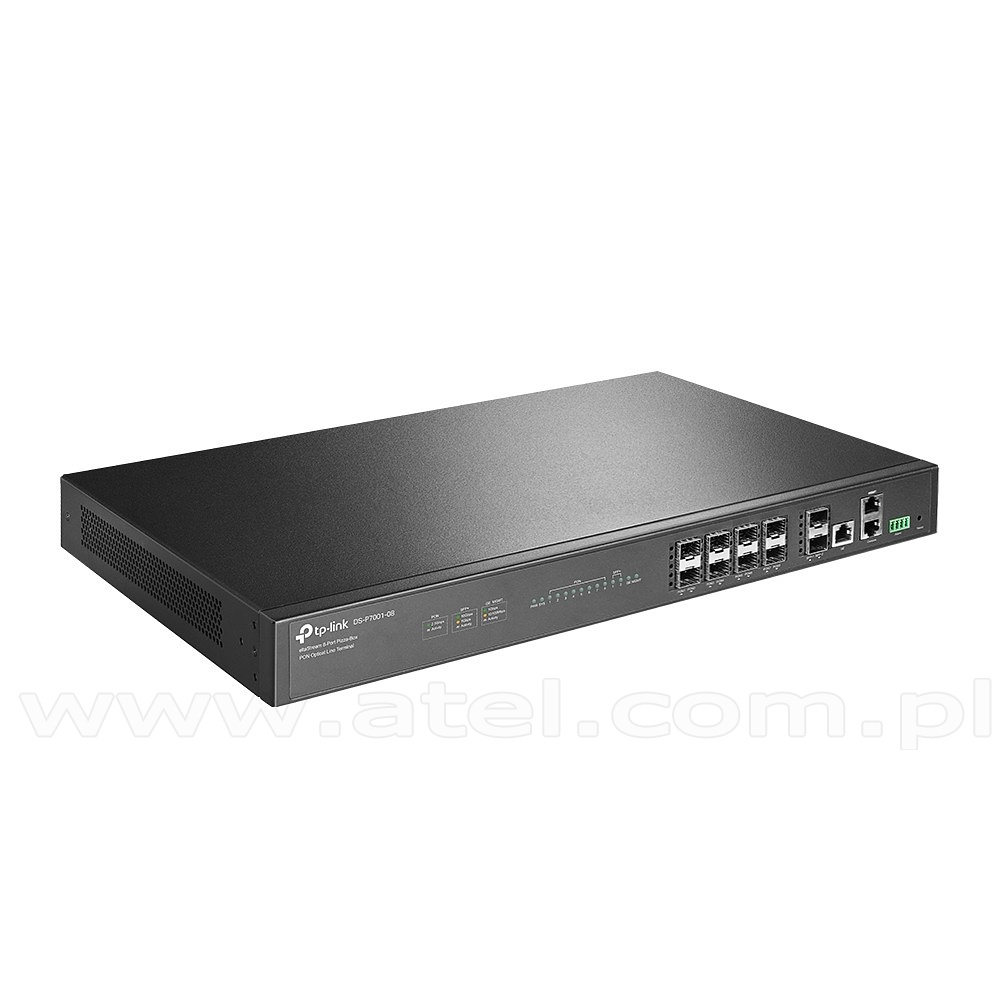

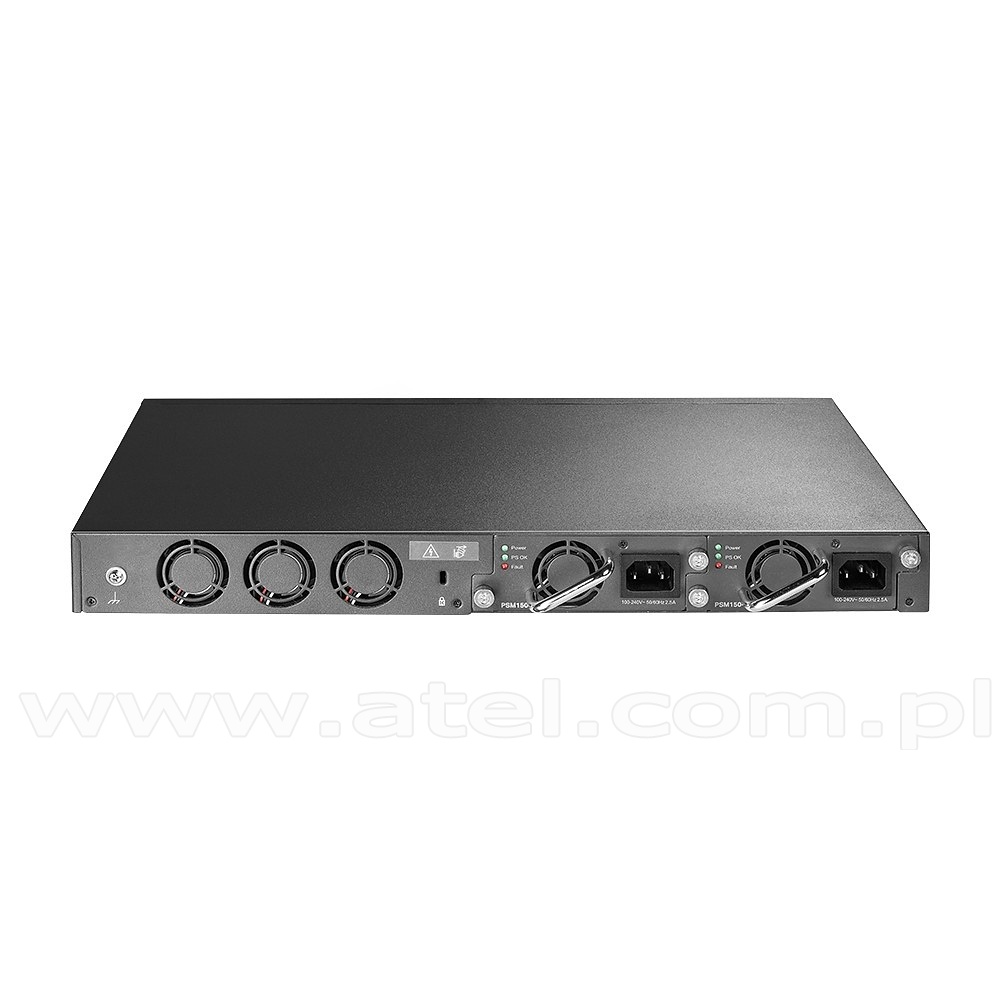

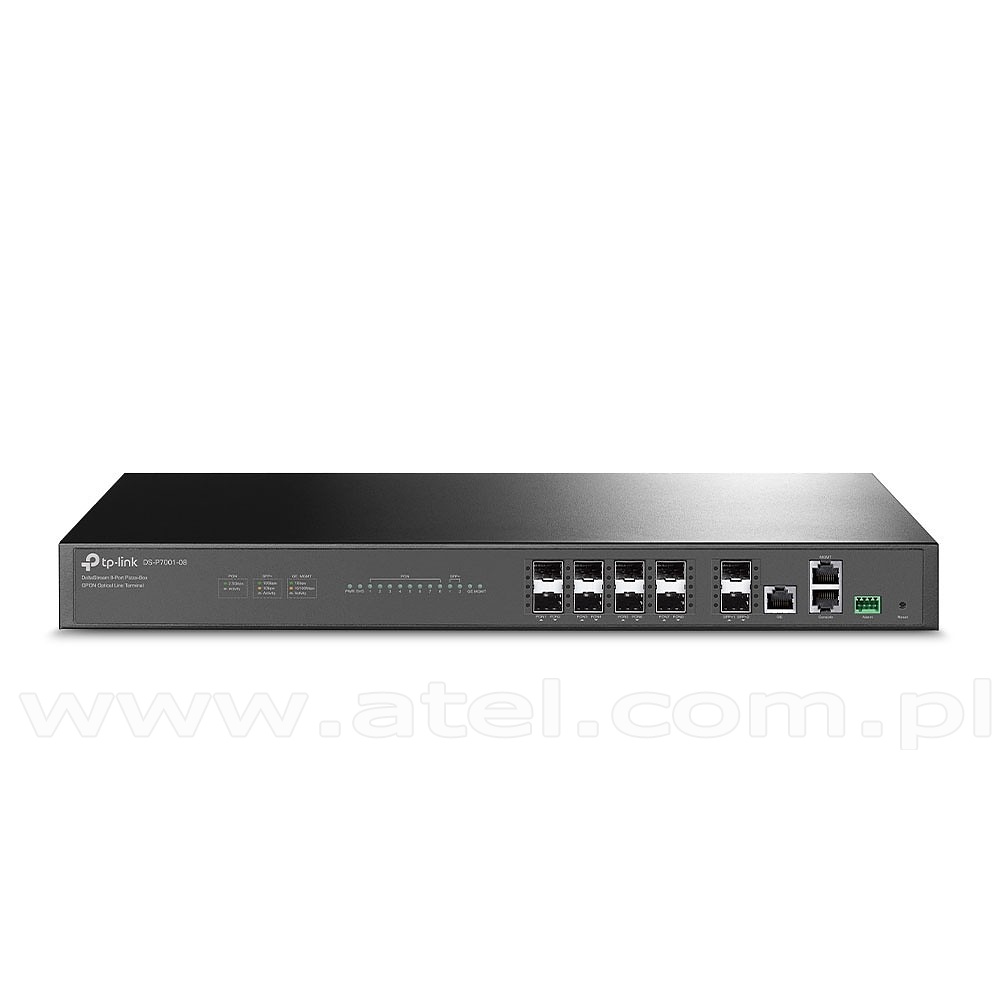

        GPON Terminal, 8-Ports 2.5G (TP-Link DS-P7001-08)

        • 8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
        • High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port.
        • Redundant Dual Power Supplies: Carrier-class reliability with dual hot-swapping AC+DC power supplies.
        • Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
        • Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
        • Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.
        HARDWARE FEATURES:
        Interface 8× 2.5G PON Ports,
        2× 10 Gbps SFP+ Uplink Port,
        1× 10/100/1000 Mbps RJ45 Uplink Port,
        1× RJ45 Console Port,
        1× RJ45 MGMT Port,
        1× Alarm Port (Reserved)
        Button 1 RESET Button
        Power Supply Dual Power Supplies,
        AC 100V~240V,
        50/60Hz,
        DC -38.4V~-72V
        Power Consumption Max. 70W
        Dimensions (W X D X H) 17.3 × 10.2 × 1.7 in. (440 × 260× 44 mm)
        Distance 0~ 20Km
        Data rate Downstream 2.5 Gbps,
        Upstream 1.25 Gbps
        Wavelength Tx 1490 nm,
        Rx 1310 nm
        Interface type SC/UPC
        Fiber type 9/125μm SMF (Single Mode Fiber)
        GPON Standards ITU-T G.984.1,
        G.984.2,
        G.984.3,
        G.984.4
        Optical Module Class B+
        Receiver Super-TIA
        Transmitter DFB Laser
        Wavelength Upstream 1310nm,
        Downstream 1490nm
        SOFTWARE FEATURES:
        Quality of Service Service Flow Classification based on VLAN,
        Schedule rules Support SP/WRR,
        Upstream Priority Label Support 802.1D User Priority,
        Rate Limit and Traffic shaping,
        Congestion Control Support Tail-Drop
        VLAN 802.1Q tag VLAN,
        VLAN transparent mode/VLAN translation mode/VLAN trunk mode,
        Authentication based on SN and Password,
        VLAN Auto Detect
        Security AES Encryption,
        Packet Filter based on VLAN
        Management Managed by Web,
        OMCI and Telnet,,
        Specified the management IP,
        Reset to Factory default by Reset button or Web UI,
        Real-time statistics,
        Optical Diagnostic
        Advanced Features Upstream and Downstream FEC,
        Dynamic Bandwidth Allocation(DBA) support NSR/SR,
        Up to 16 T-CONTs and 256 GEM Ports,
        Optical power detection,
        Dying Gasp,
        Terminal Silent mechanism,
        802.3az EEE Energy Conservation
        IGMP IGMP v1/v2/v3
        OTHERS:
        Certification CE,
        FCC
        Environment Operating Temperature 0°~50° (32°~122°),
        Storage Temperature -40°~70° (-40°~158°),
        Operating Humidity 10%~90% non-condensing,
        Storage Humidity 5%~90% non-condensing
        Manufacturer TP-Link
        GPON Terminal, 8-Ports 2.5G (TP-Link DS-P7001-08)
        Net Price: 2 470.00 USD
        product card»
