TP-LINK is a largest Chinese network hardware manufacturer for SOHO market. Company was founded in 1996. Their market share in networking products is still growing. TP-LINK cooperates with over 600 distributors in China and rest of the world. There are over 100 experienced engineers working for TP-LINK in two factories with 21 production lines. Perfect technical support and management system compliant with ISO9001:2000 gives warranty of reliability and stability of their devices. Quality of products was confirmed with a lot of awards in many independent device tests. TP-LINK is also manufacturing OEM versions of hardware for other network device manufacturers. TP-LINK offers includes:
Manufacturer's website: http://www.tp-link.com |
- Optical Fibre Subassemblies
-
- » UNMANAGED MEDIA CONVERTERS, SINGLE AND MULTI MODE#06423

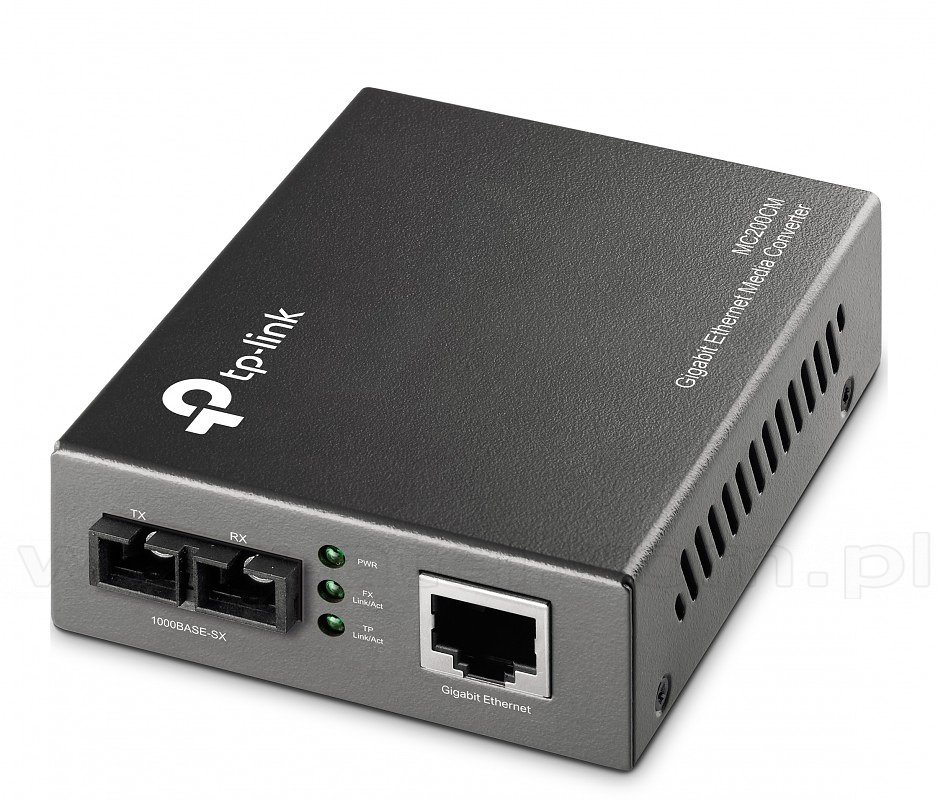

Gigabit media converter 10/100/1000 Mbps RJ-45/SC, MM 850 nm, 550 m (TP-Link MC200CM)
Standards IEEE 802.3ab/z/x Port #1 10/100/1000 Mbps RJ-45 (Auto MDI/MDIX) Port #1 max. distance 100 m Port #1 cable type UTP/STP cat. 5 Port #2 1000 Mbps SC MM TX wavelength 850 nm RX wavelength 850 nm Port #2 max. distance 550 m Port #2 cable type 50/125, 62.5/125, 100/140 µm Housing / case type desktop / slot module Dimensions 94.5x73x27 mm Operating temperature 0°C ÷ 40°C Operating humidity 10% ÷ 90%,
non-condensingPower external,
9V/0.6AMax Power Consumption 5.5W Certificates FCC,
CE,
RoHSWarranty period 5 years Manufacturer TP-Link Can be mount in:
#06985 Rack chassis for media converter, 14-port (TP-LINK TL-MC1400)

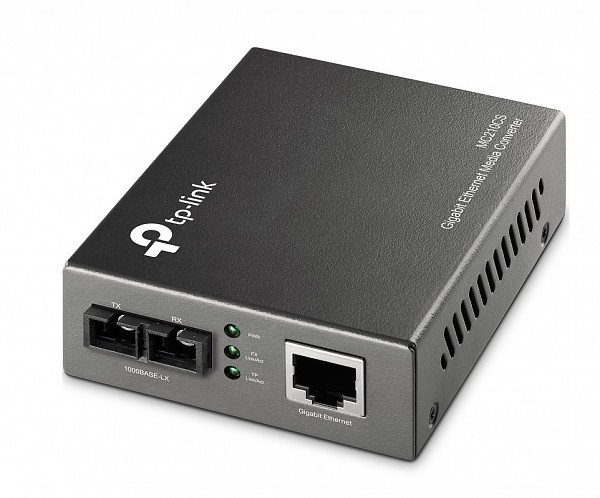

#06424Gigabit media converter 10/100/1000 Mbps RJ-45/SC, SM 1310 nm, 15 km (TP-Link MC210CS)
Standards IEEE 802.3ab/z/i/u Port #1 10/100/1000 Mbps RJ-45 (Auto MDI/MDIX) Port #1 max. distance 100 m Port #1 cable type UTP/STP cat. 5 Port #2 1000 Mbps SC SM TX wavelength 1310 nm RX wavelength 1310 nm Port #2 max. distance 15 km Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Housing / case type desktop / slot module Dimensions 94.5x73x27 mm Operating temperature 0°C ÷ 40°C Operating humidity 10% ÷ 90%,
non-condensingPower external,
9V/0.6AMax Power Consumption 1.8W Certificates FCC Class B,
CE,
VCCI-BWarranty period 5 years Manufacturer TP-Link Can be mount in:
#06985 Rack chassis for media converter, 14-port (TP-LINK TL-MC1400)
#06063Media converter 10/100 Mbps RJ-45/SC, MM 1310nm, 2km (TP-Link MC100CM)
Standards IEEE 802.3/u Port #1 10/100 Mbps RJ-45 Port #1 max. distance 100m Port #1 cable type UTP/STP cat. 5 Port #2 100 Mbps SC MM TX wavelength 1310nm RX wavelength 1310nm Port #2 max. distance 2km Port #2 cable type 50/125, 62.5/125, 100/140 µm Max. throughput [Gbps] 0.2 Housing desktop / rack 19" Dimensions 94x73x27 mm Operating temperature 0°C ÷ 40°C Operating humidity 10% ÷ 90%,
non-condensingPower external,
9V DC 0,6A,
~230V AC 50HzMax Power Consumption 2.4W Warranty 5 years Manufactuer TP-Link
- » WDM UNMANAGED MEDIA CONVERTERS#06306
Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM (TP-Link MC112CS-20)
Standards IEEE 802.3/u Port #1 10/100 Mbps RJ-45 Port #1 max. distance 100 m Port #1 cable type UTP/STP cat. 5 Port #2 100 Mbps SC SM TX wavelength 1310 nm RX wavelength 1550 nm Port #2 max. distance 20 km Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Wave Division Multiplexing (WDM) yes Max. throughput [Gbps] 0.2 Housing / case type desktop Dimensions 94,5x73x27 mm Operating temperature 0°C ÷ 40°C Operating humidity 10% ÷ 90%,
non-condensingPower external,
9V/0.6AMax Power Consumption 1.44W Warranty period 5 lat Manufacturer TP-Link Can be mount in:
#06985 Rack chassis for media converter, 14-port (TP-LINK TL-MC1400)

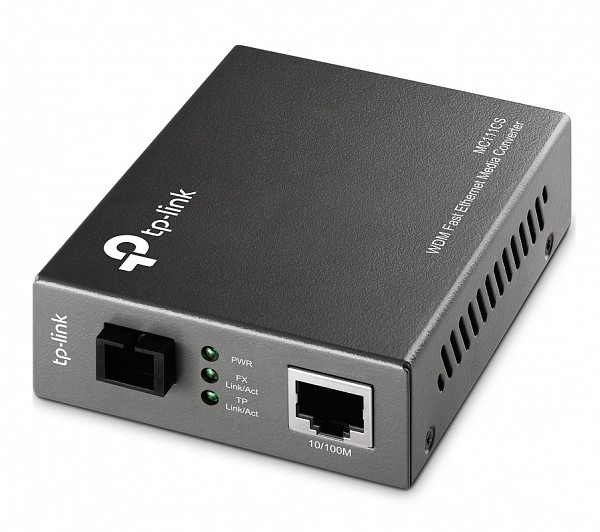

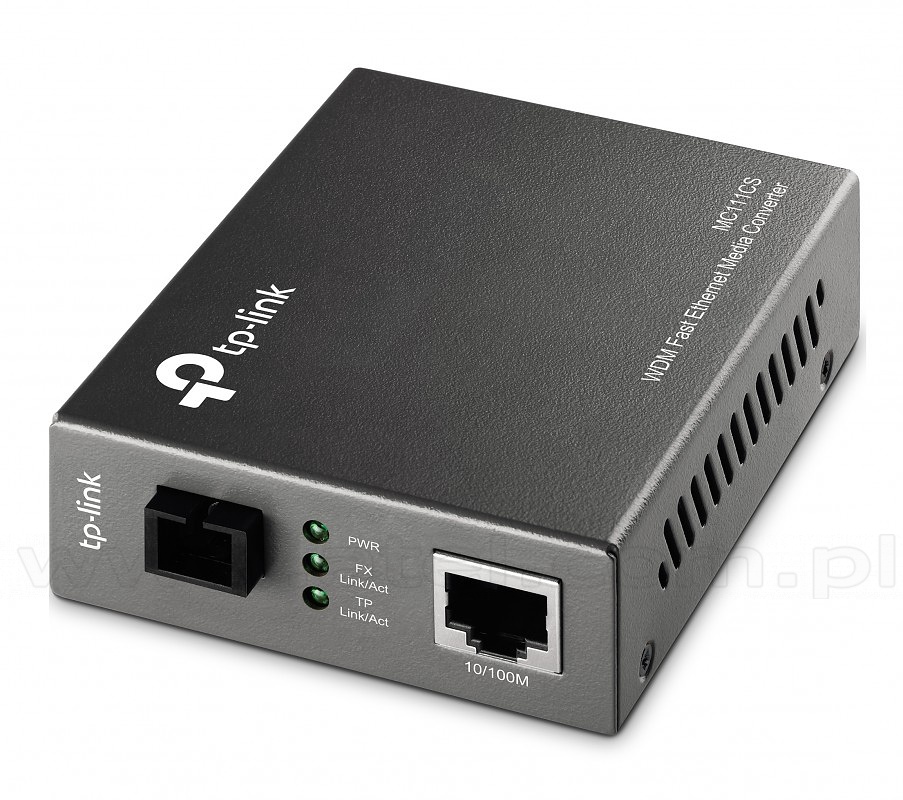

#06305Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20 km, WDM (TP-Link MC111CS-20)
Standards IEEE 802.3/u Port #1 10/100 Mbps RJ-45 Port #1 max. distance 100 m Port #1 cable type UTP/STP cat. 5 Port #2 100 Mbps SC SM TX wavelength 1550 nm RX wavelength 1310 nm Port #2 max. distance 20 km Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Wave Division Multiplexing (WDM) yes Max. throughput [Gbps] 0.2 Housing desktop Dimensions 94,5x73x27 mm Operating temperature 0°C ÷ 40°C Operating humidity 10% ÷ 90%,
non-condensingPower external,
9V/0.6AMax Power Consumption 1.49W Warranty 5 years Manufacturer TP-Link Can be mount in:
#06985 Rack chassis for media converter, 14-port (TP-LINK TL-MC1400)
- » SFP MEDIA CONVERTERS#06425

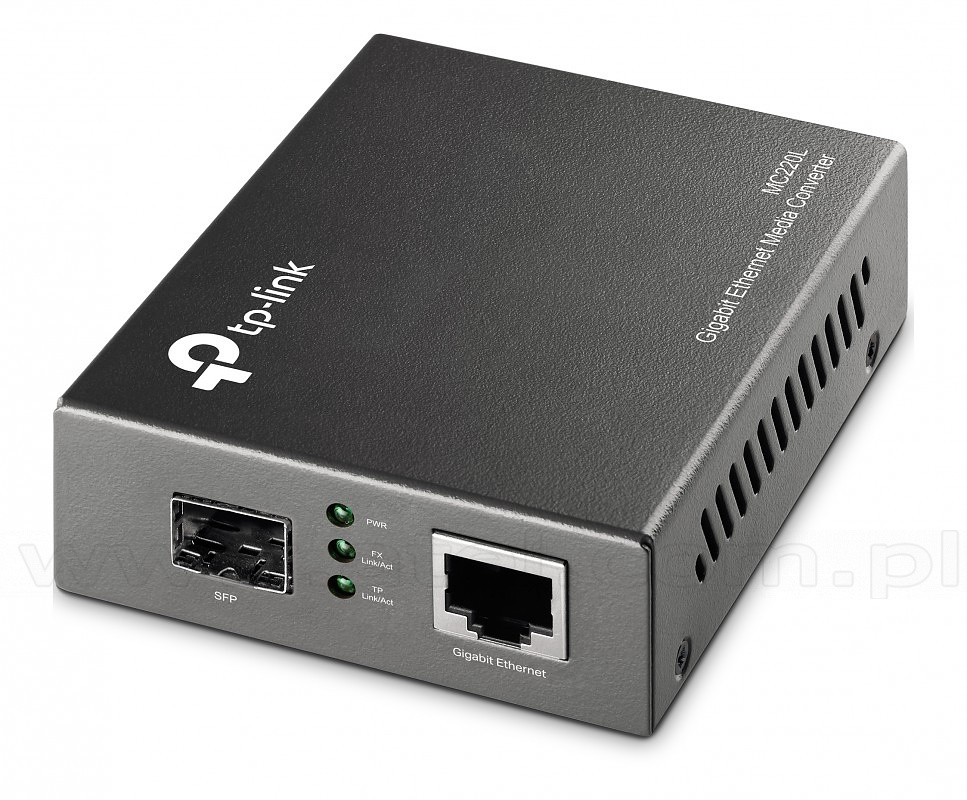

Gigabit media converter 10/100/1000 Mbps RJ-45/SFP slot 1000 Mbps (TP-Link MC220L)
Standards IEEE 802.3/ab/z/i/u Port #1 10/100/1000 Mbps RJ-45 (Auto MDI/MDIX) Port #1 max. distance 100 m Port #1 cable type UTP/STP Port #2 SFP Link Fault Pass-thorugh (LFP) no Housing / case type desktop / slot module Dimensions 94.5x73x27 mm Operating temperature 0°C ÷ 40°C Operating humidity 10% ÷ 90%,
non-condensingPower 9V/0.6A Max Power Consumption 1.7W Certificates FCC Class B,
CEWarranty period 5 years Manufacturer TP-Link Can be mount in:
#06985 Rack chassis for media converter, 14-port (TP-LINK TL-MC1400)
- » CONVERTER HOUSING AND RACKS#06985
Rack chassis for media converter, 14-port (TP-LINK TL-MC1400)
Capacity 14 media converters AC Power Supply Input 100-240V~50/60Hz 3.0A(Max),
Output +9.5VDC 9.5A(Max),
optional redundant power supplyOperating Temperature 0°C~40°C Storage Temperature -40°C~70°C Operating Humidity 10%~90% non-condensing Storage Humidity 5%~90% non-condensing Weight 8kg Dimensions 482x358x86 mm Certificates FCC Class A & CE Mark Warranty 5 years Can be mount in 19" rack, Hot-Swappable - easy & quick replacement of converter and power supply
Compatible converters:
#06423 Gigabit media converter 10/100/1000 Mbps RJ-45/SC, MM 850 nm, 550 m (TP-Link MC200CM)
#06424 Gigabit media converter 10/100/1000 Mbps RJ-45/SC, SM 1310 nm, 15 km (TP-Link MC210CS)
#06306 Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM (TP-Link MC112CS-20)
#06305 Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20 km, WDM (TP-Link MC111CS-20)
#06425 Gigabit media converter 10/100/1000 Mbps RJ-45/SFP slot 1000 Mbps (TP-Link MC220L)
-
