 HANLONG Products |
HANLONG
Hanlog Industrial was established in 1978. It is a well known manufacturer of handheld tools, used widely in many firlds of technic. Since 1997 the company is working with ISO9002 quidelines and in 2003 brought a quality management system comliant with ISO9001:2000. Hanlong offer inclues:
Atel Electronics is a distributor of Hanlong products |
- Installation Tools
-
#02272
Tool kit (Hanlong HT-330K)
Professional tool kit for the processing of coaxial cables that contains everything necessary for the correct crimping of connectors on RG6, RG58, RG11, RG174 and other cables. Delivered in a handy suitcase.Contents #04392 Ratchet crimping tool,
frame only (Hanlong HT-336FM),
#02207 Coaxial cable cutter (Hanlong HT-206),
#02215 Coaxial cable stripper (Hanlong HT-332),
screwdriverCrimper inserts 3A4 (RG58; RG59; RG62; RG174),
3C (RG58; RG59; RG6; RG62),
3G (RG58; RG59; RG62; RG174; fiber optic),
3J (RG174; RG179; Belden 8218; fiber optic),
3K (RG8; RG11; RG174; RG179; RG213)Packaging Plastic case Producer Hanlong
-
#04250
Fiber optic kevlar cutting scissors (Hanlong HT-C151)
Scissors meant for or cutting excess fiber optic cables and aramid materials.Length 147mm Packaging Blister Producer Hanlong
#06947Removal tool for F conncetor (Hanlong HT-2206F)
Makes removing F connectors easier, the long arm enables working in confined spaces.Arm length 15.6 cm Packaging Blister Producer Hanlong

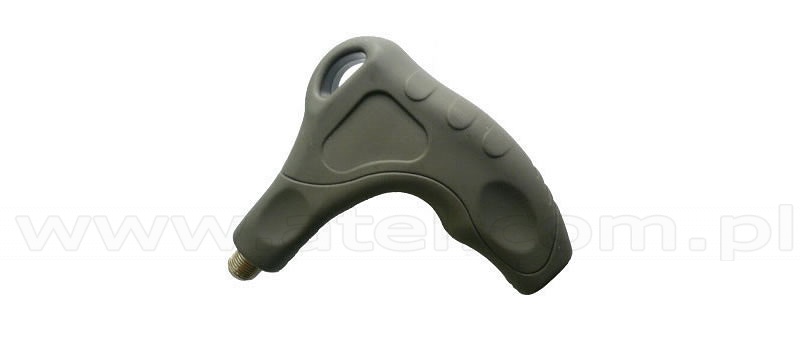

#04378T-tool for F conncetor (Hanlong HT-224E)
Enables twisting a F connector onto a stripped cable ending.Packaging Blister Producer Hanlong
#02307Universal fiber optic stripper (Hanlong HTS-144H)
Universal stripper for stripping insulation from patchcord cables and their fibers. One compact tool with three holes that allow for stripping most insulations.Hole diameters glass cladding 250->125µm,
buffer insulation 900->250µm,
outer PVC jacket 2-3 mmPackaging Blister Producer Hanlong
-
#04385
Replacement die (Hanlong HT-2C)
The replacable die element widens the functionality of a crimper, enabling crimping non-insulated automotive connectors and other crimp terminals.Purpose non-insulated automotive connectors,
crimp lugsCable types 0,5-1,0mm2 (AWG 20-18),
1,5-2,5mm2 (AWG 16-14),
4,0-6,0mm2 (AWG 12-10)Arms #04392 Ratchet crimping tool,
frame only (Hanlong HT-336FM)Producer Hanlong
#04267Replacement die (Hanlong HT-2E)
The replacable die element widens the functionality of a crimper, enabling crimping non-insulated automotive connectors and other crimp terminals.Purpose insulated connectors,
non-insulated connectorsCable types 0,50mm2 (AWG 22),
0,75mm2 (AWG 20),
1,0mm2 (AWG 18),
1,5mm2 (AWG 16),
2,5mm2 (AWG 14),
4,0mm2 (AWG 12)Arms #04392 Ratchet crimping tool,
frame only (Hanlong HT-336FM)Producer Hanlong
#04270Replacement die (Hanlong HT-2E1)
The replacable die element widens the functionality of a crimper, enabling crimping non-insulated automotive connectors and other crimp terminals.Purpose insulated connectors,
non-insulated connectorsCable types 6mm2 (AWG 10),
10mm2 (AWG 8),
16mm2 (AWG 6)Arms #04392 Ratchet crimping tool,
frame only (Hanlong HT-336FM)Producer Hanlong
#04384Replacement die (Hanlong HT-3D)
Enables crimping the sleeves of connectors and pins on coaxial cables of various diameters.Purpose non-insulated automotive connectors,
crimp lugsCable types RG58; RG59; RG6; RG62 coaxial cables Arms #04392 Ratchet crimping tool,
frame only (Hanlong HT-336FM)Producer Hanlong
#04268Replacement die (Hanlong HT-3G)
Crimping diameter 1,09mm,
1,73mm,
2,54mm,
3,48mm,
5,41mm,
6,48mmCable types RG58,
RG59,
RG62,
RG174,
FIBER OPTIC
-
