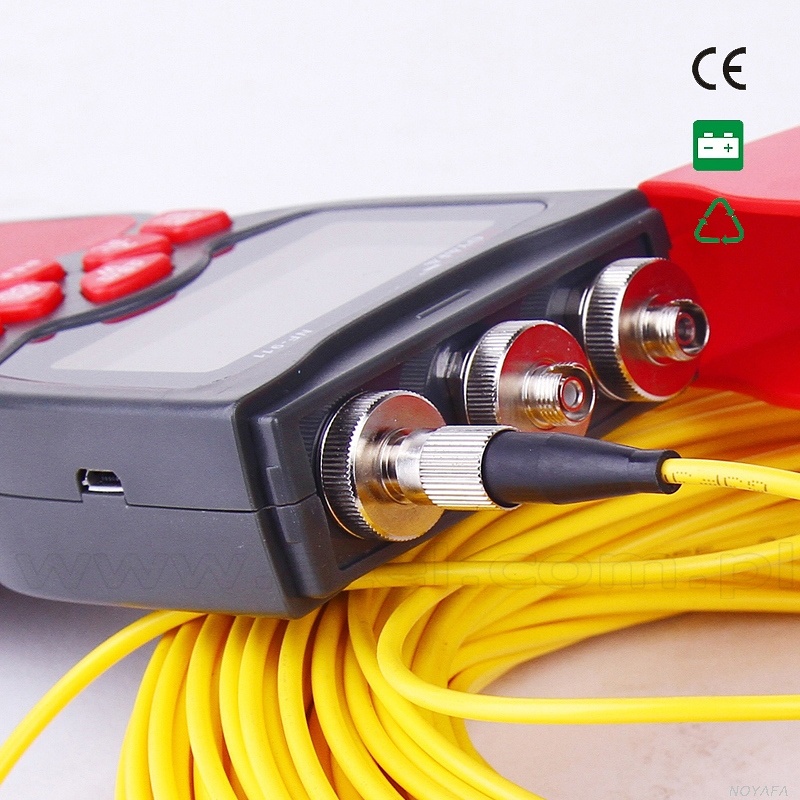

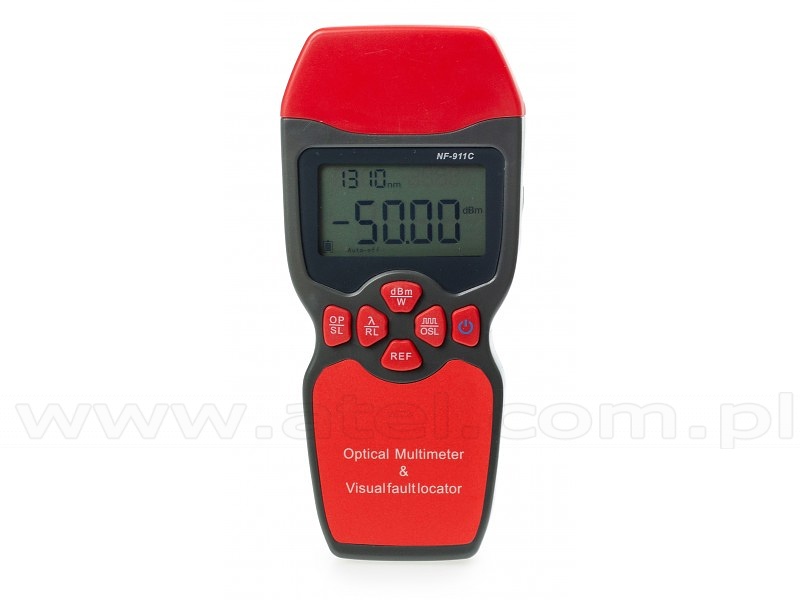

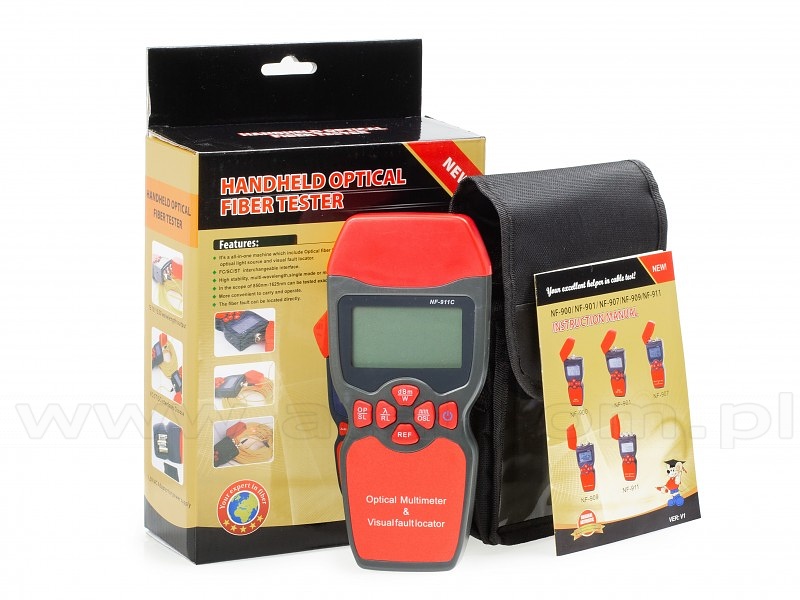

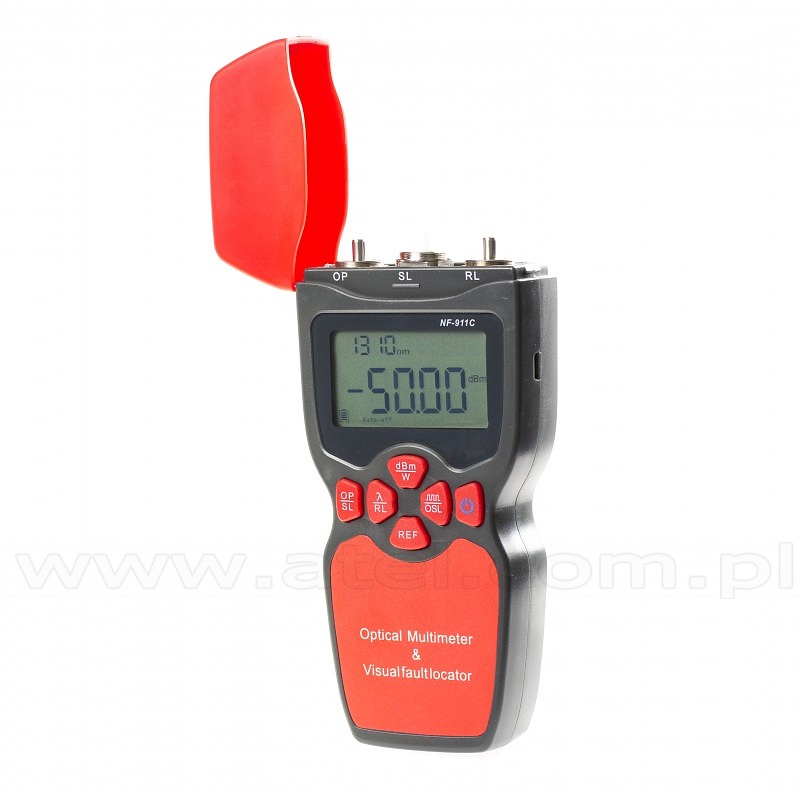

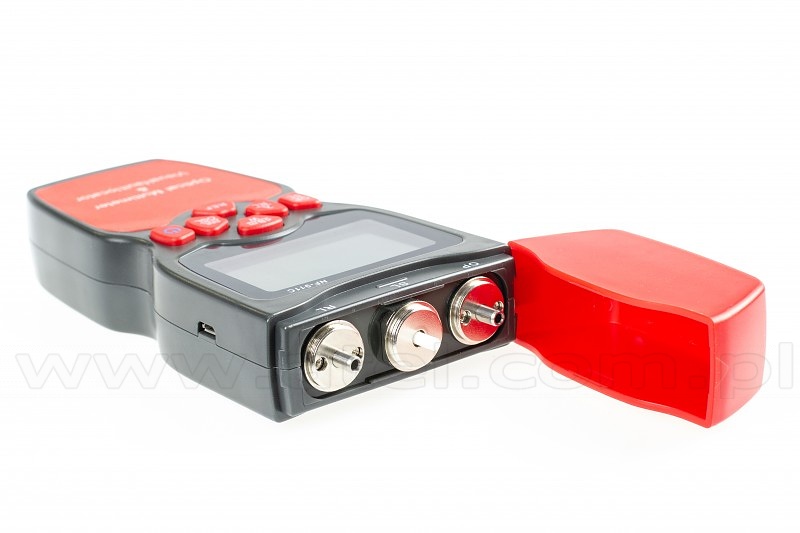

Optical multimeter Noyafa NF-911C
The Optical multimeter Noyafa NF-911C is a measurement set in one housing, consisting of a precise source, an optical power meter and a visible light source, designed for bidirectional measurements of attenuation and reflectance in fiber optic systems and networks.
| Optical power meter | |
|---|---|
| Detector | InGaAs |
| Wavelength | 850 ÷ 1700 nm |
| Power range | +26 dBm ÷ -50 dBm |
| Resolution | 0.01dBm |
| Connector | universal 2.5mm |
| Source of light | |
| Wavelength | 1310 / 1550nm |
| Modulation frequency | 270Hz, 1kHz, 2kHz |
| Connector | universal 2.5mm |
| VFL | |
| Wavelength | 650nm |
| Power | 20mW |
| Connector | universal 2.5mm |
| General parameters | |
| Battery life | 240h |
| Power supply | 3x AA battery |
| Permissible operating temperature | -20 ° C ÷ 70 ° C |
| Dimensions | 160 x 75 x 32 mm |
| Weight | 205g |
| Kit contents | Meter, Cover, User manual |
| Producer | Noyafa |
Net Price: 83.90 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
