EN50155:

ORing’s Transporter series un-managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TGXS-1080-M12 is an un-managed Ethernet switch with 8x10/100/500/1000Base-T(X) which is specifically designed for the toughest and fully compliant with EN50155 requirement. TGXS-1080-M12 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, the wide operating temperature range from -40 oC to 75oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet application. While installing in the train, TGXS-1080-M12 is mainly used for in-train monitoring and Entertainment service due to its high speed Gigabit Ethernet connection. Devices connected will be IP camera or CCTV for the use of train surveillance. As an unmanaged Ethernet Switch, TGXS-1080-M12 is not able and will not be used for any control related application. Its main function is simply forwarding the Ethernet packet from one Ethernet based device to another Ethernet device which are all connected to the Switch.

ORing’s Transporter series Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. TES-250-M12 is a lite-managed redundant ring Ethernet switch with 10/100Base-T(X) ports which is compliant with EN50155 request. With complete support of Ethernet redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring and STP/RSTP (IEEE802.1w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technologies. It is specifically designed for the toughest industrial environments. TES-250-M12 EN50155 Ethernet switch uses M12 connectors to ensure tight, robust connections and guarantees reliable operation against environmental disturbances, such as vibration and shock. TES-250-M12 can be managed centralized by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40~70°C can satisfy most of operating environment. The TES-250-M12 can be easily adopted in almost all kinds of applications and provides the most rugged solutions for managing your network. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet applications.

IES-3082GC is managed redundant ring Ethernet switch with 8x10/100Base-T(X) ports and 2xGigabit combo ports which is compliant with EN50155 request. The Ethernet switch is designed for industrial applications, such as rolling stock, vehicle, and railway applications. With completely support of Ethernet redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.

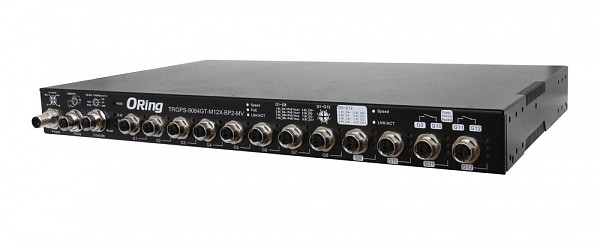

TRGPS-9084GT-M12X-BP2-MV is a Gigabit managed redundant ring Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. and 4x10/100/1000Base-T(X), M12 connector and 2xbypass included. These switches support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And TRGPS-9084GT-M12X-BP2-MV supports wide operating temperature from -40°C to 75°C. TRGPS-9084GT-M12X-BP2-MV can also be managed centralized and convenient by Open-Vision, as well as the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.

The TES-3080-M12-BP2 is a managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) ports which is compliant with EN50155 request. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-RSTP and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.
It is specifically designed for the toughest industrial environments. TES-3080-M12-BP2 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock.
Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. TES-1080-M12-BP2 included dual bypass ports, These bypass ports protect the network from failures and Network maintenance by ensuring network integrity during power loss. Each of these bypass ports includes Network ports and Monitor ports. The Network ports are used for connection to main-network connections and provide protection mechanism, and the Monitor ports are used for down-link local networking device. When the power is on, the operating mode of the Bypass ports is set to Normal , and the local networking device is connected with main-network. When power failure occurs, the Bypass ports is swiftly set to bypass mode to isolate the main-network from the local networking device.

ORing’s TransporterTM series managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications.
The TES-3080-M12 is a managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) ports which is compliant with EN50155 request. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-RSTP and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. It is specifically designed for the toughest industrial environments.
TES-3080-M12 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring.
TES-3080-M12 can be managed centralized and convenient by a powerful windows utility ~ Open-Vision. In addition, the wide operating temperature range from -40°C to 70°C can satisfy most of operating environment.
Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet application.

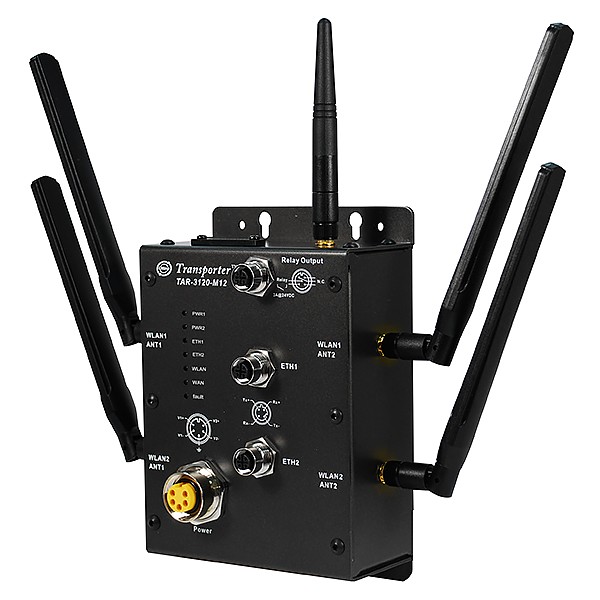

ORing’s Transporter series cellular VPN router is designed for industrial and rolling stock wireless applications, such as vehicle, and railway applications.

TAR-3120-M12 is a reliable Dual-RF IEEE802.11a/b/g and IEEE 802.11b/g cellular VPN router with 2 ports LAN which is fully compliant with EN50155 certification. It supports 802.1X and MAC filter for security control. It can be configured to operate in 3 modes of routing function: Dynamic/Static IP route, PPPoE authentication, and Cellular Modem dial-up. Users can set up WLAN environment to fulfill demands of various applications rapidly by dialing up cellular modem.

TAR-3120-M12 EN50155 cellular VPN router use M-series connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. TAR-3120-M12 provides dual RF wireless interfaces, which can provide IEEE 802.11 a/b/g and IEEE 802.11 b/g dual band wireless communication and can be applied to fulfill any demands of wireless applications. TAR-3120-M12 provides dual Ethernet ports in switch mode, so that you can use Daisy Chain to reduce the usage of Ethernet switch ports.
