LSOH - (eng. Low smoke zero halogen / low smoke free of halogen), LSZH, LSHF, LS0H
Items tagged asLSOH: |
- Computer Network Accessories
-
- » F/UTP STRANDED CABLES#07272
Cable F/UTP Wave Cables, cat.6, green, LSOH, 4x2x26 AWG, Cu, 305 m, stranded
High quality category 6 cables, from the reputable Wave Cables, meet all the requirements of category 6. Their elasticity allows them to be used mainly in server cabinets.
The coating is made of halogen-free material, flame-retardant, with limited emission of smoke and corrosive gases (LSOH).Structure: Conductor stranded copper wire 26AWG,
7x0.152mm,
with coating HDPE 0.83mmCoating LSOH 0.46mm Diameter 5.7 ± 0.2mm Shield Al/PET (65/26µm) Standards: Category cat. 6; class E Standards IEC61156-5,
EN50288-3-1,
ANSI/TIA568C.2Marking and packaging: Cable marking Wave Cable F/UTP + index of length Standard package 305m cardboard box Manufacturer Wave Cables Connectors:
#07408 Modular male connector, 8P8C (RJ-45), round, stranded, cat. 6, shielded
Our offer also includes ready-made patchcords of various lengths (0.5-20m) in six colors.

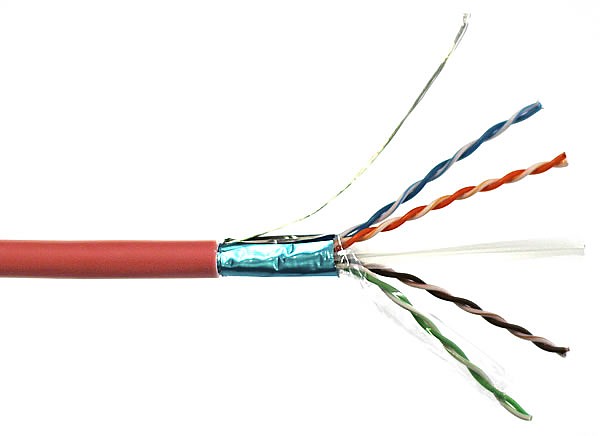

#07270Cable F/UTP Wave Cables, cat.6, red, LSOH, 4x2x26 AWG, Cu, 305 m, stranded
High quality category 6 cables, from the reputable Wave Cables, meet all the requirements of category 6. Their elasticity allows them to be used mainly in server cabinets.
The coating is made of halogen-free material, flame-retardant, with limited emission of smoke and corrosive gases (LSOH).Structure: Conductor stranded copper wire 26AWG,
7x0.152mm,
with coating HDPE 0.83mmCoating LSOH 0.46mm Diameter 5.7 ± 0.2mm Shield Al/PET (65/26µm) Standards: Category cat. 6; class E Standards IEC61156-5,
EN50288-3-1,
ANSI/TIA568C.2Marking and packaging: Cable marking Wave Cable F/UTP + index of length Standard package 305m cardboard box Manufacturer Wave Cables Connectors:
#07408 Modular male connector, 8P8C (RJ-45), round, stranded, cat. 6, shielded.
Our offer also includes ready-made patchcords of various lengths (0.5-20m) in six colors.

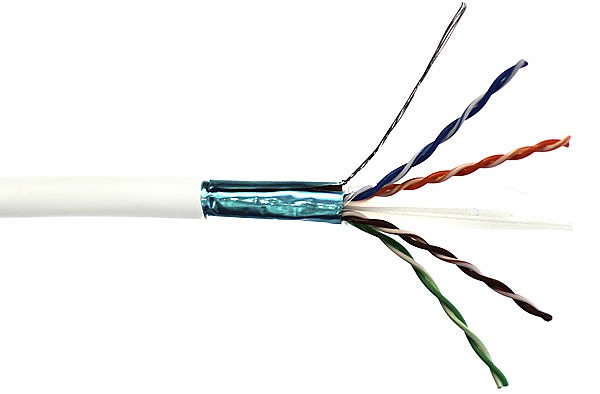

#07268Cable F/UTP Wave Cables, cat.6, white, LSOH, 4x2x26 AWG, Cu, 305 m, stranded
High quality category 6 cables, from the reputable Wave Cables, meet all the requirements of category 6. Their elasticity allows them to be used mainly in server cabinets.
The coating is made of halogen-free material, flame-retardant, with limited emission of smoke and corrosive gases (LSOH).Structure: Conductor stranded copper wire 26AWG,
7x0.152mm,
with coating HDPE 0.83mmCoating LSOH 0.46mm Diameter 5.7 ± 0.2mm Shield Al/PET (65/26µm) Standards: Category cat. 6; class E Standards IEC61156-5,
EN50288-3-1,
ANSI/TIA568C.2Marking and packaging: Cable marking Wave Cable F/UTP + index of length Standard package 305m cardboard box Manufacturer Wave Cables Connectors:
#07408 Modular male connector, 8P8C (RJ-45), round, stranded, cat. 6, shielded
Our offer also includes ready-made patchcords of various lengths (0.5-20m) in six colors.
#07269Cable F/UTP Wave Cables, cat.6, yellow, LSOH, 4x2x26 AWG, Cu, 305 m, stranded
High quality category 6 cables, from the reputable Wave Cables, meet all the requirements of category 6. Their elasticity allows them to be used mainly in server cabinets.
The coating is made of halogen-free material, flame-retardant, with limited emission of smoke and corrosive gases (LSOH).Structure: Conductor stranded copper wire 26AWG,
7x0.152mm,
with coating HDPE 0.83mmCoating LSOH 0.46mm Diameter 5.7 ± 0.2mm Shield Al/PET (65/26µm) Standards: Category cat. 6; class E Standards IEC61156-5,
EN50288-3-1,
ANSI/TIA568C.2Marking and packaging: Cable marking Wave Cable F/UTP + index of length Standard package 305m cardboard box Manufacturer Wave Cables Connectors:
#07408 Modular male connector, 8P8C (RJ-45), round, stranded, cat. 6, shielded
Our offer also includes ready-made patchcords of various lengths (0.5-20m) in six colors.

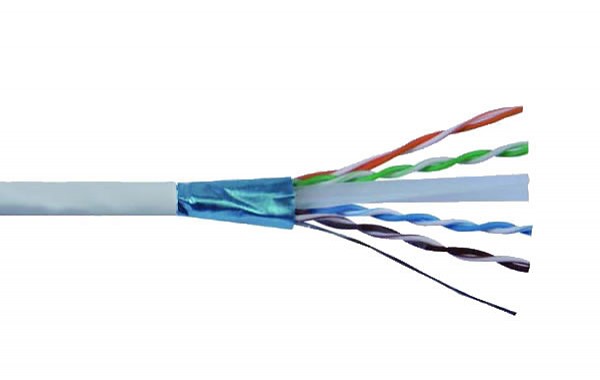

#07262Cable F/UTP Wave Cables, cat.6, grey, LSOH, 4x2x26 AWG, Cu, 305 m, stranded
High quality category 6 cables, from the reputable Wave Cables, meet all the requirements of category 6. Their elasticity allows them to be used mainly in server cabinets.
The coating is made of halogen-free material, flame-retardant, with limited emission of smoke and corrosive gases (LSOH).Structure: Conductor stranded copper wire 26AWG,
7x0.152mm,
with coating HDPE 0.83mmCoating LSOH 0.46mm Diameter 5.7 ± 0.2mm Shield Al/PET (65/26µm) Standards: Category cat. 6; class E Standards IEC61156-5,
EN50288-3-1,
ANSI/TIA568C.2Marking and packaging: Cable marking Wave Cable F/UTP + index of length Standard package 305m cardboard box Manufacturer Wave Cables Connectors:
#07408 Modular male connector, 8P8C (RJ-45), round, stranded, cat. 6, shielded
Our offer also includes ready-made patchcords of various lengths (0.5-20m) in six colors.

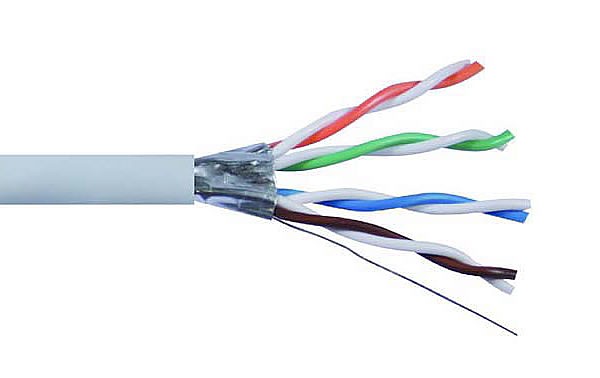

- » U/FTP SOLID CABLES#07264
Cable U/FTP Wave Cables, cat.6A, grey, LSOH, 4x2x23 AWG, Cu, 305 m, solid
High-quality, "twisted pair" type cable from Wave Cables that meets all the category 6A requirements. For use in internal installations.Structure: Conductor solid copper wire 23AWG,
0.57mm,
with coating PE 1.335mmCoating LSOH min. 0.51mm Diameter 7.1 ± 0.2mm Shield Al/PET (50/12µm) Standards: Category cat. 6a; class E Standards IEC61156-5,
EN50288-4-1,
ANSI/TIA568C.2Marking and packaging: Cable marking Wave Cable U/FTP + index of length Standard package 305m wooden spool Manufacturer Wave Cables Connectors:
#04913 - Modular male connector, 8P8C (RJ-45), round, solid, cat. 6, shielded
- » S/FTP SOLID CABLES#07263
Cable S/FTP (PiMF) Wave Cables, cat.6A, grey, LSOH/LSZH, 4x2x23 AWG, Cu, 305 m, solid
High-quality, "twisted pair" type cable from Wave Cables that meets all the category 6A requirements. For use in internal installations.Structure: Conductor solid copper wire 23AWG,
0.57mm,
with coating PE 1.335mmCoating LSOH min. 0.51mm Diameter 7.3 ± 0.2mm Shield Al/PET (50/12µm) Braid Tin Plated Copper 4x16x0.1mm Standards: Category cat. 6a; class E Standards IEC61156-5,
EN50288-4-1,
ANSI/TIA568C.2Marking and packaging: Cable marking Wave Cable S/FTP + index of length Standard package 305m wooden spool Manufacturer Wave Cables
#07265Cable S/FTP (PiMF) Wave Cables, cat.7, grey, LSOH/LSZH, 4x2x23 AWG, Cu, 305 m, solid
High-quality, "twisted pair" type cable from Wave Cables that meets all the category 7 requirements. For use in internal installations.Structure: Conductor solid copper wire 23AWG,
0.57mm,
with coating PE 1.335mmCoating LSOH min. 0.51mm Diameter 7.3 ± 0.2mm Shield Al/PET (50/12µm) Braid Tin Plated Copper 4x16x0.1mm Standards: Category cat.7; class F Standards IEC61156-5,
EN50288-4-1,
ANSI/TIA568C.2Marking and packaging: Cable marking Wave Cable S/FTP + index of length Standard package 305m wooden spool Manufacturer Wave Cables
-

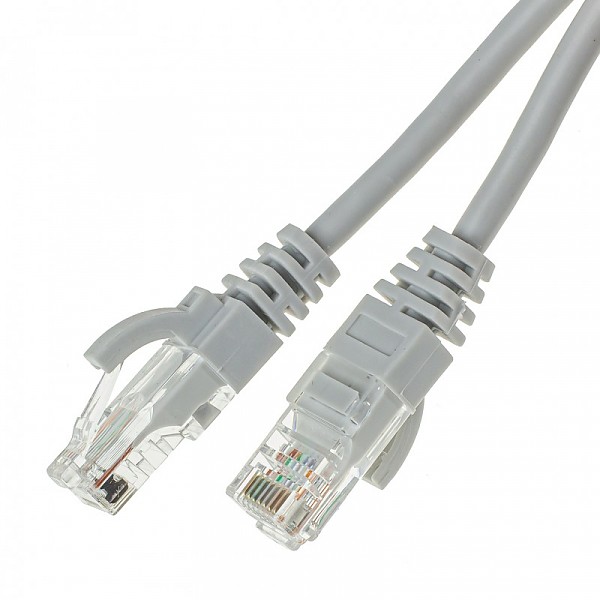

- » UTP PATCH CABLES CAT5E#03842
Patch cable UTP cat. 5e, 0.25 m, grey, LSOH
Patch cable, cat.5e, unshielded, grey, 0.25mCable Shielding type / cat UTP cat 5e,
unshieldedCable construction 4x2 (1P*7/0.15CCA)*4 + LS0H Core diameter / AWG 26 Outer diameter 5,0 mm,
LS0HConnector RJ45 plug / molded 8p8c unshielded,
gold plated pinsImpedance 100 Mhz 100 +/-5 Ohm Frequency 100 MHz Working temperature 0°C - 60°C RoHS 2011/65/EU EN IEC 63000 Standards EN 50173-1,
ISO/IEC 11801,
IEC60332-1,
IEC-60603-7-5,
TIA/EIA 568B
#03849Patch cable UTP cat. 5e, 0.5 m, white; LSOH
Patch cable, cat.5e, unshielded, white, 0.5mCable Shielding type / cat UTP cat 5e,
unshieldedCable construction 4x2 (1P*7/0.15CCA)*4 + LSOH Core diameter / AWG 26 Outer diameter 5,0 mm,
LSOHConnector RJ45 plug / molded 8p8c unshielded,
gold plated pinsImpedance 100 Mhz 100 +/-5 Ohm Frequency 100 MHz Working temperature 0°C - 60°C RoHS 2011/65/EU EN IEC 63000 Standards EN 50173-1,
ISO/IEC 11801,
IEC60332-1,
IEC-60603-7-5,
TIA/EIA 568B
-
