 WIRELESS RANGE EXTENDERS
#08541

300Mbps Wireless Range Extender (TP-Link TL-WA850RE)

  • Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
  • Miniature size and wall-mounted design make it easy to deploy and move flexibly
  • Easily expand wireless coverage at a push of Range Extender button
  • Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
HARDWARE FEATURES:
Interface 1x10/100Mbps Auto-Sensing RJ45 Port
Plug Type EU
Button Reset Button,
Range Extender Button
Power Consumption About 3W
Wireless Standards IEEE 802.11n,
IEEE 802.11g,
IEEE 802.11b
Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
Antenna Type 2 x internal
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n Up to 300Mbps(dynamic),
11g Up to 54Mbps(dynamic),
11b Up to 11Mbps(dynamic)
EIRP <20dBm (EIRP)
Reception Sensitivity 270M -68dBm@10% PER,
130M -68dBm@10% PER,
108M -68dBm@10% PER,
54M -73dBm@10% PER,
11M -85dBm@8% PER,
6M -88dBm@10% PER,
1M -90dBm@8% PER
Wireless Modes Range Extender
Wireless Functions WMM (Wi-Fi Multimedia),
Wireless MAC Address Filtering,
Wireless Statistic,
Domain Login Function
Wireless Security 64/128/152-bit WEP,
WPA-PSK / WPA2-PSK
OTHERS
Certification CE,
FCC,
RoHS
Package Contents TL-WA850RE,
RJ-45 Patchcord,
Power supply unit,
Resource CD,
Quick Installation Guide
System Requirements Microsoft Windows 98SE,
NT,
2000,
XP,
Vista™ or Windows 7,8,
MAC OS,
NetWare,
UNIX or Linux.
Environment Operating Temperature 0°~40° (32°~104°),
Storage Temperature -40°~70° (-40°~158°),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing
Warranty 2 years limited warranty. Advanced replacement service is available.
TP-LINK
TP-Link TL-WA850RE, 300Mbps Wireless Range Extender
Net Price: 15.40 USD  Unit: pcs  VAT: 23%
product card»
#08542

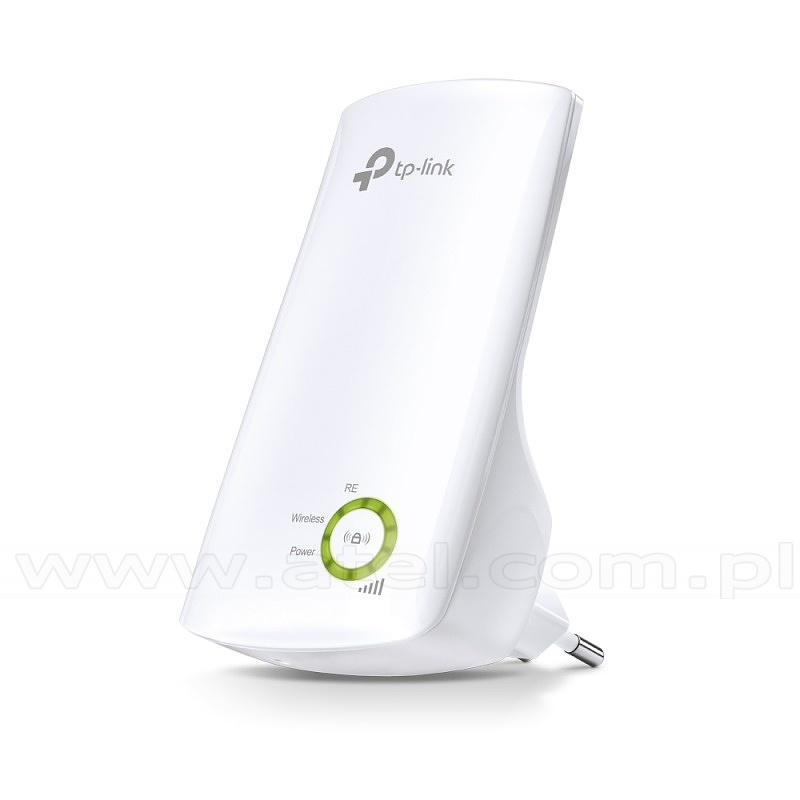

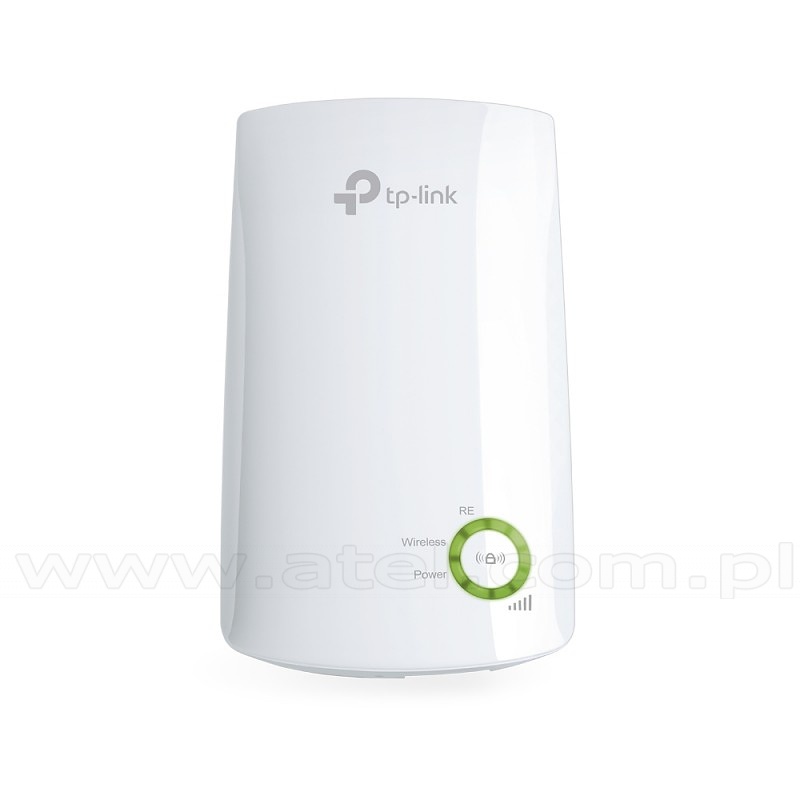

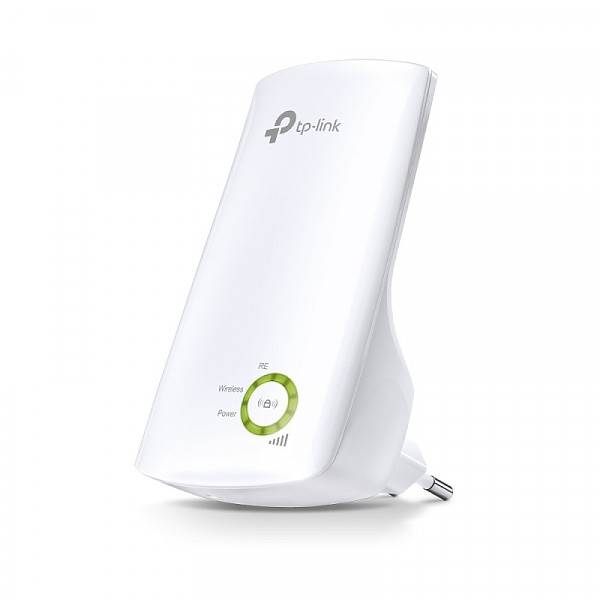

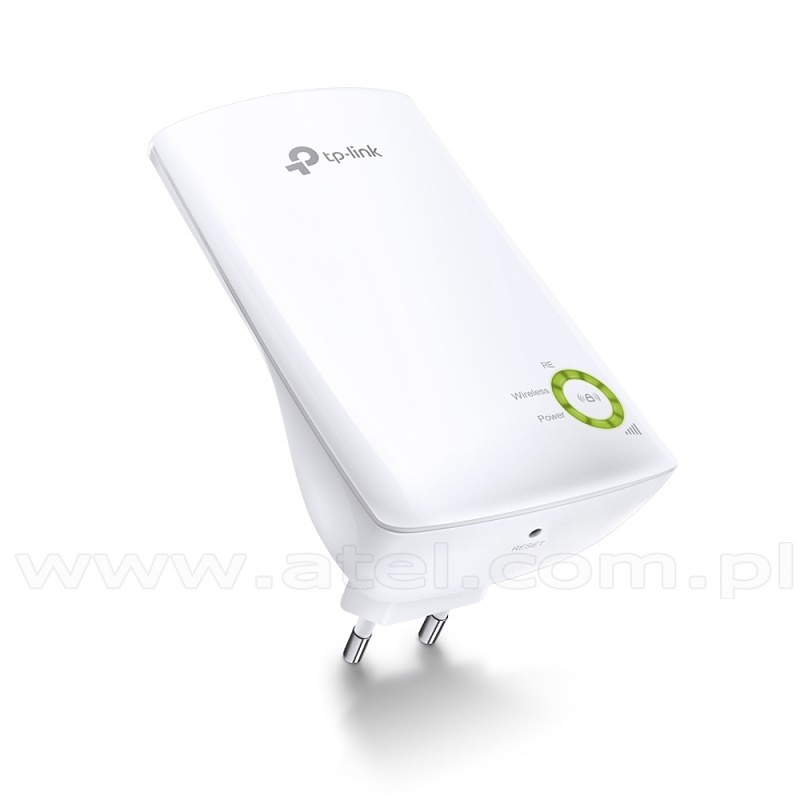

300Mbps Wireless Range Extender (TP-Link TL-WA854RE)

  • Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
  • Miniature size and wall-mounted design make it easy to deploy and move flexibly
  • Easily expand wireless coverage at a push of Range Extender button
HARDWARE FEATURES:
Plug Type EU
Button Reset Button,
Range Extender Button
Power Consumption About 3W
Wireless Standards IEEE 802.11n,
IEEE 802.11g,
IEEE 802.11b
Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
Antenna Type 2 x internal
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n Up to 300Mbps(dynamic),
11g Up to 54Mbps(dynamic),
11b Up to 11Mbps(dynamic)
EIRP <20dBm (EIRP)
Reception Sensitivity 270M -68dBm@10% PER,
130M -68dBm@10% PER,
108M -68dBm@10% PER,
54M -73dBm@10% PER,
11M -85dBm@8% PER,
6M -88dBm@10% PER,
1M -90dBm@8% PER
Wireless Modes Range Extender
Wireless Functions WMM (Wi-Fi Multimedia),
Wireless MAC Address Filtering,
Wireless Statistic,
Domain Login Function
Wireless Security 64/128/152-bit WEP,
WPA-PSK / WPA2-PSK
OTHERS
Certification CE,
FCC,
RoHS
Package Contents TL-WA854RE,
Resource CD,
Quick Installation Guide
System Requirements Microsoft Windows 98SE,
NT,
2000,
XP,
Vista™ or Windows 7,8,
MAC OS,
NetWare,
UNIX or Linux.
Environment Operating Temperature 0°~40° (32°~104°),
Storage Temperature -40°~70° (-40°~158°),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing
Warranty 2 years limited warranty. Advanced replacement service is available.
TP-LINK
TP-Link TL-WA854RE, 300Mbps Wireless Range Extender
Net Price: 13.10 USD  Unit: pcs  VAT: 23%
product card»
#04587

300Mbps Wireless Range Extender (TP-Link TL-WA855RE)

  • Boosts your existing Wi-Fi coverage to deliver fast and reliable wired and wireless connectivity
  • External antennas for faster and more reliable Wi-Fi
  • Supports AP mode which creates a new Wi-Fi Access point
  • Easily expand wireless coverage at a push of the Range Extender button
  • Set the Power Schedule for the range extender for power-saving
  • Tether App allows easy access and management with your mobile devices remotely
  • Works with Any Wi-Fi Router
HARDWARE FEATURES:
Interface 1x10/100Mbps Auto-Sensing RJ45 Port
Plug Type EU
Button Reset Button,
Range Extender Button
Power Consumption About 3W
Wireless Standards IEEE 802.11n,
IEEE 802.11g,
IEEE 802.11b
Dimensions ( W x D x H ) 2.0x 1.3 x 2.6in. (52 x 34 x 65mm)
Antenna Type 2 x external
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n Up to 300Mbps(dynamic),
11g Up to 54Mbps(dynamic),
11b Up to 11Mbps(dynamic)
EIRP <20dBm (EIRP)
Reception Sensitivity 270M -68dBm@10% PER,
130M -68dBm@10% PER,
108M -68dBm@10% PER,
54M -68dBm@10% PER,
11M -68dBm@8% PER,
6M -68dBm@10% PER,
1M -68dBm@8% PER
Wireless Modes Range Extender
Wireless Functions WMM (Wi-Fi Multimedia),
Wireless MAC Address Filtering,
Wireless Statistic,
Domain Login Function
Wireless Security 64/128/152-bit WEP,
WPA-PSK / WPA2-PSK
OTHERS
Certification CE,
FCC,
RoHS
Package Contents TL-WA855RE,
RJ-45 Patchcord,
Quick Installation Guide
System Requirements Microsoft Windows 98SE,
NT,
2000,
XP,
Vista™ or Windows 7,8,
MAC OS,
NetWare,
UNIX or Linux.
Environment Operating Temperature 0°~40° (32°~104°),
Storage Temperature -40°~70° (-40°~158°),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing
Warranty 2 years limited warranty. Advanced replacement service is available.
TP-LINK
TP-Link TL-WA855RE, 300Mbps Wireless Range Extender
Net Price: 17.90 USD  Unit: pcs  VAT: 23%
product card»
#08936

300Mbps Wireless Range Extender (TP-Link TL-WA860RE)

  • Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
  • Miniature size and wall-mounted design make it easy to deploy and move flexibly
  • Extra power socket making sure that no power outlet is going to waste
  • 2 fixed external antennas provide excellent WiFi coverage and reliability
  • Easily expand wireless coverage at a push of Range Extender button
HARDWARE FEATURES:
Interface 1x10/100Mbps Auto-Sensing RJ45 Port
Plug Type EU
Button Reset Button,
Range Extender Button
Power Consumption About 3W
Wireless Standards IEEE 802.11n,
IEEE 802.11g,
IEEE 802.11b
Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
Antenna Type 2 x external
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n Up to 300Mbps(dynamic),
11g Up to 54Mbps(dynamic),
11b Up to 11Mbps(dynamic)
EIRP <20dBm (EIRP)
Reception Sensitivity 270M -69dBm@10% PER,
130M -69dBm@10% PER,
108M -69dBm@10% PER,
54M -69dBm@10% PER,
11M -86dBm@8% PER,
6M -89dBm@10% PER,
1M -91dBm@8% PER
Wireless Modes Range Extender
Wireless Functions WMM (Wi-Fi Multimedia),
Wireless MAC Address Filtering,
Wireless Statistic,
Domain Login Function
Wireless Security 64/128/152-bit WEP,
WPA-PSK / WPA2-PSK
OTHERS
Certification CE,
FCC,
RoHS
Package Contents TL-WA860RE,
RJ-45 Patchcord,
Power supply unit,
Resource CD,
Quick Installation Guide
System Requirements Microsoft Windows 98SE,
NT,
2000,
XP,
Vista™ or Windows 7,8,
MAC OS,
NetWare,
UNIX or Linux.
Environment Operating Temperature 0°~40° (32°~104°),
Storage Temperature -40°~70° (-40°~158°),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing
Warranty 2 years limited warranty. Advanced replacement service is available.
TP-LINK
TP-Link TL-WA860RE, 300Mbps Wireless Range Extender
Net Price: 21.20 USD  Unit: pcs  VAT: 23%
product card»
 WIRELESS ROUTERS
top
#04579

300Mbps Wireless N Nano Router (TP-Link TL-WR802N)

  • 300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling
  • Pocket-size – Ideal for home and travel use
  • Supports Router, Repeater, Client, AP and hotspot operation modes
  • Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation
  • Easy installation in minutes
HARDWARE FEATURES:
Interface 1 10/100Mbps WAN/LAN Port,
1 Micro USB Port,
1 Reset Button
Wireless Standards IEEE 802.11n,
IEEE 802.11g,
IEEE 802.11b
Dimensions ( W x D x H ) 2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm)
Antenna Type On-Board
WIRELESS FEATURES:
Frequency 2.4-2.34835GHz
Signal Rate 11n Up to 300Mbps(dynamic),
11g Up to 54Mbps(dynamic),
11b Up to 11Mbps(dynamic)
EIRP <20dBm (EIRP)
Reception Sensitivity 135M-70dBm@10%PER,
65M-73dBm@10%PER,
54M-76dBm@10%PER
Wireless Modes AP Mode,
Router Mode ,Client Mode,,
Repeater Mode,
Bridge Mode
Wireless Functions Enable/Disable Wireless Radio,
WDS Bridge,
WMM,,
Wireless Statistics
Wireless Security 64/128/152-bit WEP,
WPA/WPA2,
WPA-PSK/WPA2-PSK
SOFTWARE FEATURES:
WAN Type Dynamic IP/Static IP/PPPoE/,
PPTP/L2TP
DHCP Server,
Client,
DHCP Client List,,
Address Reservation
Quality of Service WMM,
Bandwidth Control
Port Forwarding Virtual Server,
Port Triggering,
UPnP,
DMZ
Dynamic DNS DynDns,
Comexe,
NO-IP
VPN Pass-Through PPTP,
L2TP,
IPSec (ESP Head)
Access Control Local Management Control,
Host List,
Access Schedule,
Rule Management
Firewall Security DoS,
SPI Firewall,
IP Address Filter/MAC Address Filter/Domain Filter,
IP and MAC Address Binding
Management Access Control,
Local Management,
Remote Management
OTHERS:
Certification CE,
FCC,
RoHS
Package Contents TL-WR802N,
Power Adapter,
USB Cable,
Ethernet cable,
Quick Installation Guide,
Resource CD
System Requirements Microsoft® Windows 98SE,
NT,
2000,
XP,
Vista™ or Windows 7/8/8.1/10,
MAC OS,
NetWare,
UNIX or Linux
Environment Operating Temperature 0°~40° (32°~104°),
Storage Temperature -40°~70° (-40°~158°),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing
TP-LINK
TP-Link TL-WR802N, 300Mbps Wireless N Nano Router
Net Price: 21.20 USD  Unit: pcs  VAT: 23%
product card»
#09161

300Mbps Wireless N VDSL/ADSL Modem Router, (TP-Link TD-W9960)

  • Versatile Connectivity – With DSL and LAN/WAN ports, TD-W9960 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access.
  • Boosted Speeds – Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi.
  • Maximized Range – Powerful external antennas provide far-reaching wireless coverage in every direction.
  • Effortless Management – Set up in minutes with the powerful Tether app or intuitive web interface and manage the network from anywhere.
HARDWARE FEATURES:
Interface 3 10/100Mbps RJ45 Ports,
1 10/100Mbps RJ45 LAN/WAN Port,
1 RJ11 Port
Button 1 Power On/Off Button,
1 WPS,
1 Reset Button
External Power Supply 9VDC/0.6A
IEEE Standards IEEE 802.3, 802.3u
ADSL Standards Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ITU-T G.995.1
ADSL2 Standards ITU-T G.992.3 (G.dmt.bis),
ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards ITU-T G.992.5
Dimensions ( W x D x H ) 181.6 x 129.7 x 36.2mm
Antenna Type Omni directional,
Detachable,
Reverse SMA
Antenna Gain 2 * 5dBi
WIRELESS FEATURES:
Wireless Standards IEEE 802.11b,
802.11g,
802.11n
Frequency 2.400-2.4835GHz
EIRP <20dBm (EIRP)
Wireless Security Support 64/128 bit WEP,
WPA-PSK/WPA2-PSK,
Wireless MAC Filtering
SOFTWARE FEATURES:
Quality of Service Bandwidth Control
Port Forwarding Virtual server,
DMZ,
ACL(Access Control List)
VPN Pass-Through PPTP,
L2TP,
IPSec Pass-through
ATM/PPP Protocols ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
PVC - Up to 8 PVCs
Advanced Features Ethernet WAN (EWAN),
Parent Control,
Traffic Shaping(ATM QoS) UBR,
CBR,
VBR-rt,
VBR-nrt; Dynamic Host Configuration Protocol (DHCP),
DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Grouping,
Static Routing,
RIP v1/v2 (optional); DNS Relay,
DDNS,
IGMP snooping V1/2 IGMP Multicast,
UPnP
Security NAT Firewall,
SPI Firewall,
MAC / IP / Packet / URL Filtering
USB Sharing Storage Sharing,
FTP Server,
Media Server,
Print Server
Management Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP v1/2c,
SNMP over EOC,
Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tool
OTHERS:
Certification CE,
FCC,
RoHS
Package Contents TD-W9970,
External Splitter,
RJ-11 Telephone Cable,
RJ-45 Ethernet Cable,
Quick Installation Guide,
Power Adapter
System Requirements Microsoft® Windows® 98SE,
NT,
2000,
XP,
Vista™ or Windows 7/8/8.1/10,
MAC® OS,
NetWare®,
UNIX® or Linux.
Environment Operating Temperature 0°~40° (32°~104°),
Storage Temperature -40°~70° (-40°~158°),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing
TP-LINK
300Mbps Wireless N VDSL/ADSL Modem Router, (TP-Link TD-W9960)
Net Price: 36.40 USD  Unit: pcs  VAT: 23%
product card»
#09122

3G/4G Wireless N Router, 300Mbps (TP-Link TL-MR100)

  • Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
  • Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
  • Two detachable advanced LTE antennas – Enjoy stable and efficient connections to every device thanks to the two external antennas
  • Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
HARDWARE FEATURES:
Interface 1 10/100Mbps LAN/WAN Port,
1 10/100Mbps LAN Ports,
1 SIM Card Slot
Button WPS/Reset Button
External Power Supply 9VDC/0.85A
Dimensions ( W x D x H ) 6.06×4.49×1.42 in ( 154×114×36 mm)
Antenna Type 2 Detachable External 4G LTE Antennas
WIRELESS FEATURES:
Wireless Standards IEEE 802.11n,
IEEE 802.11g,
IEEE 802.11b
Frequency 2.4GHz
EIRP <20dBm
Signal Rate 300Mbps at 2.4GHz
Wireless Security 64/128-bit WEP,
WPA/WPA2,
WPA-PSK/WPA2-PSK encryptions
Network Type 4G- FDD-LTE- B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz),
TDD-LTE- B38/B40/B41 (2600/2300/2500 MHz),
3G- HSPA/UMTS- B1/B5/B8 (2100/850/900 MHz)
SOFTWARE FEATURES:
Security IPv4 SPI Firewall,
IP and MAC Address Binding
Operating Modes 3G/4G Router,
Wireless Router
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Local Management,
Remote Management
DHCP Server,
DHCP Client List,
Address Reservation
Port Forwarding ALG,
Virtual Server,
Port Triggering,
UPnP,
DMZ
Dynamic DNS DynDns,
NO-IP
Protocols IPv4,
IPv6
Guest Network 2.4 GHz Guest Network
Administration Upgrade Firmware,
Factory Default,
System Log,
Diagnostic Tools
OTHERS:
Certification CE,
RoHS
Package Contents 3G/4G Wireless AC Router,
RJ45 Ethernet Cable,
Power Adapter,
Quick Installation Guide
Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10,
MAC OS,
NetWare,
UNIX or Linux,
Internet Explorer 11,
Firefox 12.0,
Chrome 20.0,
Safari 4.0,
or other,
Java-enabled browser,
Micro SIM Card
Environment Operating Temperature 0°~40° (32°~104°),
Storage Temperature -40°~70° (-40°~158°),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing
TP-LINK
TP-Link TL-MR100, 3G/4G Wireless N Router, 300Mbps
Net Price: 54.40 USD  Unit: pcs  VAT: 23%
product card»
#04605

3G/4G Wireless N Router, 300Mbps (TP-Link TL-MR6400)

  • Share your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps
  • Wireless N speeds of up to 300Mbps
  • Integrated antennas provide stable wireless connections
  • Requires no configuration - just insert a SIM card and turn it on to enjoy high speed internet access
  • LAN/WAN port provides options and flexibility, allowing you to choose your connection type
HARDWARE FEATURES:
Interface 1 10/100Mbps LAN/WAN Port,
3 10/100Mbps LAN Ports,
1 SIM Card Slot
Button WPS/Reset Button,
Wireless On/Off Switch,
Power On/Off Button
External Power Supply 12VDC/1A
Dimensions ( W x D x H ) 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)
Antenna Type 2 Internal Wi-Fi Antennas,
,
2 Detachable External 4G LTE Antennas
WIRELESS FEATURES:
Wireless Standards IEEE 802.11n,
IEEE 802.11g,
IEEE 802.11b
Frequency 2.4GHz
EIRP <20dBm
Signal Rate 300Mbps at 2.4GHz
Wireless Security Support 64/128 bit WEP,
WPA-PSK/WPA2-PSK,
Wireless MAC Filtering
SOFTWARE FEATURES:
Security NAT Firewall,
SPI Firewall,
MAC / IP / Packet / Application / URL Filtering,
Denial of Service(DoS),
SYN Flooding,
Ping of Death
Operating Modes 3G/4G Router,
Wireless Router
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Access Control,
Local Management,
Remote Management
DHCP Server,
Client,
DHCP Client List,
Address Reservation
Port Forwarding Virtual Server,
Port Triggering,
UPnP,
DMZ
Dynamic DNS DynDns,
NO-IP
VPN Pass-Through PPTP,
L2TP,
IPSec
Access Control Parental Control,
Local Management Control,
Host List,
Access Schedule,
Rule Management
Firewall Security DoS,
SPI Firewall,
IP Address Filter/Domain Filter,
IP and MAC Address Binding
Protocols Supports IPv4 and IPv6
Guest Network 2.4GHz guest network x 1, 5GHz guest network x 1
IPSec VPN Supports up to 10 IPSec VPN tunnels
Network Type 4G FDD-LTE Cat4 (800/900/1800/2100/2600MHz),
TDD-LTE (2300/2600MHz),
3G DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz),
2G EDGE/GPRS/GSM (850/900/1800/1900MHz)
OTHERS:
Certification CE,
FCC,
RoHS
Package Contents 3G/4G Wireless AC Router,
1 Antenna,
RJ45 Ethernet Cable,
Power Adapter,
Quick Installation Guide,
Micro to Standard SIM Card Adapter,
Nano to Standard SIM Card Adapter
System Requirements Microsoft® Windows® 98SE,
NT,
2000,
XP,
Vista™ or Windows 7/8/8.1,
MAC® OS,
NetWare®,
UNIX® or Linux.
Environment Operating Temperature 0°~40° (32°~104°),
Storage Temperature -40°~70° (-40°~158°),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing
TP-LINK
TP-Link TL-MR6400, 3G/4G Wireless N Router, 300Mbps
Net Price: 67.10 USD  Unit: pcs  VAT: 23%
product card»
#09123

3G/4G Wireless N Telephony Router, 300Mbps (TP-Link TL-MR6500v)

  • Cutting-edge 4G network – share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps*
  • Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
  • WiFi speeds up to 300 Mbps – enjoy uninterrupted HD movies, rapid file downloads, seamless video chats, and more at the same time*
  • Professional voice functions – supports VoLTE/CSFB/VoIP functions and provides 50 MB of internal storage for 100 minutes of voicemail
  • Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
  • Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
HARDWARE FEATURES:
Interface 1 10/100Mbps LAN/WAN Port,
2 10/100Mbps LAN Ports,
1 SIM Card Slot,
1 Phone Port
Button WPS/Reset Button,
Wi-Fi ON/OFF Button
External Power Supply 12VDC/1A
Dimensions ( W x D x H ) 7.95 × 5.55 × 1.32 in (202 × 141 × 33.6 mm)
Antenna Type 2 Detachable External 4G LTE Antennas
WIRELESS FEATURES:
Wireless Standards IEEE 802.11n,
IEEE 802.11g,
IEEE 802.11b
Frequency 2.4GHz
EIRP <20dBm
Signal Rate 300Mbps at 2.4GHz
Wireless Security 64/128-bit WEP,
WPA/WPA2,
WPA-PSK/WPA2-PSK encryptions
Network Type 4G- FDD-LTE- B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz),
TDD-LTE- B38/B40/B41 (2600/2300/2500 MHz),
3G- HSPA/UMTS- B1/B5/B8 (2100/850/900 MHz)
SOFTWARE FEATURES:
Security IPv4 SPI Firewall,
IP and MAC Address Binding
Operating Modes 3G/4G Router,
Wireless Router
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Local Management,
Remote Management
DHCP Server,
DHCP Client List,
Address Reservation
Port Forwarding ALG,
Virtual Server,
Port Triggering,
UPnP,
DMZ
Dynamic DNS DynDns,
NO-IP
Protocols IPv4,
IPv6
Guest Network 2.4 GHz Guest Network
Administration Upgrade Firmware,
Factory Default,
System Log,
Diagnostic Tools
TELEPHONY:
VoIP Standards SIP(RFC3261)/RTP(RFC1889/3550),
G.711A/u,
G.729AB,
G.726
Integrated Answering Machine Stores 100 minutes long voice messages internally on the modem router
Advanced Telephone Functions Call Blocking,
Anonymous Call Blocks,
Speed Dial,
Emergency Number
OTHERS:
Certification CE,
RoHS
Package Contents 3G/4G Wireless AC Router,
RJ45 Ethernet Cable,
Power Adapter,
Quick Installation Guide
Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10,
MAC OS,
NetWare,
UNIX or Linux,
Internet Explorer 11,
Firefox 12.0,
Chrome 20.0,
Safari 4.0,
or other,
Java-enabled browser,
Micro SIM Card
Environment Operating Temperature 0°~40° (32°~104°),
Storage Temperature -40°~70° (-40°~158°),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing
TP-LINK
3TP-Link TL-MR6500v, G/4G Wireless N Telephony Router, 300Mbps
Net Price: 94.90 USD  Unit: pcs  VAT: 23%
product card»
#08365

Portable 3G/4G Wireless N Router (TP-Link TL-MR3020)

Share a 3G/4G* mobile connection, compatible with 120+ LTE/HSPA+/UMTS/EVDO 3G/4G USB modems, tested in the field

Travel-size Design, small and light enough to take on the road, enables users to share a 3G/4G* mobile connection wherever 3G/4G* coverage is available

Wireless speed is up to 150Mbps

Three modes available for different situations: 3G/4G* Router, WISP Client Router and Travel Router Mode (AP Mode)

With 3G/4G* and WAN failover back-up strategy, TL-MR3020 can provide a sustained internet connection.
HARDWARE FEATURES:
Interface 1 10/100Mbps WAN/LAN Port,
USB 2.0 Port for 3G/4G modem,
a mini USB Port for power supply.
Button Quick Setup Security Button,
Reset Button,
Mode Switch
External Power Supply 5VDC/1.0A
Dimensions ( W x D x H ) 2.9 x 2.6 x 0.9 in. (74 x 67 x22 mm)
Antenna Type Internal Antenna
WIRELESS FEATURES:
Wireless Standards IEEE 802.11n,
IEEE 802.11g,
IEEE 802.11b
Frequency 2.4-2.4835GHz
EIRP <20dBm
Wireless Modes 3G Router,
Travel Router (AP),
WISP Client Router
Wireless Security Support 64/128 bit WEP,
WPA-PSK/WPA2-PSK,
Wireless MAC Filtering
SOFTWARE FEATURES:
DHCP Server,
DHCP Client List,
Address Reservation
Port Forwarding Virtual Server,
Port Triggering,
DMZ,
UPnP
Access Control Parental Control,
Host List,
Access Schedule,
Rule Management
Security Firewall,
MAC filtering,
Denial of Service (DoS)
OTHERS:
Certification CE,
FCC,
RoHS
Package Contents TL-MR3020 router,
QIG,
Power Adapter,
USB Cable,
Resource CD,
Ethernet Cable
System Requirements Microsoft® Windows® 98SE,
NT,
2000,
XP,
Vista™ or Windows 7,
MAC® OS,
NetWare®,
UNIX® or Linux.
Environment Operating temperature-10°~60°,
Storage Temperature -40°~80°,
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing
Warranty 2 years limited warranty. Advanced replacement service is available.
TP-LINK
TP-Link TL-MR3020, Portable 3G/4G Wireless N Router
* For special orders only
Net Price: 23.20 20.50 USD   Unit: pcs  VAT: 23%
product card»

top
Page 4 of 6
