VUTLAN
VUTLAN provides IP monitoring and power management solutions for enterprises and small businesses. Monitoring Systems and IP Power Distribution ranges are designed for large data centres, server rooms, web hosting facilities, 19 inch telecommunication racks etc. Environmental monitoring in the server rooms, on the telecommunication nodes, in data centers et cetera is of great importance to many if not to all companies. What are the indoor temperature and humidity, what happens to the air conditioning or fans, whether the line voltage has a huge impact on the reliability of the equipment and the service life of servers, switches, and routers. If you have the only rack with a couple of ups and two three servers, you need to install a small monitoring unit with 5-6 sensors, enter your notifications and logic and may be to connect an inexpensive USB cam. Built-in web server and video server allows you to view logs and events at your facility, the logic when properly installed will allow the monitoring system to accept most decisions, for example, to shut down servers at high temperature or at failure of air conditioning or fans, or in case of fire, etc. and to warn user with any notification or SMS (if GSM modem is installed). If you have a set of facilities and requires a scalable, easy-to-install solution for monitoring a distributed network, then you must either apply extension units and sensors that allow to gather information from wide area, or when there are absolutely great distances between nodes and objects, it is possible to use SNMP applications that allow to collect information from multiple remote sites and can be stored in any database, if necessary, to use this information by appropriate authorities. It is also important to use monitoring systems with easy scalability and a wide range of sensors,with longlife-warranty period at a reasonable prices. All this ensures the equipment from VUTLAN, the most modern manufacturer of IP monitoring systems!  Manufacturer's website: http://www.vutlan.com |
.jpg)
New items
- Computer Network Accessories
-
- » ANALOG SENSORS#08391
Vibration detector (Vutlan VT540)
Sensor made for remote monitoring of vibration of the elements its attached to.
#08249Water detection cable sensor (Vutlan VT591)
The sensor informs about occurance of water or other liquids when it comes into contact with the WLC detection cable attached to the sensor.
The cable is placed under the raised floor, cabinets, air conditioners, etc.
The VT-WLC detection cable is necessary for the sensor.
The sensor is incompatible with the VT-WDC cable.Connection Can be connected via RJ-11 cable to each control unit. Determination of the sensor type and connection takes place automatically. At the end of the sensor,
connect the 2-wire VT-WLC detection cable.Maximum distance from the controller 100m The maximum length of the detection cable track 225m Set includes sensor,
cable,
terminal strip type TBW-5-2p,
screw 4.8×16mm,
double sided sticker,
VT-WLC adapterNet weight 60g Dimensions (LHW) 60×18×18mm
#08236Wind velocity meter (Vutlan VT550)
Sensor made for monitoring of air conditioners, fans, etc. Sensor controls airflow in the range of 0 - 3 m/s.Connection The sensor is connected to the controller by the RJ-11 network cable. Determination of the sensor type and connection takes place automatically. Sensor response time 0.1s Max. distance 50m Net weight 106g Dimensions 60×18×18mm Power Consumption 60mW Supply includes Sensor converter,
airflow sensor,
mounting bracket,
2m RJ11/RJ12 cable,
screws,
nuts,
bolts and a sticker.
- » CAN SENSORS#08295

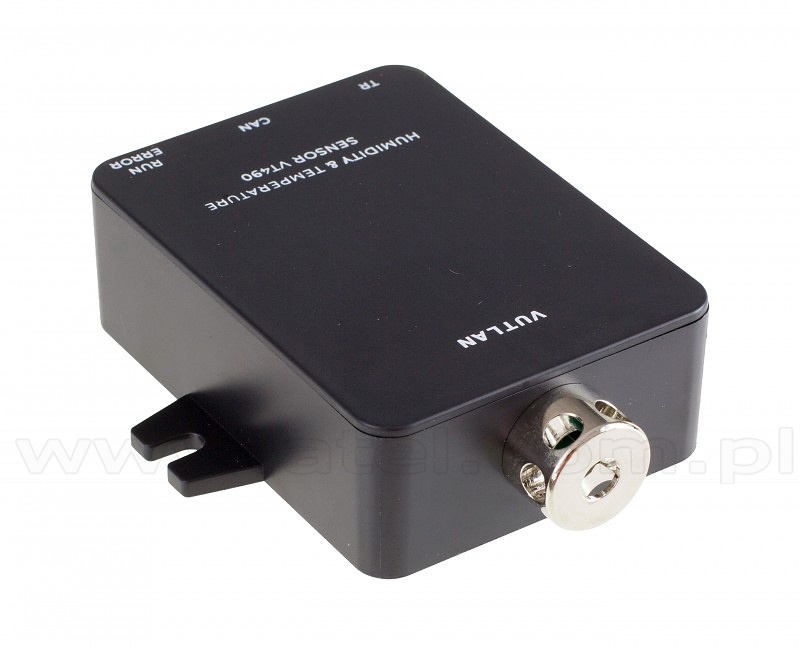

Humidity and temperature sensor (Vutlanl VT490)
Digital sensor made for monitoring temperature and humidity inside buildings, rack cabinets, etc.Technical specifications Measured temperature range -40 ÷ 100°C Accuracy ±0.4°C in –10 to 85 °C range Measured humidity range 0 - 95%RH Accuracy %RH ± 3% RH in 0 to 80% range Maximum distance from the appliance 225m Features Connection Sensor's jack RJ-12 is connected to CAN input of any system unit or to a CAN output of another sensor using RJ-12 patch cable. Determination of sensor's type and connection occur automatically. The system enables connecting multiple sensors to a linear layout. For this purpose,
each sensor is equipped with two RJ-12 input and output sockets.Net weight 160g Dimensions 68 × 47 x 26 mm
#08145Pressure, humidity and temperature sensor (Vutlan VT450)
Digital sensor made for monitoring temperature, humidity and pressure.Communications Sesnor type CAN digital sensor Inputs/Outputs 2x RJ11 6p4c Daisy chain Yes,
a daisy chain is possible for all CAN sensors.Max. distance from the monitoring unit 225m LED indicators Red / Green (RUN/ERROR) Accuracy Pressure RMS noise 0.2Pa (equivalent to 1.7cm) Pressure error ±0.25% (equivalent to 1m at 400m height change) Pressure from °C ±1.5Pa/K (equivalent to ±12.6cm at 1 °C temperature change) RH accuracy ± 3% RH (max) Hysteresis ≤2% RH Response time 1s Temperature 1.5°C Environmental Pressure range 300 to 1100 hPa Working temperature range −40 to +85 °С Humidity operating range 0 to 95% RH Power Requirement Power input 12V DC,
1A (power supplied on a CAN bus chain)Current consumption 1 Watt Mechanics Dimensions 68x47x26 mm Packaging weight 160 g
#08237Smoke, humidity and temperature sensor (Vutlan VT460)
Digital sensor made for monitoring temperature and humidity and detecting smoke inside buildings, rack cabinets, etc.Technical specifications Smoke sensitivity 0,05 - 0,2 db/m Response time 10 sec Measured temperature range -10 to +75 °C Accuracy ±0.4°C in –10 to 85 °C range. Measured humidity range 0 - 95%. Accuracy %RH ± 3% RH in range of 0 - 80% Maximum distance from the appliance 225m Features Installation On the bottom there are mounting holes for fastening the smoke sensor to the surface using screws 4.8×20mm or/and bracket and M4 screws. Connection Sensor's jack RJ-12 is connected to CAN input of any system unit or to a CAN output of another sensor using RJ-11 patch cable. Determination of sensor's type and connection occur automatically. Monitoring system allows connection of up to 40 smoke sensors into a linear circuit. Set includes Sensor,
3-wired shielded patch cable RJ12 (2m),
bracket,
2 screws and 2 nuts M4,
2 screws 4.8×20mm,
double sided sticker.Net weight 310g Dimensions (LHW) Ø100×45mm
- » ADDITIONAL ACCESORIES#08117
AC current transducer (Vutlan HAT-100Q1)
The clamp sensor enables the measurement of alternating current in the range of up to 100A. Itr can be used together with a VT407 converter (#08116).Connection: Power input -12V / +12V Outputs 4 pin terminal Power Consumption 1 Watt Operating temperature -10°C ÷ 80°C Operating humidity 5% ÷ 95%,
non-condensingNet weight 150g Dimensions (LHW) 68 × 47 x 26 mm / 60 × 61 × 16 mm #08116 HAT sensor transducer 0-5V DC (Vutlan VT407)
#08264Alarm beacon (Vutlan VT103)
The VT103 indoor optical-acoustic siren is dedicated to work with Vutlan environmental parameters monitoring units.Technical specifications Rated voltage 12V Sound pressure 108 dB Tone frequency 3.8 kHz Flash frequency 150 / min Net weight 140g Dimensions (LHW) 70 x 36 x 56 mm
#08344Alarm beacon (Vutlan VT105)
The 12V VT105 indoor optical-acoustic siren is dedicated to work with Vutlan environmental parameters monitoring units.Technical specifications Rated voltage 12V Flash frequency 90 / min Net weight 110g Dimensions (LHW) 73 x 45mm,
cable 3m
#03880CAN-12V-1A / CAN Power Supply Module
Increases the number of CAN sensors connected on a CAN bus chain. Supplies power for a maximum of 15 additional sensors. Needed only if the number of sensors in a CAN bus chain is greater than 12 sensors.Technical specifications Type Power supply for CAN bus chain Input RJ11 6P4C CAN port ⌀3.4/1,35 mm 12V Otuput RJ11 6P4C CAN port Daisy chain Allows daisy chain Max. q-ty of CAN sensors powered 15 LED indicators Green (Status On/Off) Environmental Working temperature range −40 °C to +100 °C Humidity operating range 0-95% RH Mechanics Dimensions 68 x 67 x 26,2 mm (LxWxH) Packaging weight 190g Mounting options Desktop,
Wall mount,
Indoor
-
