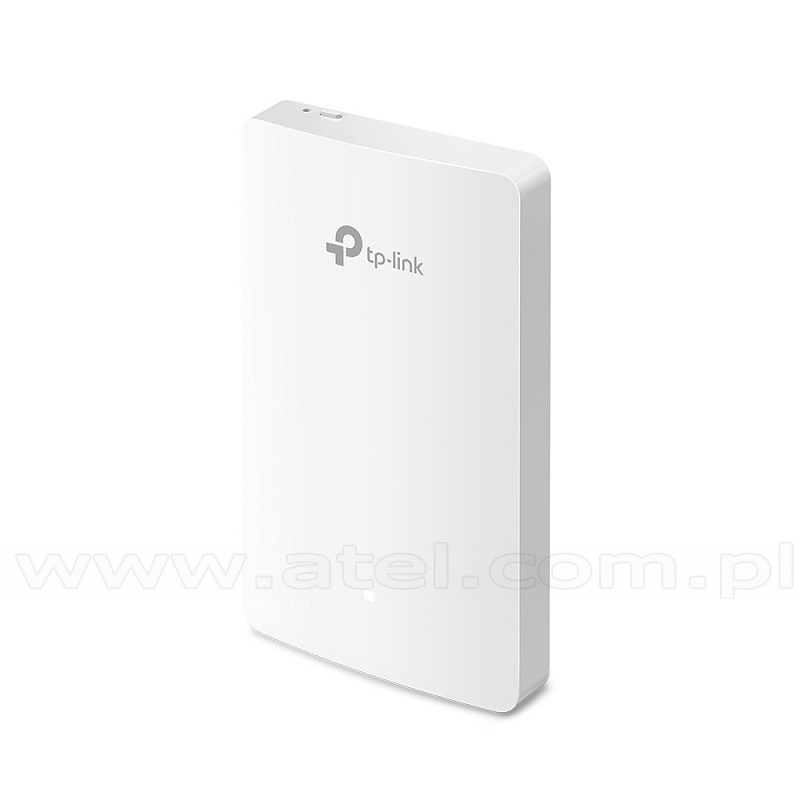

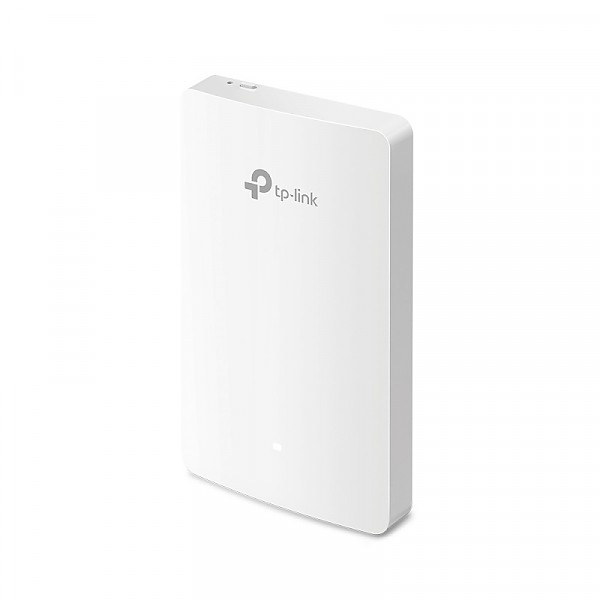

1200Mbps Outdoor Wireless Access Point, AC1200 (TP-Link EAP235-Wall)
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†

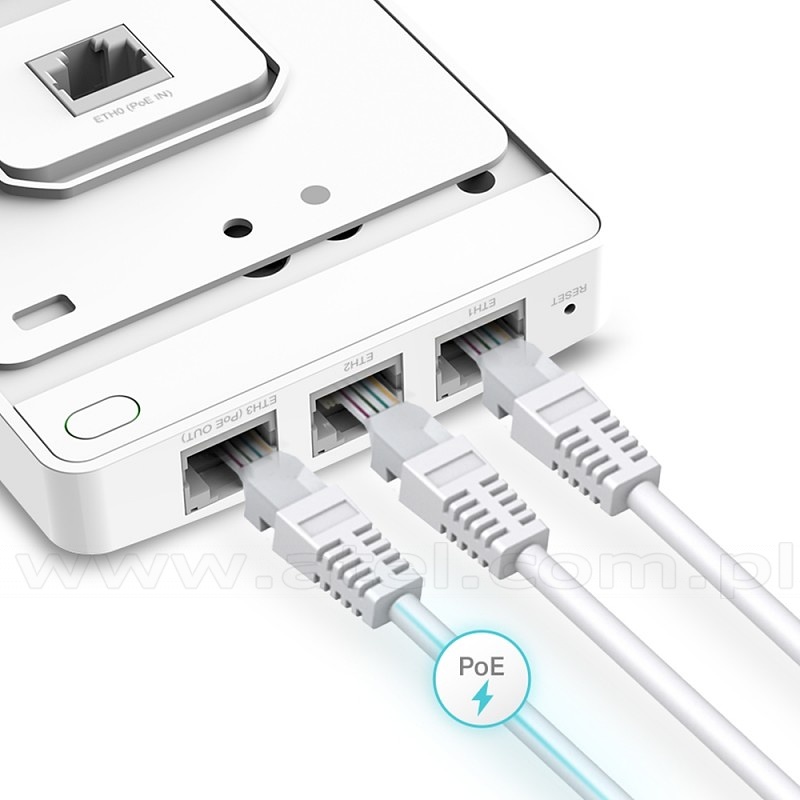

- Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
- Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.
| Standards | IEEE 802.11ac/n/g/b/a |
|---|---|
| Ports | Uplink 1x 10/100/1000Mbps (RJ-45) Port, Downlink- 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.) |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate | 5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP | CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna | 2 Dual-Band Antennas, 2.4GHz- 2*4dBi, 5GHz- 2*4dBi |

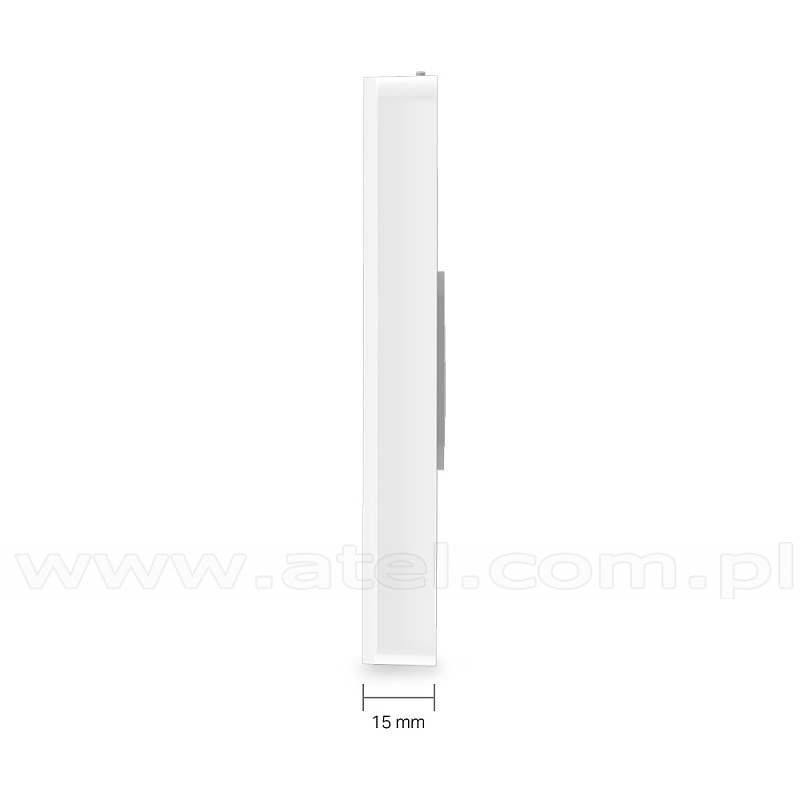

| Dimensions | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Power | 802.3af/802.3at PoE |
| Power Consumption | 9.8 watts /24.4 watts (PoE Out Included) |
| Mounting | Wall Plate Mounting |
| Watch Dog | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents | AC1200 Wireless Dual Band Gigabit Access Point EAP235-Wall, Mounting Screw, Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10 |
| Certificates | CE, FCC, RoHS |
TAGS:
PoE
Net Price: 67.80 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
