MENU#09088

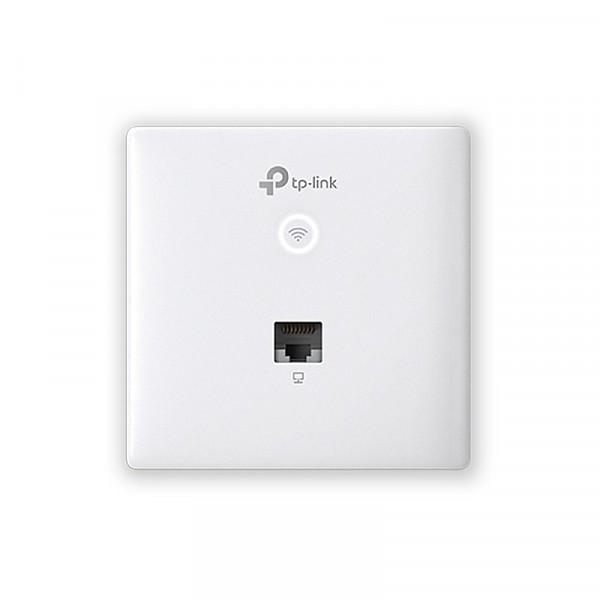

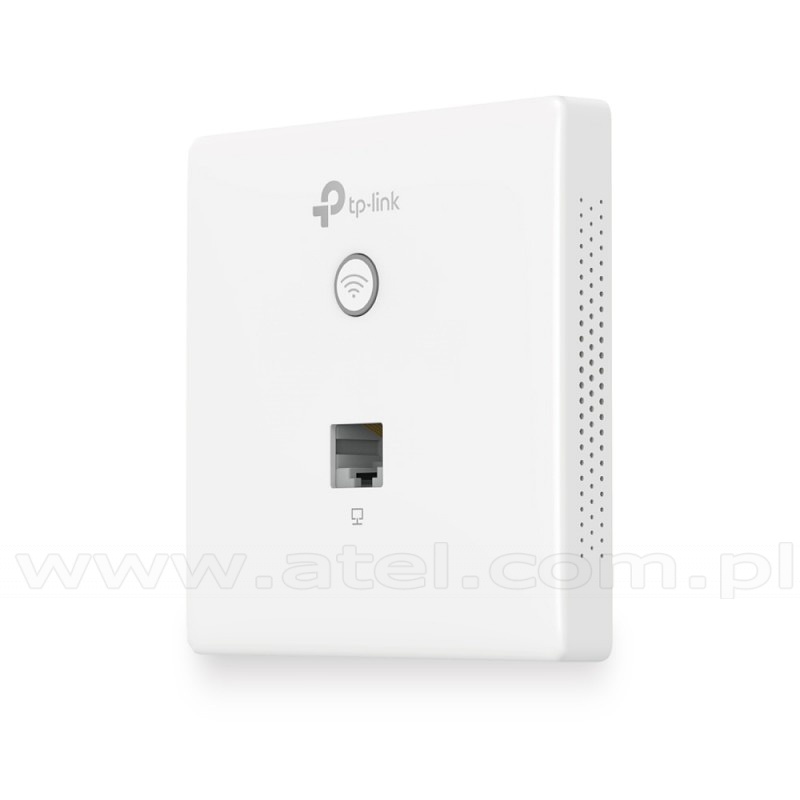

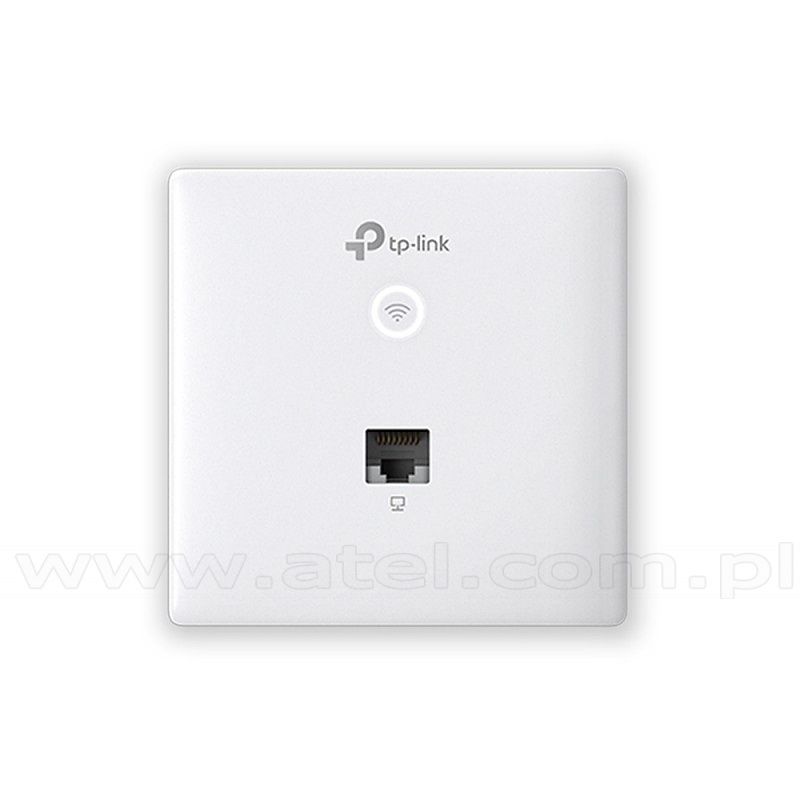

1200Mbps Wireless Access Point, AC1200 (TP-Link EAP230-Wall)
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
- Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
- Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.

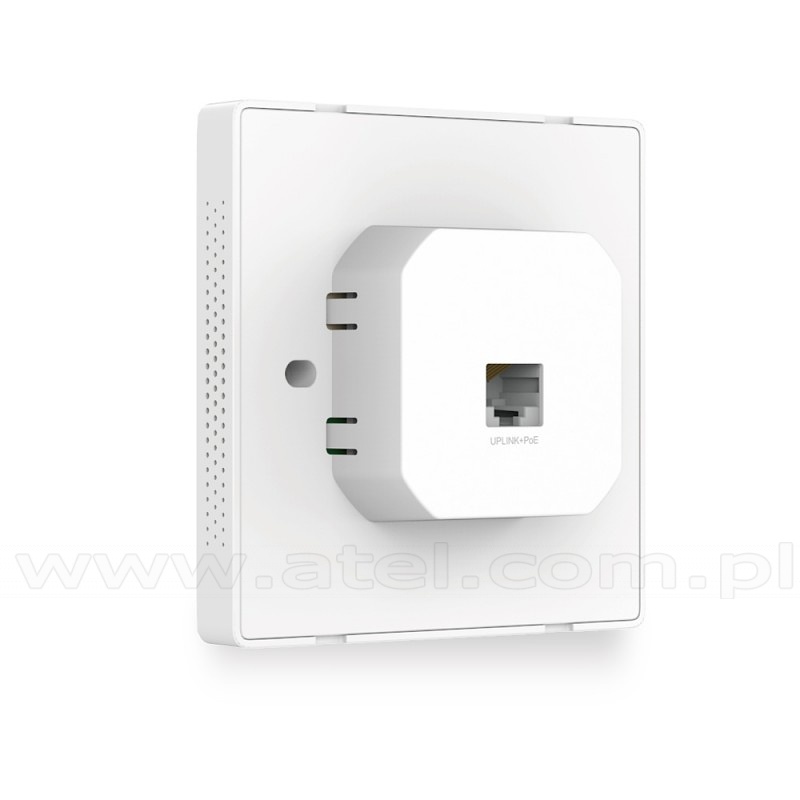

- Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
| Standards | IEEE 802.11ac/n/g/b/a |
|---|---|
| Ports | 10/100/1000Mbps (RJ-45) Port *1, Downlink- 10/100/1000Mbps Ethernet Port*1 |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate | 5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP | CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna | 2 Dual-Band Antennas, 2.4GHz- 2*4dBi, 5GHz- 2*3.6dBi |
| Dimensions | 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm) |
| Power | 802.3af/802.3at PoE |
| Power Consumption | 7 watts |
| Mounting | Wall Plate Mounting |
| Watch Dog | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents | AC1200 Wireless Dual Band Gigabit Access Point EAP230-Wall, Mounting Screw, Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10 |
| Certificates | CE, FCC, RoHS |
