MENU#09098

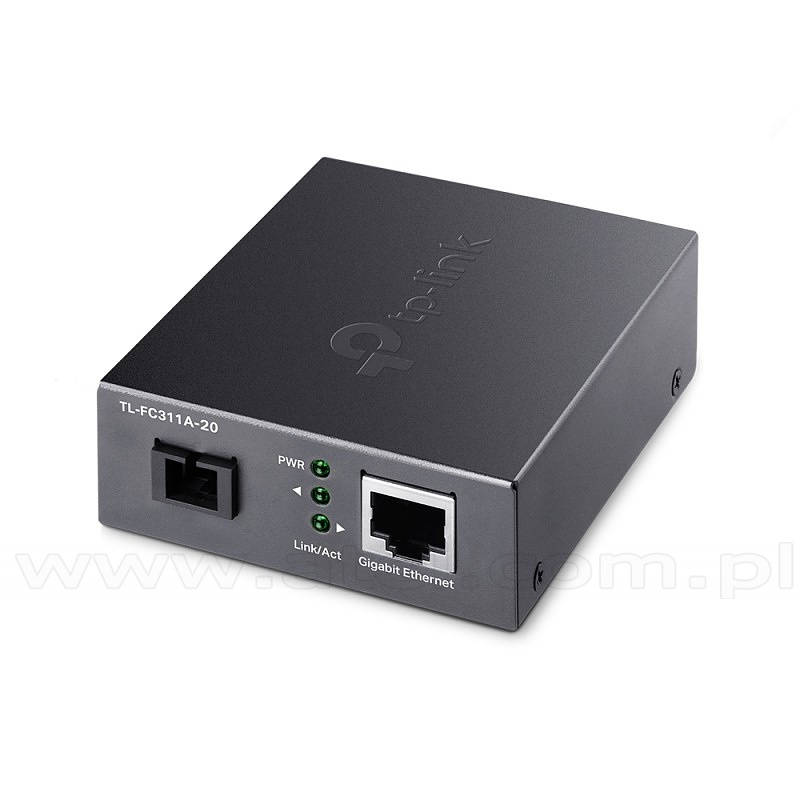

Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20 km, WDM (TP-Link TL-FC311A-20)
- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20km
| Standards | IEEE 802.3/i/u/ab/z |
|---|---|
| Port #1 | 10/100/1000 Mbps RJ-45 |
| Port #1 max. distance | 100 m |
| Port #1 cable type | UTP/STP cat. 5 |
| Port #2 | 1000 Mbps SC SM |
| TX wavelength | 1550 nm |
| RX wavelength | 1310 nm |
| Port #2 max. distance | 20 km |
| Port #2 cable type | 9/125 µm |
| Wave Division Multiplexing (WDM) | yes |
| Housing | desktop |
| Dimensions | 94,5x73x27 mm |
| Operating temperature | 0°C ÷ 50°C |
| Storage Temperature | -40°C ÷ 70°C |
| Operating humidity | 10% ÷ 90%, non-condensing |

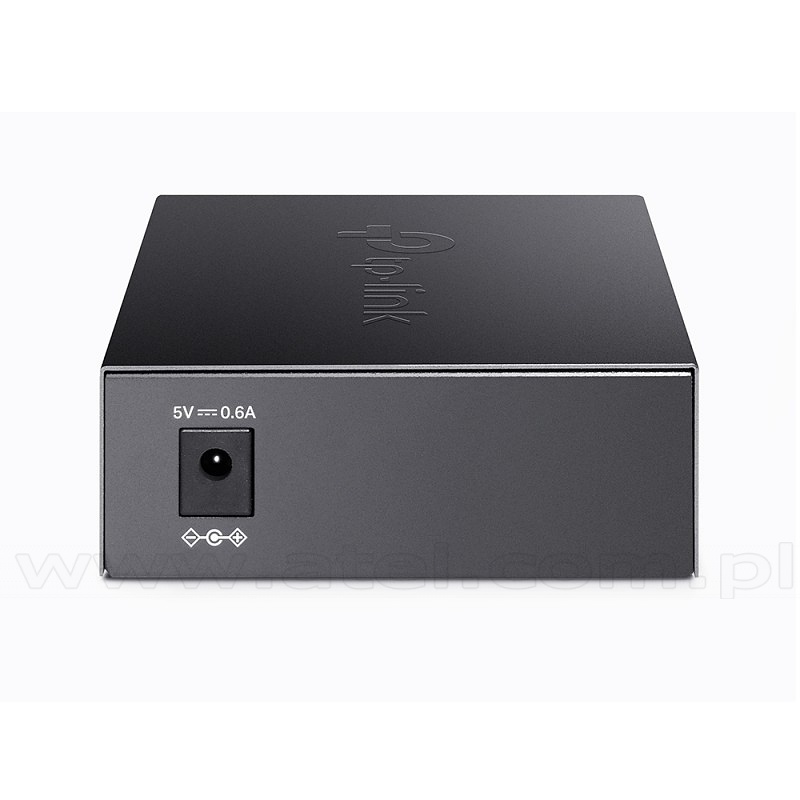

| Power | external, 5V/0.6A |
| Manufacturer | TP-Link |
Can be mount in:
#06986 Rack chassis for media converter, 14-port (TP-LINK TL-FC1420)
#06986 Rack chassis for media converter, 14-port (TP-LINK TL-FC1420)
1.0_03_large_1605842412136z.jpg?1731564987)
Net Price: 27.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
