Oring Networking - ITS - Intelligent Transportation System

Build Secure Surveillance Systems with Gigabit backbone Network

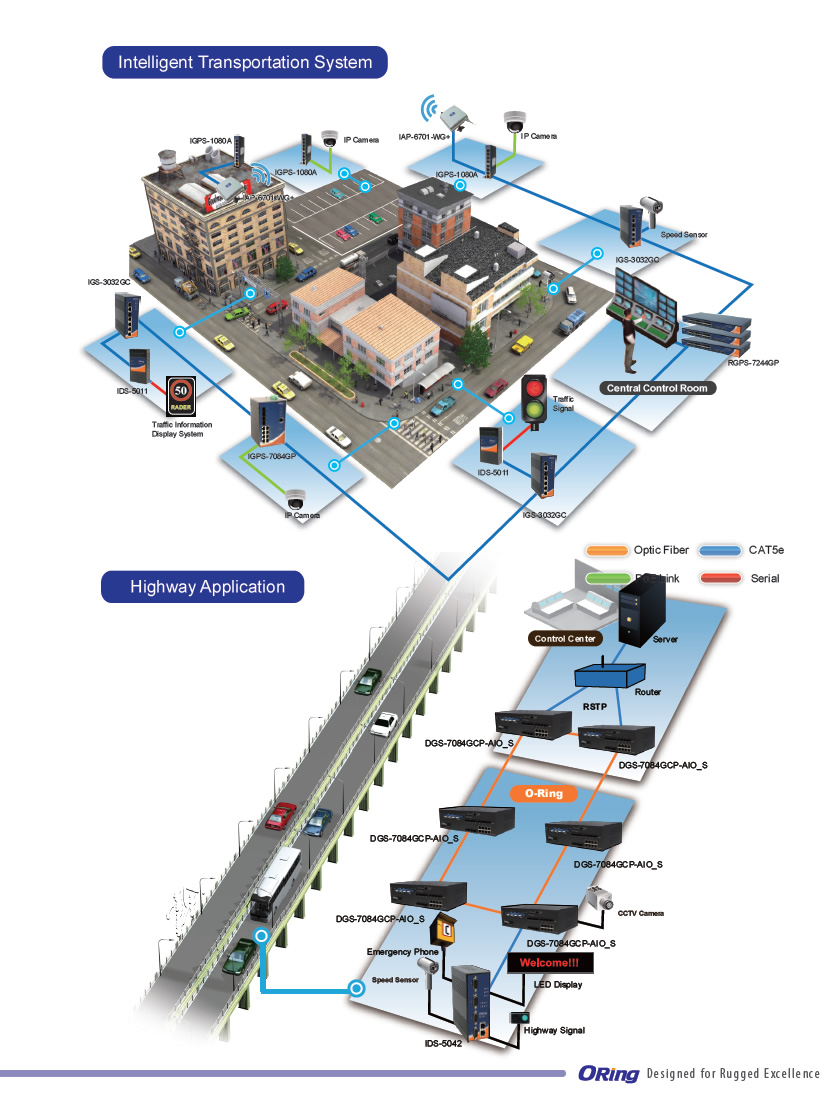

For intelligent transportation systems (ITS), massive real-time transportation video and statistics data need to be handled swiftly and reliably in tough environments - essential for effective management of public transportation, traffic signals, freeways, tunnels, and parking lots. The most robust and cost-effective solution for dependable longdistance high-bandwidth data transmission under tough outdoor conditions would be industrial-grade Gigabit Ethernet backbone network infrastructure along with fiber-optics, wired, and/or wireless networks. With such networks, traffic control centers can benefit from vastly improved timeliness and accuracy of real-time traffic information. ORing, with many years of experience of industrial Ethernet networking know-how and innovative network management technologies, provide rugged and durable industrial Gigabit networking products most suitable for intelligent transportation systems.

Key Products

	IGPS-1080A (#08166) 8-port slim type unmanaged Gigabit PoE Ethernet Switch • Provides 8x10/100/1000Base-T(X) PoE (P.S.E.) ports; up to 30 Watts per port • Rigid IP-30 housing design • -40° to 70°C operating temperature range
	IGPS-7084GP (#07641) 12-port managed Gigabit PoE Ethernet Switch • 8x10/100/1000Base-T(X) P.S.E. ports and 4x1000Base-X SFP ports • 8 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port • O-Ring (recovery time < 30ms over 250 units), MSTP/RSTP/STP for Ethernet Redundancy
	IGS-3032GC (#08158) 5-port managed Gigabit Ethernet switch • 3x10/100/1000Base-T(X) and 2xGigabit combo ports, SFP socket • Port Trunking for easy of bandwidth management • EN50155 standard compliance
	IBS-102FX (#08445) 2-port optical bypass switch • Support 100M/1G/10G optical bypass function of 2 port duplex or 4 port simplex fiber connection • Bypass switching time < 10ms, throughput not affected and no extra delay • Rigid IP-30 housing design, dual wide range power inputs: 12~48VDC
