Physical Ports | |
---|---|

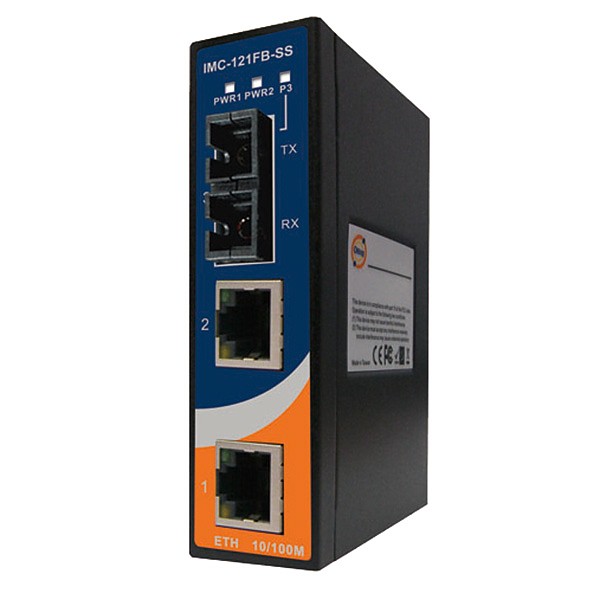

10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 2 |
100Base-FX Multimode ports (2KM, 1310nm, SC connector) | 1 |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX |
LED Indicators | |
Power / Ready indicator | Green Ready LED x 1 |
10/100TX RJ45 port indicator |
Green for port Link/Act, Yellow for duplex |
Power | |
Input power | 12÷48 VDC voltage power input |
Power consumption (typical) | 4.5W |
Overload current protection | present |
Reverse polarity protection | present on terminal block |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x H x D) | 26.1mm x 95mm x 70mm |
Weight | 210g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -40÷70°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 2 |
100Base-FX Singlemode ports (30KM, 1310nm, SC connector) | 1 |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX |
LED Indicators | |
Power / Ready indicator | Green Ready LED x 1 |
10/100TX RJ45 port indicator |
Green for port Link/Act, Yellow for duplex |
Power | |
Input power | 12÷48 VDC voltage power input |
Power consumption (typical) | 4.5W |
Overload current protection | present |
Reverse polarity protection | present on terminal block |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x H x D) | 26.1mm x 95mm x 70mm |
Weight | 210g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -40÷70°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 1 |
1000Base-FX SFP ports | 1 |
Technology | |
Ethernet Standards |
IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3ab for 1000Base-T, IEEE 802.3z for 1000Base-X |
LED Indicators |
power, RJ45, SFP slot |
Power | Dual DC inputs. 9÷48VDC on 4-pin terminal block |
Power consumption (typical) | 3.3W |
Physical Characteristic | |
Enclosure | IP-40 |
Dimension (W x H x D) | 33mm x 115mm x 85mm |
Weight | 330g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -40÷85°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950-1 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX with PoE (PSE) | 1 |
1000Base-FX (SFP) | 1 |
Processing | Store-and-Forward |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow control, IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.) |
DIP-Switch setting |
DIP-Switch 1 for LFP mode selection - (ON) enable / (OFF) disable, DIP-Switch 2 for Ethernet speed selection - (ON)10Mbps / (OFF) 10/100Mbps Auto-negotiate, DIP-Switch 3 for Ethernet full/half duplex selection - (ON) Half-duplex / (OFF) Full/Half-Duplex Auto-negotiate, DIP-Switch 4 for fiber full/half duplex selection - (ON) Half-Duplex / (OFF) Full-Duplex |
LED Indicators | |
Power indicator | Green - Power LED x 2 ( (ON) power input on-line / (OFF) power input off-line) |
10/100TX RJ45 port indicator |
Green for port Link/Act – (ON) Link up / (Blinking) Acting / (OFF) Link down, Amber for 100Mbps/10Mbps indicator – (ON) Working at 100Mbps / (OFF) Working at 10Mbps, Green for port duplex indicator – (ON) Full-Duplex / (OFF) Half-Duplex |
100Base-FX fiber port indicator |
Green for fiber port Link/Act - (ON) Link up / (Flash) Acting / (OFF) Link down, Green for fiber port duplex indicator – (ON) Full-Duplex / (OFF) Half-Duplex |
LFP statue indicator | Amber LED – (ON) LFP function fail / (OFF) LFP function disable |
PoE indicator | Amber for P.S.E. indicator |
Power | |
Input power | Dual 50~57 VDC voltage power inputs at 4-pin terminal block |
Power consumption (typical) | 4 Watts (P.S.E. output included) |
Overload current protection | present |
Reverse polarity protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension | 40mm x 70mm x 95mm |
Weight | 291g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -40÷75°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |

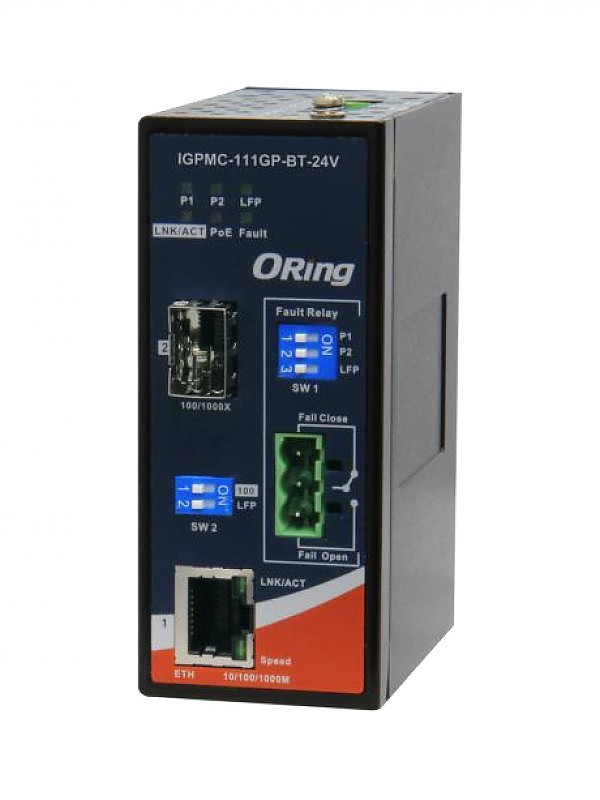

Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950-1 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX with PoE (PSE) | 1 |
1000Base-FX (SFP) | 1 |
Processing | Store-and-Forward |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow control, IEEE 802.3at PoE specification |
DIP-Switch setting |
DIP-Switch 1 for LFP mode selection - (ON) enable / (OFF) disable, DIP-Switch 2 for Ethernet speed selection - (ON)10Mbps / (OFF) 10/100Mbps Auto-negotiate, DIP-Switch 3 for Ethernet full/half duplex selection - (ON) Half-duplex / (OFF) Full/Half-Duplex Auto-negotiate, DIP-Switch 4 for fiber full/half duplex selection - (ON) Half-Duplex / (OFF) Full-Duplex |
LED Indicators | |
Power indicator | Green - Power LED x 2 ( (ON) power input on-line / (OFF) power input off-line) |
10/100/1000TX RJ45 port indicator |
Green for Link/Act, Speed LED– Green for 1000Mbps, Off-light for 100/10Mbps |
100/1000Base-FX fiber port indicator | Green for port Link/Act |
LFP statue indicator | Amber LED – (ON) LFP function fail / (OFF) LFP function disable |
PoE indicator | Amber for P.S.E. indicator |
Power | |
Input power | Dual 12~57 VDC voltage power inputs at 4-pin terminal block |
Power consumption (typical) |
IEEE 802.3at(30W) mode - 12VDC, IEEE 802.3bt( 60/90W) mode - 24VDC |
Overload current protection | present |
Reverse polarity protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension | 41mm x 70mm x 95mm |
Weight | 300g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -40÷75°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMC |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
EMI |
FEN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
EMS |
EN 55024 (IEC/EN 61000-4-2 (ESD Contact 4KV, Air 8KV), IEC/EN 61000-4-3 (RS 3V), IEC/EN 61000-4-4 (EFT Power 0.5KV, Signal 0.5KV), IEC/EN 61000-4-5 (Surge Power 0.5KV, RJ45 1KV), IEC/EN 61000-4-6 (CS 3V), IEC/EN 61000-4-8(PFMF) |

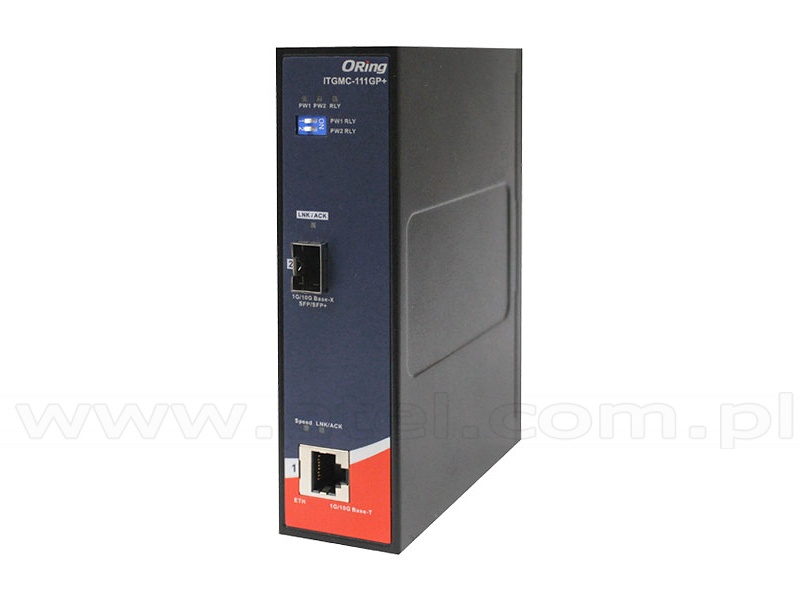

Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-31 |
Vibration | IEC60068-2-6 |
Safety | EN 62368-1 |
MTBF | 1,183,306hrs |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
1G/10GBase-T(X) Ports in RJ45 Auto MDI/MDIX | 1 |
1G/10GBase-X SFP+ ports | 1 |
Processing | Store-and-Forward |
Technology | |
Ethernet Standards |
IEEE 802.3ae for 10Gigabit Ethernet, IEEE 802.3an for 10GBase-T, IEEE 802.3ab for 1000Base-T, IEEE 802.3z for 1000Base-X |
Jumbo Frame | 10k |
LED Indicators | |
Power indicator | Green - Power LED x 2 |
1G/10GBase-X SFP+ port indicator | Green for port Link/Act |
1G/10GBase-T RJ45 port indicator |
Green for Link/Act, Dual color LED for speed – Green for 10Gbps, Amber for 1Gbps |
Power | |
Input power | Dual 12~48 VDC voltage power inputs at 4-pin terminal block |
Power consumption (typical) | 8.6 Watts |
Overload current protection | present |
Reverse polarity protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension | 40mm x 108mm x 154mm |
Weight | 437g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -20÷60°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |

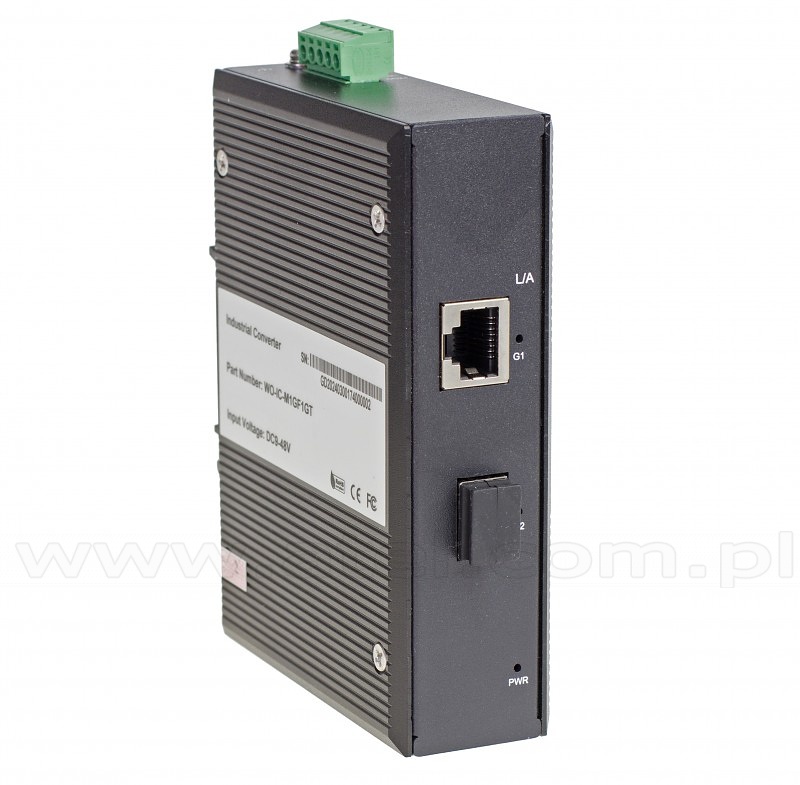

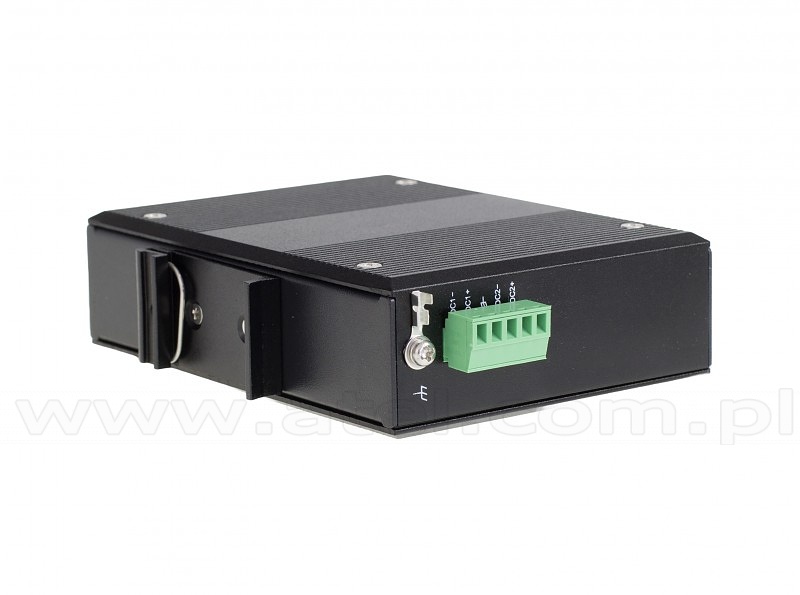

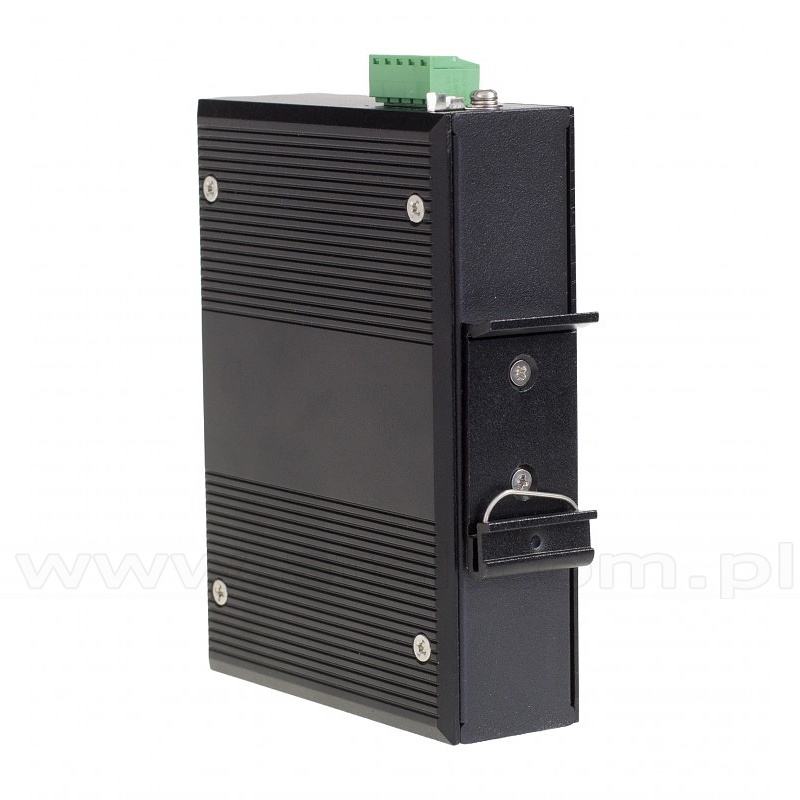

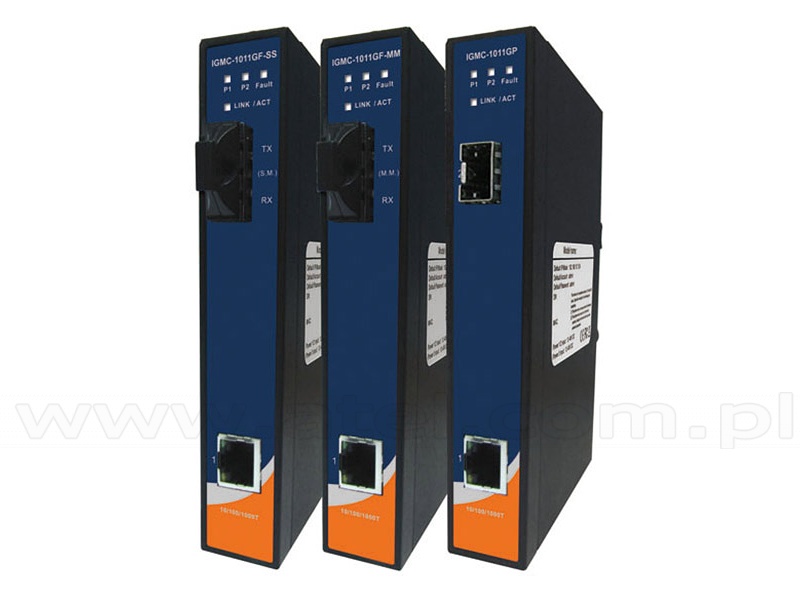

Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 1 |
1000Base-FX Multimode ports (550m, 850nm, SC connector) | 1 |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000Base-T, IEEE802.3z for 1000Base-X |
LED Indicators | |
Power / Ready indicator | Green Ready LED x 2 |
Fault indicator | Amber - Indicate power failure |
10/1000TX RJ45 port indicator |
Green for port Link/Act, Amber for duplex |
1000X Port Indicator | Green for port Link/Act |
Fault contact | |
Relay | Relay output to carry capacity of 1A at 24 VDC |
Dip Switch | Relay output function enable / disable by dip switch |

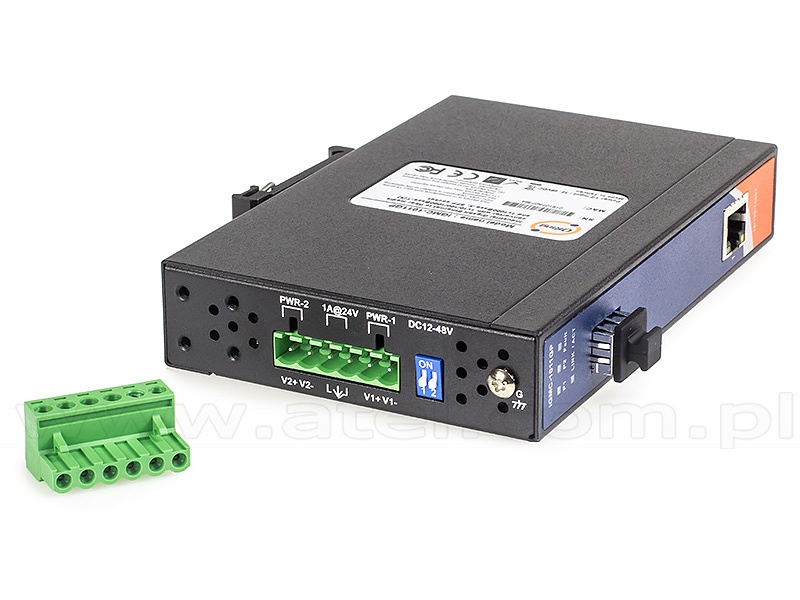

Power | |
Input power | Dual DC inputs. 12÷48VDC on 6-pin terminal block |
Power consumption (typical) | 3.5W |
Overload current protection | present |
Reverse polarity protection | present on terminal block |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x H x D) | 26.1mm x 144.3mm x 94.9mm |
Weight | 400g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -40÷70°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 1 |
1000Base-FX Singlemode ports (10km, 1310nm, SC connector) | 1 |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000Base-T, IEEE802.3z for 1000Base-X |
LED Indicators | |
Power / Ready indicator | Green Ready LED x 2 |
Fault indicator | Amber - Indicate power failure |
10/1000TX RJ45 port indicator |
Green for port Link/Act, Amber for duplex |
1000X Port Indicator | Green for port Link/Act |
Fault contact | |
Relay | Relay output to carry capacity of 1A at 24 VDC |
Dip Switch | Relay output function enable / disable by dip switch |
Power | |
Input power | Dual DC inputs. 12÷48VDC on 6-pin terminal block |
Power consumption (typical) | 3.5W |
Overload current protection | present |
Reverse polarity protection | present on terminal block |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x H x D) | 26.1mm x 144.3mm x 94.9mm |
Weight | 400g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -40÷70°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |

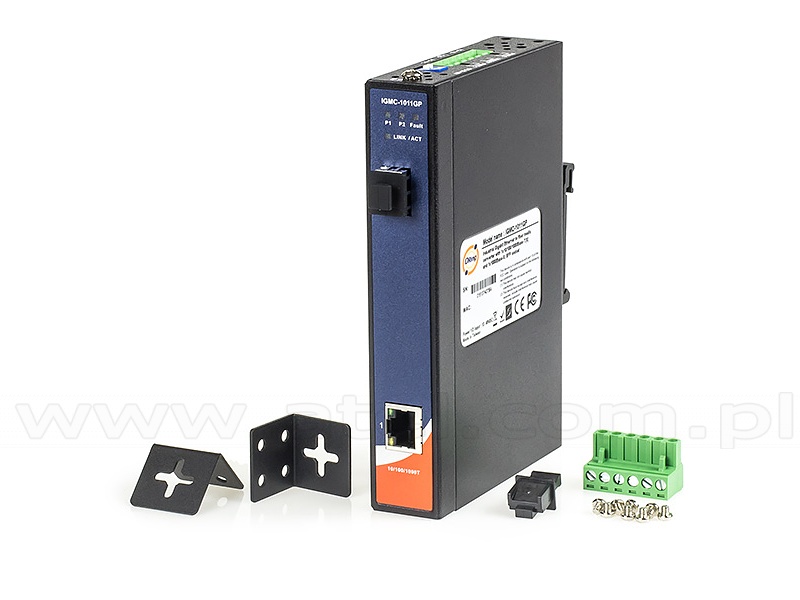

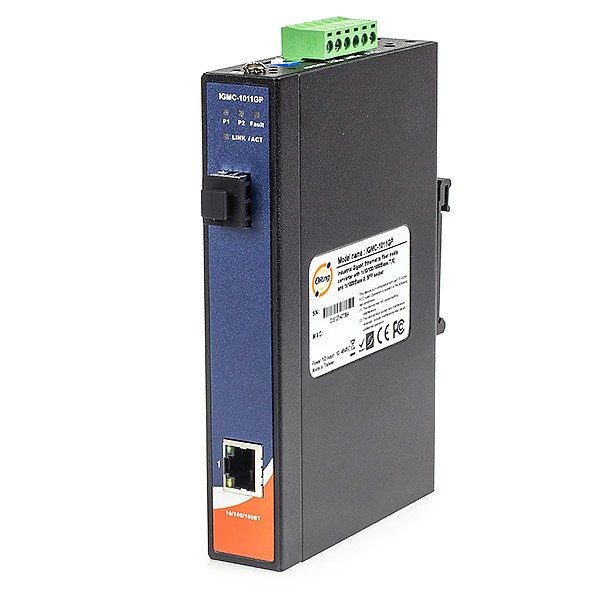

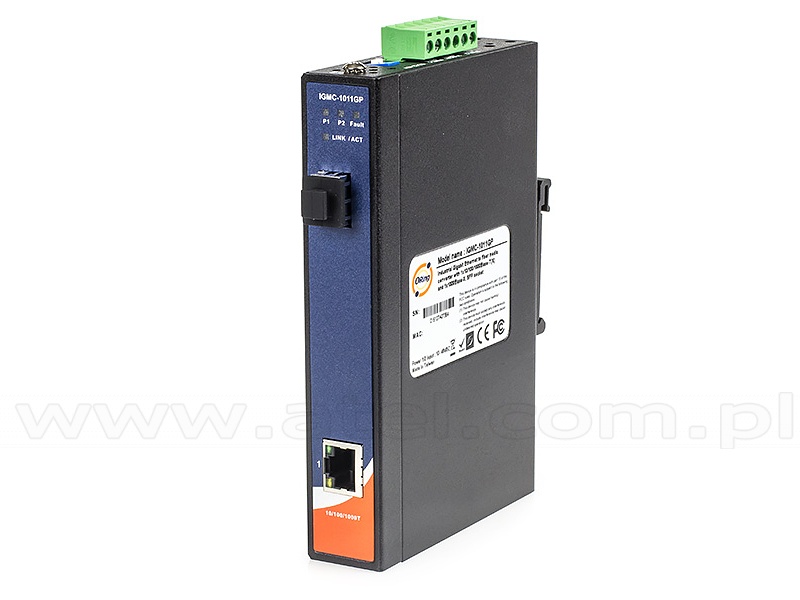

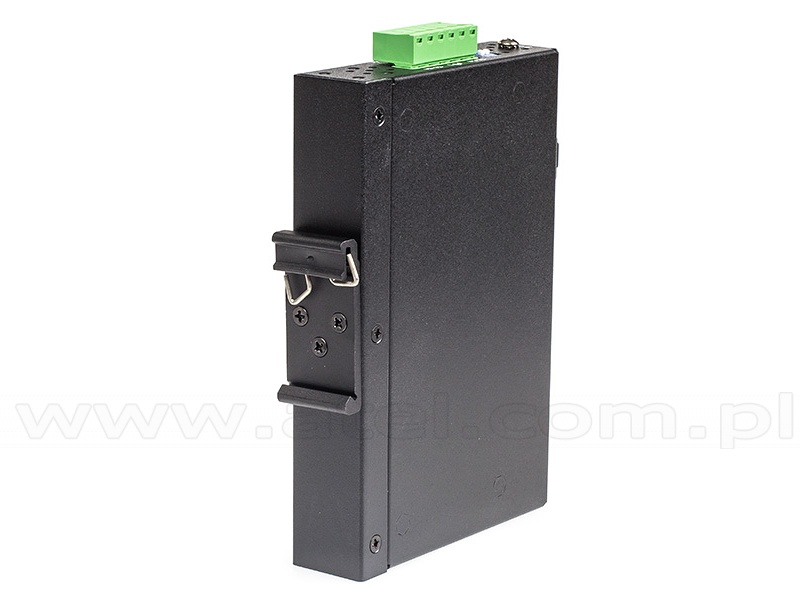

Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 1 |
1000Base-FX SFP ports | 1 |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000Base-T, IEEE802.3z for 1000Base-X |
LED Indicators | |
Power / Ready indicator | Green Ready LED x 2 |
Fault indicator | Amber - Indicate power failure |
100/1000TX RJ45 port indicator |
Green for port Link/Act, Amber for duplex |
100/1000X Port Indicator | Green for port Link/Act |
Fault contact | |
Relay | Relay output to carry capacity of 1A at 24 VDC |
Dip Switch | Relay output function enable / disable by dip switch |
Power | |
Input power | Dual DC inputs. 12÷48VDC on 6-pin terminal block |
Power consumption (typical) | 3.5W |
Overload current protection | present |
Reverse polarity protection | present on terminal block |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x H x D) | 26.1mm x 144.3mm x 94.9mm |
Weight | 380g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -40÷70°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950 |
MTBF | 650,069 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 1 |
100/1000Base-FX SFP ports | 1 |
Technology | |
Ethernet Standards |
IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3ab for 1000Base-T, IEEE 802.3z for 1000Base-X |
LED Indicators | |
Power / Ready indicator | Green LED x 2 (ON) power input on-line / (OFF) power input off-line |
100/1000TX RJ45 port indicator |
LED for Link/Act and Speed indicator, Green on only - 1000Mbps Link/Act - (ON) Link up / (Flash) Acting / (OFF) Link down, Green and Amber on - 100Mbps Link/Act - (ON) Link up / (Flash) Acting / (OFF) Link down, If amber on only - 10Mbps (This is not working mode) |
100/1000X Port Indicator | Green for port Link/Act |
Power | |
Input power | Dual DC inputs. 12÷48VDC on 4-pin terminal block |
Power consumption (typical) | 3.6W |
Overload current protection | present |
Reverse polarity protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x H x D) | 26.1mm x 70mm x 95mm |
Weight | 190g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -40÷70°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950-1 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX 1 | |
100/1000Base-FX SFP port | 1 |
Technology | |
Ethernet Standards |
IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3ab for 1000Base-T, IEEE 802.3z for 1000Base-X |
Processing | Store-and-Forward |
DIP-Switch 1/2 |
DIP-Switch 1 (ON) and DIP-Switch 2 (ON) - SFP speed setting to 100Mbps, DIP-Switch 1 (OFF) and DIP-Switch 2 (OFF) - SFP speed setting to 1000Mbps |
LED Indicators | |
Power indicator | Green Power LED x 1 |
10/100Base-T(X) RJ45 port indicator |
Green only - 1000Mbps Link/Act - (ON) Link up / (Flash) Acting / (OFF) Link down, Green and Amber - 100Mbps Link/Act - (ON) Link up / (Flash) Acting / (OFF) Link down |
*Note - If amber on only - 10Mbps (This is not avail mode) | |
100/1000Base-(F)X fiber port indicator | Green for fiber port Link/Act - (ON) Link up / (Flash) Acting / (OFF) Link down |
Power | |
Power consumption (typical) | 3.6W |
Overload current protection | present |
Physical Characteristic | |
Dimension (W x H x D) | 21.8mm x 66.5mm x 126mm |
Weight | 125g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -10÷60°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Warranty | |
Warranty period | 2 years |
Physical Ports | |
---|---|
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 2 |
100Base-FX Multimode ports (2KM, 1310nm, SC connector) | 1 |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3xfor flow control |
Processing | Store-and-Foward |
LED Indicators | |
Power Indicator | Green Power LED x 1 |
10/100TX RJ45 port indicator |
Green for port Link/Act., Amber for Duplex/Collision |
100Base-FX Fiber Port Indicator | Green for fiber port Link/Act |
Power | |
Power consumption (typical) | 4.5W |
Overload current protection | present |
Physical Characteristic | |
Dimension (W x H x D) | 21.8mm x 73.1mm x 126mm |
Weight | 137g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -10÷60°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Warranty | |
Warranty period | 2 years |
Physical Ports | |
---|---|
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 2 |
100Base-FX Singlemode ports (30KM, 1310nm, SC connector) | 1 |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3xfor flow control |
Processing | Store-and-Foward |
LED Indicators | |
Power Indicator | Green Power LED x 1 |
10/100TX RJ45 port indicator |
Green for port Link/Act., Amber for Duplex/Collision |
100Base-FX Fiber Port Indicator | Green for fiber port Link/Act |
Power | |
Power consumption (typical) | 4.5W |
Overload current protection | present |
Physical Characteristic | |
Dimension (W x H x D) | 21.8mm x 73.1mm x 126mm |
Weight | 137g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -10÷60°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Warranty | |
Warranty period | 2 years |
Physical Ports | |
---|---|
Slot number | 18 |
Power | |
Input power | Two optional 100~240VAC power inputs |
Overload current protection | present |
Physical Characteristic | |
Dimension (W x H x D) | 430mm x 243mm x 132mm |
Weight | 4955g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -10÷60°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C ) | 870520 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
RS-232 Connector | DB9 (Female) |
RS-422/485 Connector | 10-pin terminal block opto-isolated to 3kV |
RS-232 Signals |
TxD, RxD, GND |
RS-422/485 Signals (RS422) |
TxD+, TxD-, RxD+, RxD- |
RS-422/485 Signals (RS485) |
Data+, Data-, GND |
Baud Rate | 300bps to 115.2Kbps |
Data bit | 5, 6, 7, 8 |
Stop bit | 1, 1.5, 2 |
Parity |
None, Even, Odd, Space, Mark |
Flow Control |
XON/XOFF (software), Auto Hardware Direction Control for RS-485 |
LED Indicators | |
Power Indicator | Green x1 |
TxD Indicator | Green x1 |
RxD Indicator | Green x1 |
Power | |
Input power | 10÷30VDC on 10-pin terminal block |
Power consumption (typical) | 2.2W |
Physical Characteristic | |
Enclosure | ABS |
Dimension (W x D x H) | 71.2mm x 25.3mm x 100.6mm |
Weight | 130g |
Environmental | |
Storage Temperature | -25÷85°C |
Operating Temperature | -10÷70°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950 |
Warranty | |
Warranty period | 2 years |
Physical Ports | |
---|---|
10/100/1000Base-T(X) in RJ-45 Ethernet Port Input | 1 |
10/100/1000Base-T(X) in RJ-45 Ethernet Port with P.S.E. Output | 1 |
Operating Voltage | |
Input Voltage | 50 ~ 57 VDC / 4-pin terminal block |
Power Consumption | 1 Watts (Not include PD's device) |
PoE Power Budget | 60 Watts max |
LED Indicators | |
Power indicator |
PWR / Ready 1 x LED, Green On - Power is on and functioning Normally |
PoE Indicators |
1 x LED, Blue On - PoE Device Link, Blue Off - None PoE Device Detected, Blink (Blue) - Overload present |
Protection | |
Short Circuit Protection | present |
Over Load Protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 26.1(W)x70(D)x95(H)mm (1.03 x 2.76 x 3.74 inch) |
Weight | 188g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40÷75°C (-40÷165°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMC |
EN55032, EN55024(CE EMC), FCC Part 15B, EN61000-3-2, EN61000-3-3 |
EMI |
CISPR 32, EN55032, FCC Part 15B class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950-1 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000Base-T(X) in RJ-45 Ethernet Port Input | 1 |
10/100/1000Base-T(X) in RJ-45 Ethernet Port with P.S.E. Output | 1 |
Operating Voltage | |
Input Voltage | 9 ~ 57 VDC / 4-pin terminal block |
Power Consumption | 1 Watts (Not include PD's device) |
PoE Power Budget | 60 Watts max |
LED Indicators | |
Power indicator |
PWR / Ready 1 x LED, Green On - Power is on and functioning Normally |
PoE Indicators |
1 x LED, Blue On - PoE Device Link, Blue Off - None PoE Device Detected, Blink (Blue) - Overload present |
Protection | |
Short Circuit Protection | present |
Over Load Protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 26.1(W)x70(D)x95(H)mm (1.03 x 2.76 x 3.74 inch) |
Weight | 188g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40÷75°C (-40÷165°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMC |
EN55032, EN55024(CE EMC), FCC Part 15B, EN61000-3-2, EN61000-3-3 |
EMI |
CISPR 32, EN55032, FCC Part 15B class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950-1 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) with P.S.E. Ports in M12 Auto MDI/MDIX | 1 (8-pin M12 female A-coding connector) |
10/100/1000 Base-T(X) Port in M12 Auto MDI/MDIX | 1 (8-pin M12 female A-coding connector) |
Operating Voltage | |
Input Voltage | Railway 24VDC (12 ~ 57 VDC) on 5-pin M12 female A-coding |
Output Power |
50V / 600mA, 30 Watts max. Per port |
LED Indicators | |
Power indicator |
PWR / Ready 1 x LED, Green On - Power is on and functioning Normally |
PoE Indicators |
1 x LED, Blue On - PoE Device Link, Blue Blinking - Detecting PoE Device, Blue Off - None PoE Device Detected |
Protection | |
Short Circuit Protection | present |
Over Load Protection | present |
Physical Characteristic | |
Enclosure | IP-40 |
Dimension (W x D x H) | 88.9 x 40 x 178.2 mm |
Weight | 446g |
Environmental | |
Storage Temperature | -40÷80°C(-40÷176°F) |
Operating Temperature | -25÷75°C (-13÷167°F) |
Operating Humidity | 5%÷90% Non-condensing |
Regulatory approvals | |
EMC |
CE EMC (EN 55024, EN 55032), FCC Part 15 B, EN 50155(EN 50121-1, EN 50121-3-2) |
EMI |
EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
EMS |
IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-31 |
Vibration | IEC60068-2-6 |
Safety | EN60950-1 |
Other | EN 50155 |
MTBF | 2,761,341 hrs. |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000Base-T(X) in RJ-45 Ethernet Port Input | 2 |
10/100/1000Base-T(X) in RJ-45 Ethernet Port with P.S.E. Output | 2 |
Operating Voltage | |
Input Voltage | 50 ~ 57 VDC / 4-pin terminal block |
Output Power |
50V / 600mA, 30 Watts max. Per port |
LED Indicators | |
Power indicator |
PWR / Ready 1 x LED, Green On - Power is on and functioning Normally |
PoE Indicators |
2 x LED, Blue On - PoE Device Link, Blue Blinking - Detecting PoE Device, Blue Off - None PoE Device Detected |
Protection | |
Short Circuit Protection | present |
Over Load Protection | present |
High Voltage Protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 26.1mm x 70mm x 95mm |
Weight | 250g |
Environmental | |
Storage Temperature | -40÷80°C(-40÷176°F) |
Operating Temperature | -20÷70°C (-4÷158°F) |
Operating Humidity | 5%÷90% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950-1 |
Warranty | |
Warranty period | 2 years |
Physical Ports | |
---|---|
10/100/1000Base-T(X) in RJ-45 Ethernet Port Input | 2 |
10/100/1000Base-T(X) in RJ-45 Ethernet Port with P.S.E. Output | 2 |
Operating Voltage | |
Input Voltage | 24 ~ 57 VDC / 4-pin terminal block |
Output Power |
50V / 600mA, 30 Watts max. Per port |
LED Indicators | |
Power indicator |
PWR / Ready 1 x LED, Green On - Power is on and functioning Normally |
PoE Indicators |
2 x LED, Blue On - PoE Device Link, Blue Blinking - Detecting PoE Device, Blue Off - None PoE Device Detected |
Protection | |
Short Circuit Protection | present |
Over Load Protection | present |
High Voltage Protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 41mm x 70mm x 95mm |
Weight | 370g |
Environmental | |
Storage Temperature | -40÷80°C(-40÷176°F) |
Operating Temperature | -20÷70°C (-4÷158°F) |
Operating Humidity | 5%÷90% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950-1 |
Warranty | |
Warranty period | 2 years |
