MENU#06888

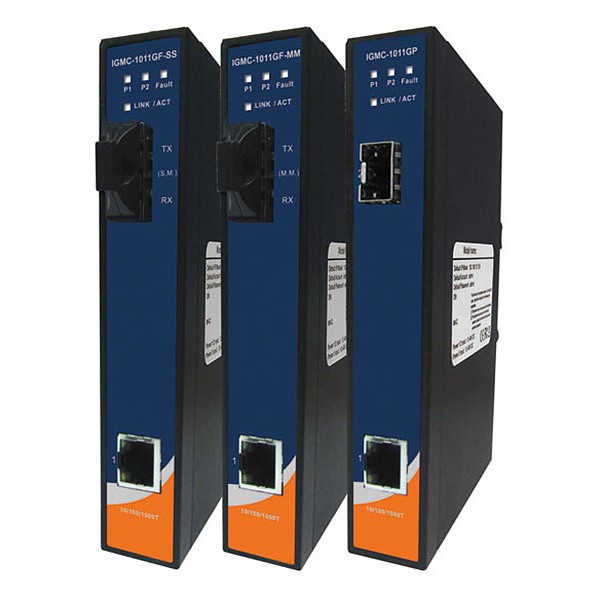

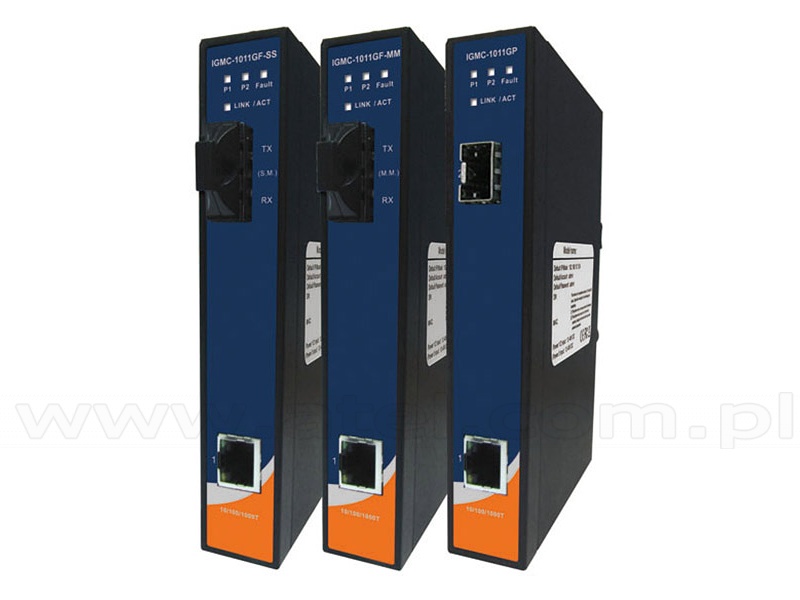

Media converter 1x 10/1000TX (RJ-45) + 1x 1000FX (MM SC) (ORing IGMC-1011GF-MM-SC)
| Physical Ports | |
|---|---|
| 10/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 1 |
| 1000Base-FX Multimode ports (550m, 850nm, SC connector) | 1 |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000Base-T, IEEE802.3z for 1000Base-X |
| LED Indicators | |
| Power / Ready indicator | Green Ready LED x 2 |
| Fault indicator | Amber - Indicate power failure |
| 10/1000TX RJ45 port indicator | Green for port Link/Act, Amber for duplex |
| 1000X Port Indicator | Green for port Link/Act |
| Fault contact | |
| Relay | Relay output to carry capacity of 1A at 24 VDC |
| Dip Switch | Relay output function enable / disable by dip switch |
| Power | |
| Input power | Dual DC inputs. 12÷48VDC on 6-pin terminal block |
| Power consumption (typical) | 3.5W |
| Overload current protection | present |
| Reverse polarity protection | present on terminal block |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimension (W x H x D) | 26.1mm x 144.3mm x 94.9mm |
| Weight | 400g |
| Environmental | |
| Storage Temperature | -40÷85°C |
| Operating Temperature | -40÷70°C |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950 |
| Warranty | |
| Warranty period | 5 years |
Recommended power supply: #06674 Power supply 10W 24VDC, mini, DIN TS35 (Mean Well MDR-10-24).
Net Price: 161.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
