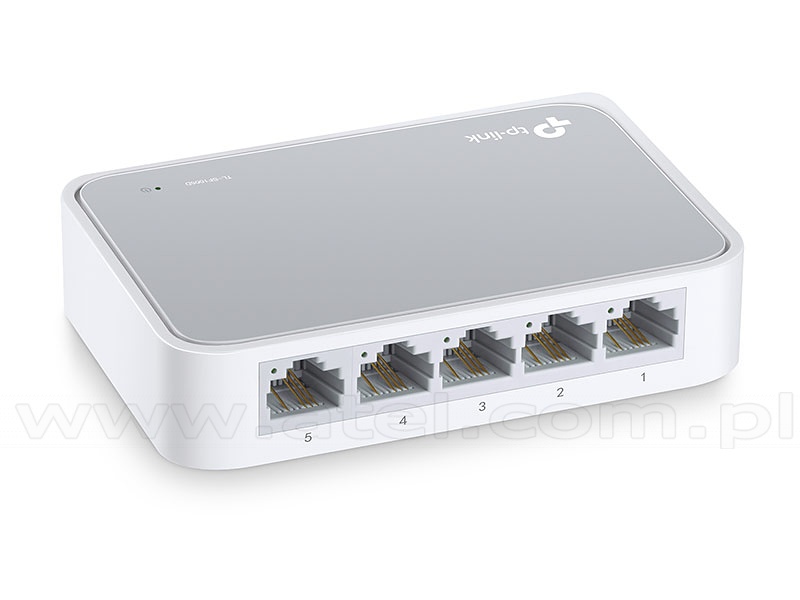

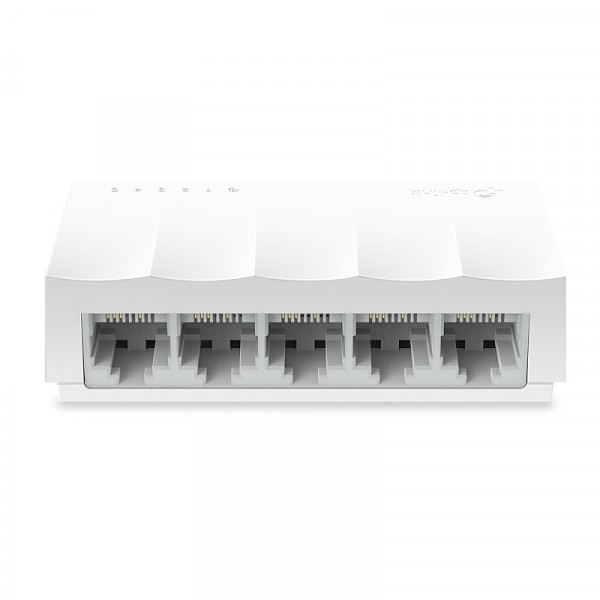

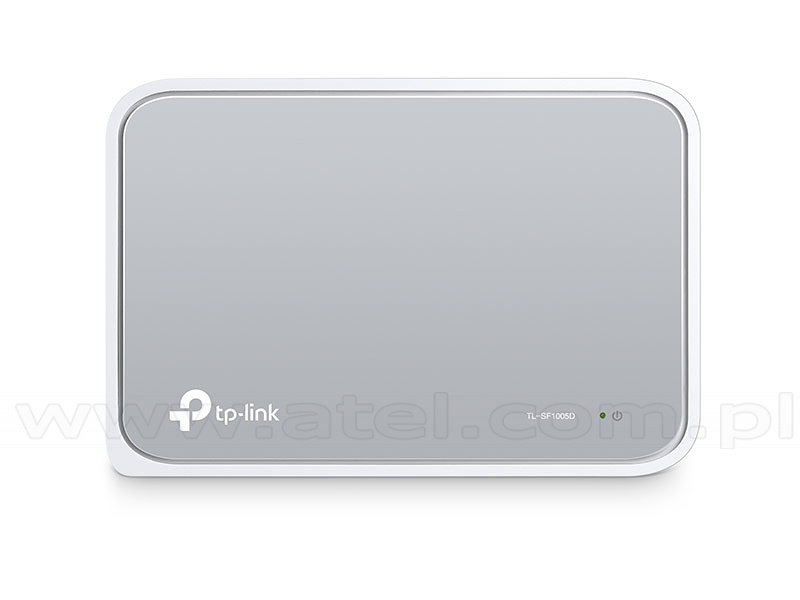

Standards | IEEE 802.3/i/u/x |
---|---|
Copper ports | 5x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Housing / case type |
desktop, plastic |
Dimensions | 3,3 × 1,8 × 0,9 in (83,6 × 45,7 × 22,8 mm) |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 5V DC 0.6A, ~230V AC |
Max Power Consumption | 1.65W |
Max Heat Dissipation | 5.627 Btu/hr |
Certificates |
CE, FCC, RoHS |
Warranty period | 2 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u/x |
---|---|
Copper ports | 5x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Data Rates |
10/100Mbps at half duplex, 20/200Mbps at full duplex |
Buffer Capacity | 768Kb |
Jumbo Frame | 2KB |
Switching Capacity | 1Gbps |
LED |
Ethernet (1, 2, 3, 4, 5), Power |
Housing / case type |
desktop, plastic |
Dimensions | 82 x 49 x 21 mm |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 5V DC 0.6A, ~230V AC |
Certificates |
CE, RoHS |

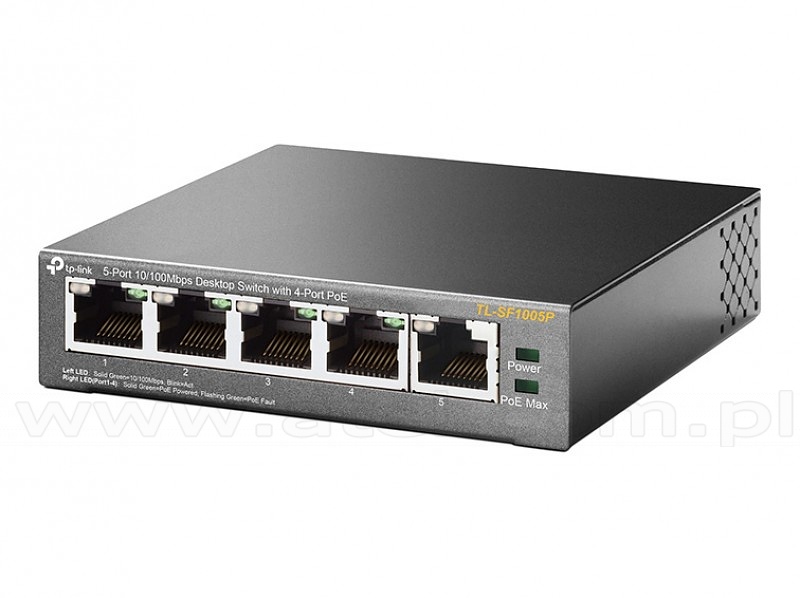

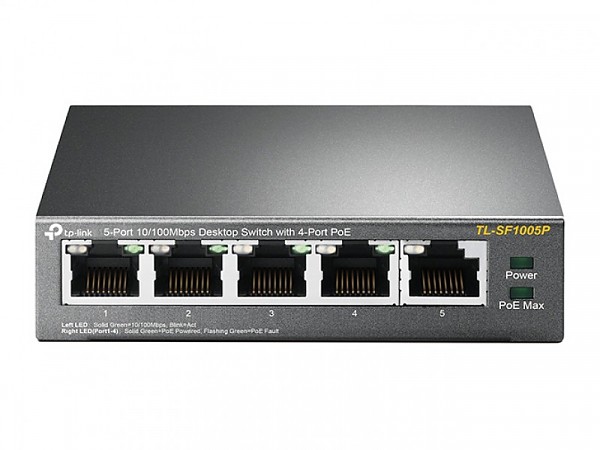

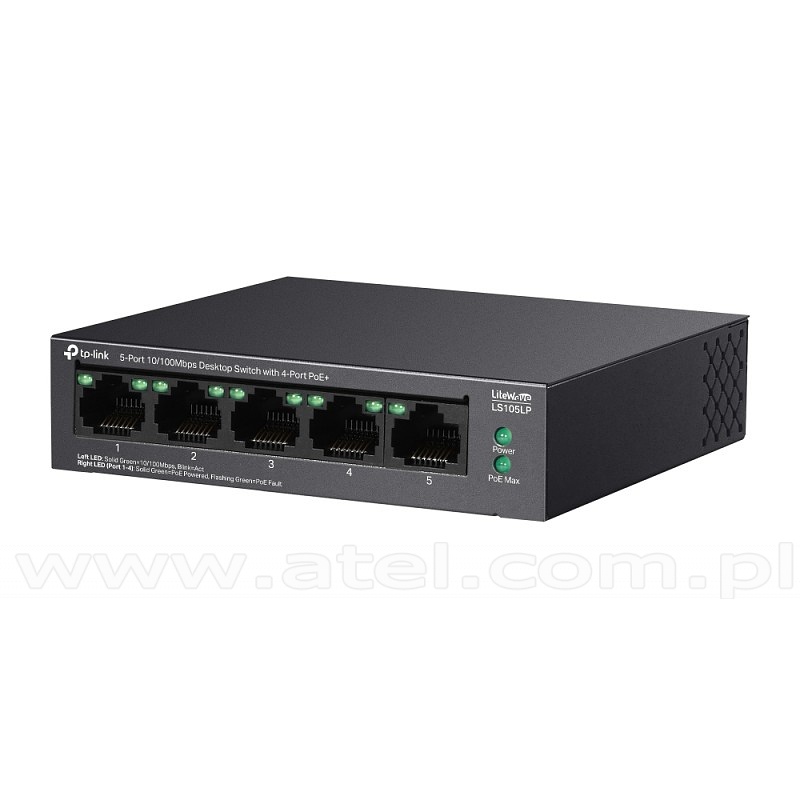

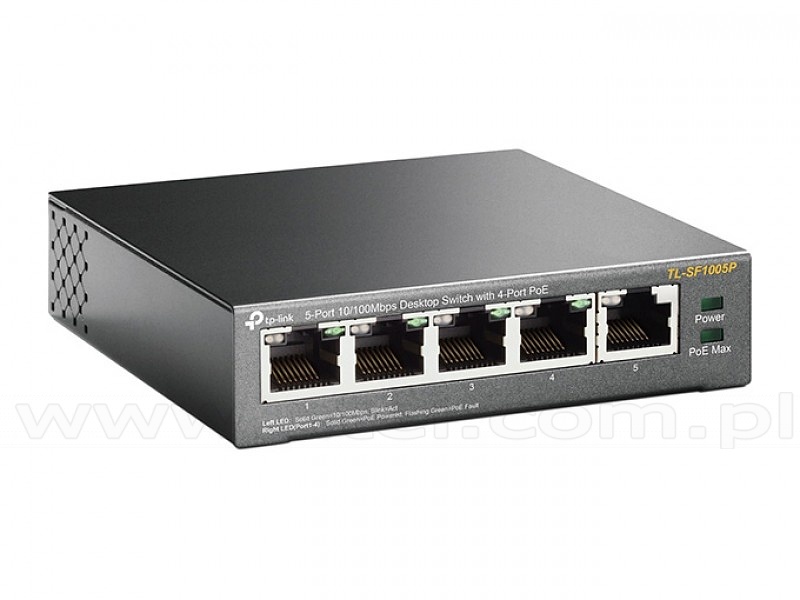

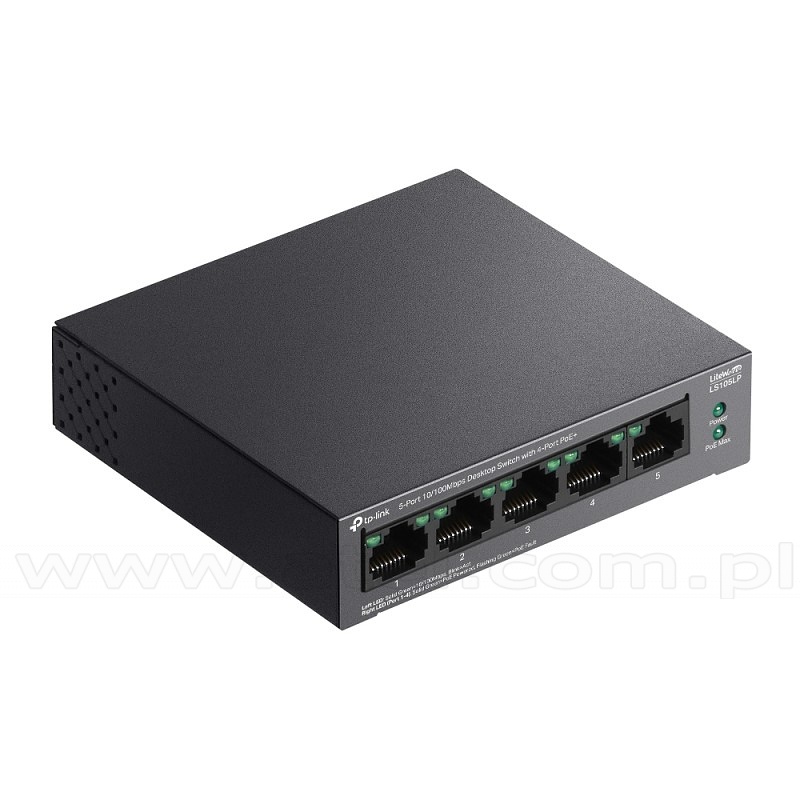

Copper ports | 5x 10/100 Mbps RJ-45 |
---|---|
Standard | 802.3af compliant |
PoE Ports | Port1- Port4 |
Power Supply | 41W |
Switching Capacity | 1Gbps |
Packet Forwarding Rate | 0.744 Mpps |
Mac Address Table | 2K |
Jumbo Frame | 2 KB |
Software features | |
Advanced Features |
Compatible With IEEE 802.3af Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
Transfer Method | Store-And-Forward |
Dimensions | 3.9 x 3.9 x 1.0 in. (100 x 98 x 25 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | External Power Adapter(Output 53.5 V DC / 0.81 A) |
Power Consumption |
1.9W (max. no PD connected), 47W (max. with 41w PD connected) |
Max Heat Dissipation |
6.48BTU/h(no PD connected), 160.27BTU/h(with 58W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |

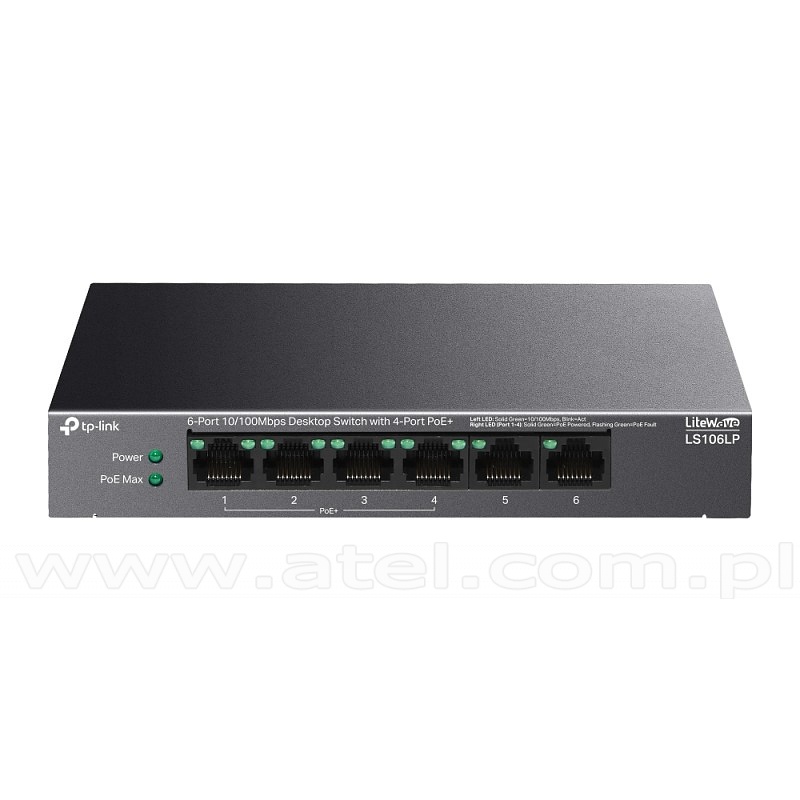

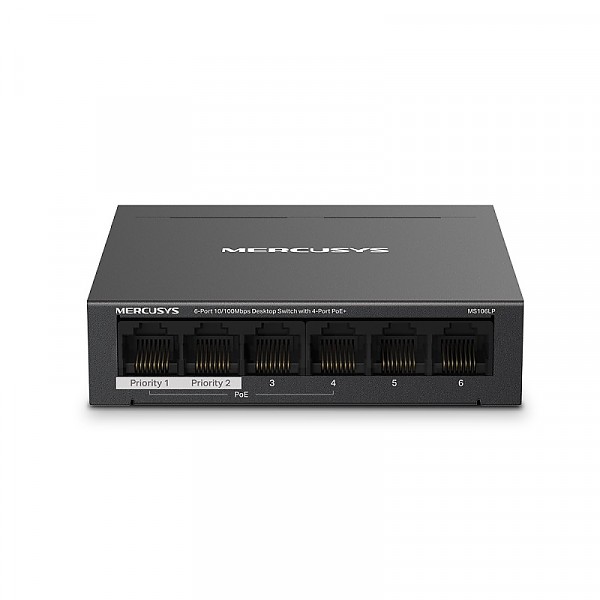

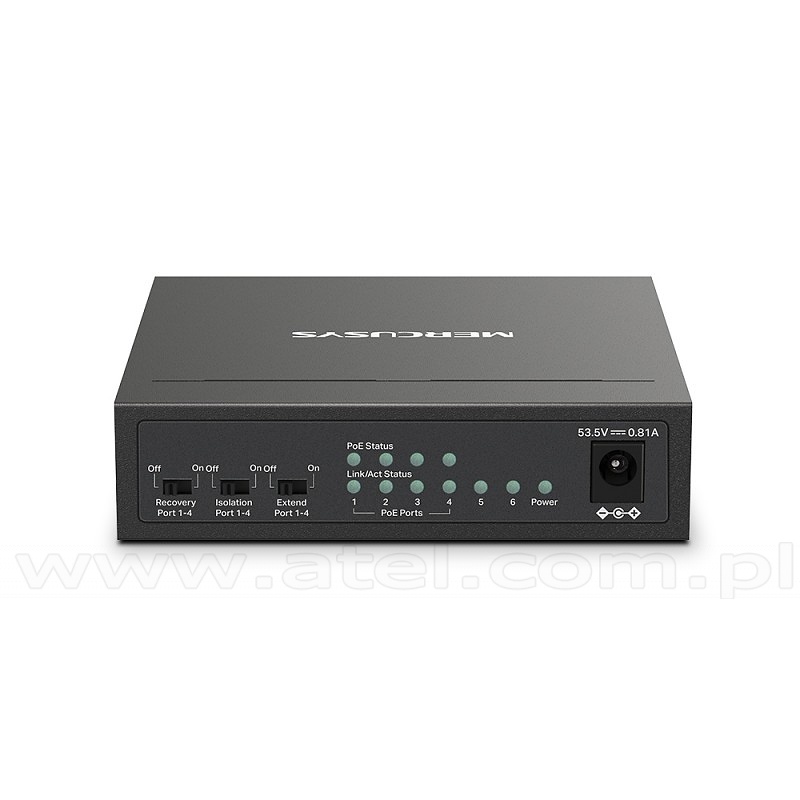

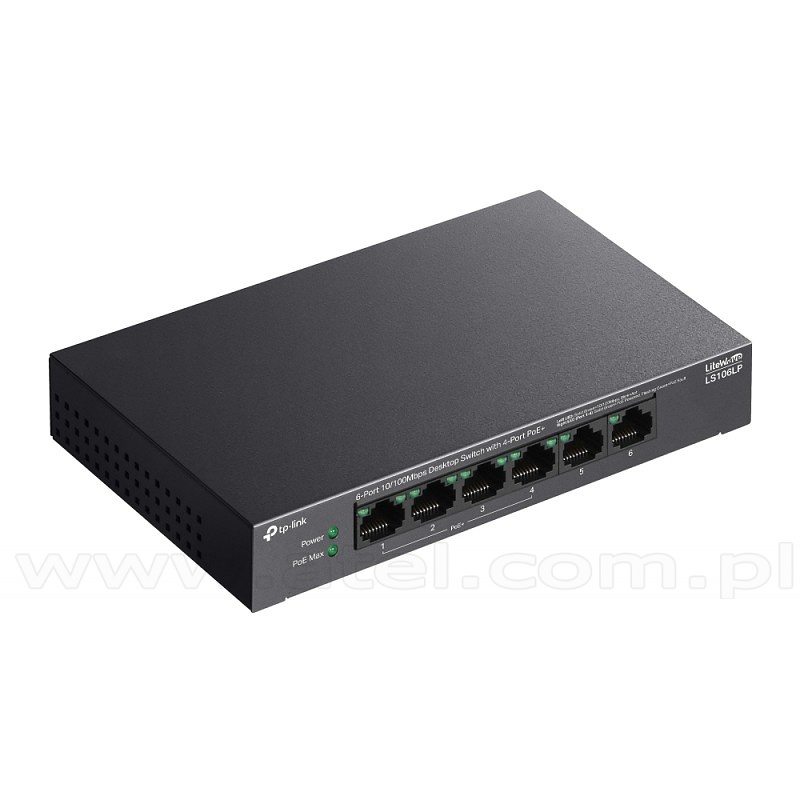

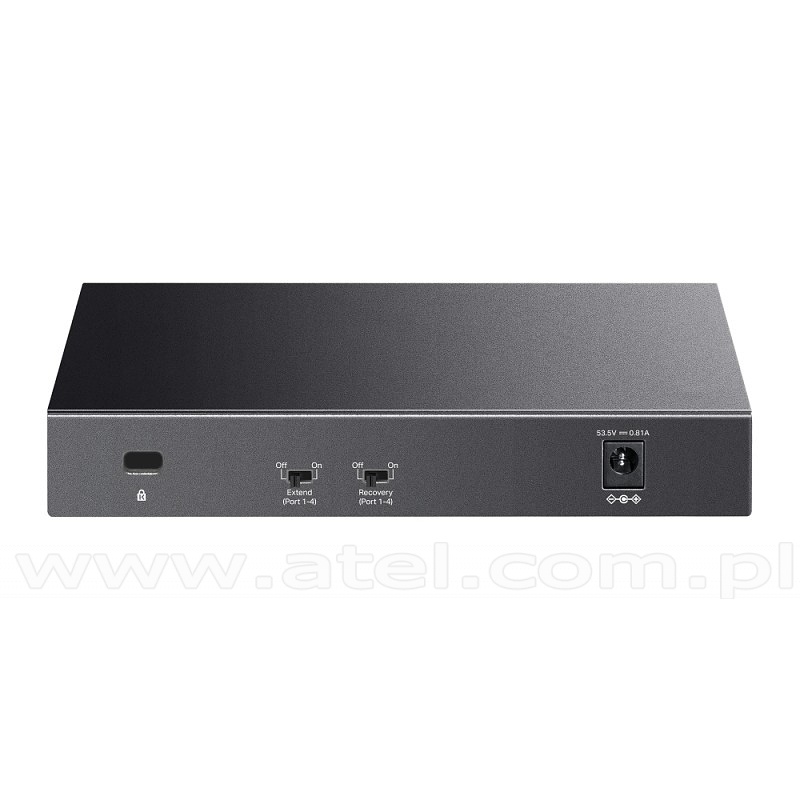

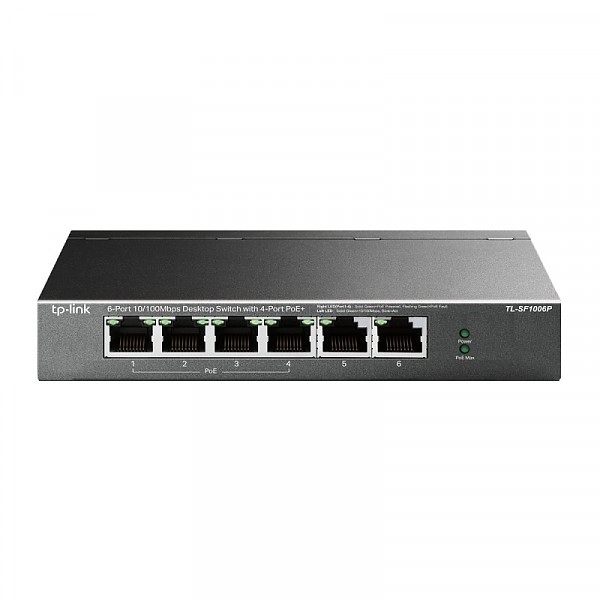

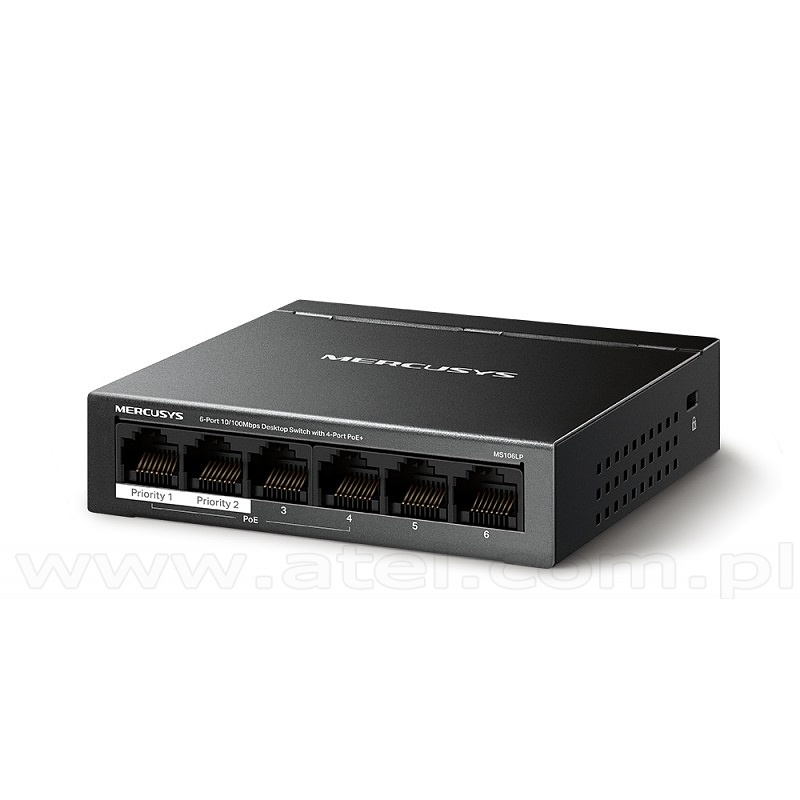

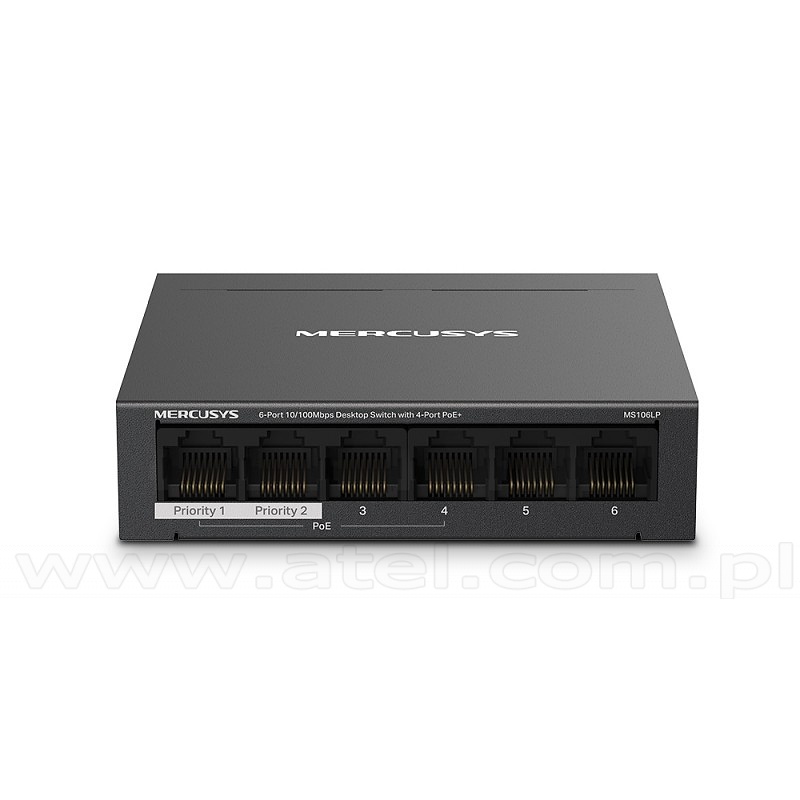

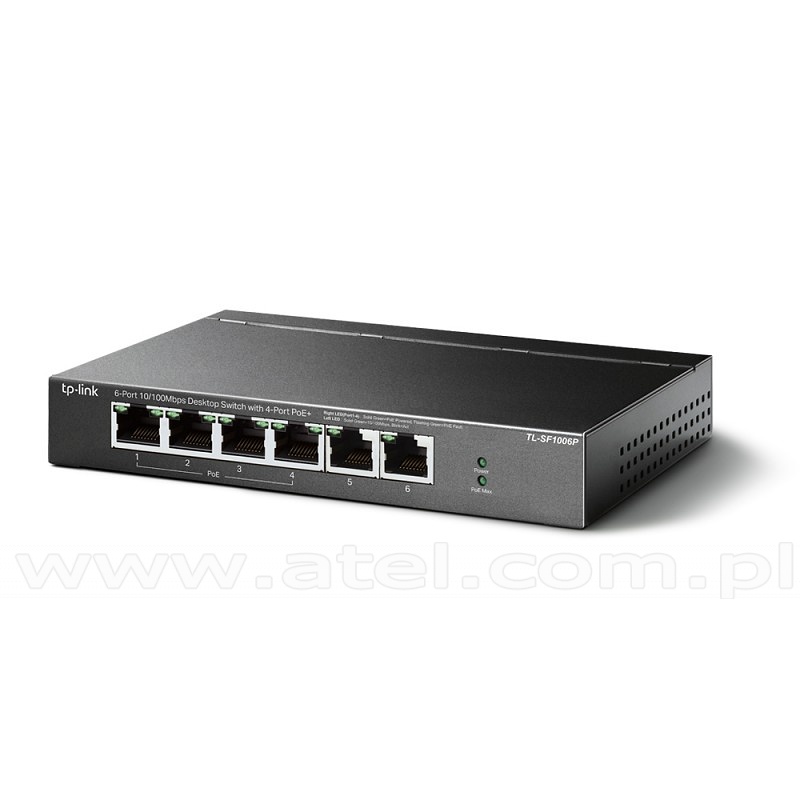

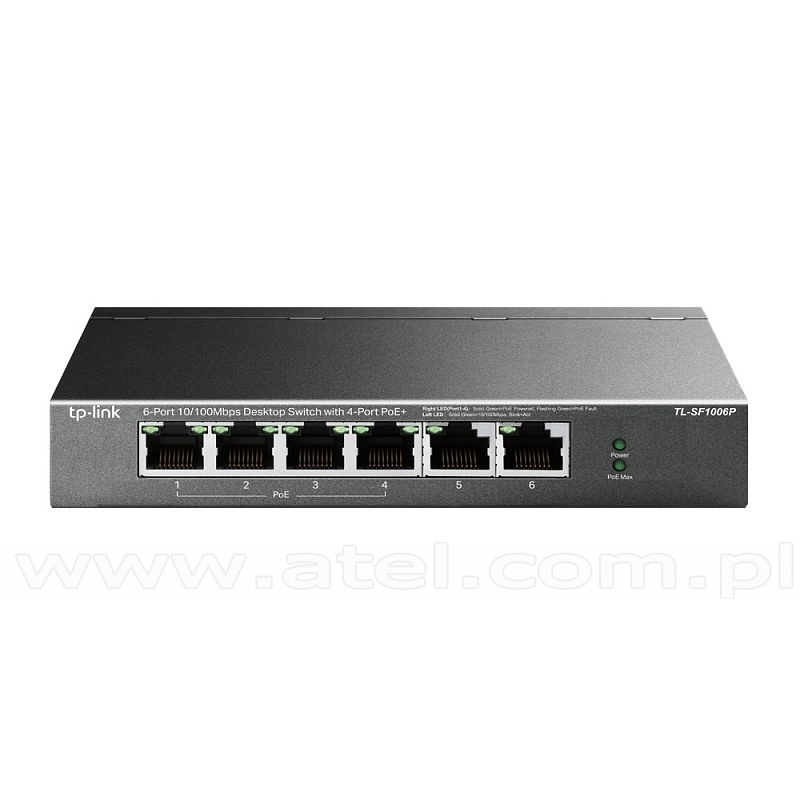

Copper ports | 6x 10/100 Mbps RJ-45 |
---|---|
Standard | 802.3af/at compliant |
PoE+ Ports | Port1- Port4 |
Power Supply | 67W |
Switching Capacity | 1.2Gbps |
Packet Forwarding Rate | 0.8928 Mpps |
Mac Address Table | 2K |
Software features | |
Advanced Features |
Compatible With IEEE 802.3af/at Compliant PDs, Extend Mode Button (Ports 1–4), Priority Mode Button (Ports 1–2), Mac Address Auto-Learning and Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode |
Transfer Method | Store-And-Forward |
Dimensions | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | External Power Adapter(Output 53.5 V DC / 1.31 A) |
Power Consumption |
1.9W (max. no PD connected), 74W (max. with 67W PD connected) |
Max Heat Dissipation |
6.48BTU/h(no PD connected), 252.34BTU/h(with 58W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports |
16x 10/100 Mbps RJ-45 PoE+, 2x 10/100/1000Mbps RJ45 Ports |
SFP Ports | 2 Gigabit Combo SFP Ports |
Fan Quantity | 0 |
Physical Security Lock | Yes |
PoE Ports |
Standard 802.3 at compliant, PoE Ports Port 1- Port 8, PoE Power Budget 124W |
Performance: | |
Packet Forwarding Rate | 5.6544 Mpps |
Jumbo Frame | 16 KB |
Switching Capacity | 7.6 Gbps |
MAC Address Table | 2K |
Software features: | |
Advanced Functions |
Compatible With IEEE 802.3af/at Compliant PDs, Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission), Isolation Mode Button (Ports 1–8), PoE Auto Recovery Button (Ports 1–8), Mac Address Auto-Learning and Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
Transmission Method | Store-And-Forward |
Dimensions | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | External Power Adapter (Output 53.5VDC / 2.43A) |
Power Consumption |
5.95 W (220/50Hz. no PD connected), 140.92 W (220/50Hz. with 124W PD connected) |
Max Heat Dissipation |
20.29 BTU/h (no PD connected), 480.54 BTU/h (with 124W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports |
16x 10/100 Mbps RJ-45 PoE+, 2x 10/100/1000Mbps RJ45 Ports |
SFP Ports | 2 Gigabit Combo SFP Ports |
Fan Quantity | 0 |
Physical Security Lock | Yes |
PoE Ports |
Standard 802.3 at compliant, PoE Ports Port 1- Port 8, PoE Power Budget 65W |
Performance: | |
Packet Forwarding Rate | 5.6544 Mpps |
Jumbo Frame | 16 KB |
Switching Capacity | 7.6 Gbps |
MAC Address Table | 2K |
Software features: | |
Advanced Functions |
Compatible With IEEE 802.3af/at Compliant PDs, Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission), Isolation Mode Button (Ports 1–8), PoE Auto Recovery Button (Ports 1–8), Mac Address Auto-Learning and Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
Transmission Method | Store-And-Forward |
Dimensions | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | External Power Adapter (Output 53.5VDC / 1.31A) |
Power Consumption |
5.61 W (220 V/50 Hz. no PD connected), 77.32 W (110 V/50 Hz. with 65 W PD connected) |
Max Heat Dissipation |
19.13 BTU/h (no PD connected), 263.7 BTU/h (with 65 W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |

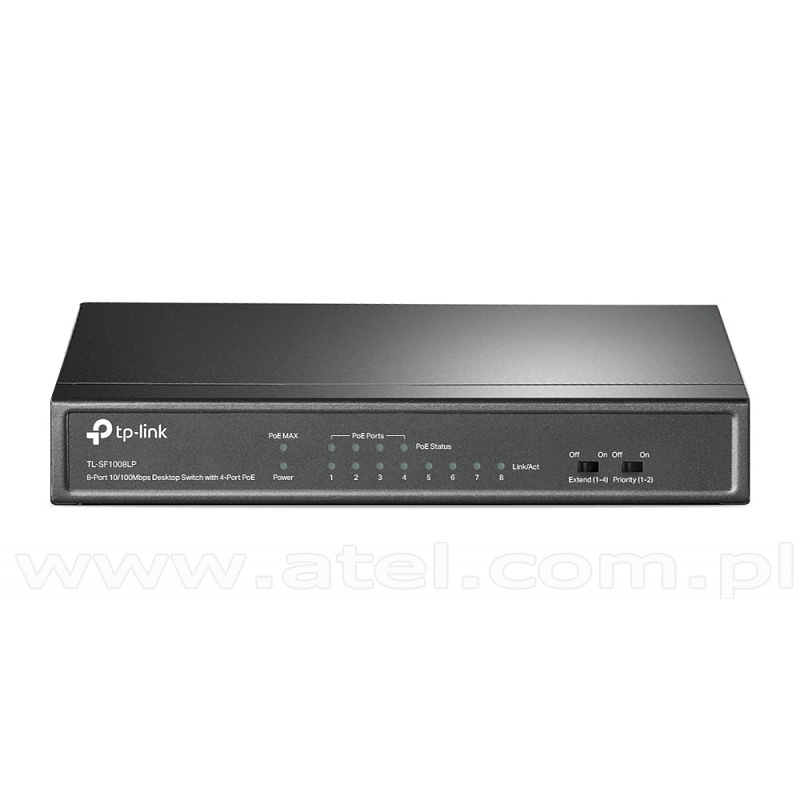

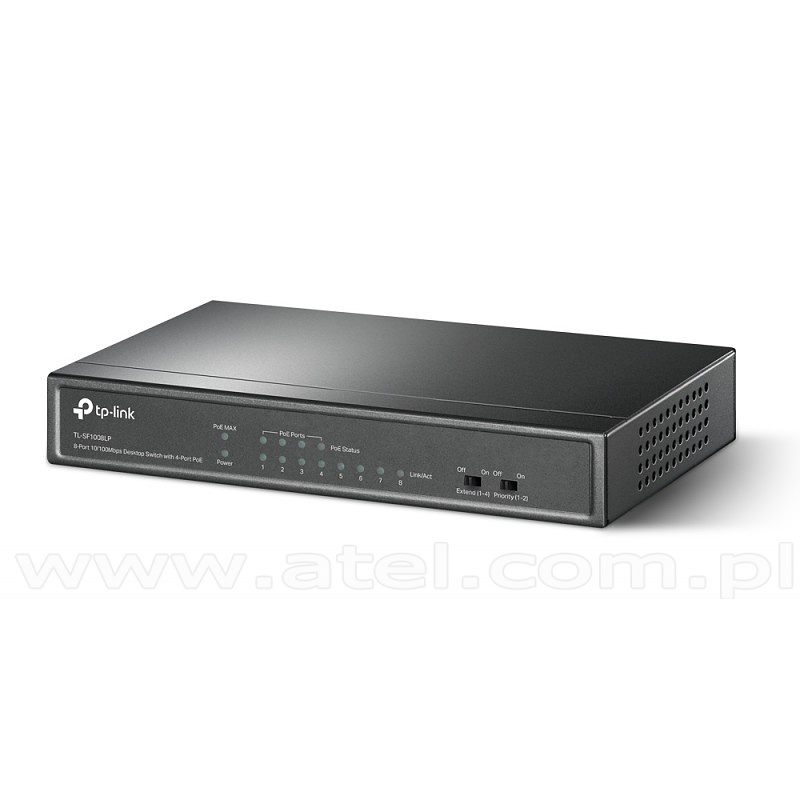

Copper ports | 8x 10/100 Mbps RJ-45 |
---|---|
Standard | 802.3af compliant |
PoE Ports | Port1- Port4 |
Power Supply | 41W |
Switching Capacity | 1.6Gbps |
Packet Forwarding Rate | 1,1904 Mpps |
Mac Address Table | 2K |
Jumbo Frame | 2 KB |
Software features | |
Advanced Features |
Compatible With IEEE 802.3af Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode, Extend Mode Button (Ports 1–4), Priority Mode Button (Ports 1–2) |
Transfer Method | Store-And-Forward |
Dimensions | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | External Power Adapter(Output 53.5 V DC / 0.81 A) |
Power Consumption |
2.2W (max. no PD connected), 47W (max. with 41w PD connected) |
Max Heat Dissipation |
7.5BTU/h(no PD connected), 160.61BTU/h(with 58W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Copper ports | 9x 10/100 Mbps RJ-45 |
---|---|
Standard | 802.3af/at compliant |
PoE+ Ports | Port1- Port8 |
Power Supply | 65W |
Switching Capacity | 1.8Gbps |
Packet Forwarding Rate | 1.3392 Mpps |
Mac Address Table | 2K |
Software features | |
Advanced Features |
Compatible With IEEE 802.3af/at Compliant PDs, Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission), Priority Mode Button (Ports 1–2), Isolation Mode Button (Ports 1–8), Mac Address Auto-Learning and Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode |
Transfer Method | Store-And-Forward |
Dimensions | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | External Power Adapter(Output 53.5 V DC / 1.31 A) |
Power Consumption |
3,6W (max. no PD connected), 77,08W (max. with 65W PD connected) |
Max Heat Dissipation |
12,28BTU/h(no PD connected), 262,84BTU/h(with 65W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports |
16x 10/100 Mbps RJ-45 PoE+, 2x 10/100/1000Mbps RJ45 Ports |
SFP Ports | 2 Gigabit Combo SFP Ports |
Fan Quantity | 2 |
PoE Ports |
Standard 802.3 at compliant, PoE Ports Port 1- Port 16, PoE Power Budget 192W |
Performance: | |
Backup Bandwidth | 7.2 Gbps |
MAC Address Table | 8K |
Software features: | |
Advanced Features |
Compatible With IEEE 802.3at/af Compliant PDs, Extend Mode (Up to 250m PoE power supply and data transmission), Priority Mode, Isolation Mode, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control |
Transmission Method | Store-And-Forward |
Transmission Method | Store-And-Forward |
Dimensions | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
100-240VAC, 50/60Hz |
Power Consumption |
18.73 W (220/50Hz. no PD connected), 217.22 W (220/50Hz. with 192W PD connected) |
Max Heat Dissipation |
63.89 BTU/h (no PD connected), 741.15 BTU/h (with 192W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports |
16x 10/100 Mbps RJ-45 PoE+, 2x 10/100/1000Mbps RJ45 Ports |
SFP Ports | 1 Gigabit Combo SFP Ports |
Fan Quantity | 2 |
PoE Ports |
Standard 802.3 at compliant, PoE Ports Port 1- Port 16, PoE Power Budget 150W |
Performance: | |
Backup Bandwidth | 7.2 Gbps |
MAC Address Table | 8K |
Software features: | |
Advanced Features |
Compatible With IEEE 802.3at/af Compliant PDs, Extend Mode (Up to 250m PoE power supply and data transmission), Priority Mode, Isolation Mode, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control |
Transmission Method | Store-And-Forward |
Dimensions | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
100-240VAC, 50/60Hz |
Power Consumption |
12,71 W (220/50Hz. no PD connected), 172,8 W (220/50Hz. with 150W PD connected) |
Max Heat Dissipation |
43,34 BTU/h (no PD connected), 589,25 BTU/h (with 150W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/x |
---|---|
Copper ports | 8x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Housing / case type |
desktop, plastic |
Dimensions | 4.9 × 1.9 × 0.9 in. (124.6 × 48.7 × 22.8 mm) |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 5V DC 0.6A, ~230V AC |
Max Power Consumption | 2.64W |
Max Heat Dissipation | 9.002 Btu/hr |
Certificates |
CE, FCC, RoHS |
Warranty period | 2 years |
Manufacturer | TP-Link |

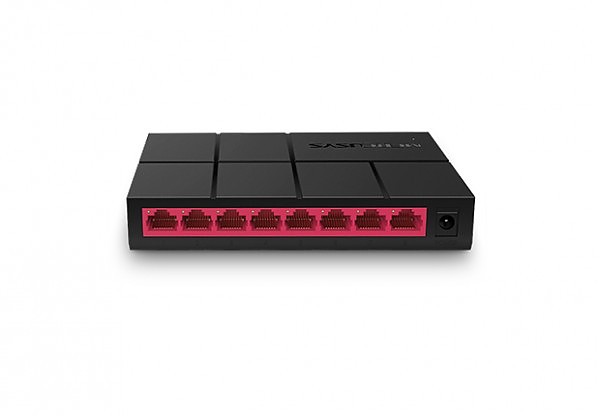

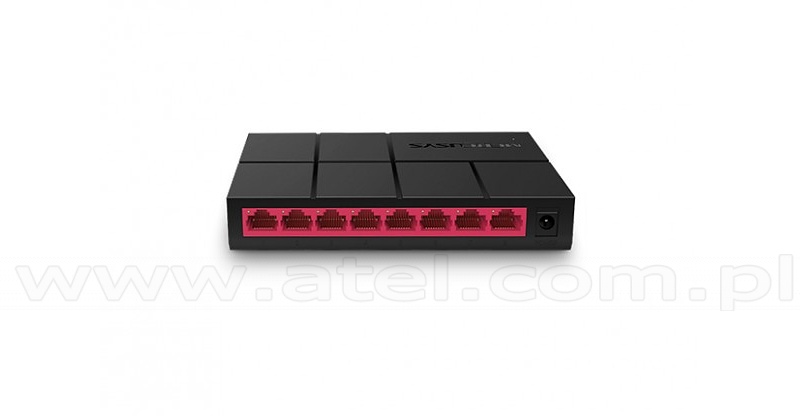

Standards | IEEE 802.3/u/x |
---|---|
Copper ports | 8x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Data Rates |
10/100Mbps at half duplex, 20/200Mbps at full duplex |
Buffer Capacity | 768Kb |
Jumbo Frame | 2KB |
Switching Capacity | 1.6Gbps |
LED |
Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power |
Housing / case type |
desktop, plastic |
Dimensions | 127 x 60,3 x 22 mm |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 5V DC 0.6A, ~230V AC |
Certificates |
CE, RoHS |
Copper ports | 5x 10/100 Mbps RJ-45 |
---|---|
Standard | 802.3af compliant |
PoE Ports | Port1- Port4 |
Power Supply | 58W |
Switching Capacity | 1Gbps |
Mac Address Table | 2K |
Software features | |
Advanced Features |
Compatible With IEEE 802.3af Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
Transfer Method | Store-And-Forward |
Dimensions | 3.9 x 3.9 x 1.0 in. (99,8 x 98 x 25 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | External Power Adapter(Output 48VDC / 1.25A) |
Power Consumption |
1.678W (max. no PD connected), 64.82W (max. with 58w PD connected) |
Max Heat Dissipation |
5.73BTU/h(no PD connected), 221.17BTU/h(with 58W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 5x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 1,0 |
Packet forward rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps) |
Housing / case type |
desktop, plastic |
Dimensions | 140x85x30 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 5V DC 0.6A, ~230V AC |
Certificates | CE |
Warranty period | 2 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 8x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Switching capacity [Gbps] | 1.6 |
Buffer memory | 750kB |
Housing / case type |
desktop, plastic |
Dimensions | 200x142x40 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 9V DC 0,8A, ~230V AC 50 Hz |
Certificates |
CE, FCC |
Warranty period | 2 years |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 8x 10/100 Mbps RJ-45 with 4 PoE ports |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Switching capacity [Gbps] | 1.6 |
Buffer memory | 750kB |
Housing / case type |
desktop, metal |
Dimensions | 171x98x27 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | external 48V DC |
Certificates |
CE, FCC |
Warranty period | 5 years |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 16x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 3.2 |
Housing / case type |
19", metal |
Dimensions | 440x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 16x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 3.2 |
Housing / case type |
11.6", metal |
Dimensions | 294x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 16x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 3.2 |
Housing / case type |
desktop, plastic |
Dimensions | 285x116x28 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | external 9V DC 1,2A ~230V AC |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, 802.3u, 802.3x |
---|---|

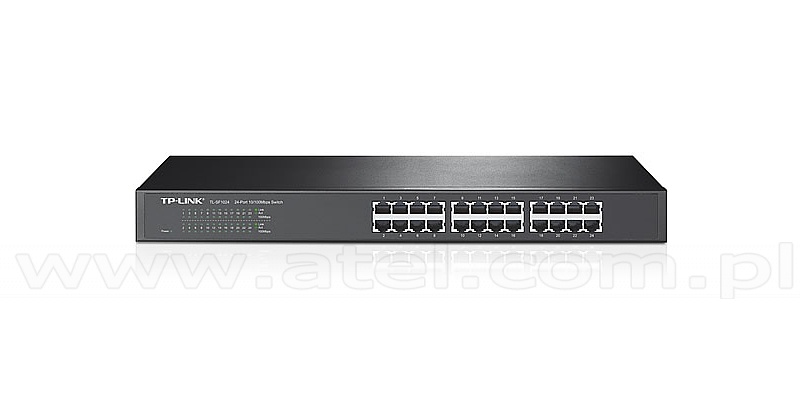

Copper ports | 24x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate | 4,8 Gbps |
Housing / case type |
11.6", metal |
Dimensions | 294x180x44 mm (handles for 19" rack included) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 24x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 4.8 |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps) |
Housing / case type |
19", metal |
Dimensions | 440x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, 802.3u, 802.3x |
---|---|
Copper ports | 24x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Mac Address Table | 8K |
Housing / case type | desktop |
Dimensions | 8.7 x 5.0 x 1.8 in. ( 222 x 126 x 45 mm) |
Fan Quantity | Fanless |
Power Consumption | Maximum 3.68W (220V/50Hz) |
External Power Supply | External Power Adapter (Output 9VDC / 0.6A) |
Certificates |
FCC, CE, RoHs |
Package Contents |

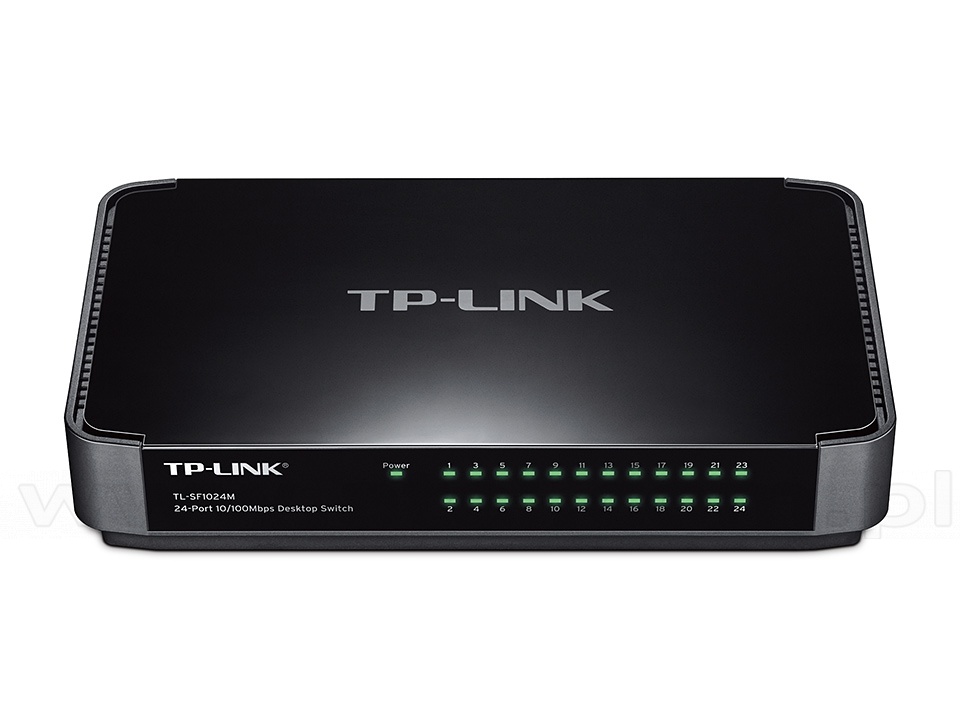

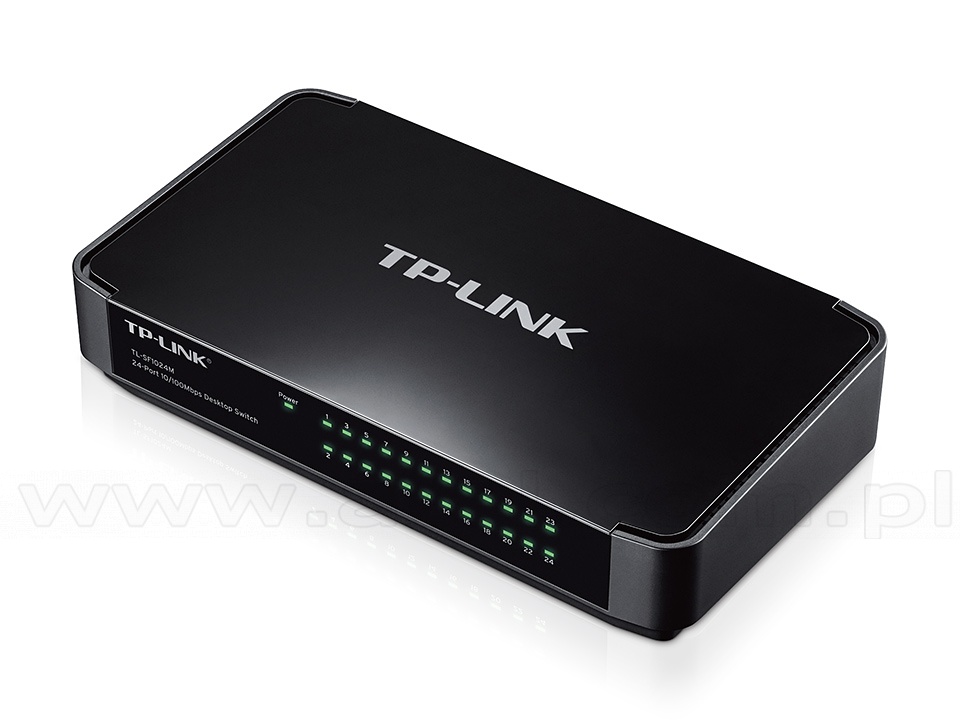

24-Port 10/100Mbps Desktop Switch TL-SF1024M, Power Adapter, Installation Guide |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 48x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 9.6 |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps) |
Housing / case type |
19", metal |
Dimensions | 440x260x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates | CE |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
---|---|
Copper ports |
24x 10/100 Mbps RJ-45 PoE+, 2x 10/100/1000Mbps RJ45 Ports |
SFP Ports | 2 Gigabit Combo SFP Ports |
Fan Quantity | 2 |
PoE Ports |
Standard 802.3 at compliant, PoE Ports Port 1- Port 24, PoE Power Budget 250W |
Performance: | |
Switching Capacity | 12.8 Gbps |
Packet Forwarding Rate | 9.5 Mpps |
MAC Address Table | 8K |
Jumbo Frame | 9216 Bytes |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Transmission Method | Store-And-Forward |
Dimensions | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
100-240VAC, 50/60Hz |
Power Consumption |
18,8 W W (220/50Hz. no PD connected), 286,7 W (220/50Hz. with 250W PD connected) |
Max Heat Dissipation |
64,1 BTU/h (no PD connected), 977,6 BTU/h (with 250W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/z/ad/x/af/d/s/w/q/x/p |
---|---|

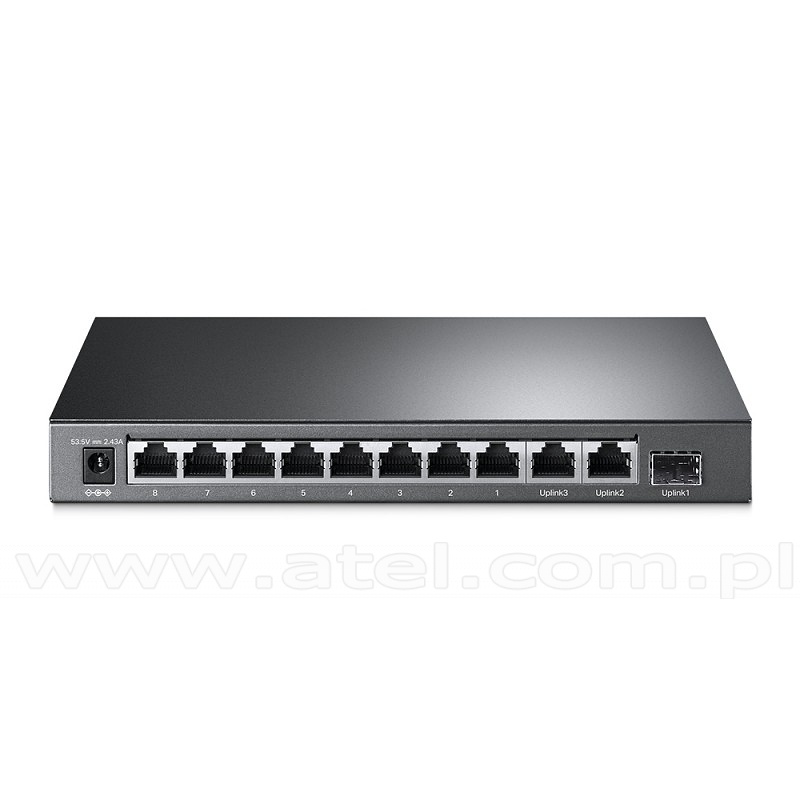

Copper ports |
9x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) PoE+, 1x 10/100/1000 Mbps RJ-45 |
Free slots | 1x 1000 Mbps SFP |
PoE Ports (RJ45) | |
Standard | 802.3af/at compliant |
PoE Ports | 8 Ports |
Power Supply | 123W |
Performance | |
Packet Forwarding Rate | 14.88 Mpps |
Bandwidth/Backplane | 20Gbps |
MAC Address Table | 4k |
Jumbo Frame | 16 KB |
Software features | |
Transmission Method | Store-And-Forward |
Advanced Functions |
Compatible With IEEE 802.3af/at Compliant PDs, Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission), Priority Mode Button (Ports 1–2), Isolation Mode Button (Ports 1–4 / 5-8), PoE Auto Recovery (Ports 1-8), Mac Address Auto-Learning and Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
Housing / case type |
19", metal |
Dimensions | 209 x 126 x 26 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
100~240VAC, 50/60Hz, External Power Adapter(Output 53.5V DC / 2.43A) |
Power Consumption |
Maximum (PoE on) 141.4W, Maximum (PoE off) 7.93W |
Fan Quantity | 0 |
Certificates |
CE, FCC, RoHS |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/z/ad/x/af/d/s/w/q/x/p |
---|---|
Copper ports |
8x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) PoE+, 1x 10/100/1000 Mbps RJ-45 |
Free slots | 1x 1000 Mbps SFP |
PoE Ports (RJ45) | |
Standard | 802.3af/at compliant |
PoE Ports | 8 Ports |
Power Supply | 63W |
Performance | |
Bandwidth/Backplane | 20Gbps |
MAC Address Table | 4k |
Software features | |
Advanced Features |
Compatible With IEEE 802.3af/at Compliant PDs, EEE802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping |
Transmission Method | Store-And-Forward |
Housing / case type |
19", metal |
Dimensions | 209 x 126 x 26 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
100~240VAC, 50/60Hz, External Power Adapter(Output 48VDC/1.25A) |
Power Consumption |
Maximum (PoE on) 78.13W, Maximum (PoE off) 7.11W |
Fan Quantity | 0 |
Certificates |
CE, FCC, RoHS |
Manufacturer | TP-Link |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 4 |
100/1000Base-X SFP Ports | 2 |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3z for 1000Base-X |
MAC Table | 2048 MAC addresses |
Power | |
Input power | Dual DC inputs. 9÷48VDC on 5-pin terminal block |
Power consumption (typical) | 6W |
Physical Characteristic | |
Enclosure | IP-40 |
Dimension (W x D x H) | 37mm x 85m x 116mm |
Weight | 430g |
Environmental | |
Storage Temperature | -40÷85°C (-40÷185°F) |
Operating Temperature | -40÷85°C (-40÷185°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMS |
IEC61000-4-2(ESD) level 4, IEC 61000-4-4 (EFT) level 4, IEC61000-4-5(Surge) level 4 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
MTBF | 500000h |
Standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
PoE In Ports | 5 compliance with 802.3af/at/bt Type3/bt Type4 |
PoE Out Ports | 1-4 compliance with 802.3af/at |
PoE Power Budget |
66 W when powered by 802.3bt Type 4 (90 W), 47 W when powered by 802.3bt Type 3 (60 W), 21 W when powered by 802.3at (30 W), 9 W when powered by 802.3af (15.4 W) |
Backbound Bandwidth | 10Gbps |
Mac Address Table | 2K |
Software features | |
Advanced Features |
Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission), PoE Auto Recovery (Ports 1-4), Mac Address Auto-Learning and Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping |
Transfer Method | Store-And-Forward |
Dimensions | 6,2 × 4,0 × 1,0 in. (158 × 101 × 25 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | Only Powered by PoE Device |
Power Consumption |
2.68 W (90W PoE In, with no PD connected), 68.59 W (90W PoE In, with 66 W PD connected) |
Max Heat Dissipation |
9.112 BTU/h (90W PoE In, with no PD connected), 233.206 BTU/h (90W PoE In, with 66 W PD connected) |
Certificates |
CE, FCC, RoHS |
Manufacturer | TP-Link |
Standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p |
---|---|
Copper ports | 6x 10/100/1000 Mbps RJ-45 |
PoE Ports | Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at |
PoE Power Budget | 64 W |
Packet Forwarding Rate | 8.928 Mpps |
Mac Address Table | 4K |
Software features | |
Advanced Features |
Compatible With IEEE 802.3af/at/bt Compliant PDs, Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping, Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission), PoE Auto Recovery (Ports 1-4) |
Transfer Method | Store-And-Forward |
Dimensions | 6,2 × 4,0 × 1,0 in. (158 × 101 × 25 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | External Power Adapter (Output 53.5 VDC / 1.31 A) |
Power Consumption |
4.75 W (220/50 Hz. no PD connected), 71.46 W (220/50 Hz. with 64 W PD connected) |
Max Heat Dissipation |
16.20 BTU/h (220/50 Hz. no PD connected), 243.68 BTU/h (220/50 Hz. with 64 W PD connected) |
Certificates |
CE, FCC, RoHS |
Manufacturer | TP-Link |

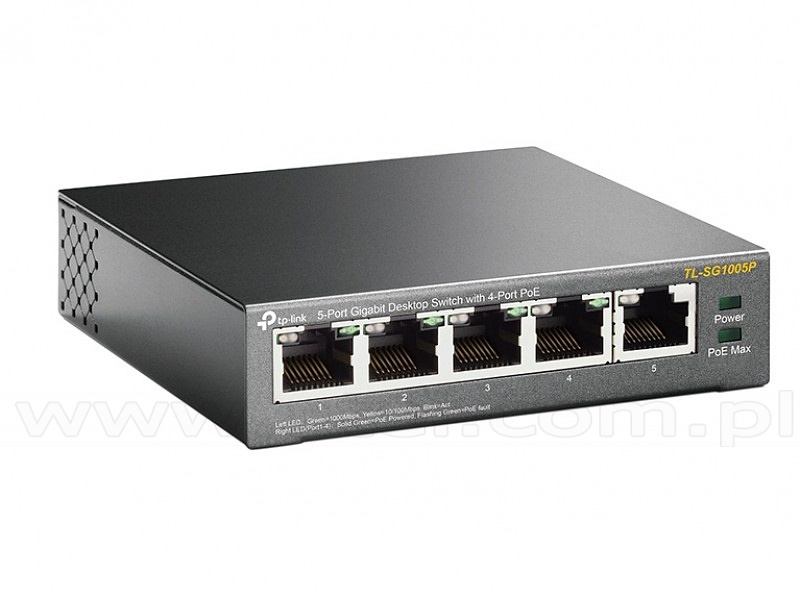

Copper ports | 5x 10/100/1000 Mbps RJ-45 |
---|---|
Standard | 802.3af/at compliant |
PoE+ Ports | Port1- Port4 |
Power Supply | 40W |
Switching Capacity | 1Gbps |
Packet Forwarding Rate | 7.44 Mpps |
Mac Address Table | 2K |
Jumbo Frame | 16 KB |
Software features | |
Advanced Features |
Compatible With IEEE 802.3af Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping |
Transfer Method | Store-And-Forward |
Dimensions | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | External Power Adapter(Output 53.5 V DC / 0.81 A) |
Power Consumption |
4.12W (max. no PD connected), 47.5W (max. with 40W PD connected) |
Max Heat Dissipation |
14.05BTU/h(no PD connected), 161.98BTU/h(with 40W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |

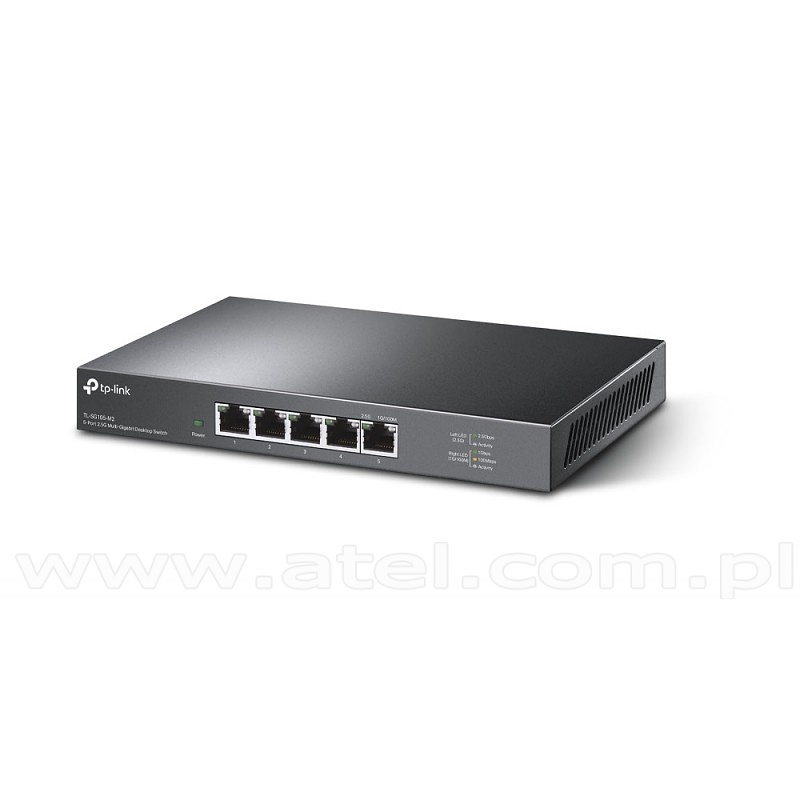

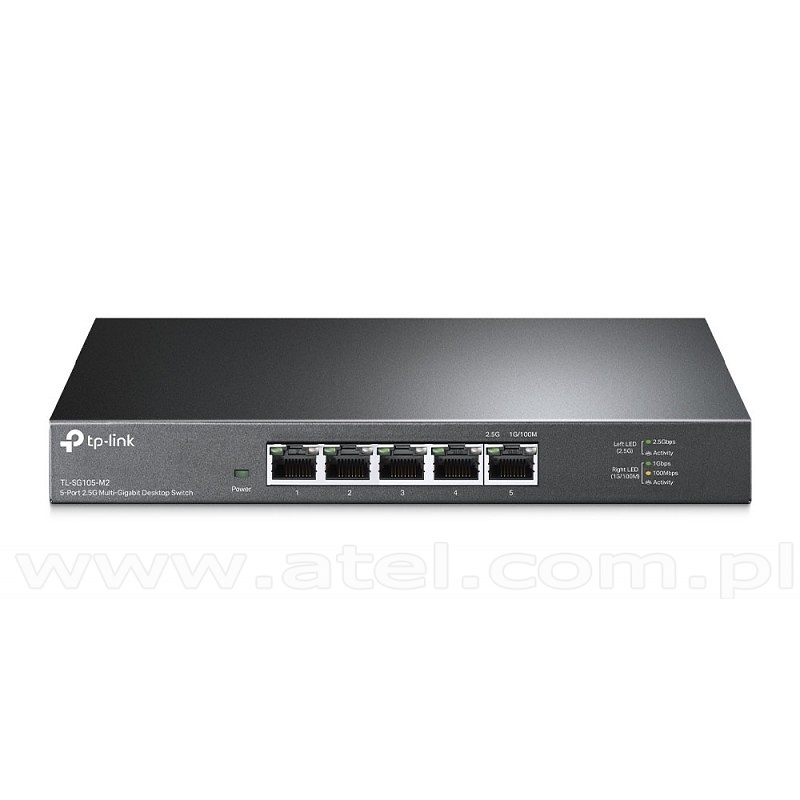

Copper ports |
5x 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX |
---|---|
Standard |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
Switching Capacity | 25Gbps |
Packet Forwarding Rate | 18,6 Mpps |
Mac Address Table | 16K |
Jumbo Frame | 10 KB |
Packet Buffer Memory | 1.5 Mb |
Software features | |
Advanced Features |
802.3X Flow Control, 802.1p/DSCP QoS |
Transfer Method | Store-And-Forward |
Dimensions | 8.2×4.9×1.0 in (209×126×26 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |

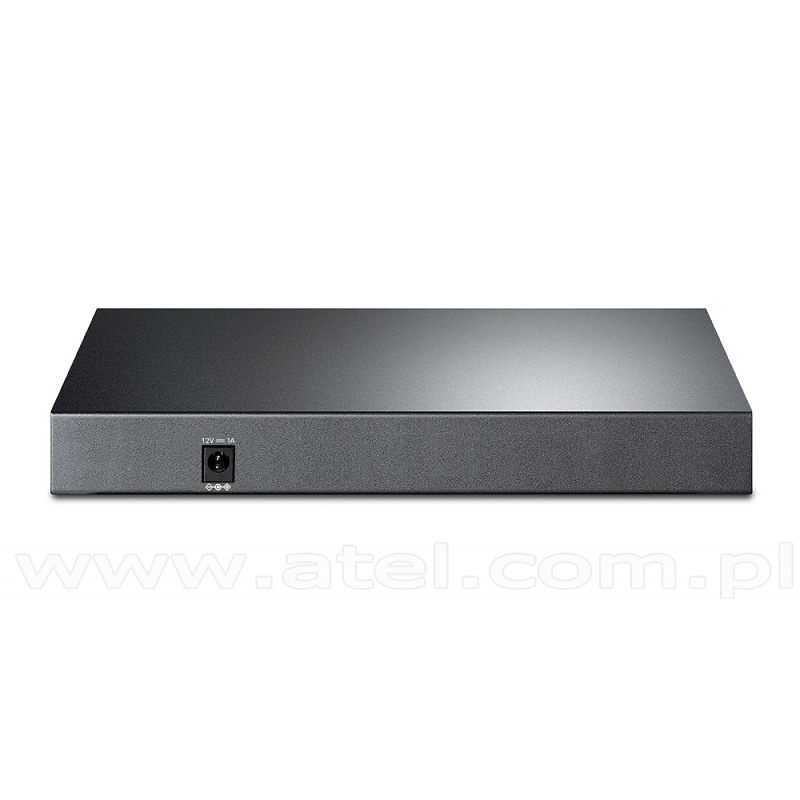

Power | External Power Adapter(Output 12 VDC / 1 A) |
Power Consumption | 12,11W |
Max Heat Dissipation | 41,32BTU/h |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u/x |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Data Rates |
10/100/1000Mbps at half duplex, 20/200/2000Mbps at full duplex |
Buffer Capacity | 512Kb |
Jumbo Frame | 9KB |
LED |
Ethernet (1, 2, 3, 4, 5), Power |
Housing / case type |
desktop, plastic |
Dimensions | 105×70×24,9 mm |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 5V DC 0.6A, ~230V AC |
Certificates |
CE, RoHS |
Standards | IEEE 802.3/i/u/x/ab |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching Capacity | 10 Gbps |
Packet Forwarding Rate | 7.4 Mpps |
MAC Address Table | 2K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 16 KB |
Housing / case type |
desktop, plastic |
Dimensions | 3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm) |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 5V DC 0.6A, ~230V AC |
Max Power Consumption | 3.7W |
Max Heat Dissipation | 12.617 BTU/h |
Certificates |
CE, FCC, RoHS |
Warranty period | 2 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3/i/u/x/ab, IEEE 802.1p |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Packet Forwarding Rate | 7.4 Mpps |
MAC Address Table | 2K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 16 KB |
Housing / case type |
desktop, metal |
Dimensions | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 5V DC 0.6A, ~230V AC |
Max Power Consumption | 2.776W (220V/50Hz) |
Max Heat Dissipation | 9.466 BTU/h |
Certificates |
CE, FCC, RoHS |
Warranty period | 2 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u/ab |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 10 |
Housing / case type |
desktop, plastic |
Dimensions | 200x140x28 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | external 9V DC 1,2A ~230V AC |
Certificates |
CE, FCC |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3/u/ab/x, CSMA/CD |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
802.3X, QoS (IEEE802.1P), IGMP Snooping |
Housing / case type |
desktop, metal |
Dimensions | 99,8x98x25 mm (3,9 x 3,9 x 1,0 cala) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
100-240VAC, 50/60Hz |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
EEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
Standard | 802.3af compliant |
PoE Ports | Port1- Port4 |
Power Supply | 56W |
Backbound Bandwidth | 10Gbps |
Mac Address Table | 2K |
Software features | |
Advanced Features |
Compatible With IEEE 802.3af Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping |
Transfer Method | Store-And-Forward |
Dimensions | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | External Power Adapter(Output 48VDC / 1.25A) |
Power Consumption |
3.95W(220/50Hz. no PD connected), 64.44W(220/50Hz. with 56W PD connected) |
Max Heat Dissipation |
13.48BTU/h(no PD connected), 219.87BTU/h(with 56W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3/i/u/x/ab, IEEE 802.1p |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Packet Forwarding Rate | 11.9 Mpps |
MAC Address Table | 2K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 16 KB |
Housing / case type |
desktop, metal |
Dimensions | 6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm) |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 9V DC 0.6A, ~230V AC |
Max Power Consumption | 3.7W(220V/50Hz) |
Max Heat Dissipation | 12.617 Btu/hr |
Certificates |
CE, FCC, RoHS |
Warranty period | 2 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/x/ab |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching Capacity | 16 Gbps |
Packet Forwarding Rate | 11.9 Mp/s |
MAC Address Table | 4K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 16 KB |
Housing / case type |
desktop, plastic |
Dimensions | 5.0 × 2.6 × 0.9 in. (127 × 66.5 × 23 mm) |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 9V DC 0.6A, ~230V AC |
Max Power Consumption | 3.9W |
Max Heat Dissipation | 13.299 BTU/h |
Certificates |
CE, FCC, RoHS |
Warranty period | 2 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Housing / case type |
11.6", metal |
Dimensions | 250x158x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u/ab |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 16 |
Housing / case type |
desktop, plastic |
Dimensions | 200x140x28 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | external 9V DC 1,2A ~230V AC |
Certificates |
CE, FCC |
Manufacturer | TP-Link |
Standards |
IEEE 802.3/802.3u/ 802.3ab/ 802.3x, CSMA/CD |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Housing / case type |
desktop, metal |
Dimensions | 158 x 101 x 25mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
100-240VAC, 50/60Hz |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
EEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |

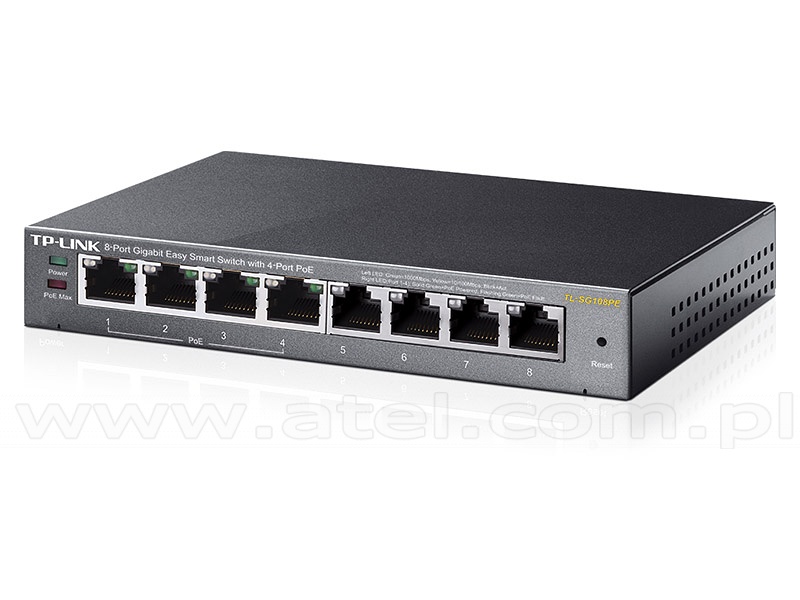

Standard | 802.3af compliant |
PoE Ports | Port1- Port4 |
Power Supply | 53W |
Advanced Features |
Compatible With IEEE 802.3af Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Dimensions | 171x98x27 mm |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
internal, ~230V AC 50Hz |
Power Consumption |
Maximum (PoE on)- 58.8W (220V/50Hz), Maximum (PoE off)- 5.8W (220V/50Hz) |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
EEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Standard | 802.3at/af compliant |
PoE Ports | 8 Ports |
Power Supply | 126W |
Advanced Features |
Compatible With IEEE 802.3af/at Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Dimensions | 294x180x44 mm (11,6*7,1*1,7 cala) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
100-240VAC, 50/60Hz |
Power Consumption |
9.5 watts (max. no PD connected), 140.1 watts (max. with 126W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Copper ports |
8x 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX |
---|---|
Standard |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
Switching Capacity | 40Gbps |
Packet Forwarding Rate | 29,8 Mpps |
Mac Address Table | 16K |
Jumbo Frame | 10 KB |
Packet Buffer Memory | 1.5 Mb |
Software features | |
Advanced Features |
802.3X Flow Control, 802.1p/DSCP QoS |
Transfer Method | Store-And-Forward |
Dimensions | 8.9×5.2×1.4 in (226×131×35 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | External Power Adapter(Output 12 VDC / 1.5 A) |
Power Consumption | 15,65W |
Max Heat Dissipation | 53,40 BTU/h |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u/x |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Data Rates |
10/100/1000Mbps at half duplex, 20/200/2000Mbps at full duplex |
Buffer Capacity | 64Kb |
Jumbo Frame | 9KB |
LED |
Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power |
Housing / case type |
desktop, plastic |
Dimensions | 127 x 60,3 x 22 mm |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 9V DC 0.6A, ~230V AC |
Certificates |
CE, RoHS |
Standards | IEEE 802.3/u 802.3ab 802.3x |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Housing / case type |
11.6", metal |
Dimensions | 294x180x44 mm (handles for 19" rack included) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Housing / case type |
19", metal |
Dimensions | 294x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3i/802.3u/ 802.3ab/ 802.3x/ 802.1p |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Performance: | |
Packet Forwarding Rate | 23.8Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mb |
Jumbo Frame | 10KB |
Software features: | |
Advanced Features |
Green Technology, 802.3X Flow Control, 802.1p/DSCP QoS, IGMP Snooping |
Transfer Method | Store and Forward |
Dimensions | 11.26 x 4.4 x 1.0 in. (286x111.7x25.4 mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | External Power Adapter (Output 12VDC / 1.0A) |
Max Power Consumption | 10W(220V/50Hz) |
Max Heat Dissipation | 34.12BTU/h |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3i/802.3u/ 802.3ab/ 802.3x/ 802.1p/ 802.1q |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Performance: | |
Switching Capacity | 32Gbps |
Packet Forwarding Rate | 23.81Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mb |
Jumbo Frame | 10KB |
Software features: | |
Quality of Service |
Support Port-based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
Transmission Method | Store-And-Forward |
Dimensions | 11.26 x 4.4 x 1.0 in. (286x111.7x25.4 mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | External Power Adapter(Output 9VDC/0.6A) |
Max Power Consumption | 9.27W(220V/50Hz) |
Max Heat Dissipation | 31,36BTU/h |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |

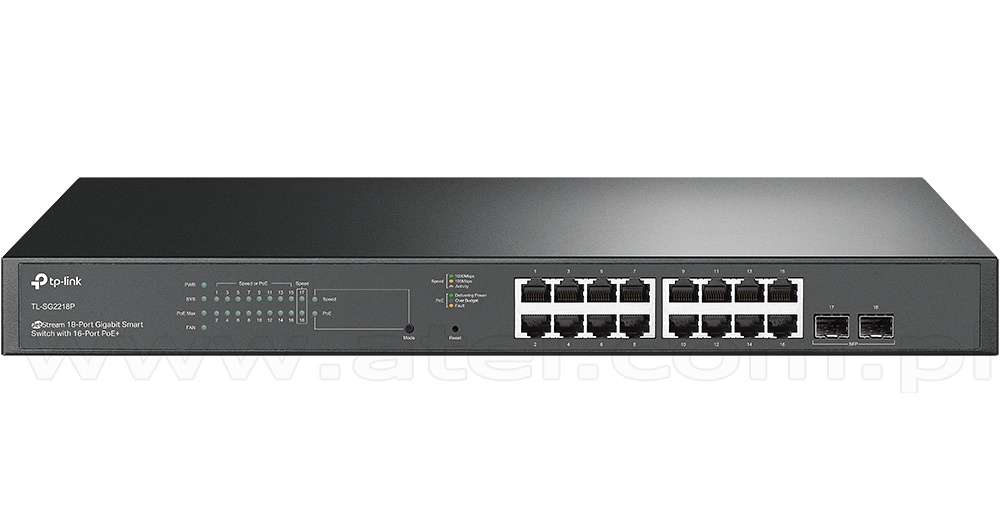

Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
---|---|

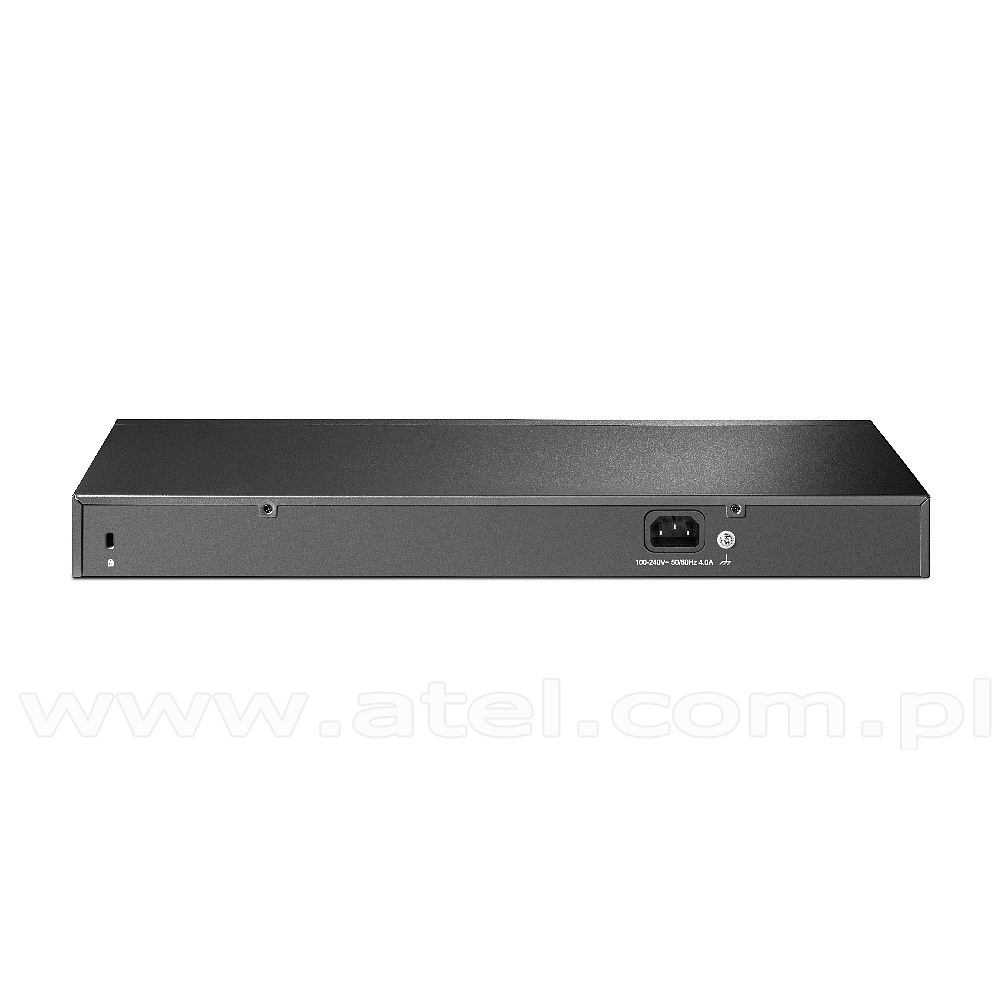

Copper ports | 18x 10/100/1000 Mbps RJ-45 |
SFP Ports | 2 Gigabit SFP Ports |
Fan Quantity | 2 |
PoE Ports |
Standard 802.3 at compliant, PoE Ports Port 1- Port 16, PoE Power Budget 250W |
Performance: | |
Switching Capacity | 36 Gb/s |
Packet Forwarding Rate | 26.78 Mb/s |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mb |
Jumbo Frame | 10KB |
Advanced Functions |
Compatible With IEEE 802.3af/at Compliant PDs, 802.1p/DHCP QoS, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
Dimensions | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
100-240VAC, 50/60Hz |
Power Consumption |
21.4 W (220/50Hz. no PD connected), 286.64 W (220/50Hz. with 250W PD connected) |
Max Heat Dissipation |
72.97 BTU/h (no PD connected), 977.44 BTU/h (with 250W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u 802.3ab 802.3x |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Housing / case type |
11.6", metal |
Dimensions | 294x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Housing / case type |
19", metal |
Dimensions | 440x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
EEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
---|---|

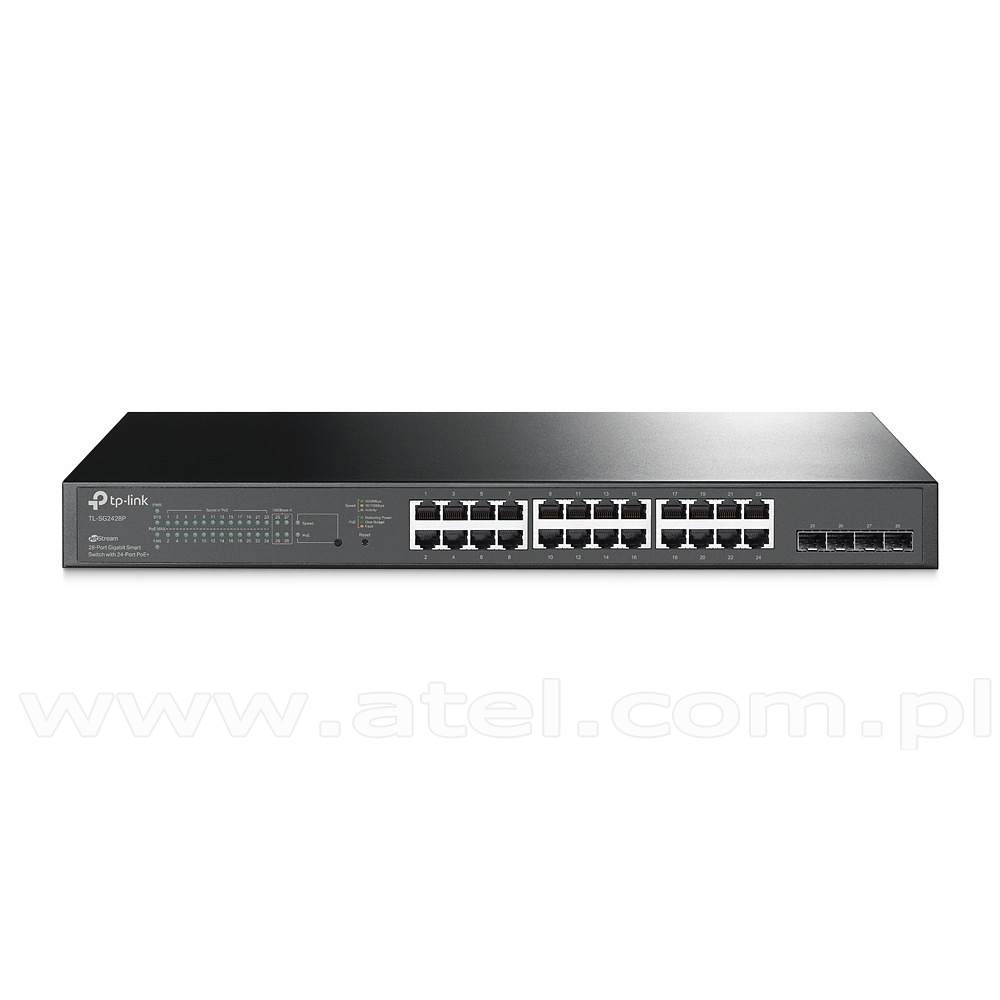

Copper ports |
24x 10/100/1000 Mbps RJ-45, 2x 10/100/1000 Mbps RJ-45 |
SFP slots | 2× Combo Gigabit SFP Slots |
Standard | 802.3af compliant |
PoE Ports | Port1- Port24 |
Power Supply | 250W |
Advanced Features |
Compatible With IEEE 802.3at/af Compliant PDs, Extend Mode (Up to 250m PoE power supply and data transmission), Priority Mode, Isolation Mode, PD Detection, Intelligent Power Supply, Mac Address Auto-Learning and Auto-Aging, IEEE802.3x Flow Control |
Switching architecture / speed | Store and Forward |
Mac Address Table | 8 K |
Dimensions | 440 × 180 × 44 mm |
Fan Quantity | 2 Fans |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
internal, ~230V AC 50Hz |
Power Consumption |
Maximum (PoE on)- 294W (220V/50Hz), Maximum (PoE off)- 18.32W (220V/50Hz) |
Certificates |
CE, FCC, RoHS |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 48x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Housing / case type |
19", metal |
Dimensions | 440x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u/ab/x/q/p |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
802.3X, QoS (IEEE802.1P), IGMP Snooping |
Housing / case type |
desktop, metal |
Dimensions | 100x98x25 mm (3,9 x 3,9 x 1,0 cala) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
100-240VAC, 50/60Hz |
Certificates |
CE, FCC, RoHS |
Package Contents |
TL-SG105E, Power Cord, Installation Guide, Resource CD, Rubber Feet |
System Requirements | Microsoft® Windows® for running Utility |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
PoE+ Ports | Port1- Port4 |
Power Supply | 120W |
Switching Capacity | 10Gbps |
Packet Forwarding Rate | 7.44 Mpps |
Mac Address Table | 2K |
Jumbo Frame | 16 KB |
Packet Buffer Memory | 1.5 Mb |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Quality of Service |
Support Port-Based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, PoE Auto Recovery, Extend Mode |
VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
Management |
Web-based GUI, Easy Smart Configuration Utility |
Housing / case type |
desktop, metal |
Dimensions | 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | External Power Adapter (Output 53.5 VDC/2.43 A) |
Power Consumption |
4.34W (max. no PD connected), 137.01W (max. with 65W PD connected) |
Max Heat Dissipation |
14.8BTU/h(no PD connected), 467.17BTU/h(with 65W PD connected) |
Certificates |
CE, FCC, RoHS |
Package Contents |
TL-SG105MPE, Power Cord, Installation Guide, Resource CD, Rubber Feet |
System Requirements | Microsoft® Windows® for running Utility |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/af/x/q/p/at/z |
---|---|
Copper ports |
9x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) PoE+, 1x 10/100/1000 Mbps RJ-45 |
Free slots | 1x 1000 Mbps SFP |
PoE Ports (RJ45) | |
Standard | 802.3af/at compliant |
PoE Ports | 8 Ports |
Power Supply | 123W |
Performance | |
Packet Forwarding Rate | 14.88 Mpps |
Bandwidth/Backplane | 20Gbps |
MAC Address Table | 4k |
Jumbo Frame | 16 KB |
Software features | |
Transmission Method | Store-And-Forward |
Quality of Service |
Support Port-Based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
PoE |
Extend Mode, PoE Auto Recovery |
Management |
Web-based GUI, Easy Smart Configuration Utility |
Housing / case type |
19", metal |
Dimensions | 209 x 126 x 26 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
100~240VAC, 50/60Hz, External Power Adapter(Output 53.5V DC / 2.43A) |
Power Consumption |
Maximum (PoE on) 141.54W, Maximum (PoE off) 7.66W |
Fan Quantity | 0 |
Certificates |
CE, FCC, RoHS |
Manufacturer | TP-Link |
Standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
PoE+ Ports | Port1- Port4 |
Power Supply | 65W |
Switching Capacity | 10Gbps |
Packet Forwarding Rate | 7.44 Mpps |
Mac Address Table | 2K |
Jumbo Frame | 16 KB |
Packet Buffer Memory | 1.5 Mb |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Quality of Service |
Support Port-Based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, PoE Auto Recovery, Extend Mode |
VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
Management |
Web-based GUI, Easy Smart Configuration Utility |
Housing / case type |
desktop, metal |
Dimensions | 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | External Power Adapter (Output 53.5 VDC/1.31 A) |
Power Consumption |
4.52W (max. no PD connected), 75.16W (max. with 65W PD connected) |
Max Heat Dissipation |
15.41BTU/h(no PD connected), 256.30BTU/h(with 65W PD connected) |
Certificates |
CE, FCC, RoHS |
Package Contents |
TL-SG105PE, Power Cord, Installation Guide, Resource CD, Rubber Feet |
System Requirements | Microsoft® Windows® for running Utility |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/ad/x/d/s/w/q/p |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) |
SFP Slots | 2× 100/1000 Mbps SFP Slots |
PoE Ports (RJ45) |
Standard 802.3af/at compliant, PoE Ports 8 Ports, Power Supply 150 W |
Fan Quantity | 1 |
Performance | |
Bandwidth/Backplane | 20Gbps |
Packet Forwarding Rate | 14.9 Mpps |
MAC Address Table | 8k |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 9 KB |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Dimensions | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
Mounting | Rackmount/Desktop |
Operating temperature | 0°C ÷ 50°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | External Power Adapter (Output 53.5 VDC/ 1.31 A) |
Power Consumption |
12.2 W (220 V/50 Hz), 173.9 W (220 V/50 Hz) (with 150 W PD connected) |
Max Heat Dissipation |
41.63 BTU/h (with no PD connected), 539.35 BTU/h (with 150 W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/ad/x/d/s/w/q/p |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) |
Performance | |
Bandwidth/Backplane | 16Gbps |
MAC Address Table | 8k |
Packet Forwarding Rate | 11.9Mpps |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 Features |
IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group), Spanning Tree STP/RSTP/MSTP, LLDP, LLDP-Med, BPDU Filtering/Guard, TC/Root Protect, Loop back detection, 802.3x Flow Control, VLAN Voice |
VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
Security |
SSH v1/v2, SSL v2/v3/TLSv1, Port Security, Broadcast/Multicast/Unknown-unicast Storm Control |
Management |
Web-based GUI and CLI management, SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs, RMON (1, 2, 3, 9 groups), DHCP/BOOTP Client, DHCP Filtering, CPU Monitoring, Port Mirroring, Time Setting- SNTP, System Diagnose- VCT, SYSLOG & Public MIBS |
Firmware Upgrade | TFTP & Web |
Dimensions | 8.2x4.9x1.0 in. (209x126x26mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | 12 VDC/1 A External Adapter or Obtain Power from PoE Source |
Power Consumption | 6.4 W (220 V/50 Hz) |
Fan Quantity | Fanless |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/ad/x/d/s/w/q/p |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) |
PoE Ports (RJ45) |
Standard 802.3af/at compliant, PoE Ports 4 Ports, Power Supply 62 W |
Performance | |
Bandwidth/Backplane | 16Gbps |
MAC Address Table | 8k |
Packet Buffer Memory | 4.1 Mbit |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 Features |
IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group), Spanning Tree STP/RSTP/MSTP, LLDP, LLDP-Med, BPDU Filtering/Guard, TC/Root Protect, Loop back detection, 802.3x Flow Control, VLAN Voice |
VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
Security |
SSH v1/v2, SSL v2/v3/TLSv1, Port Security, Broadcast/Multicast/Unknown-unicast Storm Control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Dimensions | 8.2x4.9x1.0 in. (209x126x26mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | External Power Adapter (Output 53.5 VDC/ 1.31 A) |
Power Consumption |
7.9W (220 V/50 Hz), 79.2 W (220 V/50 Hz) (with 62 W PD connected) |
Fan Quantity | Fanless |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/ad/x/d/s/w/q/p |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) |
PoE Ports (RJ45) |
Standard 802.3af/at compliant, PoE Ports 8 Ports, Power Supply 61 W |
Performance | |
Bandwidth/Backplane | 20Gbps |
Packet Forwarding Rate | 14.88 Mpps |
MAC Address Table | 8k |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 9 KB |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 Features |
IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group), Spanning Tree STP/RSTP/MSTP, LLDP, LLDP-Med, BPDU Filtering/Guard, TC/Root Protect, Loop back detection, 802.3x Flow Control, VLAN Voice |
VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
Security |
SSH v1/v2, SSL v2/v3/TLSv1, Port Security, Broadcast/Multicast/Unknown-unicast Storm Control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Dimensions | 8.2x4.9x1.0 in. (209x126x26mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | External Power Adapter (Output 53.5 VDC/ 1.31 A) |
Power Consumption |
10,5 W (220 V/50 Hz), 75,3 W (220 V/50 Hz) (with 58 W PD connected) |
Fan Quantity | Fanless |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
MAC Address Table | 8K |
Packet Buffer Memory | 2Mb |
Packet Forwarding Rate | 11.9Mpps |
Jumbo Frame | 16KB |
Quality of Service |
Support Port Based/802.1p Based priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping, Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
Transmission Method | Store-And-Forward |
Housing / case type |
desktop, metal |
Dimensions | 158x101x25 mm (6.2x4.0x1.0 cala) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
100-240VAC, 50/60Hz |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Standard | 802.3 af compliant |
PoE Ports | Port 1- Port 4 |
PoE Power Budget | 55W |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching Capacity | 16Gbps |
MAC Address Table | 4K |
Packet Buffer Memory | 1.5Mb |
Packet Forwarding Rate | 11.9Mpps |
Jumbo Frame | 16KB |
Quality of Service |
Support Port Based/802.1p Based priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping, Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
Transmission Method | Store-And-Forward |
Housing / case type |
desktop, metal |
Dimensions | 158x101x25 mm (6.2x4.0x1.0 cala) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | External Power Adapter(Output 48VDC / 1.25A) |
Power Consumption |
Maximum (PoE on) 65.2W (220V/50Hz), Maximum (PoE off) 5.2W (220V/50Hz) |
Certificates |
CE, FCC, RoHS |
Package Contents |
TL-SG108PE, Power Adapter, Installation Guide, Resource CD, Rubber Feet |
System Requirements | Microsoft® Windows® for running Utility |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3i, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 (Ports 1–8 Support 802.3at/af PoE+) |
Fan Quantity | Fanless |
PoE Ports |
Standard 802.3 at compliant, PoE Ports Port 1- Port 8, Power Supply 120 W |
Performance: | |
Bandwidth/Backplane | 16 Gbps |
MAC Address Table | 8k |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 9 KB |
Software features | |
Quality of Service |
802.1p CoS/DSCP priority, 8 priority queues, Priority Schedule Mode, SP (Strict Priority), WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Control, Port/Flow-based Rating Limit, Smoother Performance, Storm Control, Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN 12 Entries, Protocol VLAN, GVRP, Voice VLAN |
Access Control List |
Support up to 230 entries, Time-Range, Time Slice, Week Time-Range, Absolute Time-Range, Holiday, Time-based ACL, MAC ACL, Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type, IP ACL, Source IP, Destination IP, IP Protocol, TCP Flag, TCP/UDP Source Port, TCP/UDP Destination Port, DSCP/IP TOS, IPv6 ACL, Combined ACL, Rule Operation, Permit/Deny, Policy Action, Mirror, Rate Limit, Redirect, QoS Remark, ACL Rules Binding, Port Binding, VLAN Binding, Actions for flows, Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark |
Security |
AAA, 802.1X, Port-based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC-based access control |
Advanced Features |
Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule |
MIBs |
MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9) |
Management | |
Omada App |
Yes, through, Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes, through, Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Dimensions | 11.3 x 4.4 x 1.0 in. (286 x 111.7 x 25.4 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | External Power Adapter (Output 53.5 VDC/ 2.43 A) |
Power Consumption | 146.5 W (110 V/60 Hz) (with 120 W PD connected) |
Max Heat Dissipation | 499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) |
SFP Slots | 2× Gigabit SFP Slots |
Fan Quantity | 1 |
PoE Ports (RJ45) |
Standard 802.3at/af compliant, PoE+ Ports 16 Ports, PoE Power Budget 150 W |
Performance | |
Bandwidth/Backplane | 36Gbps |
MAC Address Table | 8k |
Packet Forwarding Rate | 26.8Mpps |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Dimensions | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | 100-240 V AC~50/60 Hz |
Max Power Consumption |
181.4 W (110 V/60 Hz) (with 150 W PD connected), 178.3 W (220 V/50 Hz) (with 150 W PD connected) |
Max Heat Dissipation |
619.06 BTU/hr (110 V/60 Hz) (with 150 W PD connected), 608.52 BTU/hr (220 V/50 Hz) (with 150 W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/ad/x/d/s/w/q/p |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) |
SFP Slots | 2× Gigabit SFP Slots |
Performance | |
Bandwidth/Backplane | 36Gbps |
MAC Address Table | 8k |
Packet Forwarding Rate | 26.8Mpps |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Dimensions | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | 100-240 V AC~50/60 Hz |
Power Consumption | 12,3 W (220 V/50 Hz) |
Fan Quantity | Fanless |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching Capacity | 32Gbps |
MAC Address Table | 8K |
Packet Buffer Memory | 512KB |
Packet Forwarding Rate | 23.8Mpps |
Jumbo Frame | 10240Bytes |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Dimensions | 11.6x7.1x1.7 in. (294x180x44 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 |
Fan Quantity | 1 |
PoE Ports |
Standard 802.3 at compliant, PoE Ports Port 1- Port 8, PoE Power Budget 110W, Power Supply 53W |
Performance: | |
Switching Capacity | 32Gbps |
Packet Forwarding Rate | 23.81Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mb |
Jumbo Frame | 9KB |
Software features: | |
Quality of Service |
Support Port-based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN |
Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
Management |
Web-based GUI, Easy Smart Configuration Utility |
Transmission Method | Store-And-Forward |
Dimensions | 11.6x7.1x1.7 in. (294x180x44 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
100-240VAC, 50/60Hz |
Power Consumption |
14.72W (110V/60Hz with no PD connected), 131.42W (110V/60Hz with 110W PD connected) |
Max Heat Dissipation |
50.22 BTU/h (with no PD connected), 448.41 BTU/h (with 110W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 |
SFP Ports | 2 Gigabit SFP Ports |
Fan Quantity | 2 |
PoE Ports |
Standard 802.3 at compliant, PoE Ports Port 1- Port 16, PoE Power Budget 192W |
Performance: | |
Switching Capacity | 36 Gb/s |
Packet Forwarding Rate | 23,8 Mb/s |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mb |
Jumbo Frame | 9KB |
Software features: | |
Quality of Service |
Support Port-based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN |
Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
Management |
Web-based GUI, Easy Smart Configuration Utility |
Transmission Method | Store-And-Forward |
Dimensions | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
100-240VAC, 50/60Hz |
Power Consumption |
18.73 W (220/50Hz. no PD connected), 217.22 W (220/50Hz. with 192W PD connected) |
Max Heat Dissipation |
63.89 BTU/h (no PD connected), 741.15 BTU/h (with 192W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching Capacity | 48Gbps |
MAC Address Table | 8K |
Packet Buffer Memory | 512KB |
Packet Forwarding Rate | 35.7Mpps |
Jumbo Frame | 10240Bytes |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Dimensions | 11.6x7.1x1.7 in. (294x180x44 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/z/ad/x/d/s/w/q/p |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) |
SFP Slots | 4× Gigabit SFP Slots |
PoE+ Ports(RJ45) |
Standard 802.3at/af compliant, PoE+ Ports 24 Ports, Power Supply 250 W |
Performance | |
Bandwidth/Backplane | 56Gbps |
MAC Address Table | 8k |
Packet Forwarding Rate | 41.7Mpps |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 9 KB |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Dimensions | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Operating temperature | 0°C ÷ 50°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | 100-240 V AC~50/60 Hz |
Power Consumption |
32.1 W (110 V/ 60 Hz with no PD connected), 308.6 W (110 V/ 60 Hz with 250 W PD connected) |
Max Heat Dissipation |
109.53 BTU/h (with no PD connected), 1052.94 BTU/h (with 250 W PD connected) |
Fan Quantity | 2 |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports | 26x 10/100/1000 Mbps RJ-45 |
SFP Ports | 2 Gigabit SFP Ports |
Fan Quantity | 2 |
PoE Ports |
Standard 802.3 at compliant, PoE Ports Port 1- Port 24, PoE Power Budget 250W |
Performance: | |
Switching Capacity | 56 Gb/s |
Packet Forwarding Rate | 41.7 Mb/s |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mb |
Jumbo Frame | 9KB |
Software features: | |
Quality of Service |
Support Port-based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN |
Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
Management |
Web-based GUI, Easy Smart Configuration Utility |
Transmission Method | Store-And-Forward |
Dimensions | 17.3 × 8.7 × 1.7 in. (440 × 220 × 44 mm) |
Operating Temperature | 0℃~50℃ (32℉~122℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
100-240VAC, 50/60Hz |
Power Consumption |
27 W (220/50Hz. no PD connected), 304.7 W (220/50Hz. with 250W PD connected) |
Max Heat Dissipation |
92.07 BTU/h (no PD connected), 1039.03 BTU/h (with 250W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
PoE Ports (RJ45) |
PoE In Port Port 5, Compliance with 802.3af/at/bt, PoE Out Ports Ports 1-4, compliance with 802.3af/at PoE |
PoE Power Budget |
, 64 W when powered by 802.3bt Type 4 (90 W), 44 W when powered by 802.3bt Type 3 (60 W), 19 W when powered by 802.3at, 6 W when powered by 802.3af |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Switching capacity [Gbps] | 10 |
Packet Forwarding Rate | 7,44 Mpps |
MAC Address Table | 8 K |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 9 KB |
Dimensions | 3,9 × 1,5 × 6,7 in (100 × 38,5 × 170 mm) |
Fan Quantity | 0 |
Operating temperature | -40°C ÷ 60°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | Obtain Power from 802.3af/at/bt PoE Source |
Max Power Consumption | 71.5 W (when powered by 802.3bt Type 4 (90 W)) |
Max Heat Dissipation | 243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W)) |
Certificates |
CE, FCC, RoHS |
Manufacturer | TP-Link |
Ports | 8x 10G SFP+ |
---|---|
Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
Fan Quantity | Fanless |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Switching capacity [Gbps] | 160 |
Packet Forwarding Rate | 119,04 Mpps |
MAC Address Table | 32K |
Jumbo Frame | 9 KB |
Housing / case type | Rack Mountable |
Dimensions | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Operating temperature | 0°C ÷ 45°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, 100~230VAC 50/60Hz |
Max Power Consumption | 15.46 W (110 V/60 Hz) |
Max Heat Dissipation | 52.75 BTU/h (110 V/60 Hz) |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Free slots | 2x 1000 Mbps SFP |
Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Switching capacity [Gbps] | 20 |
MAC address memory | 8000 |
Packet Forwarding Rate | 14.89 Mpps |
Housing / case type |
11.6", metal, 19" brackets included |
Dimensions | 294x180x44 mm |
Operating temperature | 0°C ÷ 45°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, 100~230VAC 50/60Hz |
Max Power Consumption | 6.84 W (220 V/50 Hz) |
Max Heat Dissipation | 23.33 BTU/h (220 V/50 Hz) |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
---|---|
Copper ports | 8x 100/1000/2500 Mbps RJ-45 |
Free slots | 2x SFP 10G |
Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Switching capacity [Gbps] | 80 |
Packet Forwarding Rate | 59,52 Mpps |
MAC Address Table | 16 K |
Jumbo Frame | 9 KB |
Housing / case type | Rack Mountable |
Dimensions | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Fan Quantity | 2 |
Operating temperature | 0°C ÷ 50°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, 100~230VAC 50/60Hz |
Max Power Consumption |
17.24 W (110V/60Hz) (no PD connected), 291.49 W (110V/60Hz) (with 240 W PD connected) |
Max Heat Dissipation |
58.82 BTU/h (110 V/60 Hz) (no PD connected), 994.56 BTU/h (110 V/60 Hz) (with 240 W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Ports | |
---|---|
RJ-45 (10/100/1000 Mbps) | 16 |
SFP (100/1000 Mbps) | 2 |
Management Interface |
RJ45 Serial Port, Ethernet In/Out Band |
Power over Ethernet (PoE) | |
POE+ IEEE 802.3af/at | Pins 1, 2+; 3, 6- |
24VDC Passive PoE | Pins 4, 5+; 7, 8- |
Power dedicated to PoE | 34.2W |
Voltage Range 802.3at | 50–57V |
Max. Passive PoE Wattage per Port | 17W |
24V Passive PoE Voltage Range | 20-27V |
Performance | |
Switching Capacity in Gigabits per Second (Gbps) | 36 |
Forwarding Rate (Mpps) | 26.78 |
Software Information | |
Layer 2 Switching |
Broadcast Storm Recovery, Broadcast/Multicast/Unknown Unicast Storm Recovery, DHCP Snooping, IGMP Snooping Querier, Independent VLAN Learning (IVL) Support, Jumbo Ethernet Frame Support, Port MAC Locking, Port Mirroring, Protected Ports, Static MAC Filtering, TACACS+, Voice VLANs, Unauthenticated VLAN, Internal 802.1X Authentication Server |
Management |
Web UI, Industry-Standard CLI, IPv6 Management, Password Management, Autoinstall Support for Firmware Images and Configuration Files, SNMP v1, v2, and v3, SSH 1.5 and 2.0, SSL 3.0 and TLS 1.0, Secure Copy (SCP), Telnet (Multi-Session Support) |
Core Switching Features |
ANSI/TIA-1057 - LLDP-Media Endpoint Discovery (MED), IEEE 802.1AB - Link Layer Discovery Protocol (LLDP), IEEE 802.1D - Spanning Tree Compatibility, IEEE 802.1S - Multiple Spanning Tree Compatibility, IEEE 802.1W - Rapid Spanning Tree Compatibility, IEEE 802.1Q - Virtual LANs with Port-Based VLANs, IEEE 802.1p - Ethernet Priority with User Provisioning and Mapping, IEEE 802.1X - Port-Based Authentication with Guest VLAN Support, IEEE 802.3 - 10BASE-T, IEEE 802.3u - 100BASE-T, IEEE 802.3ab - 1000BASE-T, IEEE 802.1ak - Virtual Bridged Local Area Networks - Amendment 07 - Multiple Registration Protocol, IEEE 802.3ac - VLAN Tagging, IEEE 802.3ad - Link Aggregation, IEEE 802.3x - Flow Control, IEEE 802.1D-2004 - Generic Attribute Registration Protocol - Clause 12 (GARP), IEEE 802.1D-2004 - Dynamic L2 multicast registration - Clause 10 (GMRP), IEEE 802.1Q-2003 - Dynamic VLAN registration - Clause 11.2 (GVRP), RFC 4541 - Considerations for Internet Group Management Protocol (IGMP) Snooping Switches, RFC 5171 - Unidirectional Link Detection (UDLD) Protocol |
General | |
Dimensions | 443 x 43 x 221 mm (17.44 x 1.69 x 8.70") |
Weight | 2.80 kg (6.17 lb) |
Weight With Mount Brackets | 2.89 kg (6.37 lb) |
Power |
100-240VAC/50-60 Hz, Universal Input |
Power Supply |
AC/DC, Internal, 150W DC |
Operating temperature | -5 ÷ 40°C |
Operating humidity |
5% to 95% , relative, noncondensing |
Certification |
CE, FCC, IC |
Shock and Vibration | ETSI300-019-1.4 Standard |
Manufacturer | Ubiquiti |
Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
---|---|
Copper ports | 4x combo 10/100/1000 Mbps RJ-45/SFP |
SFP ports | 20x SFP |
Free slots | 4x 10G SFP+ |
Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Fan Quantity | 1 Fan |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Switching capacity [Gbps] | 128 |
Packet Forwarding Rate | 95,23 Mpps |
MAC Address Table | 16K |
Jumbo Frame | 9 KB |
Housing / case type | Rack Mountable |
Dimensions | 17.3 × 8,7 × 1.7 in (440 × 220 × 44 mm) |
Operating temperature | 0°C ÷ 45°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, 100~230VAC 50/60Hz |
Max Power Consumption | 35,7 W (110 V/60 Hz) |
Max Heat Dissipation | 121.81 BTU/h (110 V/60 Hz) |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Ports | |
---|---|
10/100/1000 RJ-45 ports | 24 |
SFP ports | 4 |
RJ-45 console port | 1 |
Performance | |
Forwarding Rate [Mpps] | 41.7 |
Switching Capability [Gbps] | 56 |
L2 Features | |
Flow Control |
IEEE 802.3x for full duplex mode, Back-Pressure for half duplex mode |
Spanning Tree Protocol (STP) |
IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), BPDU Filter, Root Guard, BPDU Guard, Loopback Detection |
VLAN |
Private VLAN, GVRP, IEEE 802.1v, MAC Based, IP Subnet VLAN, Port Based, Voice VLAN, VLAN Trunking |
Support IGMP |
IGMP v1/v2/v3 snooping, IGMP Proxy reporting, IGMP Filtering, IGMP Throttling, IGMP Immediate Leave, IGMP Querier |
Others |
MVR (Multicast VLAN Registration), Supports QinQ, Supports select QinQ, UDLD, G.8032 (ERPS), Supports jumbo frames up to 10KB, Supports Digital Diagnostic Monitoring (DDM), Cable Diagnostic, Auto-negotiation for port speed and duplex mode |
Security | |
ACL |
Base on src/dst IP, Base on IP protocol type, Base on TCP/UDP src.dst Port, Base on src/dst MAC |
IEEE 802.1x |
Port-based, MAC-based, VLAN Assignment |
Management Access Filtering |
SNMP, WEB, Telnet |
TACACS+ |
Accounting, Authorization |
RADIUS (RFC2138) |
Authentication, Accounting |
Quality of Service (QoS) |
Priority Queues 4 hardware queues per port, 802.1p-based COS, IP DSCP-based COS, TCP/UDP Port-based COS, PHB (Per Hop Behavior – internal priority), Port-based default priority, WRR priority scheduling, Strict piority scheduling, Hybrid (WRR +Strict), Rate limiting (ingress and egress, per port base), DiffServ |
Rate Limiting |
Ingress, Egress |
Others |
ACL L2/L3/L4, HTTP and SSL ( Secured Web), Dynamic ARP inspection (DAI), Instruction lock (link detection), MAC Based Authentication, MAC Filter, SSH v1.5/ v2.0 (Secured Telnet Session), Username/Password Authentication (Local/Remote) |
Management | |
Switch Management |
CLI via console port or Telnet, WEB management |
Firmware & Configuration |
Firmware upgrade via TFTP server, Supports dual image, Supports auto configuration provision, Supports auto firmware upgrade, Multiple configuration files, Configuration file upload/download via TFTP server |
Remote Monitoring (RMON) | 1,2,3 & 9 groups |
SNMP |
v1, v2c, v3 |
Others |
BOOTP, DHCP client for IP address assignment, SNTP, NTP, IP clustering, Port mirroring, VLAN mirror, sFlow, Event/Error Log/Syslog, Remote log(RFC3164),, SMTP, MIB I/II, LLDP (802.1ab), Auto traffic control |
IPv6 Features |
ICMPv6, ICMPv6 Redirect, IPv4/IPv6 Dual Protocol Stack, IPv6 Address Types (Unicast/Multicast), IPv6 Neighbor Discovery |
IPv6 Management |
Support - IPv6 SNTP, SNMP over IPv6, IPv6 Telnet, Remote IPv6 Ping, IPv6 Syslog, IPv6 DNS Resolver, IPv6 TFTP, HTTP over IPv6, IPv6 sFlow |
General | |
MAC Address Table | 16K |
LED Indicators |
Port, Uplink, System, Diagnostic |
Dimensions | 440 x 280 x 44 mm |
Weight | 2.68kg |
Operating temperature | 0 ÷ 50°C |
Operating humidity |
10% ÷ 90%, noncondensing |
Regulatory approvals | |
Certification |
FCC Class A, CE, Safety Compliance- CB, Safety Compliance- UL |
Manufacturer | Edge-corE |
Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 |
Free slots | 4x 1000 Mbps SFP |
Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
PoE+ Ports(RJ45) |
Standard 802.3at/af compliant, PoE+ Ports 24 Ports, up to 30 W per port, Power Budget 384 W |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Switching capacity [Gbps] | 56 |
Packet Forwarding Rate | 41.66 Mpps |
MAC Address Table | 16K |
Jumbo Frame | 9 KB |
Housing / case type | Rack Mountable |
Dimensions | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
Fan Quantity | 2 |
Operating temperature | 0°C ÷ 45°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, 100~230VAC 50/60Hz |
Max Power Consumption |
31.0 W (110 V/60 Hz) (no PD connected), 463.8 W (110 V/60 Hz) (with 384 W PD connected) |
Max Heat Dissipation |
105.78 BTU/h (110 V/60 Hz) (no PD connected), 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 |
Free slots | 4x 1000 Mbps SFP |
Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Switching capacity [Gbps] | 56 |
Packet Forwarding Rate | 41.66 Mpps |
MAC Address Table | 16K |
Jumbo Frame | 9 KB |
Housing / case type | Rack Mountable |
Dimensions | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Operating temperature | 0°C ÷ 45°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, 100~230VAC 50/60Hz |
Max Power Consumption | 19.22 W (110 V/60 Hz) |
Max Heat Dissipation | 65.58 BTU/h (110 V/60 Hz) |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Ports | |
---|---|
RJ-45 (10/100/1000 Mbps) | 24 |
SFP (100/1000 Mbps) | 2 |
Management Interface |
RJ45 Serial Port, Ethernet In/Out Band |
Power over Ethernet (PoE) | |
POE+ IEEE 802.3af/at | Pins 1, 2+; 3, 6- |
24VDC Passive PoE | Pins 4, 5+; 7, 8- |
Power dedicated to PoE | 34.2W |
Voltage Range 802.3at | 50–57V |
Max. Passive PoE Wattage per Port | 17W |
24V Passive PoE Voltage Range | 20-27V |
Performance | |
Switching Capacity in Gigabits per Second (Gbps) | 52 |
Forwarding Rate (Mpps) | 38.69 |
Software Information | |
Layer 2 Switching |
Broadcast Storm Recovery, Broadcast/Multicast/Unknown Unicast Storm Recovery, DHCP Snooping, IGMP Snooping Querier, Independent VLAN Learning (IVL) Support, Jumbo Ethernet Frame Support, Port MAC Locking, Port Mirroring, Protected Ports, Static MAC Filtering, TACACS+, Voice VLANs, Unauthenticated VLAN, Internal 802.1X Authentication Server |
Management |
Web UI, Industry-Standard CLI, IPv6 Management, Password Management, Autoinstall Support for Firmware Images and Configuration Files, SNMP v1, v2, and v3, SSH 1.5 and 2.0, SSL 3.0 and TLS 1.0, Secure Copy (SCP), Telnet (Multi-Session Support) |
Core Switching Features |
ANSI/TIA-1057 - LLDP-Media Endpoint Discovery (MED), IEEE 802.1AB - Link Layer Discovery Protocol (LLDP), IEEE 802.1D - Spanning Tree Compatibility, IEEE 802.1S - Multiple Spanning Tree Compatibility, IEEE 802.1W - Rapid Spanning Tree Compatibility, IEEE 802.1Q - Virtual LANs with Port-Based VLANs, IEEE 802.1p - Ethernet Priority with User Provisioning and Mapping, IEEE 802.1X - Port-Based Authentication with Guest VLAN Support, IEEE 802.3 - 10BASE-T, IEEE 802.3u - 100BASE-T, IEEE 802.3ab - 1000BASE-T, IEEE 802.1ak - Virtual Bridged Local Area Networks - Amendment 07 - Multiple Registration Protocol, IEEE 802.3ac - VLAN Tagging, IEEE 802.3ad - Link Aggregation, IEEE 802.3x - Flow Control, IEEE 802.1D-2004 - Generic Attribute Registration Protocol - Clause 12 (GARP), IEEE 802.1D-2004 - Dynamic L2 multicast registration - Clause 10 (GMRP), IEEE 802.1Q-2003 - Dynamic VLAN registration - Clause 11.2 (GVRP), RFC 4541 - Considerations for Internet Group Management Protocol (IGMP) Snooping Switches, RFC 5171 - Unidirectional Link Detection (UDLD) Protocol |
General | |
Dimensions | 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24") |
Weight | 4.7 kg (10.4 lb) |
Weight With Mount Brackets | 4.8 kg (10.6 lb) |
Power |
100-240VAC/50-60 Hz, Universal Input |
Power Supply |
AC/DC, Internal, 250W DC |
Operating temperature | -5 ÷ 40°C |
Operating humidity |
5% to 95% , relative, noncondensing |
Certification |
CE, FCC, IC |
Shock and Vibration | ETSI300-019-1.4 Standard |
Manufacturer | Ubiquiti |
Ports | |
---|---|
RJ-45 (10/100/1000 Mbps) | 24 |
SFP (100/1000 Mbps) | 2 |
Management Interface |
RJ45 Serial Port, Ethernet In/Out Band |
Power over Ethernet (PoE) | |
POE+ IEEE 802.3af/at | Pins 1, 2+; 3, 6- |
24VDC Passive PoE | Pins 4, 5+; 7, 8- |
Power dedicated to PoE | 34.2W |
Voltage Range 802.3at | 50–57V |
Max. Passive PoE Wattage per Port | 17W |
24V Passive PoE Voltage Range | 20-27V |
Performance | |
Switching Capacity in Gigabits per Second (Gbps) | 52 |
Forwarding Rate (Mpps) | 38.69 |
Software Information | |
Layer 2 Switching |
Broadcast Storm Recovery, Broadcast/Multicast/Unknown Unicast Storm Recovery, DHCP Snooping, IGMP Snooping Querier, Independent VLAN Learning (IVL) Support, Jumbo Ethernet Frame Support, Port MAC Locking, Port Mirroring, Protected Ports, Static MAC Filtering, TACACS+, Voice VLANs, Unauthenticated VLAN, Internal 802.1X Authentication Server |
Management |
Web UI, Industry-Standard CLI, IPv6 Management, Password Management, Autoinstall Support for Firmware Images and Configuration Files, SNMP v1, v2, and v3, SSH 1.5 and 2.0, SSL 3.0 and TLS 1.0, Secure Copy (SCP), Telnet (Multi-Session Support) |
Core Switching Features |
ANSI/TIA-1057 - LLDP-Media Endpoint Discovery (MED), IEEE 802.1AB - Link Layer Discovery Protocol (LLDP), IEEE 802.1D - Spanning Tree Compatibility, IEEE 802.1S - Multiple Spanning Tree Compatibility, IEEE 802.1W - Rapid Spanning Tree Compatibility, IEEE 802.1Q - Virtual LANs with Port-Based VLANs, IEEE 802.1p - Ethernet Priority with User Provisioning and Mapping, IEEE 802.1X - Port-Based Authentication with Guest VLAN Support, IEEE 802.3 - 10BASE-T, IEEE 802.3u - 100BASE-T, IEEE 802.3ab - 1000BASE-T, IEEE 802.1ak - Virtual Bridged Local Area Networks - Amendment 07 - Multiple Registration Protocol, IEEE 802.3ac - VLAN Tagging, IEEE 802.3ad - Link Aggregation, IEEE 802.3x - Flow Control, IEEE 802.1D-2004 - Generic Attribute Registration Protocol - Clause 12 (GARP), IEEE 802.1D-2004 - Dynamic L2 multicast registration - Clause 10 (GMRP), IEEE 802.1Q-2003 - Dynamic VLAN registration - Clause 11.2 (GVRP), RFC 4541 - Considerations for Internet Group Management Protocol (IGMP) Snooping Switches, RFC 5171 - Unidirectional Link Detection (UDLD) Protocol |
General | |
Dimensions | 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24") |
Weight | 4.7 kg (10.4 lb) |
Weight With Mount Brackets | 4.8 kg (10.6 lb) |
Power |
100-240VAC/50-60 Hz, Universal Input |
Power Supply |
AC/DC, Internal, 500W DC |
Operating temperature | -5 ÷ 40°C |
Operating humidity |
5% to 95% , relative, noncondensing |
Certification |
CE, FCC, IC |
Shock and Vibration | ETSI300-019-1.4 Standard |
Manufacturer | Ubiquiti |
Ports | |
---|---|
RJ-45 (10/100/1000 Mbps) | 24 |
SFP (100/1000 Mbps) | 2 |
RJ45 Serial Port (Reserved for Future Use), Ethernet In/Out Band | 1 |
Power over Ethernet (PoE) | |
Power dedicated to PoE | 34.2W |
Max. Passive PoE Wattage per Port | 17W |
PoE Interfaces |
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-), 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
Performance | |
Switching Capacity in Gigabits per Second (Gbps) | 52 |
General | |
Dimensions | 485 x 43.7 x 285.4 mm |
Weight | 4.7Kg |
Power |
100-240 VAC 50~60 Hz, internal , universal |
Max. Power Consumption |
Including PoE Output - 250W, Excluding PoE Output - 30W |
Power Supply |
AC/DC, Internal, 250W DC |
Operating temperature | -5 ÷ 40°C |
Operating humidity |
5% to 95% , relative, noncondensing |
ESD/EMP Protection Air |
±24 kV, Contact ±24 kV |
Shock and Vibration | ETSI300-019-1.4 Standard |
Certification |
CE, FCC, IC |
Manufacturer | Ubiquiti |
Ports | |
---|---|
RJ-45 (10/100/1000 Mbps) | 24 |
SFP (100/1000 Mbps) | 2 |
RJ45 Serial Port (Reserved for Future Use), Ethernet In/Out Band | 1 |
Power over Ethernet (PoE) | |
Power dedicated to PoE | 34.2W |
Max. Passive PoE Wattage per Port | 17W |
PoE Interfaces |
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-), 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
Performance | |
Switching Capacity in Gigabits per Second (Gbps) | 52 |
General | |
Dimensions | 485 x 43.7 x 285.4 mm |
Weight | 4.7Kg |
Power |
100-240 VAC 50~60 Hz, internal , universal |
Max. Power Consumption |
Including PoE Output - 500W, Excluding PoE Output - 30W |
Power Supply |
AC/DC, Internal, 500W DC |
Operating temperature | -5 ÷ 40°C |
Operating humidity |
5% to 95% , relative, noncondensing |
ESD/EMP Protection Air |
±24 kV, Contact ±24 kV |
Shock and Vibration | ETSI300-019-1.4 Standard |
Certification |
CE, FCC, IC |
Manufacturer | Ubiquiti |
Ports | |
---|---|
RJ-45 (10/100/1000 Mbps) | 24 |
SFP (100/1000 Mbps) | 2 |
Management Interface |
RJ45 Serial Port, Ethernet In/Out Band |
Performance | |
Switching Capacity in Gigabits per Second (Gbps) | 52 |
Forwarding Rate (Mpps) | 38.69 |
Software Information | |
Layer 2 Switching |
Broadcast Storm Recovery, Broadcast/Multicast/Unknown Unicast Storm Recovery, DHCP Snooping, IGMP Snooping Querier, Independent VLAN Learning (IVL) Support, Jumbo Ethernet Frame Support, Port MAC Locking, Port Mirroring, Protected Ports, Static MAC Filtering, TACACS+, Voice VLANs, Unauthenticated VLAN, Internal 802.1X Authentication Server |
Management |
Web UI, Industry-Standard CLI, IPv6 Management, Password Management, Autoinstall Support for Firmware Images and Configuration Files, SNMP v1, v2, and v3, SSH 1.5 and 2.0, SSL 3.0 and TLS 1.0, Secure Copy (SCP), Telnet (Multi-Session Support) |
Core Switching Features |
ANSI/TIA-1057 - LLDP-Media Endpoint Discovery (MED), IEEE 802.1AB - Link Layer Discovery Protocol (LLDP), IEEE 802.1D - Spanning Tree Compatibility, IEEE 802.1S - Multiple Spanning Tree Compatibility, IEEE 802.1W - Rapid Spanning Tree Compatibility, IEEE 802.1Q - Virtual LANs with Port-Based VLANs, IEEE 802.1p - Ethernet Priority with User Provisioning and Mapping, IEEE 802.1X - Port-Based Authentication with Guest VLAN Support, IEEE 802.3 - 10BASE-T, IEEE 802.3u - 100BASE-T, IEEE 802.3ab - 1000BASE-T, IEEE 802.1ak - Virtual Bridged Local Area Networks - Amendment 07 - Multiple Registration Protocol, IEEE 802.3ac - VLAN Tagging, IEEE 802.3ad - Link Aggregation, IEEE 802.3x - Flow Control, IEEE 802.1D-2004 - Generic Attribute Registration Protocol - Clause 12 (GARP), IEEE 802.1D-2004 - Dynamic L2 multicast registration - Clause 10 (GMRP), IEEE 802.1Q-2003 - Dynamic VLAN registration - Clause 11.2 (GVRP), RFC 4541 - Considerations for Internet Group Management Protocol (IGMP) Snooping Switches, RFC 5171 - Unidirectional Link Detection (UDLD) Protocol |
General | |
Dimensions | 443 x 43 x 221 mm (17.44 x 1.69 x 8.70") |
Weight | 2.51 kg (5.53 lb) |
Weight With Mount Brackets | 2.6 kg (5.7 lb) |
Power |
100-240VAC/50-60 Hz, Universal Input, DC 25W, 25 to 16V, with 2.5 mm DC Power Inline Connector |
Power Supply |
AC/DC, Internal, 25W DC |
Max. AC Power Consumption | 25W |
Operating temperature | -5 ÷ 40°C |
Operating humidity |
5% to 95% , relative, noncondensing |
Certification |
CE, FCC, IC |
Shock and Vibration | ETSI300-019-1.4 Standard |
Manufacturer | Ubiquiti |
Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 |
Free slots | 4x 10G SFP+ |
Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Switching capacity [Gbps] | 128 |
Packet Forwarding Rate | 95,23 Mpps |
MAC Address Table | 16K |
Jumbo Frame | 9 KB |
Housing / case type | Rack Mountable |
Dimensions | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Operating temperature | 0°C ÷ 45°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, 100~230VAC 50/60Hz |
Max Power Consumption | 23,6 W (110 V/60 Hz) |
Max Heat Dissipation | 80.353 BTU/h (110 V/60 Hz) |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.1D/w/s/p/Q/v/X |
---|---|
Copper ports |
44x 10/100/1000 Mbps RJ-45, 4x 1000 Mbps RJ-45 Combo |
Free slots | 4x 1000 Mbps (SFP) Combo |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
VLAN support |
port-based, tag-based / 255, private VLAN, protocol-based VLAN, GVRP, Q-in-Q |
I/O throughput management |
Port Trunking, Bandwidth Control, Jumbo Frames (9 kB), Trunk Load Balancing |
Transmission quality |
8 QoS queues, CoS, DiffServ, Spanning Tree, Rapid Spanning Tree, Multiple Spanning Tree, Port Mirroring, IGMP Snooping, IGMP Querier |
Stacking features |
up to 36 units, stacking bandwidth up to 2 Gbps |
Event logging |
syslog, event log, error log |
Security |
IEEE 802.1X, RADIUS, SSH, SSL, ACL, TACACS+, TACACS+ 3.0 |
IPv6 features |
IPv4/IPv6 Dual Protocol, IPv6 Multicast / Nicest, IPv6 Neighbor Discovery, ICMPv6, SNMP over IPv6, IPv6 ACL |
Management |
WWW, console, telnet, RMON, SNMP v1/v2c/v3 |
Switching capacity [Gbps] | 96 |
Forwarding rate [Mpps] | 71.4 |
MAC address memory | 8000 |
Buffer / operating memory [kb] | 12288 |
Housing / case type |
19", metal |
Power |
~230V AC 50Hz, Redundant Power Supply Connector |
Dimensions | 440x331x44 mm |
Operating temperatures | 0°C ÷ 50°C |
Operating humidity |
5% ÷ 90%, non-condensing |
Weight | 4.34 kg |
Certificates |
CE, FCC Class A, VCCI Class A |
Warranty | limited lifetime |
Manufacturer | Edge-corE |
Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
---|---|
Copper ports | 48x 10/100/1000 Mbps RJ-45 |
Free slots | 4x 1000 Mbps SFP |
Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
PoE+ Ports(RJ45) |
Standard 802.3at/af compliant, PoE+ Ports 48 Ports, up to 30 W per port, Power Budget 384 W |
Fan Quantity | 3 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Switching capacity [Gbps] | 104 |
Packet Forwarding Rate | 77,4 Mpps |
MAC Address Table | 16K |
Jumbo Frame | 9 KB |
Housing / case type | Rack Mountable |
Dimensions | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, 100~230VAC 50/60Hz |
Max Power Consumption |
52.53 W (110 V/60 Hz) (no PD connected), 485.4 W (110 V/60 Hz) (with 384 W PD connected) |
Max Heat Dissipation | 179.13 BTU/hr (110 V/60 Hz) (no PD connected) 1656.19 BTU/hr (110 V/60 Hz) (with 384 W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Ports | |
---|---|
RJ-45 (10/100/1000 Mbps) | 48 |
SFP (100/1000 Mbps) | 2 |
SFP+ 10 Gigabit ports | 2 |
Management Interface |
RJ45 Serial Port, Ethernet In/Out Band |
Power over Ethernet (PoE) | |
POE+ IEEE 802.3af/at | Pins 1, 2+; 3, 6- |
24VDC Passive PoE | Pins 4, 5+; 7, 8- |
Power dedicated to PoE | 34.2W |
Voltage Range 802.3at | 50–57V |
Max. Passive PoE Wattage per Port | 17W |
24V Passive PoE Voltage Range | 20-27V |
Performance | |
Switching Capacity in Gigabits per Second (Gbps) | 140 |
Forwarding Rate (Mpps) | 104.16 |
Software Information | |
Layer 2 Switching |
Broadcast Storm Recovery, Broadcast/Multicast/Unknown Unicast Storm Recovery, DHCP Snooping, IGMP Snooping Querier, Independent VLAN Learning (IVL) Support, Jumbo Ethernet Frame Support, Port MAC Locking, Port Mirroring, Protected Ports, Static MAC Filtering, TACACS+, Voice VLANs, Unauthenticated VLAN, Internal 802.1X Authentication Server |
Management |
Web UI, Industry-Standard CLI, IPv6 Management, Password Management, Autoinstall Support for Firmware Images and Configuration Files, SNMP v1, v2, and v3, SSH 1.5 and 2.0, SSL 3.0 and TLS 1.0, Secure Copy (SCP), Telnet (Multi-Session Support) |
Core Switching Features |
ANSI/TIA-1057 - LLDP-Media Endpoint Discovery (MED), IEEE 802.1AB - Link Layer Discovery Protocol (LLDP), IEEE 802.1D - Spanning Tree Compatibility, IEEE 802.1S - Multiple Spanning Tree Compatibility, IEEE 802.1W - Rapid Spanning Tree Compatibility, IEEE 802.1Q - Virtual LANs with Port-Based VLANs, IEEE 802.1p - Ethernet Priority with User Provisioning and Mapping, IEEE 802.1X - Port-Based Authentication with Guest VLAN Support, IEEE 802.3 - 10BASE-T, IEEE 802.3u - 100BASE-T, IEEE 802.3ab - 1000BASE-T, IEEE 802.1ak - Virtual Bridged Local Area Networks - Amendment 07 - Multiple Registration Protocol, IEEE 802.3ac - VLAN Tagging, IEEE 802.3ad - Link Aggregation, IEEE 802.3x - Flow Control, IEEE 802.1D-2004 - Generic Attribute Registration Protocol - Clause 12 (GARP), IEEE 802.1D-2004 - Dynamic L2 multicast registration - Clause 10 (GMRP), IEEE 802.1Q-2003 - Dynamic VLAN registration - Clause 11.2 (GVRP), RFC 4541 - Considerations for Internet Group Management Protocol (IGMP) Snooping Switches, RFC 5171 - Unidirectional Link Detection (UDLD) Protocol |
General | |
Dimensions | 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75") |
Weight | 6.1 kg (13.5 lb) |
Weight With Mount Brackets | 6.5 kg (14.3 lb) |
Power |
100-240VAC/50-60 Hz, Universal Input |
Power Supply |
AC/DC, Internal, 500W DC |
Operating temperature | -5 ÷ 40°C |
Operating humidity |
5% to 95% , relative, noncondensing |
Certification |
CE, FCC, IC |
Shock and Vibration | ETSI300-019-1.4 Standard |
Manufacturer | Ubiquiti |
Ports | |
---|---|
RJ-45 (10/100/1000 Mbps) | 48 |
SFP (100/1000 Mbps) | 2 |
SFP+ 10 Gigabit ports | 2 |
Management Interface |
RJ45 Serial Port, Ethernet In/Out Band |
Power over Ethernet (PoE) | |
POE+ IEEE 802.3af/at | Pins 1, 2+; 3, 6- |
24VDC Passive PoE | Pins 4, 5+; 7, 8- |
Power dedicated to PoE | 34.2W |
Voltage Range 802.3at | 50–57V |
Max. Passive PoE Wattage per Port | 17W |
24V Passive PoE Voltage Range | 20-27V |
Performance | |
Switching Capacity in Gigabits per Second (Gbps) | 140 |
Forwarding Rate (Mpps) | 104.16 |
Software Information | |
Layer 2 Switching |
Broadcast Storm Recovery, Broadcast/Multicast/Unknown Unicast Storm Recovery, DHCP Snooping, IGMP Snooping Querier, Independent VLAN Learning (IVL) Support, Jumbo Ethernet Frame Support, Port MAC Locking, Port Mirroring, Protected Ports, Static MAC Filtering, TACACS+, Voice VLANs, Unauthenticated VLAN, Internal 802.1X Authentication Server |
Management |
Web UI, Industry-Standard CLI, IPv6 Management, Password Management, Autoinstall Support for Firmware Images and Configuration Files, SNMP v1, v2, and v3, SSH 1.5 and 2.0, SSL 3.0 and TLS 1.0, Secure Copy (SCP), Telnet (Multi-Session Support) |
Core Switching Features |
ANSI/TIA-1057 - LLDP-Media Endpoint Discovery (MED), IEEE 802.1AB - Link Layer Discovery Protocol (LLDP), IEEE 802.1D - Spanning Tree Compatibility, IEEE 802.1S - Multiple Spanning Tree Compatibility, IEEE 802.1W - Rapid Spanning Tree Compatibility, IEEE 802.1Q - Virtual LANs with Port-Based VLANs, IEEE 802.1p - Ethernet Priority with User Provisioning and Mapping, IEEE 802.1X - Port-Based Authentication with Guest VLAN Support, IEEE 802.3 - 10BASE-T, IEEE 802.3u - 100BASE-T, IEEE 802.3ab - 1000BASE-T, IEEE 802.1ak - Virtual Bridged Local Area Networks - Amendment 07 - Multiple Registration Protocol, IEEE 802.3ac - VLAN Tagging, IEEE 802.3ad - Link Aggregation, IEEE 802.3x - Flow Control, IEEE 802.1D-2004 - Generic Attribute Registration Protocol - Clause 12 (GARP), IEEE 802.1D-2004 - Dynamic L2 multicast registration - Clause 10 (GMRP), IEEE 802.1Q-2003 - Dynamic VLAN registration - Clause 11.2 (GVRP), RFC 4541 - Considerations for Internet Group Management Protocol (IGMP) Snooping Switches, RFC 5171 - Unidirectional Link Detection (UDLD) Protocol |
General | |
Dimensions | 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75") |
Weight | 6.1 kg (13.5 lb) |
Weight With Mount Brackets | 6.5 kg (14.3 lb) |
Power |
100-240VAC/50-60 Hz, Universal Input |
Power Supply |
AC/DC, Internal, 750W DC |
Operating temperature | -5 ÷ 40°C |
Operating humidity |
5% to 95% , relative, noncondensing |
Certification |
CE, FCC, IC |
Shock and Vibration | ETSI300-019-1.4 Standard |
Manufacturer | Ubiquiti |
Ports | |
---|---|
RJ-45 (10/100/1000 Mbps) | 48 |
SFP (100/1000 Mbps) | 2 |
SFP+ 10 Gigabit ports | 2 |
Management Interface |
RJ45 Serial Port, Ethernet In/Out Band |
Performance | |
Switching Capacity in Gigabits per Second (Gbps) | 140 |
Forwarding Rate (Mpps) | 104.16 |
Software Information | |
Layer 2 Switching |
Broadcast Storm Recovery, Broadcast/Multicast/Unknown Unicast Storm Recovery, DHCP Snooping, IGMP Snooping Querier, Independent VLAN Learning (IVL) Support, Jumbo Ethernet Frame Support, Port MAC Locking, Port Mirroring, Protected Ports, Static MAC Filtering, TACACS+, Voice VLANs, Unauthenticated VLAN, Internal 802.1X Authentication Server |
Management |
Web UI, Industry-Standard CLI, IPv6 Management, Password Management, Autoinstall Support for Firmware Images and Configuration Files, SNMP v1, v2, and v3, SSH 1.5 and 2.0, SSL 3.0 and TLS 1.0, Secure Copy (SCP), Telnet (Multi-Session Support) |
Core Switching Features |
ANSI/TIA-1057 - LLDP-Media Endpoint Discovery (MED), IEEE 802.1AB - Link Layer Discovery Protocol (LLDP), IEEE 802.1D - Spanning Tree Compatibility, IEEE 802.1S - Multiple Spanning Tree Compatibility, IEEE 802.1W - Rapid Spanning Tree Compatibility, IEEE 802.1Q - Virtual LANs with Port-Based VLANs, IEEE 802.1p - Ethernet Priority with User Provisioning and Mapping, IEEE 802.1X - Port-Based Authentication with Guest VLAN Support, IEEE 802.3 - 10BASE-T, IEEE 802.3u - 100BASE-T, IEEE 802.3ab - 1000BASE-T, IEEE 802.1ak - Virtual Bridged Local Area Networks - Amendment 07 - Multiple Registration Protocol, IEEE 802.3ac - VLAN Tagging, IEEE 802.3ad - Link Aggregation, IEEE 802.3x - Flow Control, IEEE 802.1D-2004 - Generic Attribute Registration Protocol - Clause 12 (GARP), IEEE 802.1D-2004 - Dynamic L2 multicast registration - Clause 10 (GMRP), IEEE 802.1Q-2003 - Dynamic VLAN registration - Clause 11.2 (GVRP), RFC 4541 - Considerations for Internet Group Management Protocol (IGMP) Snooping Switches, RFC 5171 - Unidirectional Link Detection (UDLD) Protocol |
General | |
Dimensions | 443 x 43 x 286 mm (17.44 x 1.69 x 11.26") |
Weight | 3.56 kg (7.85 lb) |
Weight With Mount Brackets | 3.65 kg (8.05 lb) |
Power |
100-240VAC/50-60 Hz, Universal Input, DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector |
Power Supply |
AC/DC, Internal, 56W DC |
Max. AC Power Consumption | 56W |
Operating temperature | -5 ÷ 40°C |
Operating humidity |
5% to 95% , relative, noncondensing |
Certification |
CE, FCC, IC |
Shock and Vibration | ETSI300-019-1.4 Standard |
Manufacturer | Ubiquiti |
Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
---|---|
Copper ports | 48x 10/100/1000 Mbps RJ-45 |
Free slots | 4x 1000 Mbps SFP |
Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Switching capacity [Gbps] | 104 |
Packet Forwarding Rate | 77,4 Mpps |
MAC Address Table | 16K |
Jumbo Frame | 9 KB |
Housing / case type | Rack Mountable |
Dimensions | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
Operating temperature | 0°C ÷ 45°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, 100~230VAC 50/60Hz |
Max Power Consumption | 32,8 W (110 V/60 Hz) |
Max Heat Dissipation | 111,91 BTU/h (110 V/60 Hz) |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Ports | |
---|---|
RJ-45 (10/100/1000 Mbps) | 24 |
SFP+ 10 Gigabit ports | 2 |
Management Interface |
RJ45 Serial Port, Ethernet In/Out Band |
Power over Ethernet (PoE) | |
POE+ IEEE 802.3af/at |
Ports 1-16 PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-), Ports 17-24 - 60W PoE++ IEEE 802.3af/at/bt (Pins 1, 2+; 3, 6-) (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
Power dedicated to PoE | 400W |
Voltage Range |
802.3af - 44-57V, 802.3at/bt - 50-57V |
Max. Passive PoE Wattage per Port |
802.3at - 32W, 802.3bt - 64W |
Performance | |
Switching Capacity in Gigabits per Second (Gbps) | 88 |
Forwarding Rate (Mpps) | 65.472 |
Dimensions | 442.4 x 285.4 x 43.7 mm |
Weight | 6.25 kg |
Power |
100-240VAC, 50/60 Hz, 52VDC, 7.69A, 11.5VDC, 2.61A |
Power Supply |
AC/DC, Internal, 450W DC |
Operating temperature | -5 ÷ 40°C |
Operating humidity |
5% to 95% , relative, noncondensing |
Certification |
CE, FCC, IC |
Shock and Vibration | ETSI300-019-1.4 Standard |
Manufacturer | Ubiquiti |
Ports | |
---|---|
RJ-45 (10/100/1000 Mbps) | 48 |
SFP+ 10 Gigabit ports | 4 |
Management Interface |
RJ45 Serial Port, Ethernet In/Out Band |
Power over Ethernet (PoE) | |
POE+ IEEE 802.3af/at |
Ports 1-40 PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-), Ports 41-48 - 60W PoE++ IEEE 802.3af/at/bt (Pins 1, 2+; 3, 6-) (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
Power dedicated to PoE | 600W |
Voltage Range |
802.3af - 44-57V, 802.3at/bt - 50-57V |
Max. Passive PoE Wattage per Port |
802.3at - 32W, 802.3bt - 64W |
Performance | |
Switching Capacity in Gigabits per Second (Gbps) | 176 |
Forwarding Rate (Mpps) | 130.944 |
Dimensions | 442.4 x 399.6 x 43.7 mm |
Weight | 6.25 kg |
Power |
100-240VAC, 50/60 Hz, 52VDC, 11.54A, 11.5VDC, 5.22A |
Power Supply |
AC/DC, Internal, 660W DC |
Operating temperature | -5 ÷ 40°C |
Operating humidity |
5% to 95% , relative, noncondensing |
Certification |
CE, FCC, IC |
Shock and Vibration | ETSI300-019-1.4 Standard |
Manufacturer | Ubiquiti |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 24 |
1G/10GBase-X with SFP+ port | 4 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3ab for 1000Base-T, IEEE 802.z for 1000Base-X, IEEE 802.3ae for 10Gigabit Ethernet, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol ), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 128 Gbps |
IGMP multicast groups | 128 for each VLAN |
Port rate limiting | User Define |
Security Features |
Device Binding security feature, Enable/disable ports, MAC based port security, Port based network access control (802.1x), Single 802.1x and Multiple 802.1x, MAC-based authentication, QoS assignment, Guest VLAN, MAC address limit, TACACS+, VLAN (802.1Q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security, Https / SSH enhance network security, Web and CLI authentication and authorization, Authorization (15 levels), IP source guard |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
Network Redundancy |
O-Ring, Open-Ring, O-Chain, MRP, MSTP(RSTP/STP compatible), Fast Recovery |
LED Indicators | |
Power Indicator | Green - power indicator |
Ring Master indicator | Green - indicates system operated in O-Ring Master mode |
O-Ring Indicator (Ring) |
Green - Indicates that the system operating in O-Ring mode, Green Blinking - Indicates that the Ring is broken. |
Fault indicator | Green - System is operating continuously |
10/100/1000Base-T(X) RJ45 port indicator |
Green for Link/Act indicator, Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / Off-light for 10Mbps |
1G/10GBase-X SFP+ Port Indicator | Green for port Link/Act. |
Fault Contact | |
Relay | Relay output to carry capacity of 1A at 24VDC |
Power | |
Input power | 100 ~ 240VAC with power cord |
Power consumption (typical) | 37.4W |
Overload current protection | present |
Physical Characteristic | |
Dimension (W x D x H) | 431mm x 342mm x 44mm |
Weight | 6597g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -20 to 60 °C (-4 to 140°F ) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Warranty | |
Warranty period | 5 years |
Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 |
Free slots | 4x 10G SFP+ |
Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Switching capacity [Gbps] | 128 |
Packet Forwarding Rate | 95,23 Mpps |
MAC Address Table | 16K |
Jumbo Frame | 9 KB |
Housing / case type | Rack Mountable |
Dimensions | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Operating temperature | 0°C ÷ 45°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | 100-240 V AC~50/60 Hz and 12 V lead-acid battery (Battery is not included in the package contents) |
Max Power Consumption |
31.9 W (110 V/60 Hz) (AC powered with 12 V battery charging), 24.0 W (110 V/60 Hz) (AC powered without 12 V battery charging), 20.0 W (12 V battery powered) |
Max Heat Dissipation |
108.84 BTU/hr (110 V/60 Hz) (AC powered with 12 V battery charging), 81.88 BTU/hr (110 V/60 Hz) (AC powered without 12 V battery charging), 68.24 BTU/hr (12 V battery powered) |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 |
Free slots | 4x 10G SFP+ |
Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
PoE+ Ports(RJ45) |
Standard 802.3at/af compliant, PoE+ Ports 24 Ports, up to 30 W per port, Power Budget 384 W |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Switching capacity [Gbps] | 128 |
Packet Forwarding Rate | 95.23 Mpps |
MAC Address Table | 16K |
Jumbo Frame | 9 KB |
Housing / case type | Rack Mountable |
Dimensions | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
Fan Quantity | 2 |
Operating temperature | 0°C ÷ 45°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, 100~230VAC 50/60Hz |
Max Power Consumption |
34.4 W (110 V/60 Hz) (no PD connected), 465.8 W (110 V/60 Hz) (with 384 W PD connected) |
Max Heat Dissipation |
117.38 BTU/h (110 V/60 Hz) (no PD connected), 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
---|---|
Copper ports | 48x 10/100/1000 Mbps RJ-45 |
Free slots | 4x SFP+ 10G |
Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Switching capacity [Gbps] | 176 |
Packet Forwarding Rate | 130,9 Mp/s |
MAC Address Table | 16K |
Jumbo Frame | 9 KB |
Housing / case type | Rack Mountable |
Dimensions | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
Operating temperature | 0°C ÷ 45°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, 100~230VAC 50/60Hz |
Max Power Consumption | 32,8 W (110 V/60 Hz) |
Max Heat Dissipation | 111,65 BTU/h (110 V/60 Hz) |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
---|---|
Copper ports | 48x 10/100/1000 Mbps RJ-45 |
Free slots | 4x SFP+ 10G |
Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
Fan Quantity | 3 |
Porty PoE+ (RJ45) | |
Standard | 802.3at/af compliant |
PoE+ Ports |
48 Ports, up to 30 W per port |
Power Budget | 500 W |
Max Power Consumption |
49.19 W (110V/60Hz) ( no PD device connected), 635.7 W (110V/60Hz) ( with 500 W PD device connected) |
Max Heat Dissipation |
167.85 BTU/hr (110 V/60 Hz) (no PD connected), 2169.2 BTU/hr (110 V/60 Hz) (with 500 W PD connected) |
Performance | |
Switching Capacity | 176 Gbps |
Packet Forwarding Rate | 130.9 Mpps |
MAC Address Table | 16 K |
Packet Buffer Memory | 12 Mbit |
Jumbo Frame | 9 KB |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Housing / case type | Rack Mountable |
Dimensions | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
Operating temperature | 0°C ÷ 45°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, 100~230VAC 50/60Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Ports |
4× 100/1000/2500/5000/10000 Mbps RJ45 Ports, 2× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
---|---|
PoE Ports (RJ45) |
Standard 802.3bt/at/af compliant, PoE+ Ports 4 Ports, up to 60 W per port, Power Budget 200 W |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Fan Quantity | 2 |
Switching Capacity | 120 Gbps |
Packet Forwarding Rate | 89.28 Mpps |
MAC Address Table | 32 K |
Jumbo Frame | 9 KB |
Software features | |
Quality of Service |
802.1p CoS/DSCP priority, 8 priority queues, Priority Schedule Mode, SP (Strict Priority), WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Control, Port/Flow-based Rating Limit, Smoother Performance, Storm Control, Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN 12 Entries, Protocol VLAN, GVRP, Voice VLAN |
Access Control List |
Support up to 230 entries, Time-Range, Time Slice, Week Time-Range, Absolute Time-Range, Holiday, Time-based ACL, MAC ACL, Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type, IP ACL, Source IP, Destination IP, IP Protocol, TCP Flag, TCP/UDP Source Port, TCP/UDP Destination Port, DSCP/IP TOS, IPv6 ACL, Combined ACL, Rule Operation, Permit/Deny, Policy Action, Mirror, Rate Limit, Redirect, QoS Remark, ACL Rules Binding, Port Binding, VLAN Binding, Actions for flows, Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark |
Security |
AAA, 802.1X, Port-based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC-based access control |
Advanced Features |
Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule |
MIBs |
MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9) |
Management | |
Omada App |
Yes, through, Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes, through, Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Housing / case type |
11.6", metal |
Dimensions | 294×180×44 mm |
Operating temperature | 0°C ÷ 50°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | 100-240 V AC~50/60 Hz |
Max Power Consumption |
27.29 W (110V/60Hz) (no PD connected), 244.90 W (110V/60Hz) (with 200 W PD connected) |
Max Heat Dissipation |
93.12 BTU/h (110 V/60 Hz) (no PD connected), 835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected) |
Certificates |
CE, FCC ,RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Ports | 16x 10G SFP+ |
---|---|
Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
Fan Quantity | 1 |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
Management | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Switching capacity [Gbps] | 320 |
Packet Forwarding Rate | 238.08 Mpps |
MAC Address Table | 32K |
Jumbo Frame | 9 KB |
Housing / case type | Rack Mountable |
Dimensions | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
Operating temperature | 0°C ÷ 45°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, 100~230VAC 50/60Hz, Dual Redundant Power Supplies |
Max Power Consumption | 32.74 W (220 V / 50 Hz) |
Max Heat Dissipation | 111.71 BTU/hr (220 V / 50 Hz) |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
---|---|
Copper ports |
8x 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching Capacity | 100 Gbps |
Packet Forwarding Rate | 74.4 Mpps |
MAC Address Table | 32 K |
Packet Buffer Memory | 2 Mb |
Jumbo Frame | 10 KB |
Housing / case type | metal |
Dimensions | 226×131×35 mm |
Operating temperature | 0°C ÷ 50°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | External Power Adapter (Output 12 VDC / 2.0 A) |
Max Power Consumption | 21.4 W |
Certificates |
CE, FCC ,RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
---|---|
Copper ports |
8x 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Fan Quantity | 1 (Intelligent fan speed adjustment) |
Switching Capacity | 160 Gbps |
Packet Forwarding Rate | 119.0 Mpps |
MAC Address Table | 32 K |
Packet Buffer Memory | 2 Mb |
Jumbo Frame | 10 KB |
Housing / case type |
11.6", metal |
Dimensions | 294×180×44 mm |
Operating temperature | 0°C ÷ 50°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Max Power Consumption | 31.2 W |
Certificates |
CE, FCC ,RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
