Analog Telephone FXS Ports | 2 ports (both with lifeline capability in case of power outage) |
---|---|
PSTN Line FXO Ports | 2 ports (UCM6202) |
Network Interfaces | Dual Gigabit RJ45 ports with integrated PoE Plus (IEEE 802.3at-2009) |
NAT Router | Yes (supports router mode and switch mode) |
Peripheral Ports |
USB, SD |
LED Indicators |
Power/Ready, Network, PSTN Line, USB, SD |
LCD Display | 128x32 graphic LCD with DOWN & OK button |
Voice-over-Packet Capabilities |
LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711 |
Voice and Fax Codecs |
G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38 |
Video Codecs |
H.264, H.263, H263+ |
QoS |
Layer 3 QoS, Layer 2 QoS |
DTMF Methods |
In Audio, RFC2833, and SIP INFO |
Provisioning Protocol & Plug-and-Play |
TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk |
Network Protocols |
TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS, LDAP |
Disconnect Methods |
Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone |
Media Encryption |
SRTP, TLS, HTTPS, SSH |
Caller ID |
Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT |
Polarity Reversal/Wink |
Yes, with enable/disable option upon call establishment and termination |
Call Center |
Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/busy level, in-queue announcement |
Customizable Auto Attendant | Up to 5 layers of IVR (Interactive Voice Response) |
Maximum Call Capacity |
-Registered SIP devices- supports up to 500 registered SIP devices/users, -Concurrent SIP calls- Up to 50 (UCM6202), or 66% performance if calls are SRTP encrypted |
Conference Bridges |
Up to 3, password-protected conference bridges allowing up to 25 simultaneous PSTN or IP participants |
Call Features |
Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom etc. |
Mounting | Wall mount & Desktop |
Power |
Output 12VDC, 1.5A; Input 100 ~ 240VAC, 50 ~ 60Hz |
Weight |
Unit weight 0.51kg, Package weight 0.94kg |
Environmental |
Operating 32 ~ 104ºF / 0 ~ 40ºC, 10 ~ 90% (non-condensing); Storage 14 ~ 140ºF / -10 ~ 60ºC |
Dimensions | 226mm L x 155mm W x 34.5mm H |
Certificates |
FCC Part 15 (CFR 47) Class B, Part 68, CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS, A-TICK AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, AS/ACIF S002, ITU-T K.21 (Basic Level), UL 60950 (power adapter) |
Manufacturer | Grandstream |
Analog Telephone FXS Ports | 2 ports (both with lifeline capability in case of power outage) |
---|---|
PSTN Line FXO Ports | 4 ports |
Network Interfaces | Dual Gigabit RJ45 ports with integrated PoE Plus (IEEE 802.3at-2009) |
NAT Router | Yes (supports router mode and switch mode) |
Peripheral Ports |
USB, SD |
LED Indicators |
Power/Ready, Network, PSTN Line, USB, SD |
LCD Display | 128x32 graphic LCD with DOWN & OK button |
Voice-over-Packet Capabilities |
LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711 |
Voice and Fax Codecs |
G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38 |
Video Codecs |
H.264, H.263, H263+ |
QoS |
Layer 3 QoS, Layer 2 QoS |
DTMF Methods |
In Audio, RFC2833, and SIP INFO |
Provisioning Protocol & Plug-and-Play |
TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk |
Network Protocols |
TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS, LDAP |
Disconnect Methods |
Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone |
Media Encryption |
SRTP, TLS, HTTPS, SSH |
Caller ID |
Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT |
Polarity Reversal/Wink |
Yes, with enable/disable option upon call establishment and termination |
Call Center |
Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/busy level, in-queue announcement |
Customizable Auto Attendant | Up to 5 layers of IVR (Interactive Voice Response) |
Maximum Call Capacity |
-Registered SIP devices- supports up to 500 registered SIP devices/users, -Concurrent SIP calls- Up to 75 (UCM6204), or 66% performance if calls are SRTP encrypted |
Conference Bridges |
Up to 3, password-protected conference bridges allowing up to 25 simultaneous PSTN or IP participants |
Call Features |
Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom etc. |
Mounting | Wall mount & Desktop |
Power |
Output 12VDC, 1.5A; Input 100 ~ 240VAC, 50 ~ 60Hz |
Weight |
Unit weight 0.51kg, Package weight 0.94kg |
Environmental |
Operating 32 ~ 104ºF / 0 ~ 40ºC, 10 ~ 90% (non-condensing); Storage 14 ~ 140ºF / -10 ~ 60ºC |
Dimensions | 226mm L x 155mm W x 34.5mm H |
Certificates |
FCC Part 15 (CFR 47) Class B, Part 68, CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS, A-TICK AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, AS/ACIF S002, ITU-T K.21 (Basic Level), UL 60950 (power adapter) |
Manufacturer | Grandstream |
Analog Telephone FXS Ports | 2 ports (both with lifeline capability in case of power outage) |
---|---|
PSTN Line FXO Ports | 8 ports |
Network Interfaces | Dual Gigabit RJ45 ports with integrated PoE Plus (IEEE 802.3at-2009) |
NAT Router | Yes (supports router mode and switch mode) |
Peripheral Ports |
USB, SD |
LED Indicators |
Power/Ready, Network, PSTN Line, USB, SD |
LCD Display | 128x32 graphic LCD with DOWN & OK button |
Voice-over-Packet Capabilities |
LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711 |
Voice and Fax Codecs |
G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38 |
Video Codecs |
H.264, H.263, H263+ |
QoS |
Layer 3 QoS, Layer 2 QoS |
DTMF Methods |
In Audio, RFC2833, and SIP INFO |
Provisioning Protocol & Plug-and-Play |
TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk |
Network Protocols |
TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS, LDAP |
Disconnect Methods |
Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone |
Media Encryption |
SRTP, TLS, HTTPS, SSH |
Caller ID |
Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT |
Polarity Reversal/Wink |
Yes, with enable/disable option upon call establishment and termination |
Call Center |
Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/busy level, in-queue announcement |
Customizable Auto Attendant | Up to 5 layers of IVR (Interactive Voice Response) |
Maximum Call Capacity |
-Registered SIP devices- supports up to 800 registered SIP devices/users, -Concurrent SIP calls- Up to 100 (UCM6204), or 66% performance if calls are SRTP encrypted |
Conference Bridges |
Up to 6, password-protected conference bridges allowing up to 32 simultaneous PSTN or IP participants |
Call Features |
Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom etc. |
Mounting | Rack mount & Desktop |
Power |
Output 12VDC, 1.5A; Input 100 ~ 240VAC, 50 ~ 60Hz |
Weight |
Unit weight 2.23kg, Package weight 3.09kg |
Environmental |
Operating 32 ~ 104ºF / 0 ~ 40ºC, 10 ~ 90% (non-condensing); Storage 14 ~ 140ºF / -10 ~ 60ºC |
Dimensions | 440mm L x 185mm W x 44mm H |
Certificates |
FCC Part 15 (CFR 47) Class B, Part 68, CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS, A-TICK AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, AS/ACIF S002, ITU-T K.21 (Basic Level), UL 60950 (power adapter) |
Manufacturer | Grandstream |
Analog Telephone FXS Ports | 2 ports |
---|---|
PSTN Line FXO Ports | 2 ports |
T1/E1 Interface | 1 port |
Network Interfaces | 1 LAN/ 1WAN |
RS-485 | 2 (1 for Primary UCM6510 and 1 for Secondary UCM6510) |
Reset Switch | Yes |
Universal Power Supply | DC Power Port |
Manufacturer | Grandstream |
Protocols | SIP (RFC3261) |
---|---|
Voice codec |
G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation |
Ports |
Two 10/100/1000Mbps RJ45 ports, one with 802.3af PoE-PD support |
Voice ports | 4x RJ11 FXO / 1x RJ11 FXS |
QoS |
Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS), Traffic Shaping |
Network Protocols |
TCP/IP/UDP, RTP/RTCP (RFC1889, 1890), HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, Telnet, STUN (RFC3489, 5389), SIP (RFC3261), SIP over TCP/TLS, SRTP, SNMP, TR-069, IMS/3GPP, IPoE |
Power |
POE Input 4 8 V / 0 . 5 A, DC Input 12V/1A |
Operating temperatures | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Dimensions | 190 mm × 100 mm × 28 mm |
Certificates |
CE, FCC, RCM |
Warranty | 24 months |
Manufacturer | Grandstream |
Protocols | SIP (RFC3261) |
---|---|
Voice codec |
G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation |
Ports |
Two 10/100/1000Mbps RJ45 ports, one with 802.3af PoE-PD support |
Voice ports | 8x RJ11 FXO / 1x RJ11 FXS |
QoS |
Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS), Traffic Shaping |
Network Protocols |
TCP/IP/UDP, RTP/RTCP (RFC1889, 1890), HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, Telnet, STUN (RFC3489, 5389), SIP (RFC3261), SIP over TCP/TLS, SRTP, SNMP, TR-069, IMS/3GPP, IPoE |
Power |
POE Input 4 8 V / 0 . 5 A, DC Input 12V/1A |
Operating temperatures | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Dimensions | 190 mm × 100 mm × 28 mm |
Certificates |
CE, FCC, RCM |
Warranty | 24 months |
Manufacturer | Grandstream |
Protocołs | SIP (RFC3261) |
---|---|
Voice codec |
G.711, G.723, G.729A/B |
Ports |
1x 10/100 Mbps RJ-45 (LAN), 1x 10/100 Mbps RJ-45 (WAN), 1x RJ-45 (console), 4x FXO, 1x RJ-45 (CDR) |
FXO interface |
2 wires, Loop Start |
Operational modes |
SIP Proxy client, Peer-to-Peer |
Tone | DTMF relay |
Fax support | T38 |
Voice quality |
VAD, CNG, G.165/G.168 (echo cancelation) 16 ms, adaptative Jitter buffer |
Gain control | +/- 6 dB |
Call features |
auto attendant, network operator group, barring class, trunk group, trunk class, line group, call pickup, network extension line, inbound transit call, outbound transit call, Least Call Routing, traffic management, call transfer, call forward, abbreviated dialing, CDR collection, DND |
Work with IP-PBX | yes |
STUN support | yes |
Biling system cooperation | CDR records on separate port |
Addressing |
DHCP, static IP |
Management |
console, WWW, phone set |
Dimensions | 172x117x35 mm |
Operational temperature | 0°C ÷ 50°C |
Power | 5V DC 1,5A; ~230V AC 50Hz |
Warranty period | 1 year |
Manufacturer | Edge-corE |
Protocołs | SIP (RFC3261) |
---|---|
Voice codec |
G.711, G.723, G.729A/B |
Ports |
1x 10/100 Mbps RJ-45 (LAN), 1x 10/100 Mbps RJ-45 (WAN), 1x RJ-45 (console), 4x FXS, 1x RJ-45 (CDR) |
FXS interface |
2 wires, Loop Start |
FXS feeding voltage | 20 V |
FXS feefing current | 30 mA |
FXO interface |
2 wires, Loop Start |
Operational modes |
SIP Proxy client, Peer-to-Peer |
Tone | DTMF relay |
Fax support | T38 |
Voice quality |
VAD, CNG, G.165/G.168 (echo cancelation) 16 ms, adaptative Jitter buffer |
Gain control | +/- 6 dB |
Call features |
speed dial, SIP call forward, inbound transit call, outbound transit call, call park, E.164 dial plan, authentication, Hunting Group |
Work with IP-PBX | yes |
STUN support | yes |
Biling system cooperation | CDR records on separate port |
Addressing |
DHCP, static IP |
Management |
console, WWW, phone set |
Dimensions | 172x117x35 mm |
Operational temperature | 0°C ÷ 50°C |
Power | 5V DC 1,5A; ~230V AC 50Hz |
Warranty period | 1 year |
Manufacturer | Edge-corE |
Protocols | SIP (RFC3261) |
---|---|
Voice codec |
G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation |
Ports |
1x 10/100/1000 Mbps RJ-45 (WAN), 1x 10/100/1000 Mbps RJ-45 (LAN) |
Voice ports | 8xFXS |
Operating modes | SIP Proxy client |
DTMF |
In-audio, RFC2833 and/or SIP INFO |
VoIP lines | 8 |
Fax support | T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through |
QoS |
Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS) |
Voice quality |
VAD, CNG, Packet Loss Concacelation (PLC), dynamic Jitter buffer, echo cancelation |
Call features |
Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference |
Router | with NAT function |
Addressing |
static IP, DHCP client |
Provisioning |
HTTP, HTTPS, SSH, TFTP, TR-069 , secure and automated provisioning using AES encryption, syslog |
Management |
WWW, telnet |
Power |
12V DC 1,5A, 100-240VAC, 50-60Hz |
Operating temperatures | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Dimensions | 180x120x36 mm |
Certificates |
CE, FCC, RCM |
Warranty | 24 months |
Manufacturer | Grandstream |
Protocols |
SIP (RFC3261), T38 |
---|---|
Codecs |
G.711, G.723, G.726, G.729A/B/E, iLBC |
Ports |
2x 10/100/1000 Mbps RJ-45, 16x RJ-11 FXS, 1x 50-pin Telco connector |
VoIP lines | 2 |
Voice quality |
G.168 (echo cancelation), dynamic jitter buffer |
Life Line | yes |
Caller ID |
Bellcore type 1 & 2, ETSI, BT, NTT, DTMF |
Fax support |
T38 group 3 fax relay, auto switch to G.711 for Fax Pass-through |
QoS functions |
DiffServ, ToS, 802.1P/Q |

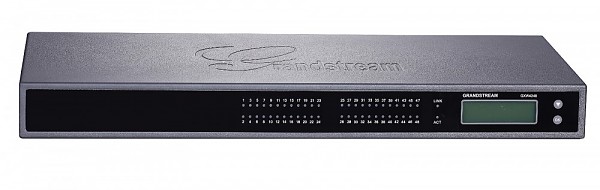

DTMF |
inband, out of band, SIP Info |
Provisioning |
TFTP, HTTP, HTTPS |
Security |
SIPS, TLS |
Addressing |
DHCP client, DHCP server |
Management |
WWW, console, telnet, HTTPS, compatible with GDMS - www.gdms.cloud/login |
Power |
12V DC, ~230V AC 50Hz |
Operating temperatures | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |

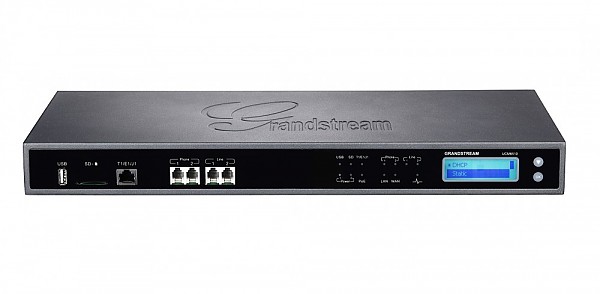

Dimensions | 440mm (L) x 185mm (W) x 44mm (H) (1U) |
Certificates |
FCC Part 15 (CFR 47) Class B, CE EN55022 Class B, EN55024, EN61000-3-2, EN16000-3-3, EN60950-1, RoHS, C-TICK AS/NZS, CISPR 22 Class B, AS/NZS CISPR 24, AN/NZS 60950, ITU-T K.21 (Basic Test Level), UL 60950 (power adapter) |
Warranty | 24 months |
Manufacturer | Grandstream |
Page 1 of 5
|
