 WDM UNMANAGED MEDIA CONVERTERS
#09099

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 2 km, WDM (TP-Link TL-FC311B-2)

  • 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 2km
Standards IEEE 802.3/i/u/ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1310 nm
RX wavelength 1550 nm
Port #2 max. distance 2 km
Port #2 cable type 9/125 µm
Wave Division Multiplexing (WDM) yes
Housing desktop
Dimensions 94,5x73x27 mm
Operating temperature 0°C ÷ 50°C
Storage Temperature -40°C ÷ 70°C
Operating humidity 10% ÷ 90%,
non-condensing
Power external,
5V/0.6A
Manufacturer TP-Link
Can be mount in:
#06986 Rack chassis for media converter, 14-port (TP-LINK TL-FC1420)
TP-LINK
TP-Link TL-FC311B-2, Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 2 km, WDM
Net Price: 21.60 USD  Unit: pcs  VAT: 23%
product card»
#06306

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM (TP-Link MC112CS-20)

Standards IEEE 802.3/u
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1310 nm
RX wavelength 1550 nm
Port #2 max. distance 20 km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Max. throughput [Gbps] 0.2
Housing / case type desktop
Dimensions 94,5x73x27 mm
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Power external,
9V/0.6A
Max Power Consumption 1.44W
Warranty period 5 lat
Manufacturer TP-Link
Can be mount in:
#06985 Rack chassis for media converter, 14-port (TP-LINK TL-MC1400)
TP-LINK
Media converter, 10/100M RJ-45/SC, SM 1310nm, 20 km, WDM (TP-Link MC112CS-20)
Net Price: 22.40 USD  Unit: pcs  VAT: 23%
product card»
#09096

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM (TP-Link TL-FC111B-20)

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km
Standards IEEE 802.3/i/u
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1310 nm
RX wavelength 1550 nm
Port #2 max. distance 20 km
Port #2 cable type 9/125 µm
Wave Division Multiplexing (WDM) yes
Housing desktop
Dimensions 94,5x73x27 mm
Operating temperature 0°C ÷ 50°C
Storage Temperature -40°C ÷ 70°C
Operating humidity 10% ÷ 90%,
non-condensing
Power external,
5V/0.6A
Manufacturer TP-Link
Can be mount in:
#06986 Rack chassis for media converter, 14-port (TP-LINK TL-FC1420)
TP-LINK
TP-Link TL-FC111B-20, Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM
Net Price: 16.20 USD  Unit: pcs  VAT: 23%
product card»
#09100

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM (TP-Link TL-FC311B-20)

  • 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km
Standards IEEE 802.3/i/u/ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1310 nm
RX wavelength 1550 nm
Port #2 max. distance 20 km
Port #2 cable type 9/125 µm
Wave Division Multiplexing (WDM) yes
Housing desktop
Dimensions 94,5x73x27 mm
Operating temperature 0°C ÷ 50°C
Storage Temperature -40°C ÷ 70°C
Operating humidity 10% ÷ 90%,
non-condensing
Power external,
5V/0.6A
Manufacturer TP-Link
Can be mount in:
#06986 Rack chassis for media converter, 14-port (TP-LINK TL-FC1420)
TP-LINK
TP-Link TL-FC311B-20, Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM
Net Price: 25.70 USD  Unit: pcs  VAT: 23%
product card»
#09172

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM, PoE (TP-Link TL-FC111PB-20)

  • Converts the data between fiber (optical signal) and copper (electric signal).
  • Extends fiber distance up to 20 km.
  • The 802.3af PoE output makes remote camera deployment easier and more convenient.
  • WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fiber strand instead of two.
  • Wide operating temperature (0–50 ℃) with reliability.
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.
Standards IEEE 802.3/i/u
Port #1 10/100 Mbps RJ-45 PoE
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1310 nm
RX wavelength 1550 nm
Port #2 max. distance 20 km
Port #2 cable type 9/125 µm
Wave Division Multiplexing (WDM) yes
Housing desktop
Dimensions 94,5x73x27 mm
Operating temperature 0°C ÷ 50°C
Storage Temperature -40°C ÷ 70°C
Operating humidity 10% ÷ 90%,
non-condensing
Power 48 V/0,5 A
Manufacturer TP-Link
TP-LINK
TP-Link TL-FC111PB-20, Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM, PoE
Net Price: 27.00 USD  Unit: pcs  VAT: 23%
product card»
#07617

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20km, WDM (Wave Optics, WO-KA-SWS-020K-A)

Standards IEEE 802.3/u/z
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1550nm
Port #2 max. distance 20km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Link Fault Pass-thorugh (LFP) yes
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100M RJ-45/SC, SM 1310nm, 20km, WDM
Net Price: 18.50 USD  Unit: pcs  VAT: 23%
product card»
#07619

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 40km, WDM (Wave Optics, WO-KA-SWS-040K-A)

Standards IEEE 802.3/u/z
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1550nm
Port #2 max. distance 40km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Link Fault Pass-thorugh (LFP) yes
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100M RJ-45/SC, SM 1310nm, 40km, WDM
Net Price: 23.90 USD  Unit: pcs  VAT: 23%
product card»
#09097

Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 2 km, WDM (TP-Link TL-FC311A-2)

  • 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 2km
Standards IEEE 802.3/i/u/ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1550 nm
RX wavelength 1310 nm
Port #2 max. distance 2 km
Port #2 cable type 9/125 µm
Wave Division Multiplexing (WDM) yes
Housing desktop
Dimensions 94,5x73x27 mm
Operating temperature 0°C ÷ 50°C
Storage Temperature -40°C ÷ 70°C
Operating humidity 10% ÷ 90%,
non-condensing
Power external,
5V/0.6A
Manufacturer TP-Link
Can be mount in:
#06986 Rack chassis for media converter, 14-port (TP-LINK TL-FC1420)
TP-LINK
TP-Link TL-FC311A-2, Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 2 km, WDM
Net Price: 21.60 USD  Unit: pcs  VAT: 23%
product card»
#06305

Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20 km, WDM (TP-Link MC111CS-20)

Standards IEEE 802.3/u
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1550 nm
RX wavelength 1310 nm
Port #2 max. distance 20 km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Max. throughput [Gbps] 0.2
Housing desktop
Dimensions 94,5x73x27 mm
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Power external,
9V/0.6A
Max Power Consumption 1.49W
Warranty 5 years
Manufacturer TP-Link
Can be mount in:
#06985 Rack chassis for media converter, 14-port (TP-LINK TL-MC1400)
TP-LINK
Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20 km, WDM (TP-Link MC111CS-20)
Net Price: 22.40 USD  Unit: pcs  VAT: 23%
product card»
#09095

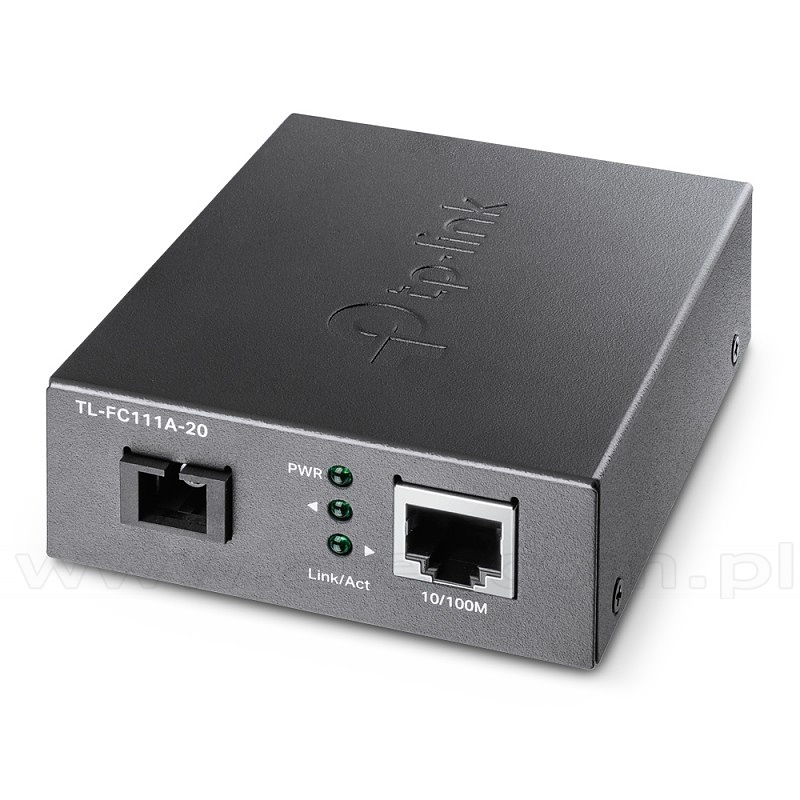

Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20 km, WDM (TP-Link TL-FC111A-20)

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km
Standards IEEE 802.3/i/u
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1550 nm
RX wavelength 1310 nm
Port #2 max. distance 20 km
Port #2 cable type 9/125 µm
Wave Division Multiplexing (WDM) yes
Housing desktop
Dimensions 94,5x73x27 mm
Operating temperature 0°C ÷ 50°C
Storage Temperature -40°C ÷ 70°C
Operating humidity 10% ÷ 90%,
non-condensing
Power external,
5V/0.6A
Manufacturer TP-Link
Can be mount in:
#06986 Rack chassis for media converter, 14-port (TP-LINK TL-FC1420)
TP-LINK
TP-Link TL-FC111A-20, Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20 km, WDM
Net Price: 17.10 16.20 USD   Unit: pcs  VAT: 23%
product card»
