New Items in Atel Electronics

NEW ITEMS


  • Computer Network Accessories
    • Switches
      • » GIGABIT ETHERNET / L2 MANAGED SWITCHES
          #09354

          Managed switch, 48x 10/100/1000 RJ-45 PoE ports, 6x 25G SFP28 ports, 19" (Edge-corE ECS4150-54P)

          • Best price-performance Gigabit Ethernet access switch with 25G uplinks
          • Full Gigabit Ports: 48x gigabit RJ45 ports and 6x 25gigabit SFP28 ports provide high-speed connections
          • Simple management (CLI, SNMP, Web, ecCLOUD, TIP OLS)
          Standards IEEE 802.3ae 10GBase-SR/LR,
          IEEE802.3ay 25GBase-SR,
          IEEE 802.3cc 25GBASE-LR,
          IEEE 802.3z 1000BASE-SX/LX
          Copper ports 48x 10/100/1000 Mbps RJ-45
          SFP ports 6x 25G SFP28
          PoE ports 48x 10/100/1000 Mbps RJ-45,
          Standard 802.3af/at/bt,
          Power budget 740W
          Additional ports 1× RJ45 Console Port,
          1x Managment port,
          USB Managment port
          Software features
          Quality of Service 8 hardware queues per port,
          IEEE 802.1p CoS,
          IP Precedence,
          DSCP,
          MAC Access control list,
          IP standard access control list,
          IP extended access control list,
          Strict Priority,
          Weighted Round Robin,
          Strict + WRR,
          GE Resolution 64 Kbps ~ 1.000 Mbps,
          10G Resolution 64 Kbps ~ 10.000 Mbps,
          25GE Resolution 64 Kbps~25.000 Mbps,
          Auto Traffic Control
          L2 Features 10/100/1000BASE-T copper interfaces,
          Auto-negotiation for port speed and duplex mode,
          Auto MDI/MDI-X,
          Multi-speed (1G/10G/25G) fiber interfaces,
          IEEE 802.3ae (10GBASE-SR/LR),
          IEEE 802.3ay (25GBASE-SR),
          IEEE 802.3cc (25GBASE-LR),
          IEEE 802.3z (1000BASE-SX/LX) transceivers 10G/25G DAC/AOC,
          Digital Diagnostic Monitoring on 25G SFP28 port,
          IEEE 802.3x for full duplex mode,
          Back-Pressure for half duplex mode,
          Jumbo frames 10KB,
          Broadcast/Multicast/Unknown Unicast storm control ,
          IEEE 802.1D (STP),
          IEEE 802.1w (RSTP),
          IEEE 802.1s (MSTP) 64 instances,
          BPDU Guard,
          BPDU filtering,
          Root Guard,
          BPDU transparent,
          Loopback detection,
          Non-Spanning Tree loopback detection,
          ITU-T G.8032v2 Ethernet Ring Protection Switch,
          Sub 50 msec convergence,
          Revertive operation mode,
          Multiple-ring network,
          Q-in-Q,
          xSTP,
          CDP,
          VTP and PVST+,
          LLDP,
          CDP/PVST+ Filtering,
          Selective Q-in-Q,
          Static Trunk,
          IEEE 802.3ad LACP,
          28 trunk groups up to 8 GE/ 6 25GE ports per group,
          SA+DA,
          SA,
          DA,
          SIP+DIP,
          SIP,
          DIP,
          Multi-chassis Link Aggregation,
          Static LACP,
          IGMP Authentication,
          IGMP v1/v2/v3 snooping,
          IGMP Proxy reporting,
          IGMP Filtering,
          IGMP Throttling,
          IGMP Immediate Leave,
          IGMP Querier,
          MVR supports 5 multicast VLANs,
          VLAN Mirror,
          Mac Based Mirror,
          ACL Mirror,
          Remote port mirror (RSPAN)
          VLAN Supports 4K VLAN,
          Port-based VLAN,
          IEEE 802.1Q VLAN,
          GVRP,
          IEEE 802.1v Protocol-based VLAN,
          IP Subnet-based VLAN,
          MAC-based VLAN,
          Traffic Segmentation
          IPv6 Support IIPv4/IPv6 dual protocol stack,
          IPv6 Address Types Stack (Unicast),
          IPv6 Neighbor Discovery,
          Duplicate address,
          Address resolution,
          Unreachable neighbor detection,
          Stateless auto-configuration,
          Manual configuration,
          Remote IPv6 ping,
          IPv6 Telnet support,
          HTTP over IPv6,
          SNMP over IPv6,
          IPv6 Syslog support,
          IPv6 TFTP support,
          MLD Snooping v1/v2,
          IPv6 Source Guard,
          DHCPv6 Snooping,
          MVR6
          Security Port security,
          IEEE 802.1X port based and MAC based authentication,
          IEEE 802.1X Supplicant,
          Dynamic VLAN Assignment,
          Auto QoS,
          MAC authentication,
          Web authentication,
          Voice VLAN,
          Guest VLAN,
          MAC Access control list,
          IP standard access control list,
          IP extended access control list,
          IPv6 ACL,
          DHCP Snooping,
          DHCP Info,
          DHCP Option 82,
          DHCP Option 82 Relay,
          IP Source Guard,
          PPPoE IA,
          Dynamic ARP Inspection,
          Denial of Service,
          Login Security,
          RADIUS authentication,
          RADIUS accounting,
          TACACS + authentication,
          TACACS + accounting,
          TACACS + authorization,
          Management Interface Access Filtering (SNMP/Web/Telnet),
          SSH (v1.5/v2.0) for security Telnet,
          SSL for HTTPS,
          SNMPv3
          Management
          Management Features Zero Touch provisioning,
          mDNS,
          CLI via console port or Telnet management,
          Web management,
          SNMP (v1/v2c/v3),
          Firmware upgrade via TFTP/HTTP/FTP/SFTP server,
          Multiple configuration files,
          Configuration file upload/download via TFTP/HTTP/FTP/SFTP server,
          RMON (groups 1,2,3 and 9),
          DHCP client for IP address assignment,
          DHCP dynamic provision Option (66/67),
          SNTP,
          Syslog (local Flash),
          Remotelog (RFC3164),
          SMTP (E-mail Notification),
          Supports LLDP (802.1ab),
          sFlow (v4/v5),
          IPv6 sFlow
          Switching capacity [Gbps] 396
          Packet Forwarding Rate 295 Mpps
          MAC Address Table 32K
          Jumbo Frame 10 KB
          Dimensions 442 × 420 × 43.6 mm
          Weight 5.5 kg
          Operating temperature -5°C ÷ 45°C
          Operating humidity 5% ÷ 95%,
          non-condensing
          Power 100~240VAC 50/60Hz
          Max Power Consumption 835 W
          Certificates FCC Class A,
          CE,
          Safety Compliance (CB/UL)
          Warranty period 3 years
          Manufacturer Edge-core
          EDGE-CORE
          Managed switch, 48x 10/100/1000 RJ-45 PoE ports, 6x 25G SFP28 ports, 19" (Edge-corE ECS4150-54P)
          for special orders only
          Net Price: 1 450.00 USD
          product card»
          #09355

          Managed switch, 48x 10/100/1000 RJ-45 ports, 6x 25G SFP28 ports, 19" (Edge-core ECS4150-54T)

          • Best price-performance Gigabit Ethernet access switch with 25G uplinks
          • Full Gigabit Ports: 48x gigabit RJ45 ports and 6x 25gigabit SFP28 ports provide high-speed connections
          • Simple management (CLI, SNMP, Web, ecCLOUD, TIP OLS)
          Standards IEEE 802.3ae 10GBase-SR/LR,
          IEEE802.3ay 25GBase-SR,
          IEEE 802.3cc 25GBASE-LR,
          IEEE 802.3z 1000BASE-SX/LX
          Copper ports 48x 10/100/1000 Mbps RJ-45
          SFP ports 6x 25G SFP28
          Additional ports 1× RJ45 Console Port,
          1x Managment port,
          USB Managment port
          Software features
          Quality of Service 8 hardware queues per port,
          IEEE 802.1p CoS,
          IP Precedence,
          DSCP,
          MAC Access control list,
          IP standard access control list,
          IP extended access control list,
          Strict Priority,
          Weighted Round Robin,
          Strict + WRR,
          GE Resolution 64 Kbps ~ 1.000 Mbps,
          10G Resolution 64 Kbps ~ 10.000 Mbps,
          25GE Resolution 64 Kbps~25.000 Mbps,
          Auto Traffic Control
          L2 Features 10/100/1000BASE-T copper interfaces,
          Auto-negotiation for port speed and duplex mode,
          Auto MDI/MDI-X,
          Multi-speed (1G/10G/25G) fiber interfaces,
          IEEE 802.3ae (10GBASE-SR/LR),
          IEEE 802.3ay (25GBASE-SR),
          IEEE 802.3cc (25GBASE-LR),
          IEEE 802.3z (1000BASE-SX/LX) transceivers 10G/25G DAC/AOC,
          Digital Diagnostic Monitoring on 25G SFP28 port,
          IEEE 802.3x for full duplex mode,
          Back-Pressure for half duplex mode,
          Jumbo frames 10KB,
          Broadcast/Multicast/Unknown Unicast storm control ,
          IEEE 802.1D (STP),
          IEEE 802.1w (RSTP),
          IEEE 802.1s (MSTP) 64 instances,
          BPDU Guard,
          BPDU filtering,
          Root Guard,
          BPDU transparent,
          Loopback detection,
          Non-Spanning Tree loopback detection,
          ITU-T G.8032v2 Ethernet Ring Protection Switch,
          Sub 50 msec convergence,
          Revertive operation mode,
          Multiple-ring network,
          Q-in-Q,
          xSTP,
          CDP,
          VTP and PVST+,
          LLDP,
          CDP/PVST+ Filtering,
          Selective Q-in-Q,
          Static Trunk,
          IEEE 802.3ad LACP,
          28 trunk groups up to 8 GE/ 6 25GE ports per group,
          SA+DA,
          SA,
          DA,
          SIP+DIP,
          SIP,
          DIP,
          Multi-chassis Link Aggregation,
          Static LACP,
          IGMP Authentication,
          IGMP v1/v2/v3 snooping,
          IGMP Proxy reporting,
          IGMP Filtering,
          IGMP Throttling,
          IGMP Immediate Leave,
          IGMP Querier,
          MVR supports 5 multicast VLANs,
          VLAN Mirror,
          Mac Based Mirror,
          ACL Mirror,
          Remote port mirror (RSPAN)
          VLAN Supports 4K VLAN,
          Port-based VLAN,
          IEEE 802.1Q VLAN,
          GVRP,
          IEEE 802.1v Protocol-based VLAN,
          IP Subnet-based VLAN,
          MAC-based VLAN,
          Traffic Segmentation
          IPv6 Support IIPv4/IPv6 dual protocol stack,
          IPv6 Address Types Stack (Unicast),
          IPv6 Neighbor Discovery,
          Duplicate address,
          Address resolution,
          Unreachable neighbor detection,
          Stateless auto-configuration,
          Manual configuration,
          Remote IPv6 ping,
          IPv6 Telnet support,
          HTTP over IPv6,
          SNMP over IPv6,
          IPv6 Syslog support,
          IPv6 TFTP support,
          MLD Snooping v1/v2,
          IPv6 Source Guard,
          DHCPv6 Snooping,
          MVR6
          Security Port security,
          IEEE 802.1X port based and MAC based authentication,
          IEEE 802.1X Supplicant,
          Dynamic VLAN Assignment,
          Auto QoS,
          MAC authentication,
          Web authentication,
          Voice VLAN,
          Guest VLAN,
          MAC Access control list,
          IP standard access control list,
          IP extended access control list,
          IPv6 ACL,
          DHCP Snooping,
          DHCP Info,
          DHCP Option 82,
          DHCP Option 82 Relay,
          IP Source Guard,
          PPPoE IA,
          Dynamic ARP Inspection,
          Denial of Service,
          Login Security,
          RADIUS authentication,
          RADIUS accounting,
          TACACS + authentication,
          TACACS + accounting,
          TACACS + authorization,
          Management Interface Access Filtering (SNMP/Web/Telnet),
          SSH (v1.5/v2.0) for security Telnet,
          SSL for HTTPS,
          SNMPv3
          Management
          Management Features Zero Touch provisioning,
          mDNS,
          CLI via console port or Telnet management,
          Web management,
          SNMP (v1/v2c/v3),
          Firmware upgrade via TFTP/HTTP/FTP/SFTP server,
          Multiple configuration files,
          Configuration file upload/download via TFTP/HTTP/FTP/SFTP server,
          RMON (groups 1,2,3 and 9),
          DHCP client for IP address assignment,
          DHCP dynamic provision Option (66/67),
          SNTP,
          Syslog (local Flash),
          Remotelog (RFC3164),
          SMTP (E-mail Notification),
          Supports LLDP (802.1ab),
          sFlow (v4/v5),
          IPv6 sFlow
          Switching capacity [Gbps] 396
          Packet Forwarding Rate 295 Mpps
          MAC Address Table 32K
          Jumbo Frame 10 KB
          Dimensions 442 × 420 × 43.6 mm
          Weight 4.7 kg
          Operating temperature -5°C ÷ 45°C
          Operating humidity 5% ÷ 95%,
          non-condensing
          Power 100~240VAC 50/60Hz
          Max Power Consumption 52 W
          Certificates FCC Class A,
          CE,
          Safety Compliance (CB/UL)
          Warranty period 3 years
          Manufacturer Edge-core
          EDGE-CORE
          Managed switch, 48x 10/100/1000 RJ-45 ports, 6x 25G SFP28 ports, 19" (Edge-core ECS4150-54T)
          for special orders only
          Net Price: 1 000.00 USD
          product card»
          #09362

          Managed switch, 48x 10/100/1000 RJ-45, 4x 100/1000 SFP ports, PoE (Edge-core ECS4100-28TC)

          • Performance and Scalability
          • Continuous Availability
          • Comprehensive QoS
          • Robust Multicast Control
          • IPv6 Support
          • Reliability and Energy Efficiency
          • Enhanced Security
          • Superior Management
          • Virtual Private Networks
          • PoE Features
          Standards IEEE 802.3 100Base-FX,
          IEEE 802.3z 1000BASE-SX/LX/LHX/ZX
          Copper ports 48x 10/100/1000 Mbps RJ-45 PoE
          SFP ports 4x 100/1000 SFP ports
          PoE ports 48x 10/100/1000 Mbps,
          PoE+ based on IEEE 802.3bt/802.3af/802.3at,
          Auto disable aſter exceeding power budget,
          Dynamic Power Allocation,
          PoE PoE Power Budget 370 W
          Additional ports 1× RJ45 Console port
          Software features
          Quality of Service 8 hardware queues per port,
          IEEE 802.1p CoS,
          IP Precedence,
          DSCP,
          Strict Priority,
          Weighted Round Robin,
          Strict + WRR,
          Ingress policy map,
          Egress policy map,
          Rate Limiting (GE Resolution 64Kbps ~ 1.000Mbps
          L2 Features Tri-speed (10/100/1000BASE-T) copper interfaces,
          Auto-negotiation for port speed and duplex mode,
          Auto MDI/MDI-X,
          100 M/1 G fiber interfaces,
          IEEE 802.3 100BASE-FX,
          IEEE 802.3z (1000BASE-SX/LX/LHX/ZX) transceivers,
          Transceiver-threshold current/rx-power/temperature/tx-power/voltage/high-low alarm and warning,
          Digital Diagnostic Monitoring on SFP port only,
          IEEE 802.3x for full-duplex mode,
          Back-pressure for half-duplex mode,
          Jumbo frames- 12 KB,
          Broadcast/Multicast/Unknown Unicast Storm Control,
          IEEE 802.1D Spanning Tree Protocol,
          IEEE 802.1w Rapid Spanning Tree Protocol,
          IEEE 802.1s Multiple Spanning Tree Protocol (64 instances),
          Spanning-tree restricted-tcn,
          Spanning-tree tc-prop-stop - Stops propagation of topology change information,
          BPDU Guard,
          BPDU Filtering,
          Root Guard,
          BPDU Transparent,
          Loopback Detection,
          Non-Spanning Tree Loopback detection,
          Sub 50 msec convergence (ECS4100-12PH/28P/52P/28TC only),
          Non-revertive operation mode,
          Multiple-ring network,
          Selective Q-in-Q,
          VLAN Translation,
          L2 Protocol tunneling (xSTP/CDP/VTP & PVST+/LLDP),
          CDP/PVST+ Filtering,
          Static Trunk,
          IEEE 802.3ad (LACP),
          16 trunk groups up to 8 GE ports per group,
          Load Balancing (SA+DA/SA/DA/SIP+DIP/SIP/DIP),
          IGMP v1/v2/v3 Snooping,
          IGMP Proxy Reporting,
          IGMP Filtering,
          IGMP Throttling,
          IGMP Immediate Leave,
          IGMP Querier,
          IGMP mrouter-forward mode ,
          IGMP router-alert-option-check ,
          IGMP router-port-expire-time ,
          IGMP tcn-flood,
          IGMP tcn-query-solicit,
          IGMP unregistered-data-flood,
          MVR supports 5 multicast VLANs,
          Port mirroring,
          Remote port mirror (RSPAN)
          VLAN Supports 4K VLAN,
          Port-based VLAN,
          IEEE 802.1Q VLAN,
          GVRP (256 VLAN),
          IEEE 802.1v protocol-based VLAN,
          IP Subnet-based VLAN,
          MAC-based VLAN,
          Traffic Segmentation
          IPv6 Support IPv4/IPv6 Dual Protocol stack,
          IPv6 Address Types Stack (Unicast),
          Duplicate address,
          Address resolution,
          Unreachable neighbor detection,
          Stateless auto-configuration,
          Manual configuration,
          Remote IPv6 ping,
          IPv6 Telnet support,
          HTTP over IPv6,
          SNMP over IPv6,
          IPv6 Syslog support,
          IPv6 TFTP support,
          IPv6 MLD filter and throttling,
          IPv6 ND snooping,
          MLD Snooping v1/v2,
          IPv6 source guard,
          DHCPv6 snooping,
          MVR6
          Security IEEE 802.1X port based and MAC based authentication,
          Dynamic VLAN Assignment,
          Dynamic QoS assignment,
          MAC authentication,
          Web authentication,
          Voice VLAN,
          Guest VLAN,
          L2/L3/L4 Access Control List,
          MAC Access control list,
          IP standard access control list,
          IP extended access control list,
          DHCP Snooping,
          DHCP Option 82,
          DHCP Option 82 Relay,
          IP Source Guard,
          IPv6 ACL,
          Port security,
          PPPoE IA,
          Dynamic ARP Inspection,
          CPU guard,
          CPU/Memory threshold and alarm,
          echo-chargen,
          smurf,
          tcp-flooding,
          tcp-null-scan,
          tcp-syn-fin-scan,
          tcp-xmas-scan,
          udp-flooding,
          win-nuke,
          Login Security,
          RADIUS authentication,
          RADIUS accounting,
          TACACS + authentication,
          TACACS + accounting,
          TACACS + authorization,
          Management Interface Access Filtering (SNMP/Web/Telnet),
          SSH (v1.5/v2.0) for security Telnet,
          SSL for HTTPS,
          SNMPv3
          Management
          Management Features CLI via console port or Telnet,
          Web management,
          SNMP (v1/v2c/v3),
          IP clustering (32 members),
          Firmware upgrade via TFTP/HTTP/FTP/SFTP server,
          Dual images,
          Multiple configuration files,
          Configuration file upload/download via TFTP/HTTP/FTP/SFTP server,
          Firmware auto upgrade,
          RMON (groups 1/2/3 and 9),
          BOOTP (DHCP client for IP address assignment),
          DHCP dynamic provision option (66/67),
          SNTP/NTP,
          DNS client,
          Event/Error Log,
          Syslog,
          SMTP,
          Supports LLDP (802.1ab),
          sFlow (v4/v5),
          Cable diagnostics,
          Topology management,
          Performance management,
          Configuration management,
          Event management,
          SNMP management
          Switching capacity [Gbps] 104
          Packet Forwarding Rate 77.4 Mpps
          MAC Address Table 16K
          Jumbo Frame 12 KB
          Dimensions 44 × 33 × 4.4 cm
          Weight 4397 g
          Operating temperature 0°C ÷ 50°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power 100~240VAC 50/60Hz
          Max Power Consumption 480 W
          Certificates FCC Class A,
          CE,
          Safety Compliance (CB/UL)
          Warranty period 3 years
          Manufacturer Edge-core
          EDGE-CORE
          Managed switch, 48x 10/100/1000 RJ-45, 4x 100/1000 SFP ports, PoE (Edge-core ECS4100-28TC)
          for special orders only
          Net Price: 1 050.00 USD
          product card»
          #09363

          Managed switch, 48x 10/100/1000 RJ-45, 4x 100/1000 SFP, 19" (Edge-corE ECS4100-52T)

          • Performance and Scalability
          • Continuous Availability
          • Comprehensive QoS
          • Robust Multicast Control
          • IPv6 Support
          • Reliability and Energy Efficiency
          • Enhanced Security
          • Superior Management
          • Virtual Private Networks
          Standards IEEE 802.3 100Base-FX,
          IEEE 802.3z 1000BASE-SX/LX/LHX/ZX
          Copper ports 48x 10/100/1000 Mbps RJ-45
          SFP ports 4x 100/1000 Mbps
          Additional ports 1× RJ45 Console port
          Software features
          Quality of Service 8 hardware queues per port,
          IEEE 802.1p CoS,
          IP Precedence,
          DSCP,
          Strict Priority,
          Weighted Round Robin,
          Strict + WRR,
          Ingress policy map,
          Egress policy map,
          Rate Limiting (GE Resolution 64Kbps ~ 1.000Mbps
          L2 Features Tri-speed (10/100/1000BASE-T) copper interfaces,
          Auto-negotiation for port speed and duplex mode,
          Auto MDI/MDI-X,
          100 M/1 G fiber interfaces,
          IEEE 802.3 100BASE-FX,
          IEEE 802.3z (1000BASE-SX/LX/LHX/ZX) transceivers,
          Transceiver-threshold current/rx-power/temperature/tx-power/voltage/high-low alarm and warning,
          Digital Diagnostic Monitoring on SFP port only,
          IEEE 802.3x for full-duplex mode,
          Back-pressure for half-duplex mode,
          Jumbo frames- 12 KB,
          Broadcast/Multicast/Unknown Unicast Storm Control,
          IEEE 802.1D Spanning Tree Protocol,
          IEEE 802.1w Rapid Spanning Tree Protocol,
          IEEE 802.1s Multiple Spanning Tree Protocol (64 instances),
          Spanning-tree restricted-tcn,
          Spanning-tree tc-prop-stop - Stops propagation of topology change information,
          BPDU Guard,
          BPDU Filtering,
          Root Guard,
          BPDU Transparent,
          Loopback Detection,
          Non-Spanning Tree Loopback detection,
          Sub 50 msec convergence (ECS4100-12PH/28P/52P/28TC only),
          Non-revertive operation mode,
          Multiple-ring network,
          Selective Q-in-Q,
          VLAN Translation,
          L2 Protocol tunneling (xSTP/CDP/VTP & PVST+/LLDP),
          CDP/PVST+ Filtering,
          Static Trunk,
          IEEE 802.3ad (LACP),
          16 trunk groups up to 8 GE ports per group,
          Load Balancing (SA+DA/SA/DA/SIP+DIP/SIP/DIP),
          IGMP v1/v2/v3 Snooping,
          IGMP Proxy Reporting,
          IGMP Filtering,
          IGMP Throttling,
          IGMP Immediate Leave,
          IGMP Querier,
          IGMP mrouter-forward mode ,
          IGMP router-alert-option-check ,
          IGMP router-port-expire-time ,
          IGMP tcn-flood,
          IGMP tcn-query-solicit,
          IGMP unregistered-data-flood,
          MVR supports 5 multicast VLANs,
          Port mirroring,
          Remote port mirror (RSPAN)
          VLAN Supports 4K VLAN,
          Port-based VLAN,
          IEEE 802.1Q VLAN,
          GVRP (256 VLAN),
          IEEE 802.1v protocol-based VLAN,
          IP Subnet-based VLAN,
          MAC-based VLAN,
          Traffic Segmentation
          IPv6 Support IPv4/IPv6 Dual Protocol stack,
          IPv6 Address Types Stack (Unicast),
          Duplicate address,
          Address resolution,
          Unreachable neighbor detection,
          Stateless auto-configuration,
          Manual configuration,
          Remote IPv6 ping,
          IPv6 Telnet support,
          HTTP over IPv6,
          SNMP over IPv6,
          IPv6 Syslog support,
          IPv6 TFTP support,
          IPv6 MLD filter and throttling,
          IPv6 ND snooping,
          MLD Snooping v1/v2,
          IPv6 source guard,
          DHCPv6 snooping,
          MVR6
          Security IEEE 802.1X port based and MAC based authentication,
          Dynamic VLAN Assignment,
          Dynamic QoS assignment,
          MAC authentication,
          Web authentication,
          Voice VLAN,
          Guest VLAN,
          L2/L3/L4 Access Control List,
          MAC Access control list,
          IP standard access control list,
          IP extended access control list,
          DHCP Snooping,
          DHCP Option 82,
          DHCP Option 82 Relay,
          IP Source Guard,
          IPv6 ACL,
          Port security,
          PPPoE IA,
          Dynamic ARP Inspection,
          CPU guard,
          CPU/Memory threshold and alarm,
          echo-chargen,
          smurf,
          tcp-flooding,
          tcp-null-scan,
          tcp-syn-fin-scan,
          tcp-xmas-scan,
          udp-flooding,
          win-nuke,
          Login Security,
          RADIUS authentication,
          RADIUS accounting,
          TACACS + authentication,
          TACACS + accounting,
          TACACS + authorization,
          Management Interface Access Filtering (SNMP/Web/Telnet),
          SSH (v1.5/v2.0) for security Telnet,
          SSL for HTTPS,
          SNMPv3
          Management
          Management Features CLI via console port or Telnet,
          Web management,
          SNMP (v1/v2c/v3),
          IP clustering (32 members),
          Firmware upgrade via TFTP/HTTP/FTP/SFTP server,
          Dual images,
          Multiple configuration files,
          Configuration file upload/download via TFTP/HTTP/FTP/SFTP server,
          Firmware auto upgrade,
          RMON (groups 1/2/3 and 9),
          BOOTP (DHCP client for IP address assignment),
          DHCP dynamic provision option (66/67),
          SNTP/NTP,
          DNS client,
          Event/Error Log,
          Syslog,
          SMTP,
          Supports LLDP (802.1ab),
          sFlow (v4/v5),
          Cable diagnostics,
          Topology management,
          Performance management,
          Configuration management,
          Event management,
          SNMP management
          Switching capacity [Gbps] 104
          Packet Forwarding Rate 77.4 Mpps
          MAC Address Table 16K
          Jumbo Frame 12 KB
          Housing / case type Rack Mountable
          Dimensions 44 × 22 × 4.4 cm
          Weight 2.5 kg
          Operating temperature 0°C ÷ 45°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power 100~240VAC 50/60Hz (Rear panel)
          Max Power Consumption 40 W
          Certificates FCC Class A,
          CE,
          BSMI,
          Safety Compliance (CB/UL)
          Warranty period 3 years
          Manufacturer Edge-core
          EDGE-CORE
          Managed switch, 48x 10/100/1000 RJ-45, 4x 100/1000 SFP, 19" (Edge-corE ECS4100-52T)
          for special orders only
          Net Price: 792.00 USD
          product card»
          #09368

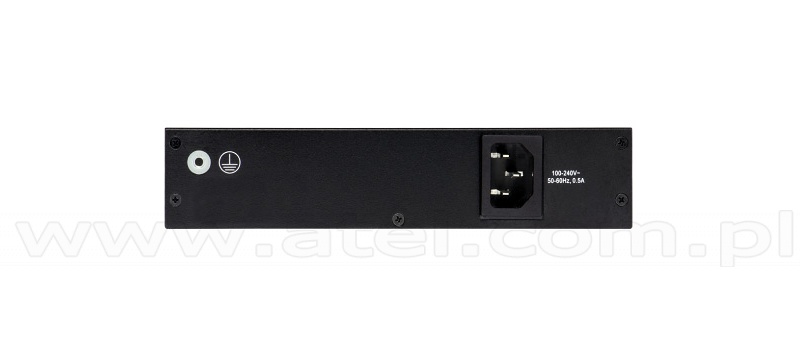

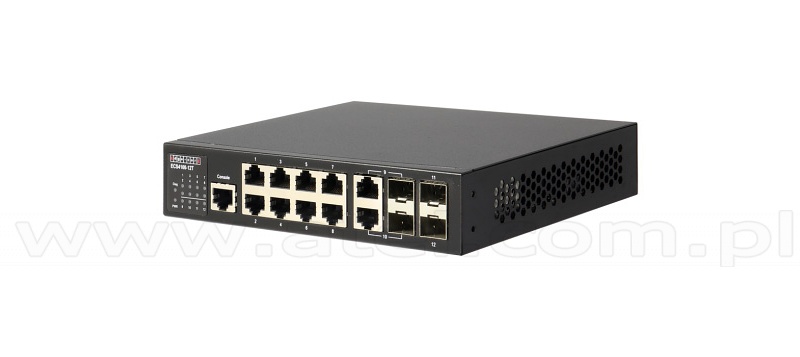

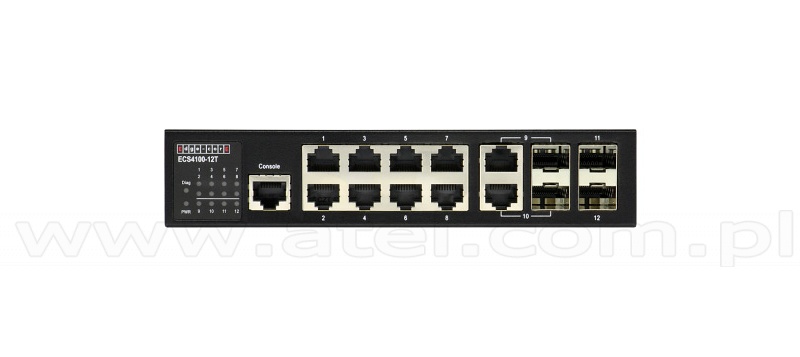

          Managed switch, 8x 10/100/1000 RJ-45, 2x 100/1000 SFP, 2x Combo Gigabit, 19" (Edge-core ECS4100-12T)

          • Performance and Scalability
          • Continuous Availability
          • Comprehensive QoS
          • Robust Multicast Control
          • IPv6 Support
          • Reliability and Energy Efficiency
          • Enhanced Security
          • Superior Management
          • Virtual Private Networks
          Standards IEEE 802.3 100Base-FX,
          IEEE 802.3z 1000BASE-SX/LX/LHX/ZX
          Copper ports 8x 10/100/1000 Mbps RJ-45
          SFP ports 2x 100/1000 SFP
          Additional ports 1× RJ45 Console port,
          2x 10/100/1000 Combo ports
          Software features
          Quality of Service 8 hardware queues per port,
          IEEE 802.1p CoS,
          IP Precedence,
          DSCP,
          Strict Priority,
          Weighted Round Robin,
          Strict + WRR,
          Ingress policy map,
          Egress policy map,
          Rate Limiting (GE Resolution 64Kbps ~ 1.000Mbps
          L2 Features Tri-speed (10/100/1000BASE-T) copper interfaces,
          Auto-negotiation for port speed and duplex mode,
          Auto MDI/MDI-X,
          100 M/1 G fiber interfaces,
          IEEE 802.3 100BASE-FX,
          IEEE 802.3z (1000BASE-SX/LX/LHX/ZX) transceivers,
          Transceiver-threshold current/rx-power/temperature/tx-power/voltage/high-low alarm and warning,
          Digital Diagnostic Monitoring on SFP port only,
          IEEE 802.3x for full-duplex mode,
          Back-pressure for half-duplex mode,
          Jumbo frames- 12 KB,
          Broadcast/Multicast/Unknown Unicast Storm Control,
          IEEE 802.1D Spanning Tree Protocol,
          IEEE 802.1w Rapid Spanning Tree Protocol,
          IEEE 802.1s Multiple Spanning Tree Protocol (64 instances),
          Spanning-tree restricted-tcn,
          Spanning-tree tc-prop-stop - Stops propagation of topology change information,
          BPDU Guard,
          BPDU Filtering,
          Root Guard,
          BPDU Transparent,
          Loopback Detection,
          Non-Spanning Tree Loopback detection,
          Sub 50 msec convergence (ECS4100-12PH/28P/52P/28TC only),
          Non-revertive operation mode,
          Multiple-ring network,
          Selective Q-in-Q,
          VLAN Translation,
          L2 Protocol tunneling (xSTP/CDP/VTP & PVST+/LLDP),
          CDP/PVST+ Filtering,
          Static Trunk,
          IEEE 802.3ad (LACP),
          16 trunk groups up to 8 GE ports per group,
          Load Balancing (SA+DA/SA/DA/SIP+DIP/SIP/DIP),
          IGMP v1/v2/v3 Snooping,
          IGMP Proxy Reporting,
          IGMP Filtering,
          IGMP Throttling,
          IGMP Immediate Leave,
          IGMP Querier,
          IGMP mrouter-forward mode ,
          IGMP router-alert-option-check ,
          IGMP router-port-expire-time ,
          IGMP tcn-flood,
          IGMP tcn-query-solicit,
          IGMP unregistered-data-flood,
          MVR supports 5 multicast VLANs,
          Port mirroring,
          Remote port mirror (RSPAN)
          VLAN Supports 4K VLAN,
          Port-based VLAN,
          IEEE 802.1Q VLAN,
          GVRP (256 VLAN),
          IEEE 802.1v protocol-based VLAN,
          IP Subnet-based VLAN,
          MAC-based VLAN,
          Traffic Segmentation
          IPv6 Support IPv4/IPv6 Dual Protocol stack,
          IPv6 Address Types Stack (Unicast),
          Duplicate address,
          Address resolution,
          Unreachable neighbor detection,
          Stateless auto-configuration,
          Manual configuration,
          Remote IPv6 ping,
          IPv6 Telnet support,
          HTTP over IPv6,
          SNMP over IPv6,
          IPv6 Syslog support,
          IPv6 TFTP support,
          IPv6 MLD filter and throttling,
          IPv6 ND snooping,
          MLD Snooping v1/v2,
          IPv6 source guard,
          DHCPv6 snooping,
          MVR6
          Security IEEE 802.1X port based and MAC based authentication,
          Dynamic VLAN Assignment,
          Dynamic QoS assignment,
          MAC authentication,
          Web authentication,
          Voice VLAN,
          Guest VLAN,
          L2/L3/L4 Access Control List,
          MAC Access control list,
          IP standard access control list,
          IP extended access control list,
          DHCP Snooping,
          DHCP Option 82,
          DHCP Option 82 Relay,
          IP Source Guard,
          IPv6 ACL,
          Port security,
          PPPoE IA,
          Dynamic ARP Inspection,
          CPU guard,
          CPU/Memory threshold and alarm,
          echo-chargen,
          smurf,
          tcp-flooding,
          tcp-null-scan,
          tcp-syn-fin-scan,
          tcp-xmas-scan,
          udp-flooding,
          win-nuke,
          Login Security,
          RADIUS authentication,
          RADIUS accounting,
          TACACS + authentication,
          TACACS + accounting,
          TACACS + authorization,
          Management Interface Access Filtering (SNMP/Web/Telnet),
          SSH (v1.5/v2.0) for security Telnet,
          SSL for HTTPS,
          SNMPv3
          Management
          Management Features CLI via console port or Telnet,
          Web management,
          SNMP (v1/v2c/v3),
          IP clustering (32 members),
          Firmware upgrade via TFTP/HTTP/FTP/SFTP server,
          Dual images,
          Multiple configuration files,
          Configuration file upload/download via TFTP/HTTP/FTP/SFTP server,
          Firmware auto upgrade,
          RMON (groups 1/2/3 and 9),
          BOOTP (DHCP client for IP address assignment),
          DHCP dynamic provision option (66/67),
          SNTP/NTP,
          DNS client,
          Event/Error Log,
          Syslog,
          SMTP,
          Supports LLDP (802.1ab),
          sFlow (v4/v5),
          Cable diagnostics,
          Topology management,
          Performance management,
          Configuration management,
          Event management,
          SNMP management
          Switching capacity [Gbps] 24
          Packet Forwarding Rate 17.85 Mpps
          MAC Address Table 16K
          Jumbo Frame 12 KB
          Housing / case type Rack Mountable
          Dimensions 18 × 16.4 × 3.75 cm
          Weight 804 g
          Operating temperature 0°C ÷ 50°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power 100~240VAC 50/60Hz (Rear panel)
          Max Power Consumption 16 W
          Certificates FCC Class A,
          CE,
          BSMI,
          Safety Compliance (CB/UL)
          Warranty period 3 years
          Manufacturer Edge-core
          EDGE-CORE
          Managed switch, 8x 10/100/1000 RJ-45, 2x 100/1000 SFP, 2x Combo Gigabit, 19" (Edge-core ECS4100-12T)
          for special orders only
          Net Price: 279.00 USD
          product card»
          #09361

          Managed Switch, 20x 100/1000BASE-X SFP, 4x Combo Gigabit (RJ-45/SFP), 4x SFP+ 10G (Edge-corE ECS4120-28FV2)

          • 8 x RJ-45 2.5G/1000M ports, 2 x SFP+ 10G Uplink ports zprovide high connection speeds
          • Static Routing: Allows you to route network traffic for efficient use of network resources.
          • Management: Web, CLI (port konsolowy), SNMP
          • ecCloud Management
          Standards IEEE 802.3ae changeable (10GBASE-SR/LR),
          IEEE 802.3z (1000BASE-SX/LX) transceivers,
          10G DAC/AOC
          Ports 8x RJ-45 2.5G/1000M Ports
          SFP Ports SFP+ 10 Gigabit Uplink Ports
          Additional Ports GE Out-of-Band Management Port,
          RJ-45 Console Port
          Quality of Service 8 hardware queues per port,
          Traffic classification,
          DSCP,
          IEEE 802.1p CoS,
          IP Precedence,
          DSCP, MAC Access control list ( Source/Destination MAC,
          Ether type,
          Priority ID/ VLAN ID ),
          IP standard access control list (Source IP),
          IP extended access control list (Source/Destination IP,
          Protocol,
          TCP/UDP port number),
          Traffic Scheduling,
          Strict Priority,
          Weighted Round Robin,
          Strict + WRR,
          Ingress policy map (police rate,
          remark CoS),
          Egress policy map (police rate,
          remark CoS/DSCP),
          Rate Limiting (Ingress and Egress,
          per port base),
          GE Resolution 64Kbps ~ 1,000Mbps,
          Auto Traffic Control
          Functions L2 and L2+ Tri-speed (10/100/1000BASE-T) copper interfaces,
          Auto-negotiation for port speed and duplex mode,
          Auto MDI/MDI-X, 100M/1G fiber interface,
          100M/1G fiber interfaces,
          SFP+ Ports Support,
          IEEE 802.3ae changeable (10GBASE-SR/LR/ZR/ER),
          Digital Diagnostic Monitoring (DDM) on port 10G SFP+ i 1G SFP,
          Flow Control,
          IEEE 802.3x for full-duplex mode,
          Back-Pressure for half-duplex mode,
          Broadcast/Multicast/ Unknown Unicast Storm Control,
          Spanning Tree Protocol (STP),
          IEEE 802.1D,
          IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),
          IEEE 802.1s Multiple Spanning Tree Protocol,
          Bridge Protocol Data Unit (BPDU),
          Filtrating/Protect,
          Root Guard,
          BPDU transparent,
          Non-Spanning Tree Loopback detection,
          ITU-T G.8032 Ethernet Ring Protection,
          Revertive operation mode,
          Multiple-ring network,
          Traffic Segmentation,
          L2 Virtual Private VLAN,
          L2 Protocol tunneling (xSTP,
          CDP,
          VTP and PVST+,
          LLDP),
          CDP/PVST+ Filtering,
          Link Aggregation,
          Static Trunk,
          IEEE 802.3ad Link Aggregation Control Protocol,
          IGMP Snooping,
          IGMP v1/v2/v3 snooping,
          IGMP Proxy reporting,
          IGMP Filtering,
          IGMP Throttling,
          IGMP Immediate Leave,
          IGMP Querier,
          IGMP mrouter-forward mode,
          IGMP router-alert-option-check,
          IGMP router-port-expire-time,
          IGMP tcn-flood,
          IGMP tcn-query-solicit,
          IGMP unregistered-data-flood
          VLAN Support 4K VLAN,
          Port-based VLAN,
          IEEE 802.1Q VLAN,
          IEEE 802.1v Protocol-based VLAN,
          GVRP,
          IP Subnet-based VLAN,
          MVR,
          MAC-based VLAN
          IPv6 Support IPv4/IPv6 dual protocol stack,
          IPv6 Address Types Stack Unicast,
          SNMP over IPv6,
          IPv6 Neighbor Discovery,
          HTTP over IPv6,
          SNMP over IPv6,
          IPv6 TFTP support,
          TACACS IPv6,
          wsparcie IPv6 TFTP,
          HTTP over IPv6
          Safe Remote port mirror (RSPAN),
          Port mirroring,
          SSH for security Telnet,
          Autoryzaca MAC,
          Autoryzacja WEB,
          Dynamiczne przypisywanie VLAN,
          Auto QoS,
          SSL dla HTTPS
          Managment Firmware upgrade (TFTP/HTTP/FTP/SFTP),
          Configuration file upload/download (TFTP/HTTP/FTP/SFTP),
          SNTP,
          mDNS,
          SNMP v1,
          v2c,
          v3,
          DHCP dynamic provision option66,67,
          Syslog,
          wsparcie LLDP,
          sFlow v4,
          v5,
          DNS client,
          RMON (groups 1, 2, 3 and 9),
          BOOTP
          Switching Capacity[Gbps] 128
          Routing IP interface IPv4/v6 256/128 (Shared),
          IPv4/IPv6 Static Route,
          Host route IPv4/v6 4K/2K,
          Net route IPv4/v6 512/128,
          DHCP Server,
          RIP v1/v2
          MAC Address Table Size 16K
          Jumbo Frames 9KB
          Rack Space Rack 19"
          Dimension[cm] 44 x 22 x 4.4
          Storage Temperature -40°C ÷ 70°C
          Operating Temperature 0°C ÷ 50°C
          Humidity 10% ÷ 90%,
          (non-condensing)
          Power Supply input,
          100-240 VAC,
          50-60 Hz
          Maximum System Power Consuption 60W
          Certyfikation FCC Class A,
          CE,
          Safety Compilance CB,
          UL
          Manufacter Edge-core
          EDGE-CORE
          Managed Switch, 20x 100/1000BASE-X SFP, 4x Combo Gigabit (RJ-45/SFP), 4x SFP+ 10G (Edge-corE ECS4120-28FV2)
          for special orders only
          Net Price: 891.00 USD
          product card»
          #09356

          Managed Switch, 24x 10/100/1000 RJ-45, 4 integrated 10G SFP+ ports, 19" (Edge-core ECS4150-28P)

          • 24× Gigabit RJ45 ports and 4× 10 Gigabit SFP+ ports provide high connection speeds.
          • Static Routing: Allows you to route network traffic for efficient use of network resources.
          • Management: Web, CLI (console port), SNMP
          • ecCloud Management
          Standards IEEE 802.3ae changeable (10GBASE-SR/LR),
          IEEE 802.3z (1000BASE-SX/LX) transceivers,
          10G DAC/AOC
          Ports 24x 10/100/1000 Mbps RJ-45
          SFP Ports 4x 10G SFP+
          Additional Ports RJ-45 Console Port,
          USB port
          Quality of Service 8 hardware queues per port,
          Traffic classification,
          IEEE 802.1p CoS,
          IP Precedence,
          DSCP, MAC Access control list ( Source/Destination MAC,
          Ether type,
          Priority ID/ VLAN ID ),
          IP standard access control list (Source IP),
          IP extended access control list (Source/Destination IP,
          Protocol,
          TCP/UDP port number),
          Traffic Scheduling,
          Strict Priority,
          Weighted Round Robin,
          Strict + WRR,
          Ingress policy map (police rate,
          remark CoS),
          Egress policy map (police rate,
          remark CoS/DSCP),
          Rate Limiting (Ingress and Egress,
          per port base),
          GE Resolution 64Kbps ~ 1,000Mbps,
          10G Resolution 64Kbps ~ 10,000Mbps,
          Auto Traffic Control
          Funcions L2 and L2+ 10/100/1000BASE-T copper interfaces,
          Auto-negotiation for port speed and duplex mode,
          Auto MDI/MDI-X,
          Dual-speed (1G and 10G) fiber interfaces,
          SFP+ Ports Support,
          IEEE 802.3ae changeable (10GBASE-SR/LR),
          IEEE 802.3z (1000BASE-SX/LX) transceivers,
          and 10G DAC/AOC,
          Digital Diagnostic Monitoring (DDM) na porcie 10G SFP+,
          Flow Control,
          IEEE 802.3x for full duplex mode,
          Back-Pressure for half duplex mode,
          Jumbo frames 10KB,
          Broadcast/Multicast/ Unknown Unicast Storm Control,
          IEEE 802.1D Spanning Tree Protocol (STP),
          IEEE 802.1D,
          IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),
          IEEE 802.1s Multiple Spanning Tree Protocol (MSTP,
          64 instances),
          Bridge Protocol Data Unit (BPDU),
          BPDU Guard, BPDU filtering,
          BPDU transparent,
          Root Guard,
          Non-Spanning Tree Loopback detection,
          ITU-T G.8032 Ethernet Ring Protection,
          Revertive operation mode,
          Multiple-ring network,
          Traffic Segmentation,
          L2 Virtual Private VLAN,
          Q-in-Q,
          L2 Protocol tunneling (xSTP,
          CDP,
          VTP and PVST+,
          LLDP),
          CDP/PVST+ Filtering,
          Link Aggregation,
          Static Trunk,
          IEEE 802.3ad Link Aggregation Control Protocol,
          IGMP Snooping,
          IGMP Authentication,
          IGMP v1/v2/v3 snooping,
          IGMP Proxy reporting,
          IGMP Filtering,
          IGMP Throttling,
          IGMP Immediate LeaveIGMP Querier,
          MVR,
          VLAN Mirror/Mac Based Mirror/ACL Mirror
          VLAN Support 4K VLAN,
          Port-based VLAN,
          IEEE 802.1Q VLAN, IEEE 802.1v Protocol-based VLAN,
          IP Subnet-based VLAN, MAC-based VLAN
          IPv6 Support IPv4/IPv6 dual protocol stack,
          SNMP over IPv6,
          IPv6 Syslog support,
          IPv6 TFTP support,
          HTTP over IPv6,
          SNMP over IPv6
          Security Remote port mirror (RSPAN),
          Port mirroring,
          SSH (v1.5/v2.0) for security Telnet,
          AutorMAC,
          Authentication WEB,
          Dynamic VLAN,
          SSL dla HTTPS
          Managment Firmware upgrade (TFTP/HTTP/FTP/SFTP),
          Configuration file upload/download (TFTP/HTTP/FTP/SFTP),
          SNTP,
          mDNS,
          SNMP v1,
          v2c,
          v3
          Switching Capacity[Gbps] 128
          MAC Address Table 16K
          Jumbo Frames 10KB
          Dimension 44 x 28 x 4.4 cm Storage
          Temperature -40°C ÷ 70°C
          Operating Temperature -5°C ÷ 45°C
          Humidity 5% ÷ 95%,
          Non-condensing
          Power Supply input,
          AC 100-240 VAC,
          50/60 Hz
          PoE 802.3af/at (30W PoE+) Max System Power
          Consumption 450 W
          Certification CW,
          FCC Class A,
          Safety Compliance CB (IEC/EN 62368-1) UL (CSA 22.2 No 62368-1 & UL62368-1)
          Producer Edge-corE
          EDGE-CORE
          Managed Switch, 24x 10/100/1000 RJ-45, 4 integrated 10G SFP+ ports, 19" (Edge-core ECS4150-28P)
          for special orders only
          Net Price: 779.00 USD
          product card»
          #09357

          Managed Switch, 24x 10/100/1000 RJ-45, 4 integrated 10G SFP+ ports, 19" (Edge-corE ECS4150-28T)

          • 24× Gigabit RJ45 ports and 4× 10 Gigabit SFP+ ports provide high connection speeds.
          • Static Routing: Allows you to route network traffic for efficient use of network resources.
          • Management: Web, CLI (console port), SNMP
          • ecCloud Management
          Standards IEEE 802.3ae changeable (10GBASE-SR/LR),
          IEEE 802.3z (1000BASE-SX/LX) transceivers,
          10G DAC/AOC
          Ports 24x 10/100/1000 Mbps RJ-45
          SFP Ports 4x 10G SFP+
          Additional Ports RJ-45 Console Port,
          USB port
          Quality of Service 8 hardware queues per port,
          Traffic classification,
          IEEE 802.1p CoS,
          IP Precedence,
          DSCP, MAC Access control list ( Source/Destination MAC,
          Ether type,
          Priority ID/ VLAN ID ),
          IP standard access control list (Source IP),
          IP extended access control list (Source/Destination IP,
          Protocol,
          TCP/UDP port number),
          Traffic Scheduling,
          Strict Priority,
          Weighted Round Robin,
          Strict + WRR,
          Ingress policy map (police rate,
          remark CoS),
          Egress policy map (police rate,
          remark CoS/DSCP),
          Rate Limiting (Ingress and Egress,
          per port base),
          GE Resolution 64Kbps ~ 1,000Mbps,
          10G Resolution 64Kbps ~ 10,000Mbps,
          Auto Traffic Control
          Funkcje L2 and L2+ 10/100/1000BASE-T copper interfaces,
          Auto-negotiation for port speed and duplex mode,
          Auto MDI/MDI-X,
          Dual-speed (1G and 10G) fiber interfaces,
          SFP+ Ports Support,
          IEEE 802.3ae changeable (10GBASE-SR/LR),
          IEEE 802.3z (1000BASE-SX/LX) transceivers,
          and 10G DAC/AOC,
          Digital Diagnostic Monitoring (DDM) na porcie 10G SFP+,
          Flow Control,
          IEEE 802.3x for full duplex mode,
          Back-Pressure for half duplex mode,
          Jumbo frames 10KB,
          Broadcast/Multicast/ Unknown Unicast Storm Control,
          IEEE 802.1D Spanning Tree Protocol (STP),
          IEEE 802.1D,
          IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),
          IEEE 802.1s Multiple Spanning Tree Protocol (MSTP,
          64 instances),
          Bridge Protocol Data Unit (BPDU),
          BPDU Guard, BPDU filtering,
          BPDU transparent,
          Root Guard,
          Non-Spanning Tree Loopback detection,
          ITU-T G.8032 Ethernet Ring Protection,
          Revertive operation mode,
          Multiple-ring network,
          Traffic Segmentation,
          L2 Virtual Private VLAN,
          Q-in-Q,
          L2 Protocol tunneling (xSTP,
          CDP,
          VTP and PVST+,
          LLDP),
          CDP/PVST+ Filtering,
          Link Aggregation,
          Static Trunk,
          IEEE 802.3ad Link Aggregation Control Protocol,
          IGMP Snooping,
          IGMP Authentication,
          IGMP v1/v2/v3 snooping,
          IGMP Proxy reporting,
          IGMP Filtering,
          IGMP Throttling,
          IGMP Immediate LeaveIGMP Querier,
          MVR,
          VLAN Mirror/Mac Based Mirror/ACL Mirror
          VLAN Support 4K VLAN,
          Port-based VLAN,
          IEEE 802.1Q VLAN, IEEE 802.1v Protocol-based VLAN,
          IP Subnet-based VLAN, MAC-based VLAN
          IPv6 Support IPv4/IPv6 dual protocol stack,
          SNMP over IPv6,
          IPv6 Syslog support,
          IPv6 TFTP support,
          HTTP over IPv6,
          SNMP over IPv6
          Security Remote port mirror (RSPAN),
          Port mirroring,
          SSH (v1.5/v2.0) for security Telnet,
          AutorMAC,
          Authentication WEB,
          Dynamic VLAN,
          SSL dla HTTPS
          Managment Firmware upgrade (TFTP/HTTP/FTP/SFTP),
          Configuration file upload/download (TFTP/HTTP/FTP/SFTP),
          SNTP,
          mDNS,
          SNMP v1,
          v2c,
          v3
          Switching Capacity[Gbps] 128
          MAC Address Table 16K
          Jumbo Frames 10KB
          Dimension 44 x 28 x 4.4 cm
          Storage Temperature -40°C ÷ 70°C
          Operating Temperature -5°C ÷ 45°C
          Humidity 5% ÷ 95%,
          Non-condensing
          Power Supply input,
          AC 100-240 VAC,
          50/60 Hz
          Max System Power Consumption 450 W
          Certification CW,
          FCC Class A,
          Safety Compliance CB (IEC/EN 62368-1) UL (CSA 22.2 No 62368-1 & UL62368-1)
          Producer Edge-core
          EDGE-CORE
          Managed Switch, 24x 10/100/1000 RJ-45, 4 integrated 10G SFP+ ports, 19" (Edge-corE ECS4150-28T)
          for special orders only
          Net Price: 444.00 USD
          product card»
          #09350

          Managed switch, 48x 10/100/1000 RJ-45, 4 integrated 10G SFP ports, 19" (Edge-corE ECS2100-52T)

          • Full Gigabit Ports: 48x gigabit RJ45 ports and 4 10gigabit SFP ports provide high-speed connections.
          • Static Routing: Helps route internal traffic for more efficient use of network resources.
          • Management: Web, CLI (console port), SNMP
          • ecCloud Management
          Standards IEEE 802.3 10Base-T,
          IEEE802.3ab 100Base-T,
          IEEE802.3u 100Base-TX
          Copper ports 48x 10/100/1000 Mbps RJ-45
          SFP ports 4x 1G SFP
          Additional ports 1× RJ45 Console Port
          Software features
          Quality of Service Rate Limiting (Ingress/Egress Port-Based) 64 Kbps - 1000 Mbps Resolution 16 Kbps,
          Priority Queues Schedule (WRR/Strict Priority/Hybrid QoS),
          Port-Based QoS,
          IPv4/IPv6 DSCP,
          DiffServ,
          Auto VoIP,
          8 HW Queues per port,
          Dynamic QoS
          L2 and L2+ Features Digital Diagnostic Monitoring (DDM) on 1G SFP port,
          IEEE 802.3x for full-duplex mode,
          Back-pressure for half-duplex mode,
          IEEE 802.1D Spanning Tree Protocol (STP),
          IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),
          IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP,
          64 instances),Loopback Detection,
          Bridge Protocol Data Unit (BPDU) Filter/Guard,
          Bridge Protocol Data Unit (BPDU) Forward,
          Root Guard,
          Static Trunk,
          IEEE 802.3ad(802.1ax) Link Aggregation Control Protocol (LACP),
          IGMP v1/v2/v3 snooping,
          IGMP Filtering/Throttling,
          IGMP Queries,
          IGMP Immediate leave,
          MLD Snooping,
          LLDP/LLDP-MED,
          Green-Saving IEEE 802.3az/Cable Length/No Link Power-Saving,
          Jumbo Frame 10 K,
          Cable Diagnostic, Q-in-Q,
          mDNS,
          IP Clustering (Soſtware Stacking)
          L3 Features Static Routing
          VLAN Supports 4K IEEE 802.1Q VLANs,
          Port-Based/MAC-Based/IEEE802.1v (Protocol-Based VLAN),
          Guest VLAN,
          Auto Voice VLAN
          IPv6 Support IPv4/IPv6 Dual Protocol Stack,
          IPv6 Management,
          IPv6 Ping/Trace,
          IPv6 Telnet,
          IPv6 Syslog,
          IPv6 TFTP,
          HTTP over IPv6,
          SNMP over IPv6
          Security DDOS Protection,
          CPU Guard (CPU Protection),
          Port Isolation,
          Port Mirror (One to One,
          One to Many),
          Remote Mirror,
          Storm Control,
          Broadcast/Multicast/Unknown Storm Control,
          IEEE 802.1X,
          ACL Ingress Only L2/L3/L4 ACL entry 512 IPv4/IPv6 TCP/UDP-Based,
          MAC-Based ACL,
          Port Security,
          MAC Filter,
          MAC Authentication,
          Port max count per port,
          Dynamic VLAN Assignment,
          Dynamic ARP Inspection,
          AAA (RADIUS/TACACS+),
          IP Source Guard,
          SSH v1.5/v2.0,
          SSL v1/v2/v3,
          SSL IPv4/IPv6,
          SFlow 10T/P/PE/28T/28P/28PP Trace on port -Ingress only 52T trace multi port,
          Web Authentication
          Management
          Management Features System password protection,
          NTP/SNTP,
          Dual Image/Configuration,
          Configuration upload/download (HTTP/TFTP/FTP/SFTP),
          Firmware upload/download (HTTP/TFTP/FTP/SFTP),
          Auto Firmware Upgrade,
          RMON (groups 1,2,3 and 9),
          SNMP Trap,
          SNMP v1/v2c/v3,
          SNMP Standard/Private MIB,
          Management Access (Console/SNMP/Web /Telnet ),
          Memory Flash Log,
          Event/Error Log/Syslog,
          DHCP v4/v6 Client//DHCP Snooping,
          DHCP Snooping Option82,
          Dynamic Provision (via Option 66,67),
          DHCP Relay v4 (v6),
          Port Mirroring (One to One) TX/RX (both),
          DNS Client without DNS proxy
          Switching capacity [Gbps] 104
          Packet Forwarding Rate 77.4 Mpps
          MAC Address Table 16K
          Jumbo Frame 10 KB
          Housing / case type Rack Mountable
          Dimensions 17.3 × 8.6 × 1.7 in (440 × 220 × 44 mm)
          Operating temperature 0°C ÷ 50°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power internal,
          100~240VAC 50/60Hz
          Max Power Consumption 40 W
          Certificates CE,
          FCC
          Warranty period 3 years
          Manufacturer Edge-core
          EDGE-CORE
          Managed switch, 48x 10/100/1000 RJ-45, 4 integrated 10G SFP ports, 19" (Edge-corE ECS2100-52T)
          Net Price: 582.00 USD
          product card»
          #09360

          Managed Switch, 8x RJ-45 2.5G/1000M, 2x SFP+ 10G (Edge-corE ECS4125-10P)

          • 8 ports RJ-45 2.5G/1000M, 2 porty SFP+ 10G Uplink provide high connection speeds.
          • Static Routing: It allows you to route network traffic for efficient use of network resources.
          • Zarz±dzanie: Web, CLI (console port), SNMP
          • ecCloud Management
          Standards IEEE 802.3ae changeable (10GBASE-SR/LR),
          IEEE 802.3z (1000BASE-SX/LX) transceivers,
          10G DAC/AOC
          Ports 8x RJ-45 2.5G/1000M Ports
          SFP ports SFP+ 10 Gigabit Uplink Ports
          Additional porty RJ-45 Console Port
          Quality of Service 8 hardware queues per port,
          Traffic classification,
          IEEE 802.1p CoS,
          IP Precedence,
          DSCP, MAC Access control list ( Source/Destination MAC,
          Ether type,
          Priority ID/ VLAN ID ),
          IP standard access control list (Source IP),
          IP extended access control list (Source/Destination IP,
          Protocol,
          TCP/UDP port number),
          Traffic Scheduling,
          Strict Priority,
          Weighted Round Robin,
          Strict + WRR,
          Ingress policy map (police rate,
          remark CoS),
          Egress policy map (police rate,
          remark CoS/DSCP),
          Rate Limiting (Ingress and Egress,
          per port base),
          GE Resolution 64Kbps ~ 1,000Mbps,
          10G Resolution 64Kbps ~ 10,000Mbps,
          Auto Traffic Control
          Funkcje L2 and L2+ 2.5G/1G BASE-T copper interfaces,
          Auto-negotiation for port speed and duplex mode,
          Auto MDI/MDI-X,
          Dual-speed (1G and 10G) fiber interfaces,
          SFP+ Ports Support,
          IEEE 802.3ae changeable (10GBASE-SR/LR),
          IEEE 802.3z (1000BASE-SX/LX) transceivers,
          Digital Diagnostic Monitoring (DDM) na porcie 10G SFP+,
          Flow Control,
          IEEE 802.3x dla trybu full-duplex,
          Back-Pressure dla trybu half-duplex,
          Broadcast/Multicast/ Unknown Unicast Storm Control,
          Spanning Tree Protocol(STP),
          IEEE 802.1D,
          IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),
          IEEE 802.1s Multiple Spanning Tree Protocol,
          Bridge Protocol Data Unit (BPDU),
          Filtrowanie/Ochrona,
          Ochrona Root,
          BPDU transparent,
          Non-Spanning Tree Loopback detection,
          ITU-T G.8032 Ethernet Ring Protection,
          Revertive operation mode,
          Multiple-ring network,
          Traffic Segmentation,
          L2 Virtual Private VLAN,
          L2 Protocol tunneling (xSTP,
          CDP,
          VTP and PVST+,
          LLDP),
          CDP/PVST+ Filtering,
          Link Aggregation,
          Static Trunk,
          IEEE 802.3ad Link Aggregation Control Protocol,
          IGMP Snooping,
          IGMP Authentication,
          IGMP v1/v2/v3 snooping,
          IGMP Proxy reporting,
          Filtering IGMP,
          IGMP Throttling,
          IGMP Immediate LeaveIGMP Querier
          VLAN Support 4K VLAN,
          Port-based VLAN,
          IEEE 802.1Q VLAN, IEEE 802.1v Protocol-based VLAN,
          GVRP,
          IP Subnet-based VLAN,
          MAC-based VLAN,
          MVR,
          MAC-based VLAN
          IPv6 Support IPv4/IPv6 dual protocol stack,
          IPv6 Address Types Stack- Unicast,
          SNMP over IPv6,
          HTTP over IPv6,
          SNMP over IPv6,
          IPv6 TFTP support
          Safety Remote port mirror (RSPAN),
          Port mirroring,
          SSH for security Telnet,
          Authentication MAC,
          Authentication WEB,
          Dynamic VLAN,
          Auto QoS,
          SSL for HTTPS
          Manament Firmware upgrade (TFTP/HTTP/FTP/SFTP),
          Configuration file upload/download (TFTP/HTTP/FTP/SFTP),
          SNTP,
          mDNS,
          SNMP v1,
          v2c,
          v3, RMON,
          DHCP dynamic provision option (66,67),
          Syslog,
          Support LLDP,
          sFlow v4,
          v5
          Switching Capacity[Gbps] 80
          MAC Address Table 32K
          Jumbo frames 12KB
          Dimension[cm] 33 x 20.8 x 4.4
          Temperature(Non-Operating) -40°C ÷ 70°C
          Standard operating temperature 0°C ÷ 50°C
          Humidity 10% ÷ 90%,
          non-condesing
          Power Supply input,
          100-240 VAC,
          50-60 Hz
          PoE PoE++ based on IEEE 802.3bt (60 W),
          PoE+ based on IEEE 802.3at/ 802.3af
          PoE Power Budget 240 W
          Max System Power Consuption 279W (with 100% PoE)
          Certyfikation FCC Class A,
          CE,
          Safety Compilance- CB,
          UL,
          VCCI/BSMI/UKCA
          Manufacturer Edge-core
          EDGE-CORE
          Managed Switch, 8x RJ-45 2.5G/1000M, 2x SFP+ 10G (Edge-corE ECS4125-10P)
          for special orders only
          Net Price: 667.00 USD
          product card»

top

Page 2 of 2
