MENU#09357

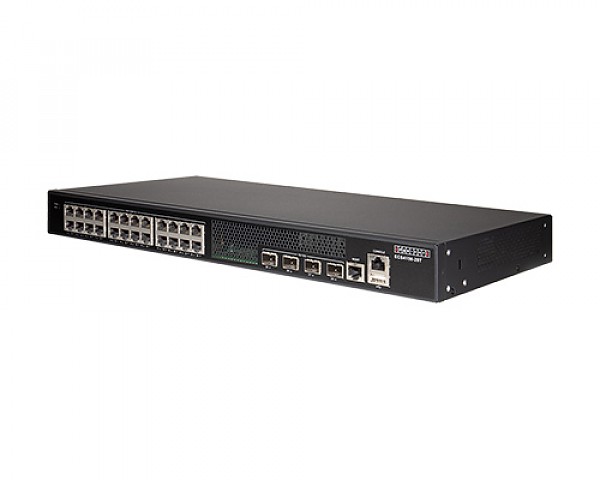

Managed Switch, 24x 10/100/1000 RJ-45, 4 integrated 10G SFP+ ports, 19" (Edge-corE ECS4150-28T)
- 24× Gigabit RJ45 ports and 4× 10 Gigabit SFP+ ports provide high connection speeds.
- Static Routing: Allows you to route network traffic for efficient use of network resources.
- Management: Web, CLI (console port), SNMP
- ecCloud Management
| Standards | IEEE 802.3ae changeable (10GBASE-SR/LR), IEEE 802.3z (1000BASE-SX/LX) transceivers, 10G DAC/AOC |
|---|---|
| Ports | 24x 10/100/1000 Mbps RJ-45 |
| SFP Ports | 4x 10G SFP+ |
| Additional Ports | RJ-45 Console Port, USB port |
| Quality of Service | 8 hardware queues per port, Traffic classification, IEEE 802.1p CoS, IP Precedence, DSCP, MAC Access control list ( Source/Destination MAC, Ether type, Priority ID/ VLAN ID ), IP standard access control list (Source IP), IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number), Traffic Scheduling, Strict Priority, Weighted Round Robin, Strict + WRR, Ingress policy map (police rate, remark CoS), Egress policy map (police rate, remark CoS/DSCP), Rate Limiting (Ingress and Egress, per port base), GE Resolution 64Kbps ~ 1,000Mbps, 10G Resolution 64Kbps ~ 10,000Mbps, Auto Traffic Control |
| Funkcje L2 and L2+ | 10/100/1000BASE-T copper interfaces, Auto-negotiation for port speed and duplex mode, Auto MDI/MDI-X, Dual-speed (1G and 10G) fiber interfaces, SFP+ Ports Support, IEEE 802.3ae changeable (10GBASE-SR/LR), IEEE 802.3z (1000BASE-SX/LX) transceivers, and 10G DAC/AOC, Digital Diagnostic Monitoring (DDM) na porcie 10G SFP+, Flow Control, IEEE 802.3x for full duplex mode, Back-Pressure for half duplex mode, Jumbo frames 10KB, Broadcast/Multicast/ Unknown Unicast Storm Control, IEEE 802.1D Spanning Tree Protocol (STP), IEEE 802.1D, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IEEE 802.1s Multiple Spanning Tree Protocol (MSTP, 64 instances), Bridge Protocol Data Unit (BPDU), BPDU Guard, BPDU filtering, BPDU transparent, Root Guard, Non-Spanning Tree Loopback detection, ITU-T G.8032 Ethernet Ring Protection, Revertive operation mode, Multiple-ring network, Traffic Segmentation, L2 Virtual Private VLAN, Q-in-Q, L2 Protocol tunneling (xSTP, CDP, VTP and PVST+, LLDP), CDP/PVST+ Filtering, Link Aggregation, Static Trunk, IEEE 802.3ad Link Aggregation Control Protocol, IGMP Snooping, IGMP Authentication, IGMP v1/v2/v3 snooping, IGMP Proxy reporting, IGMP Filtering, IGMP Throttling, IGMP Immediate LeaveIGMP Querier, MVR, VLAN Mirror/Mac Based Mirror/ACL Mirror |
| VLAN | Support 4K VLAN, Port-based VLAN, IEEE 802.1Q VLAN, IEEE 802.1v Protocol-based VLAN, IP Subnet-based VLAN, MAC-based VLAN |
| IPv6 Support | IPv4/IPv6 dual protocol stack, SNMP over IPv6, IPv6 Syslog support, IPv6 TFTP support, HTTP over IPv6, SNMP over IPv6 |
| Security | Remote port mirror (RSPAN), Port mirroring, SSH (v1.5/v2.0) for security Telnet, AutorMAC, Authentication WEB, Dynamic VLAN, SSL dla HTTPS |
| Managment | Firmware upgrade (TFTP/HTTP/FTP/SFTP), Configuration file upload/download (TFTP/HTTP/FTP/SFTP), SNTP, mDNS, SNMP v1, v2c, v3 |
| Switching Capacity[Gbps] | 128 |
| MAC Address Table | 16K |
| Jumbo Frames | 10KB |
| Dimension | 44 x 28 x 4.4 cm |
| Storage Temperature | -40°C ÷ 70°C |
| Operating Temperature | -5°C ÷ 45°C |
| Humidity | 5% ÷ 95%, Non-condensing |
| Power Supply | input, AC 100-240 VAC, 50/60 Hz |
| Max System Power Consumption | 450 W |
| Certification | CW, FCC Class A, Safety Compliance CB (IEC/EN 62368-1) UL (CSA 22.2 No 62368-1 & UL62368-1) |
| Producer | Edge-core |
| * For special orders only
Net Price: 444.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
