MENU#09360

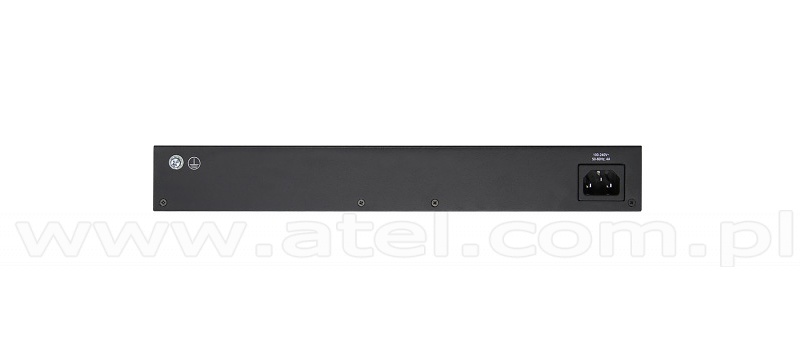

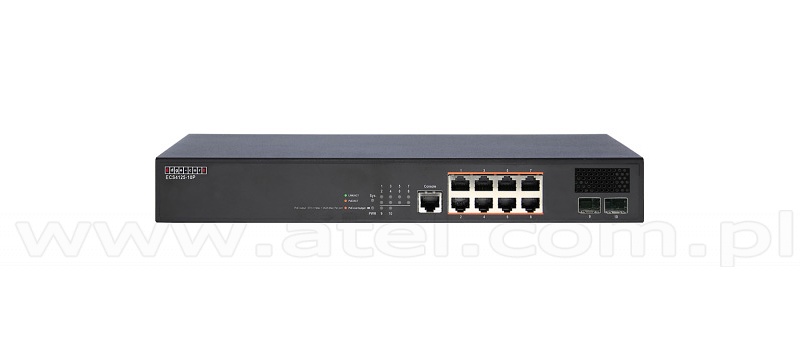

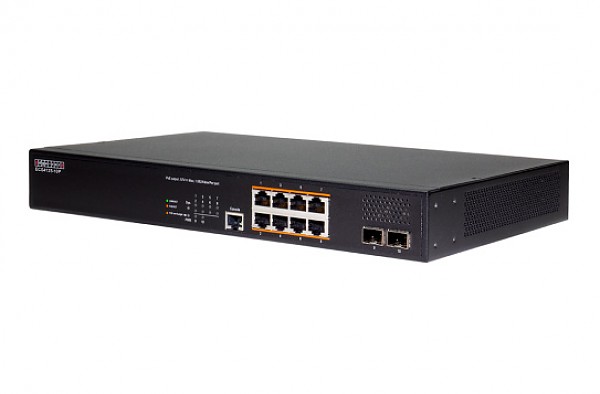

Managed Switch, 8x RJ-45 2.5G/1000M, 2x SFP+ 10G (Edge-corE ECS4125-10P)
- 8 ports RJ-45 2.5G/1000M, 2 porty SFP+ 10G Uplink provide high connection speeds.
- Static Routing: It allows you to route network traffic for efficient use of network resources.
- Zarządzanie: Web, CLI (console port), SNMP
- ecCloud Management
| Standards | IEEE 802.3ae changeable (10GBASE-SR/LR), IEEE 802.3z (1000BASE-SX/LX) transceivers, 10G DAC/AOC |
|---|---|
| Ports | 8x RJ-45 2.5G/1000M Ports |
| SFP ports | SFP+ 10 Gigabit Uplink Ports |
| Additional porty | RJ-45 Console Port |
| Quality of Service | 8 hardware queues per port, Traffic classification, IEEE 802.1p CoS, IP Precedence, DSCP, MAC Access control list ( Source/Destination MAC, Ether type, Priority ID/ VLAN ID ), IP standard access control list (Source IP), IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number), Traffic Scheduling, Strict Priority, Weighted Round Robin, Strict + WRR, Ingress policy map (police rate, remark CoS), Egress policy map (police rate, remark CoS/DSCP), Rate Limiting (Ingress and Egress, per port base), GE Resolution 64Kbps ~ 1,000Mbps, 10G Resolution 64Kbps ~ 10,000Mbps, Auto Traffic Control |
| Funkcje L2 and L2+ | 2.5G/1G BASE-T copper interfaces, Auto-negotiation for port speed and duplex mode, Auto MDI/MDI-X, Dual-speed (1G and 10G) fiber interfaces, SFP+ Ports Support, IEEE 802.3ae changeable (10GBASE-SR/LR), IEEE 802.3z (1000BASE-SX/LX) transceivers, Digital Diagnostic Monitoring (DDM) na porcie 10G SFP+, Flow Control, IEEE 802.3x dla trybu full-duplex, Back-Pressure dla trybu half-duplex, Broadcast/Multicast/ Unknown Unicast Storm Control, Spanning Tree Protocol(STP), IEEE 802.1D, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IEEE 802.1s Multiple Spanning Tree Protocol, Bridge Protocol Data Unit (BPDU), Filtrowanie/Ochrona, Ochrona Root, BPDU transparent, Non-Spanning Tree Loopback detection, ITU-T G.8032 Ethernet Ring Protection, Revertive operation mode, Multiple-ring network, Traffic Segmentation, L2 Virtual Private VLAN, L2 Protocol tunneling (xSTP, CDP, VTP and PVST+, LLDP), CDP/PVST+ Filtering, Link Aggregation, Static Trunk, IEEE 802.3ad Link Aggregation Control Protocol, IGMP Snooping, IGMP Authentication, IGMP v1/v2/v3 snooping, IGMP Proxy reporting, Filtering IGMP, IGMP Throttling, IGMP Immediate LeaveIGMP Querier |
| VLAN | Support 4K VLAN, Port-based VLAN, IEEE 802.1Q VLAN, IEEE 802.1v Protocol-based VLAN, GVRP, IP Subnet-based VLAN, MAC-based VLAN, MVR, MAC-based VLAN |
| IPv6 Support | IPv4/IPv6 dual protocol stack, IPv6 Address Types Stack- Unicast, SNMP over IPv6, HTTP over IPv6, SNMP over IPv6, IPv6 TFTP support |
| Safety | Remote port mirror (RSPAN), Port mirroring, SSH for security Telnet, Authentication MAC, Authentication WEB, Dynamic VLAN, Auto QoS, SSL for HTTPS |
| Manament | Firmware upgrade (TFTP/HTTP/FTP/SFTP), Configuration file upload/download (TFTP/HTTP/FTP/SFTP), SNTP, mDNS, SNMP v1, v2c, v3, RMON, DHCP dynamic provision option (66,67), Syslog, Support LLDP, sFlow v4, v5 |
| Switching Capacity[Gbps] | 80 |
| MAC Address Table | 32K |
| Jumbo frames | 12KB |
| Dimension[cm] | 33 x 20.8 x 4.4 |
| Temperature(Non-Operating) | -40°C ÷ 70°C |
| Standard operating temperature | 0°C ÷ 50°C |
| Humidity | 10% ÷ 90%, non-condesing |
| Power Supply | input, 100-240 VAC, 50-60 Hz |
| PoE | PoE++ based on IEEE 802.3bt (60 W), PoE+ based on IEEE 802.3at/ 802.3af |
| PoE Power Budget | 240 W |
| Max System Power Consuption | 279W (with 100% PoE) |
| Certyfikation | FCC Class A, CE, Safety Compilance- CB, UL, VCCI/BSMI/UKCA |
| Manufacturer | Edge-core |
| * For special orders only
Net Price: 667.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
