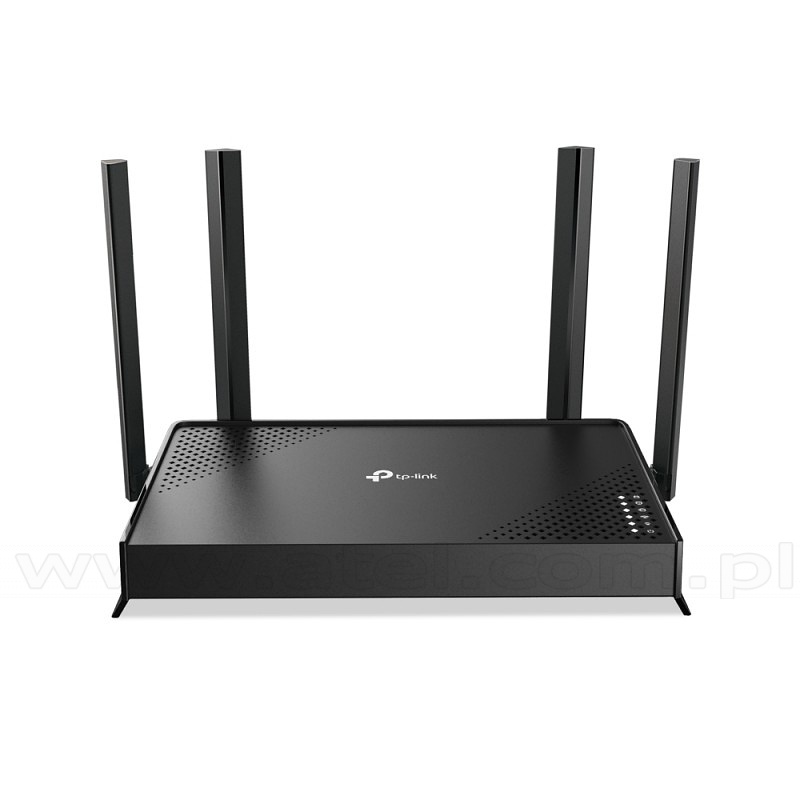

HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/b/g/n 2.4GHz, Wi-Fi 6 |
Interface |
3 10/100/1000Mbps LAN Ports, 1 1G/100Mbps WAN Port |
Button | WPS/Reset Button |
Dimensions (W X D X H) | 8.2 × 6.8 × 1.6 in (208.8 × 171.6 × 41.7 mm) |
Antenna | 4× 5 dBi Fixed Omni-Directional Antennas |
WIRELESS FEATURES: | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5 GHz@ 1201 Mbps (802.11ax), 2.4 GHz@ 574 Mbps (802.11ax) |
Wireless Functions |
Enable/Disable Wireless Radio, WMM |
Wireless Security | WPA-PSK / WPA2-PSK/ WPA3 |
SOFTWARE FEATURES: | |
WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, DHCP Client List |
NAT Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ |
Firewall Security |
SPI Firewall, IP and MAC Address Binding |
Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
VPN Passthrough |
OpenVPN, PPTP supported |
OTHERS: | |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
HARDWARE FEATURES: | |
---|---|
Interface | PCI Express x1 |
Antenna Type |
Two High-Gain Dual Band Antennas, Magnetized Antenna Base |
Chipset | Intel Wi-Fi 6 Chipset |
WIRELESS FEATURES: | |
Wireless Standards |
5 GHz@ IEEE 802.11ax/ac/n/a, 2,4 GHz@ IEEE 802.11ax/n/g/b, Bluetooth 5.0/4.2/4.0 |
Frequency |
2.4-2.4835GHz, 5.180-5.240GHz, 5.745-5.825GHz |
Signal Rate |
2402Mbps at 5GHz, 574Mbps at 2.4GHz |
EIRP |
5 GHz @ 27 dBm (FCC) / 23 dBm (CE) (EIRP), 2,4 GHz @ 26 dBm (FCC) / 20 dBm (CE) (EIRP) |
Wireless Modes | Infrastructure mode |
Wireless Security |
Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
OTHERS: | |
Dimensions | 3.7 x 4.8 x 0.8 in (95.2 x 120.8 x 21.5 mm) |
Certification |
CE, FCC, RoHS, Wi-Fi |
Package Contents |
Archer TX3000E, Magnetized Antenna Base with 1m RF Cable, Two 5 dBi High Gain Antennas, Low-Profile Bracket, Bluetooth Header Cable, Quick Installation Guide, Resource CD |
System Requirements |
Windows 7/8/8.1/10(32/64bits), Windows XP(32/64bits) |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 2 years limited warranty. Advanced replacement service is available. |
HARDWARE FEATURES: | |
---|---|
Interface | PCI Express x1 |
Antenna Type | Two High-Gain Dual Band Antennas |
Chipset | Intel Wi-Fi 6 Chipset |
WIRELESS FEATURES: | |
Wireless Standards |
5 GHz@ IEEE 802.11ax/ac/n/a, 2,4 GHz@ IEEE 802.11ax/n/g/b, Bluetooth 5.0/4.2/4.0 |
Frequency |
2.4-2.4835GHz, 5.180-5.240GHz, 5.745-5.825GHz |
Signal Rate |
2402Mbps at 5GHz, 574Mbps at 2.4GHz |
EIRP |
5 GHz @ 27 dBm (FCC) / 23 dBm (CE) (EIRP), 2,4 GHz @ 26 dBm (FCC) / 20 dBm (CE) (EIRP) |
Wireless Modes | Infrastructure mode |
Wireless Security |
Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
OTHERS: | |
Dimensions | 3.7 x 4.8 x 0.8 in (95.2 x 120.8 x 21.5 mm) |
Certification |
CE, FCC, RoHS, Wi-Fi |
Package Contents |
Archer TX50E, Two 5 dBi High Gain Antennas, Low-Profile Bracket, Bluetooth Header Cable, Quick Installation Guide, Resource CD |
System Requirements | Windows 10(64-bit) only |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 2 years limited warranty. Advanced replacement service is available. |

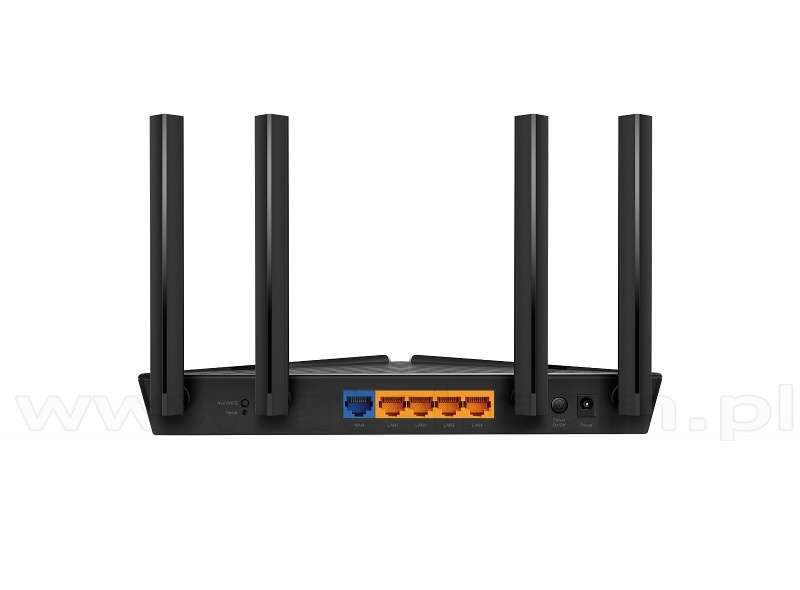

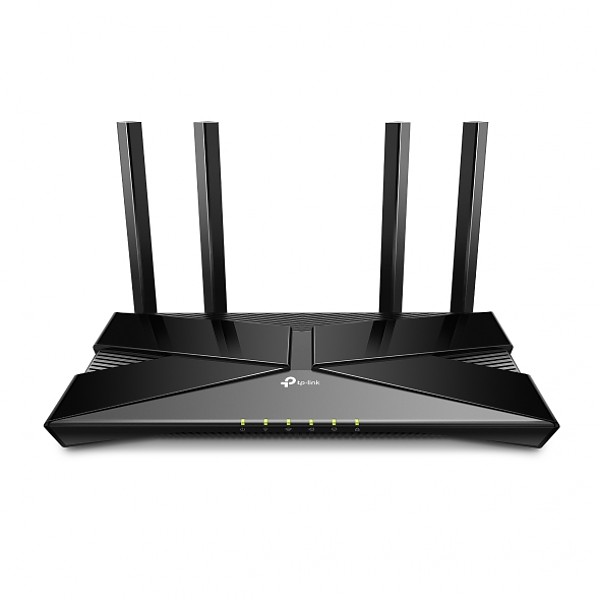

HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/b/g/n 2.4GHz, Wi-Fi 6 |
Interface |
4 10/100/1000Mbps LAN Ports, 1 1G/100Mbps WAN Port, 1 USB-A 3.0 Port |
Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button |
Power Supply | 12V/2A |
Dimensions (W X D X H) | 261.1 × 134.5 × 41.0 mm |
Antenna | 4 × External Antennas |
WIRELESS FEATURES: | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5 GHz@ 2402 Mbps (802.11ax), 2.4 GHz@ 574 Mbps (802.11ax) |
Wireless Functions |
Enable/Disable Wireless Radio, Guest Network, DFS, MU-MIMO, OFDMA |
Wireless Security |
WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) encryption |
SOFTWARE FEATURES: | |
WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
Quality of Service | Advanced Gaming Qos powered by TrendMicro |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, Comexe, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
Management |
Access Control, Local Management, Remote Management |
Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
OTHERS: | |
Certification |
CE, FCC, IC, RoHS |
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Manufacturer | TP-Link |
HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/b/g/n 2.4GHz, Wi-Fi 6 |
Interface |
3 10/100/1000Mbps LAN Ports, 1 1G/100Mbps WAN Port |
Button | WPS/Reset Button |
Dimensions (W X D X H) | 8.2 × 6.8 × 1.6 in (208.8 × 171.6 × 41.7 mm) |
Antenna | 4× 5 dBi Fixed Omni-Directional Antennas |
WIRELESS FEATURES: | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5 GHz@ 2402 Mbps (802.11ax), 2.4 GHz@ 574 Mbps (802.11ax) |
Wireless Functions |
Enable/Disable Wireless Radio, WMM |
Wireless Security | WPA-PSK / WPA2-PSK/ WPA3 |
SOFTWARE FEATURES: | |
WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, DHCP Client List |
NAT Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ |
Firewall Security |
SPI Firewall, IP and MAC Address Binding |
Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
VPN Passthrough |
OpenVPN, PPTP supported |
OTHERS: | |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Standards | IEEE 802.11ax/ac/n/g/b/a |
---|---|
Ports | 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE) |
Button | Reset |
Frequency range | 2.4GHz and 5GHz |
Signal Rate |
5GHz Up to 4804Mbps, 2.4GHz Up to 574Mbps |
EIRP |
CE <20 dBm(2,4 GHz, EIRP), <23 dBm(5 GHz, band1 & band2, EIRP), <30 dBm(5 GHz, , band3, EIRP), FCC <25 dBm (2,4 GHz), <28 dBm (5 GHz) |
Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
MANAGEMENT | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c |
System Logging Local/Remote Syslog | Local/Remote Syslog |
SSH | Yes |
Web-based Management | HTTP/HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
Antenna |
2 Dual-Band Antennas, 2.4GHz- 2*3.5dBi, 5GHz- 2*5dBi |
Dimensions | 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm) |
Power |
802.3at PoE, 12 V DC |
Power Consumption | 18,1 W |
Mounting |
Ceiling /Wall Mounting (Kits included), Junction Box Mounting |
Physical Security Lock | Yes |
Operating Temperature | 0°C~40°C (-32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Package Contents |
EAP670, Power Adapter, Ceiling/Wall Mounting Kits, Installation Guide |
System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
Certificates |
CE, FCC, RoHS |

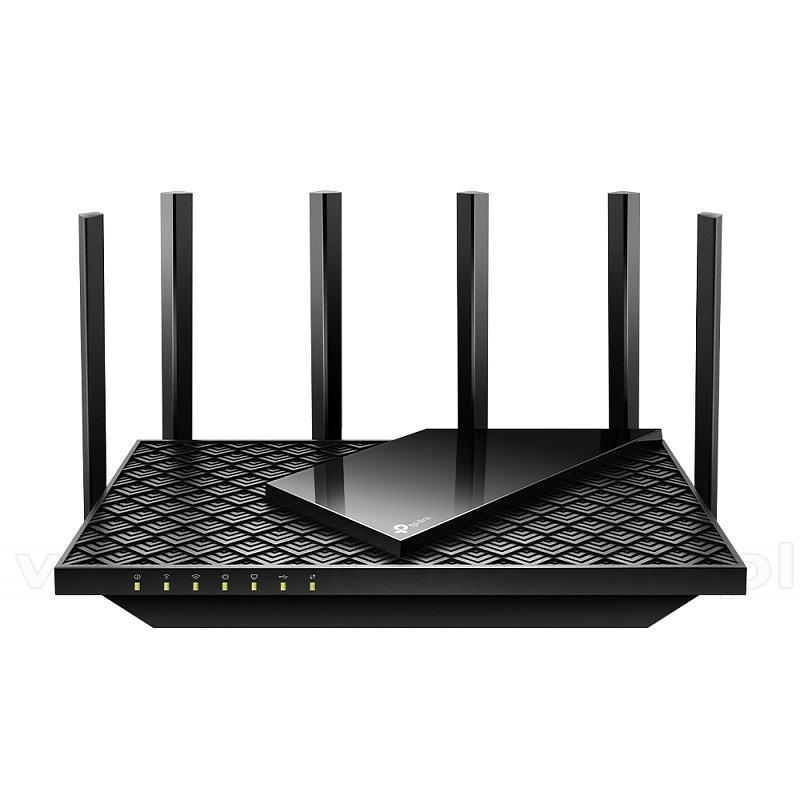

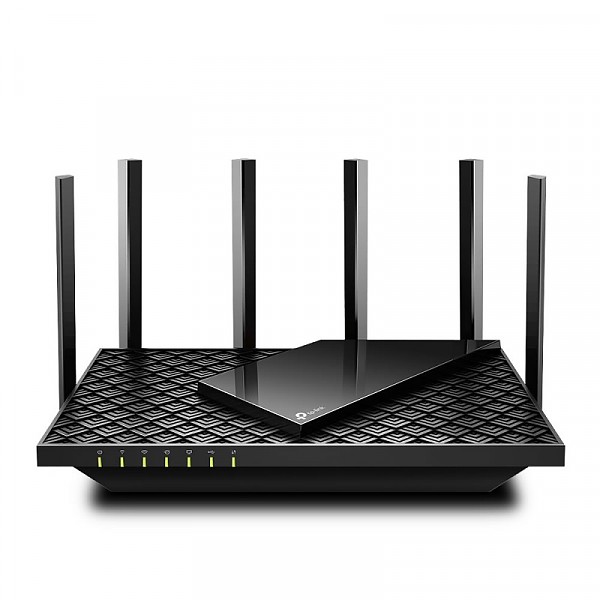

HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/b/g/n 2.4GHz, Wi-Fi 6 |
Interface |

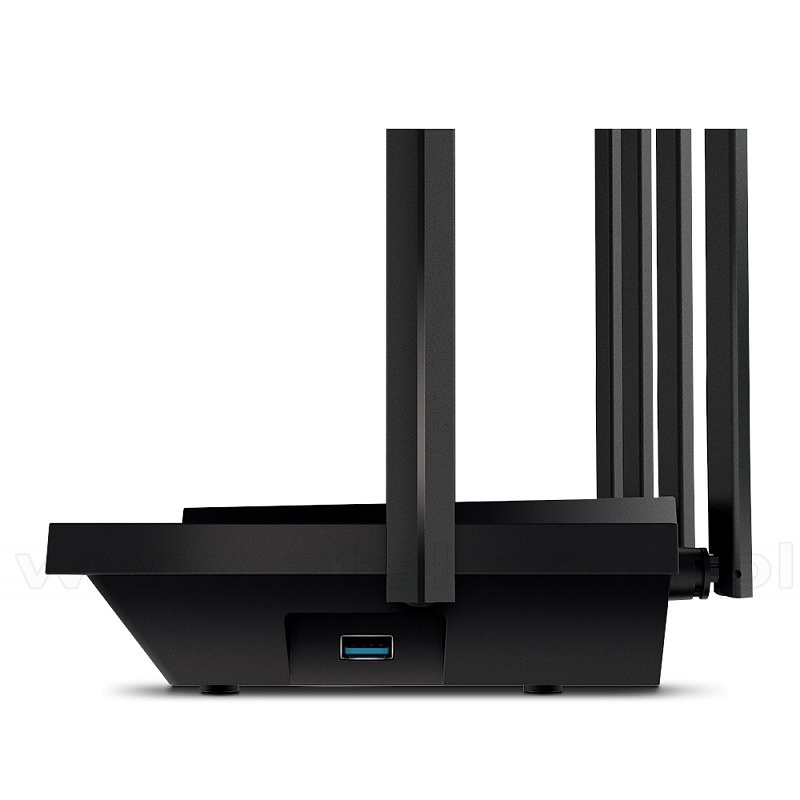

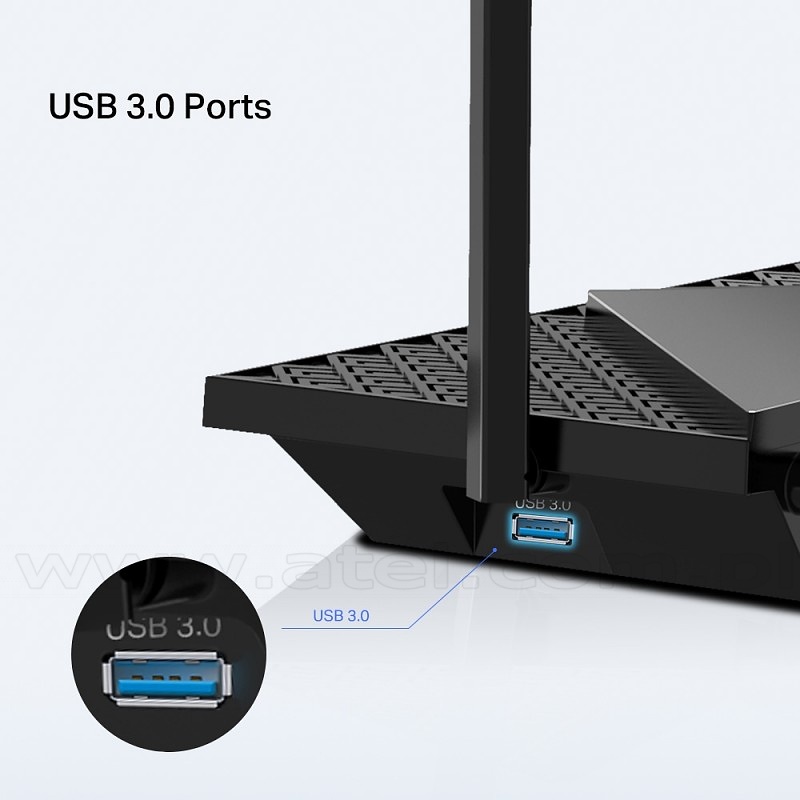

4 10/100/1000Mbps LAN Ports, 1 1G/100Mbps WAN Port, 1 USB 3.0 Port |
Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button, LED On/Off |
Power Supply | 12V/2.5A |
Dimensions (W X D X H) | 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm) |
Antenna | 6 × External Antennas |
WIRELESS FEATURES: | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5 GHz@ 4804 Mbps (802.11ax), 2.4 GHz@ 574 Mbps (802.11ax) |
Wireless Functions |
Enable/Disable Wireless Radio, Guest Network, DFS, MU-MIMO, OFDMA |
Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
SOFTWARE FEATURES: | |
WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
Quality of Service | Advanced Gaming Qos powered by TrendMicro |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, Comexe, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
Management |
Access Control, Local Management, Remote Management |
Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
USB Support | |
Supported Partition Formats |
NTFS, exFAT, HFS+, FAT32 |
Supported Functions |
Apple Time Machine, FTP Server, Media Server, Samba Server |
OTHERS: | |
Certification |
CE, FCC, IC, RoHS |
System Requirements |
Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8/8.1/10, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Manufacturer | TP-Link |

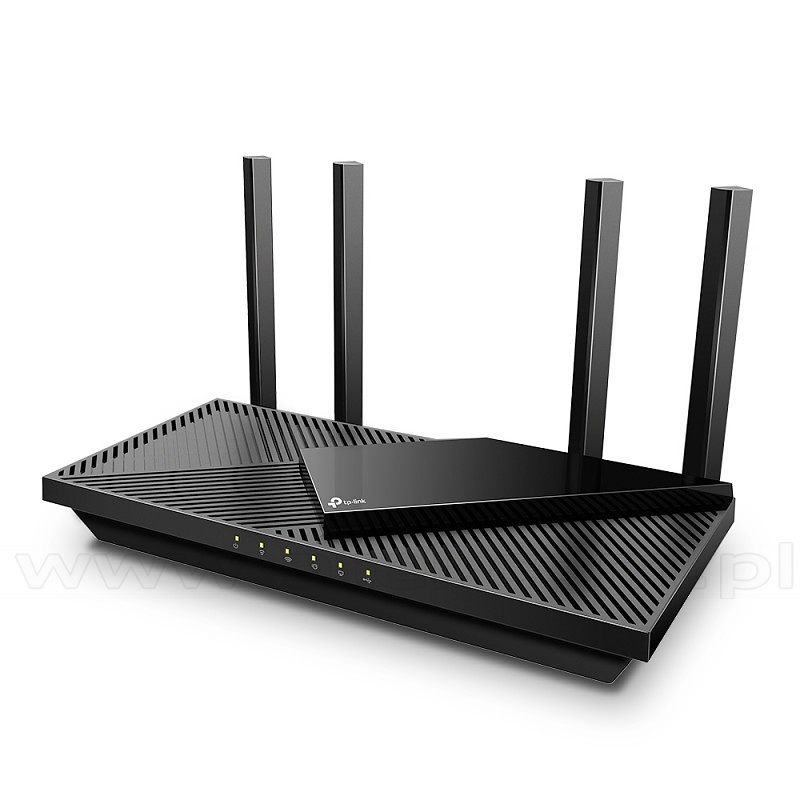

HARDWARE FEATURES: | |
---|---|
Processor | 1.5 GHz 64 bit Quad-Core CPU |
Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/b/g/n 2.4GHz, Wi-Fi 6 |
Interface |
3 10/100/1000Mbps LAN Ports, 1 2.5G/1G/100Mbps WAN Port, 1 USB 3.0 Port, 1 USB 2.0 Port |
Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button, LED On/Off |
Power Supply | 12V/5A |
Dimensions (W X D X H) | 8.3 × 8.3 × 2.0 in (212 × 212 × 51.8 mm) |
Antenna | 8× High-Performance External Antennas |
WIRELESS FEATURES: | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5 GHz@ 4804 Mbps (802.11ax), 5 GHz@ 1201 Mbps (802.11ax), 2.4 GHz@ 574 Mbps (802.11ax) |
Wireless Functions |
Enable/Disable Wireless Radio, Guest Network, DFS, MU-MIMO, OFDMA |
Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
SOFTWARE FEATURES: | |
WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
Quality of Service | Advanced Gaming Qos powered by TrendMicro |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, Comexe, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
Management |
Access Control, Local Management, Remote Management |
Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
Game Center |
Game Accelerator - Detects and optimizes gaming streams to keep latency as low as possible, Game Statistics - Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail, Game Protector - Keep your accounts and system safe with HomeCare™ antivirus protection |
OTHERS: | |
Certification |
CE, FCC, IC, RoHS |
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Manufacturer | TP-Link |
Standards |
IEEE 802.11 ax/ac/n/a 5 GHz, IEEE 802.11 ax/n/g/b 2,4 GHz |
---|---|
Processor | Qualcomm 1 GHz Quad-core CPU |
Ports | 2 ports 10/100/1000 Mb/s WAN/LAN |
Button | 1 Reset button |
Flash | 16 MB |
SDRAM | 128 MB |
Frequency range | 2.4 GHz and 5 GHz |
Signal Rate |
300 Mbps on 2.4 GHz, 1201 Mbps on 5 GHz |
EIRP |
FCC <30 dBm, CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
Advanced Functions |
Router/ Access Point Mode, Optional Ethernet Backhaul, Guest network, TP-Link Mesh Technology MU-MIMO, Auto Path Selection, Self-Healing, AP Steering, Band Steering, Beamforming |
Wireless Security | WPA-PSK/WPA2-PSK |
Software Features |
Quality of Service - WMM, IPv6 Support, WAN Type - Dynamic IP/Static IP/PPPoE, Local Management, Remote Management, DHCP - Server, Client, Port Forwarding Support, Access Control Blacklist, Firewall Security SPI Firewall, Protocols Supports IPv4 and IPv6, Homecare - Antivirus, Parental Controls, Quality of Service, Speedtest, Monthly Usage Reports, Auto FW Update, Expand for more deco, Guest Network 2.4 GHz guest network * 1 - 5 GHz guest network * 1, Beamformig, Easy setup by Deco App |
Antenna | 4 internal antennas per Deco unit |
Dimensions | Φ4.33 in. × 4.49 in. (Φ110 mm × 114 mm) |
Operating Temperature | 0°C~40°C (-32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Package Contents |
1 Deco unit, 1 Power Adapter, 1 RJ45 Ethernet Cable, 1 quick installation guide |
Smartphone/Tablet Requirements |
iOS 9.0 or later, Android 5.0 or later |
Certificates |
CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, VCCI, KC, RoHS |
Standards |
IEEE 802.11 ax/ac/n/a 5 GHz, IEEE 802.11 ax/n/g/b 2,4 GHz |
---|---|
Processor | Qualcomm 1 GHz Quad-core CPU |
Ports | 2 ports 10/100/1000 Mb/s WAN/LAN |
Button | 1 Reset button |
Flash | 16 MB |
SDRAM | 128 MB |
Frequency range | 2.4 GHz and 5 GHz |
Signal Rate |
300 Mbps on 2.4 GHz, 1201 Mbps on 5 GHz |
EIRP |
FCC <30 dBm, CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
Advanced Functions |
Router/ Access Point Mode, Optional Ethernet Backhaul, Guest network, TP-Link Mesh Technology MU-MIMO, Auto Path Selection, Self-Healing, AP Steering, Band Steering, Beamforming |
Wireless Security | WPA-PSK/WPA2-PSK |
Software Features |
Quality of Service - WMM, IPv6 Support, WAN Type - Dynamic IP/Static IP/PPPoE, Local Management, Remote Management, DHCP - Server, Client, Port Forwarding Support, Access Control Blacklist, Firewall Security SPI Firewall, Protocols Supports IPv4 and IPv6, Homecare - Antivirus, Parental Controls, Quality of Service, Speedtest, Monthly Usage Reports, Auto FW Update, Expand for more deco, Guest Network 2.4 GHz guest network * 1 - 5 GHz guest network * 1, Beamformig, Easy setup by Deco App |
Antenna | 4 internal antennas per Deco unit |
Dimensions | Φ4.33 in. × 4.49 in. (Φ110 mm × 114 mm) |
Operating Temperature | 0°C~40°C (-32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Package Contents |
2 Deco units, 2 Power Adapters, 1 RJ45 Ethernet Cable, 1 quick installation guide |
Smartphone/Tablet Requirements |
iOS 9.0 or later, Android 5.0 or later |
Certificates |
CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, VCCI, KC, RoHS |
Standards |
IEEE 802.11 ax/ac/n/a 5 GHz, IEEE 802.11 ax/n/g/b 2,4 GHz |
---|---|
Processor | Qualcomm 1 GHz Quad-core CPU |
Ports | 2 ports 10/100/1000 Mb/s WAN/LAN |
Button | 1 Reset button |
Flash | 16 MB |
SDRAM | 128 MB |
Frequency range | 2.4 GHz and 5 GHz |
Signal Rate |
300 Mbps on 2.4 GHz, 1201 Mbps on 5 GHz |
EIRP |
FCC <30 dBm, CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
Advanced Functions |
Router/ Access Point Mode, Optional Ethernet Backhaul, Guest network, TP-Link Mesh Technology MU-MIMO, Auto Path Selection, Self-Healing, AP Steering, Band Steering, Beamforming |
Wireless Security | WPA-PSK/WPA2-PSK |
Software Features |
Quality of Service - WMM, IPv6 Support, WAN Type - Dynamic IP/Static IP/PPPoE, Local Management, Remote Management, DHCP - Server, Client, Port Forwarding Support, Access Control Blacklist, Firewall Security SPI Firewall, Protocols Supports IPv4 and IPv6, Homecare - Antivirus, Parental Controls, Quality of Service, Speedtest, Monthly Usage Reports, Auto FW Update, Expand for more deco, Guest Network 2.4 GHz guest network * 1 - 5 GHz guest network * 1, Beamformig, Easy setup by Deco App |
Antenna | 4 internal antennas per Deco unit |
Dimensions | Φ4.33 in. × 4.49 in. (Φ110 mm × 114 mm) |
Operating Temperature | 0°C~40°C (-32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Package Contents |
3 Deco units, 3 Power Adapters, 1 RJ45 Ethernet Cable, 1 quick installation guide |
Smartphone/Tablet Requirements |
iOS 9.0 or later, Android 5.0 or later |
Certificates |
CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, VCCI, KC, RoHS |
Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2,4 GHz |
---|---|
Ports | 3 x 10/100/1000 Mb/s ports per Halo unit (WAN/LAN auto-sensing) |
Button | 1 Reset button |
Frequency range | 2.4 GHz and 5 GHz |
Signal Rate |
574 Mbps on 2.4 GHz, 1201 Mbps on 5 GHz |
EIRP | CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
Wireless Security | WPA2-PSK + AES |
Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
Mesh protocol | 802.11k/v |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, Address Reservation, DHCP Client List |
Port Forwarding |
Virtual Server, UPnP, DMZ, Port Triggering |
Protocols |
IPv4, IPv6 |
Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
Dimensions | 5 × 3.2 × 3.3 in (128 × 81 × 83,7 mm) |
Operating Temperature | 0°C~40°C (-32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Package Contents |
2 Halo H70X units, 2 Power Adapters, 1 RJ45 Ethernet Cable, 1 Quick Installation Guide |
Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2,4 GHz |
---|---|
Ports | 3 x 10/100/1000 Mb/s ports per Halo unit (WAN/LAN auto-sensing) |
Button | 1 Reset button |
Frequency range | 2.4 GHz and 5 GHz |
Signal Rate |
574 Mbps on 2.4 GHz, 1201 Mbps on 5 GHz |
EIRP | CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
Wireless Security | WPA2-PSK + AES |
Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
Mesh protocol | 802.11k/v |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, Address Reservation, DHCP Client List |
Port Forwarding |
Virtual Server, UPnP, DMZ, Port Triggering |
Protocols |
IPv4, IPv6 |
Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
Dimensions | 5 × 3.2 × 3.3 in (128 × 81 × 83,7 mm) |
Operating Temperature | 0°C~40°C (-32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Package Contents |
3 Halo H70X units, 3 Power Adapters, 1 RJ45 Ethernet Cable, 1 Quick Installation Guide |
Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2,4 GHz |
---|---|
Ports | 3 x 10/100/1000 Mb/s ports per Halo unit (WAN/LAN auto-sensing) |
Button | 1 Reset button |
Frequency range | 2.4 GHz and 5 GHz |
Signal Rate |
574 Mbps on 2.4 GHz, 2402 Mbps on 5 GHz |
EIRP | CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
Wireless Security | WPA2-PSK + AES |
Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
Mesh protocol | 802.11k/v |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, Address Reservation, DHCP Client List |
Port Forwarding |
Virtual Server, UPnP, DMZ, Port Triggering |
Protocols |
IPv4, IPv6 |
Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
Dimensions | 5 × 3.2 × 3.3 in (128 × 81 × 83,7 mm) |
Operating Temperature | 0°C~40°C (-32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Package Contents |
2 Halo H80X units, 2 Power Adapters, 1 RJ45 Ethernet Cable, 1 Quick Installation Guide |
Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2,4 GHz |
---|---|
Ports | 3 x 10/100/1000 Mb/s ports per Halo unit (WAN/LAN auto-sensing) |
Button | 1 Reset button |
Frequency range | 2.4 GHz and 5 GHz |
Signal Rate |
574 Mbps on 2.4 GHz, 2402 Mbps on 5 GHz |
EIRP | CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
Wireless Security | WPA2-PSK + AES |
Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
Mesh protocol | 802.11k/v |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, Address Reservation, DHCP Client List |
Port Forwarding |
Virtual Server, UPnP, DMZ, Port Triggering |
Protocols |
IPv4, IPv6 |
Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
Dimensions | 5 × 3.2 × 3.3 in (128 × 81 × 83,7 mm) |
Operating Temperature | 0°C~40°C (-32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Package Contents |
3 Halo H80X units, 3 Power Adapters, 1 RJ45 Ethernet Cable, 1 Quick Installation Guide |
Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
---|---|
Interface | USB 2.0 |
LED | Status |
Antena | 5dBi |
Frequency range |
5GHz, 2.4GHz |
Max. speed | up to 5GHz 433Mbps or 2.4GHz 200Mbps |
Modulation type |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
Operating modes |
Ad-hoc, infrastructure |
WLAN security |
WEP, WPA/WPA2, WPA-PSK/ WPA2-PS, 802.1X |
Drivers |
Windows 10 (32/64bits), Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) |
Dimmensions | 57,8 × 16,8 × 173,4 mm |
Manufacturer | TP-Link |
Standards | IEEE 802.11ac/n/g/b/a |
---|---|
Ports |
10/100/1000Mbps (RJ-45) Port *1, Downlink- 10/100/1000Mbps Ethernet Port*1 |
Frequency range | 2.4GHz and 5GHz |
Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
MANAGEMENT | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c |
System Logging Local/Remote Syslog | Local/Remote Syslog |
SSH | Yes |
Web-based Management | HTTP/HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
Antenna |
2 Dual-Band Antennas, 2.4GHz- 2*4dBi, 5GHz- 2*3.6dBi |
Dimensions | 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm) |
Power | 802.3af/802.3at PoE |
Power Consumption | 7 watts |
Mounting | Wall Plate Mounting |
Watch Dog | Yes |
Operating Temperature | 0°C~40°C (-32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Package Contents |
AC1200 Wireless Dual Band Gigabit Access Point EAP230-Wall, Mounting Screw, Installation Guide |
System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10 |
Certificates |
CE, FCC, RoHS |
Standards | IEEE 802.11ac/n/g/b/a |
---|---|
Ports | Gigabit Ethernet (RJ-45) Port *1 (ETH1 Support IEEE802.3af PoE) |
Frequency range | 2.4GHz and 5GHz |
Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 450Mbps |
EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
EAP Controller Software | Yes |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c |
System Logging Local/Remote Syslog | Local/Remote Syslog |
Telnet | Yes |
Web-based Management | HTTP/HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
Antenna |
3 Internal Omni 2.4GHz- 4dBi, 5GHz- 5dBi |
Dimensions | 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm) |
Power |
802.3af/at PoE, 48V Passive PoE (+4,5pins; -7,8pins.) (PoE Adapter IS NOT Included) |
Power Consumption | 9.7 W |
Mounting | Ceiling /Wall Mounting (Kits included) |
Physical Security Lock | Kensington Lock Slot |
Watch Dog | Yes |
Operating Temperature | 0°C~60°C (-32℉~144℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Package Contents |
AC1200 Wireless Dual Band Gigabit Access Point EAP223, Mounting Kits, Installation Guide |
System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
Interface |
3 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps WAN Port |
Button | WPS/Reset Button |
External Power Supply | 9V/0.85A |
Dimensions (W X D X H) | 222 x 140 x 32 mm |
Antenna | 4× 5 dBi |
WIRELESS FEATURES: | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
EIRP | < 20 dBm |
Reception Sensitivity |
5 GHz - 11a 6M -92 dBm, 11a 54M -75 dBm, 11ac 20M MCS8 -70 dBm, 11ac 40M MCS9 -64 dBm, 11ac 80M MCS9 -60 dBm, 2,4 GHz - 11g 6M -95 dBm, 11g 54M -77 dBm, 11n 20M MCS7 -74 dBm, 11n 40M MCS7 -71 dBm |
Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
Wireless Security | WPA-PSK / WPA2-PSK |
SOFTWARE | |
WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
Management |
Access Control, Local Management, Remote Management |
DHCP | Server |
Port Forwarding |
Virtual Server, UPnP, DMZ |
Dynamic DNS |
NO-IP, DynDNS |
Firewall Security | IP and MAC Address Binding |
Guest Network |
2.4GHz Guest Network, 5GHz Guest Network |
OTHERS: | |
Certifications |
CE, ROHS |
Package Contents |
AC1200 Wireless Dual Band Router AC12G, Power Adapter, Quick Installation Guide, Ethernet Cable |
Environment |
Operating Temperature 0°~40° (32°~104°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/b/g/n 2.4GHz, Wi-Fi 6 |
Interface |
2 10/100/1000Mbps LAN Ports, 1 1G/100Mbps WAN Port |
Button | WPS/Reset Button |
Dimensions (W X D X H) | 6,9 × 6,2 × 1,8 in (175,6 × 157,2 × 45 mm) |
Antenna | 4× 5 dBi Fixed Omni-Directional Antennas |
WIRELESS FEATURES: | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5 GHz@ 1201 Mbps (802.11ax), 2.4 GHz@ 400 Mbps (802.11ax) |
Wireless Functions |
Enable/Disable Wireless Radio, WMM |
Wireless Security | WPA-PSK / WPA2-PSK/ WPA3 |
SOFTWARE FEATURES: | |
WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, DHCP Client List |
NAT Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ |
Firewall Security |
SPI Firewall, IP and MAC Address Binding |
Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
VPN Passthrough |
OpenVPN, PPTP supported |
OTHERS: | |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
Interface |
2 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps WAN Port, |
Button | WPS/Reset Button |
External Power Supply | 12VDC / 1A |
Dimensions (W X D X H) | 175.6 x 157.2 x 45 mm |
Antenna | 6 Fixed Omni Directional Antennas |
WIRELESS FEATURES: | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5GHz Up to 1300Mbps, 2.4GHz Up to 600Mbps |
EIRP | <20dBm(EIRP) |
Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
Wireless Security | WPA-PSK / WPA2-PSK |
SOFTWARE FEATURES: | |
WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access) |
Management |
Access Control, Local Management, Remote Management |
DHCP | Server |
Port Forwarding |
Virtual Server, UPnP, DMZ |
Firewall Security | IP and MAC Address Binding |
Protocols |
IPv4, IPv6 |
Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
OTHERS: | |
Package Contents |
MR50G, Power supply unit, Quick Installation Guide, Ethernet Cable |
Standards |
IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2,4 GHz |
---|---|
Ports | 2 x 10/100/1000 Mb/s ports per Halo unit (WAN/LAN auto-sensing) |
Button | 1 Reset button |
Frequency range | 2.4 GHz and 5 GHz |
Signal Rate |
400 Mbps on 2.4 GHz, 867 Mbps on 5 GHz |
EIRP | CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
Wireless Security | WPA2-PSK + AES |
Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
Mesh protocol | 802.11k/v |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, Address Reservation, DHCP Client List |
Port Forwarding |
Virtual Server, UPnP, DMZ, Port Triggering |
Protocols |
IPv4, IPv6 |
Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
Dimensions | 3.5 × 3.5 × 3.5 in (88 × 88 × 88 mm) |
Operating Temperature | 0°C~40°C (-32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Package Contents |
2 Halo H30G units, 2 Power Adapters, 1 RJ45 Ethernet Cable, 1 Quick Installation Guide |
Standards |
IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2,4 GHz |
---|---|
Ports | 2 x 10/100/1000 Mb/s ports per Halo unit (WAN/LAN auto-sensing) |
Button | 1 Reset button |
Frequency range | 2.4 GHz and 5 GHz |
Signal Rate |
400 Mbps on 2.4 GHz, 867 Mbps on 5 GHz |
EIRP | CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
Wireless Security | WPA2-PSK + AES |
Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
Mesh protocol | 802.11k/v |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, Address Reservation, DHCP Client List |
Port Forwarding |
Virtual Server, UPnP, DMZ, Port Triggering |
Protocols |
IPv4, IPv6 |
Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
Dimensions | 3.5 × 3.5 × 3.5 in (88 × 88 × 88 mm) |
Operating Temperature | 0°C~40°C (-32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Package Contents |
3 Halo H30G units, 3 Power Adapters, 1 RJ45 Ethernet Cable, 1 Quick Installation Guide |
HARDWARE FEATURES: | |
---|---|
Ports | 1 * 10/100M Ethernet Port (RJ45) |
Plug Type | EU |
Button |
WPS Button, Reset Button |
Power Consumption | About 9.2W |
Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Dimensions ( W x D x H ) | 112 × 84,7 × 39 mm |
Antenna Type | 2 x external |
WIRELESS FEATURES | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mpbs |
EIRP | < 20 dBm |
Wireless Security | WPA-PSK/WPA2-PSK |
OTHERS | |
Certification |
CE, RoHS |
Package Contents |
ME30, Quick Installation Guide |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 2 years limited warranty. Advanced replacement service is available. |
HARDWARE FEATURES: | |
---|---|
Ports | 1 * 10/100/1000M Ethernet Port (RJ45) |
Plug Type | EU |
Button |
RE (Range Extender) Button, Reset Button, LED Button, Power Button |
Power Consumption | About 12W |
Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Dimensions ( W x D x H ) | 6.4x 3.4 x 1.6 in. (163 x 86 x 40mm) |
Antenna Type | 4 x external |
WIRELESS FEATURES | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5GHz Up to 1733Mbps, 2.4GHz Up to 800Mpbs |
EIRP | <20dBm(2,4GHz) <23dBm(5GHz) |
Reception Sensitivity |
5GHz 11a 6Mbps -96dBm@10% PER, 11a 54Mbps -78dBm@10% PER, 11ac HT20 mcs8 -69dBm@10% PER, 11ac HT40 mcs9 -66dBm@10% PER, 11ac HT80 mcs9 -63dBm@10% PER, 2,4GHz 11g 54M -79dBm@10% PER, 11n HT20 mcs7 -77dBm@10% PER, 11n HT40 mcs7 -74dBm@10% PER |
Wireless Modes | Range Extender |
Wireless Functions |
WMM (Wi-Fi Multimedia), Wireless Statistic, Domain Login Function |
Wireless Security |
64/128-bit WEP, WPA-PSK / WPA2-PSK |
OTHERS | |
Certification |
CE, FCC, RoHS |
Package Contents |
RE650, Quick Installation Guide |
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,8,10, MAC OS, NetWare, UNIX or Linux. |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 2 years limited warranty. Advanced replacement service is available. |
Manufacturer | TP-Link |
HARDWARE FEATURES | |
---|---|
Interface |
1 micro USB port for power supply, SIM Card Slot |
Button |
Power On/Off Button, Reset |
Display |
Wi-Fi status, Internet connection status, Battery status |
Wireless Standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Network Type |
4G FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz), TDD-LTE B38/B40/B41 (2600/2300/2500MHz), 3G DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/850/900MHz) |
Data Rates |
DL- up to 150Mbps, UL- up to 50Mbps |
Antenna | Internal Antenna |
Power Supply | Internal 2000mAh Rechargeable Battery |
Dimensions ( W x D x H ) | 3.7×2.2×0.8 in. (94×56.7×19.8mm) |
WIRELESS FEATURES | |
Frequency | 2.4GHz |
EIRP | <20dBm |
Wireless Security |
Support WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
DHCP |
DHCP server, DHCP Client List |
OTHERS | |
Operating Temperature | 0°C~35°C (32℉ ~95℉) |
Storage Temperature | -20°C~60°C (-4℉ ~140℉) |
Operating Humidity | 10%~90% non-condensing |
Certification |
CE, FCC, RoHS |
Package Contents |
4G LTE Mobile Wi-Fi M7000, Micro USB Cable, 2000mAh Battery, Quick Installation Guide |
System Requirements |
Windows 10/8/7/vista/XP, Mac OS, Android, iOS, Windows phone |
HARDWARE FEATURES | |
---|---|
Interface |
1 micro USB port for power supply, SIM Card Slot |
Button | Power On/Off Button |
Display |
Wi-Fi status, Internet connection status, Battery status |
Wireless Standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Network Type |
4G FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz), TDD-LTE B38/B40/B41 (2600/2300/2500MHz), 3G DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) |
Data Rates |
DL- up to 150Mbps, UL- up to 50Mbps |
Antenna | Internal Antenna |
Power Supply | Internal 2000mAh Rechargeable Battery |
Dimensions ( W x D x H ) | 3.7×2.2×0.8 in. (94×56.7×19.8mm) |
WIRELESS FEATURES | |
Frequency | 2.4GHz |
EIRP | <20dBm |
Wireless Security |
Support WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
DHCP |
DHCP server, DHCP Client List |
OTHERS | |
Certification |
CE, FCC, RoHS |
Package Contents |
4G LTE Mobile Wi-Fi M7200, Micro USB Cable, 2000mAh Battery, Quick Installation Guide |
System Requirements |
Windows 10/8/7/vista/XP, Mac OS, Android, iOS, Windows phone |
HARDWARE FEATURES | |
---|---|
Interface |
1 micro USB port for power supply, SIM Card Slot, Micro SD card Slot |
Button |
Power On/Off Button, Menu Button |
OLED Display |
Traffic statistics, Wi-Fi status, user numbers, network type (2G/3G/4G), signal strength, Internet connection status, messages, battery meter |
Wireless Standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Network Type |
FDD-LTE Cat4 (800/900/1800/2100/2600MHz), DC-HSPA+/HSPA/UMTS (900/2100MHz), EDGE/GPRS/GSM (850/900/1800/1900MHz) |
Data Rates |
DL- up to 150Mbps, UL- up to 50Mbps |
Antenna | Internal Antenna |
Power Supply | Internal 2550mAh Rechargeable Battery |
Dimensions ( W x D x H ) | 4.2 × 2.6 × 0.6 in. (106 × 66 × 16mm) |
Micro SD Card Reader | up to 32G |
WIRELESS FEATURES | |
Frequency | 2.4GHz & 5GHz |
EIRP | <20dBm |
Wireless Security |
Support WPA-PSK/WPA2-PSK, Wireless MAC Filtering, Enable/Disable SSID Broadcast |
DHCP |
DHCP server, DHCP Client List |
OTHERS | |
Certification |
CE, FCC, RoHS |
Package Contents |
LTE-Advanced Mobile WiFi M7350, Micro USB Cable, Micro to Standard SIM Card Adapter, Nano to Standard SIM Card Adapter, Power Adapter, Quick Installation Guide |
System Requirements |
Windows 8/7/vista/XP, Mac OS, Android, iOS, Windows phone |
Weight | 92.5g (battery included) |
Ports |
2*10/100Mbps Ethernet Port, 1*USB 2.0 Port, 1*Micro USB Port |
---|---|
Features: | |
Wireless Fuction |
L3 Management, Multi-SSID, Load Balance, Band Steering, Airtime Fariness, Beamforming, Rate Limit, Wireless Schedule, QoS |
Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection |
AP Management |
Automatic Discovery, Unified Configuration, Reboot Schedule, Batch Firmware Upgrade, LED ON/OFF |
Authentication | Captive Portal |
Dimensions | 3.9×3.9×1.0in. (100×98×25mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | 802.3af/at PoE or Micro USB(DC 5V/Minimum 1A) |
Certificates |
CE, FCC, RoHS |
HARDWARE FEATURES: | |
---|---|
Interface | 1x10/100Mbps Auto-Sensing RJ45 Port |
Plug Type | EU |
Button |
Reset Button, WPS Button |
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Dimensions ( W x D x H ) | 101 x 74.8 x 75.8 mm |
Antenna Type | 3 x external |
WIRELESS FEATURES | |
Frequency | 2.4-2.4835GHz |
EIRP | <20dBm (EIRP) |
Wireless Security | WPA-PSK/WPA2-PSK |
OTHERS | |
Certification |
CE, RoHS |
Package Contents |
MW300RE, Quick Installation Guide |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 2 years limited warranty. Advanced replacement service is available. |
HARDWARE FEATURES: | |
---|---|
Interface |
1 10/100Mbps WAN/LAN Port, USB 2.0 Port for 3G/4G modem, a mini USB Port for power supply. |
Button |
Quick Setup Security Button, Reset Button, Mode Switch |
External Power Supply | 5VDC/1.0A |
Dimensions ( W x D x H ) | 2.9 x 2.6 x 0.9 in. (74 x 67 x22 mm) |
Antenna Type | Internal Antenna |
WIRELESS FEATURES: | |
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency | 2.4-2.4835GHz |
EIRP | <20dBm |
Wireless Modes |
3G Router, Travel Router (AP), WISP Client Router |
Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
SOFTWARE FEATURES: | |
DHCP |
Server, DHCP Client List, Address Reservation |
Port Forwarding |
Virtual Server, Port Triggering, DMZ, UPnP |
Access Control |
Parental Control, Host List, Access Schedule, Rule Management |
Security |
Firewall, MAC filtering, Denial of Service (DoS) |
OTHERS: | |
Certification |
CE, FCC, RoHS |
Package Contents |
TL-MR3020 router, QIG, Power Adapter, USB Cable, Resource CD, Ethernet Cable |
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
Operating temperature-10°~60°, Storage Temperature -40°~80°, Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 2 years limited warranty. Advanced replacement service is available. |
Standards |
IEEE 802.11n, IEEE 802.11b/g |
---|---|
Ports |
3x 10/100 Mbps RJ-45 (LAN), 1x 10/100 Mbps RJ-45 (WAN) |
Frequency range | 2400 MHz ÷ 2483,5 MHz |
Max. speed | 300 Mbps |
Max. output power | 20 dBm |
Antenna | 3× Omni-Directional Antennas 5dBi |
Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridging |
WLAN security | WPA-PSK / WPA2-PSK |
WAN Type |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
Management |
Access Control, Local Management, Remote Management |
DHCP | Server |
Port Forwarding |
Virtual Server, UPnP, DMZ |
Access Control |
Parental Controls, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
SPI firewall, IP and MAC Address Binding |
Protocols |
IPv4, IPv6 |
Guest Network | 1× 2.4 GHz Guest Network |
Dimensions | 147 mm × 115 mm × 34 mm |
Operating temperatures | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | 5 V DC / 0,6 A |
Manufacturer | TP-Link |
HARDWARE FEATURES | |
---|---|
Standards and Protocols | Bluetooth 4.0 |
Interface | USB 2.0 |
Dimensions ( W x D x H ) | 0.58 × 0.27 × 0.74 in (14.8 × 6.8 × 18.9 mm) |
OTHERS | |
Certification |
FCC, CE, RoHS |
Package Contents |
Bluetooth 4.0 Nano USB Adapter UB400, Quick Installation Guide |
System Requirements | Windows 10/8.1/8/7/XP |
Environment | |
Operating Temperature | 0℃~40℃ (32℉ ~104℉) |
Storage Temperature | -40℃~70℃ (-40℉ ~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Manufacturer | TP-Link |
HARDWARE FEATURES | |
---|---|
Standards and Protocols | Bluetooth 5.0 |
Interface | USB 2.0 |
Dimensions ( W x D x H ) | 0.58 × 0.27 × 0.74 in (14.8 × 6.8 × 18.9 mm) |
OTHERS | |
Package Contents |
Bluetooth 5.0 Nano USB Adapter UB500, Quick Installation Guide |
System Requirements | Windows 10/8.1/8/7/XP |
Environment | |
Operating Temperature | 0℃~40℃ (32℉ ~104℉) |
Storage Temperature | -40℃~70℃ (-40℉ ~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Manufacturer | TP-Link |
