MENU#09514

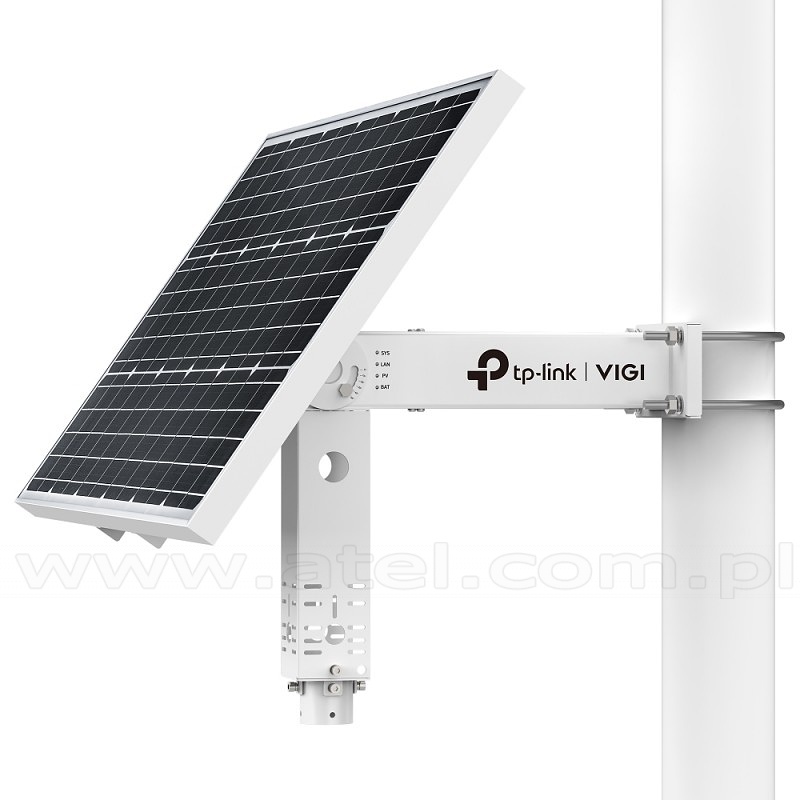

Intelligent Solar Power Supply System 90W (TP-Link VIGI SP9030)
- 90W Photovoltaic Panel and 31.2Ah/10.8V Lithium Battery
- 3× DC Voltage Output Ports
- Modular Design
- 5°/15°/25°/35°/45°/55° Adjustable Angles
- Intelligent Auxiliary Heating Technology
- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- Remote Management and Simple Installation
| Solar Panel (Photovoltaic Panel): | |
|---|---|
| Power | 90 W |
| Voltage | 18 V |
| Dimensions( H X W X D ) | 998×516×30 mm (39.3×20.3×1.2 in) |
| Battery: | |
| Type | Lithium |
| Intelligent Auxiliary Heat | Yes |
| Battery Capacity | 31.2 Ah |
| Voltage | 10.8 V |
| Max. Output Voltage | 12.6 V |
| Life | More than 500 cycles |
| Dimension | 242×70×65 mm (9.5×2.8×2.6 in) |
| Charging Condition | 0°C~45°C, -30°C~45°C (With intelligent auxiliary heating) |
| Discharging Condition | -20°C~60°C, -30°C~60°C (With intelligent auxiliary heating) |
| HARDWARE: | |
| Interface | 1× 10/100 Mbps RJ45, 1× Photovoltaic Panel Connector, 3× 5.5mm DC Power Plugs (#1, #2 9V-12.6 VDC/2A, #3 12 VDC/2A) |
| Indicator LED | 1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator |
| SOFTWARE FEATURES | Load Control, High and Low Temperature Protection, , Overdischarge Protection, Power Consumption Statistics, Displays Real-time Load Status, Battery Level Display, Time Zone Selection, Region Selection, Schedule Saving, Firmware Remote Update, Remote Reboot, Local LAN Management, Smart Charging Control-30°C~5°C, Account Management, Remote Reset, Remote Message Push |
| OTHERS: | |
| Certification | CB, PSE (Battery), CE, FCC, VCCI, IC, IP66 |
| Weight | Product Weight 15 kg, Package Weight 17.5 kg |
| Environment | Operating Temperature -20°~45°, Storage Temperature -30°~60°(With intelligent auxiliary heating), Storage Humidity 10%~90% non-condensing |
Net Price: 1 000.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
  |
