 WDM UNMANAGED MEDIA CONVERTERS
#09098

Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20 km, WDM (TP-Link TL-FC311A-20)

  • 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km
Standards IEEE 802.3/i/u/ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1550 nm
RX wavelength 1310 nm
Port #2 max. distance 20 km
Port #2 cable type 9/125 µm
Wave Division Multiplexing (WDM) yes
Housing desktop
Dimensions 94,5x73x27 mm
Operating temperature 0°C ÷ 50°C
Storage Temperature -40°C ÷ 70°C
Operating humidity 10% ÷ 90%,
non-condensing
Power external,
5V/0.6A
Manufacturer TP-Link
Can be mount in:
#06986 Rack chassis for media converter, 14-port (TP-LINK TL-FC1420)
TP-LINK
TP-Link TL-FC311A-20, Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20 km, WDM
Net Price: 27.00 USD  Unit: pcs  VAT: 23%
product card»

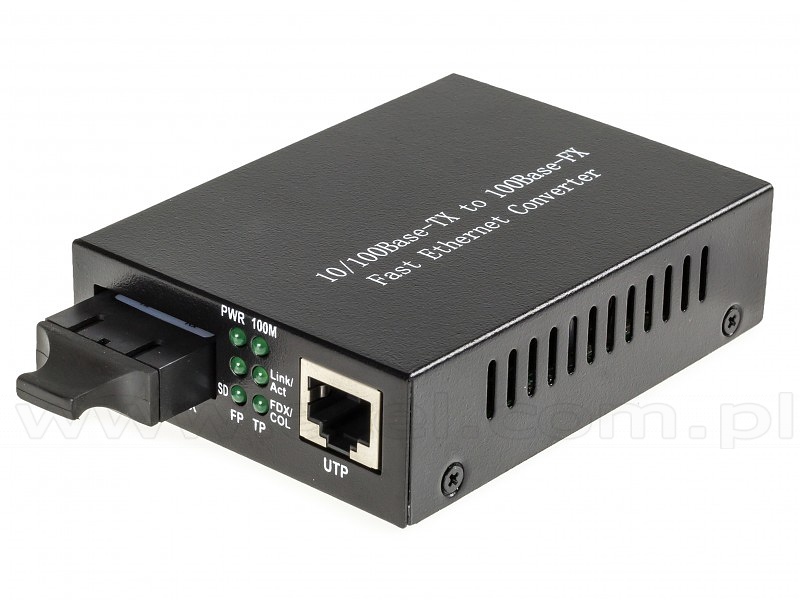

#07620

Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 40km, WDM (Wave Optics, WO-KA-SWS-040K-B)

Standards IEEE 802.3/u/z
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1550nm
RX wavelength 1310nm
Port #2 max. distance 40km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Link Fault Pass-thorugh (LFP) yes
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 40km, WDM (Wave Optics, WO-KA-SWS-040K-B)
Net Price: 23.90 USD  Unit: pcs  VAT: 23%
product card»

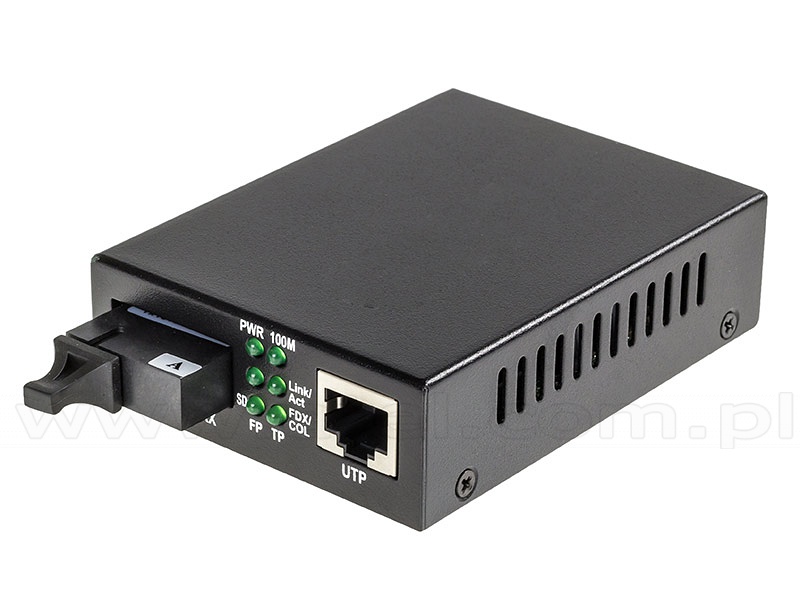

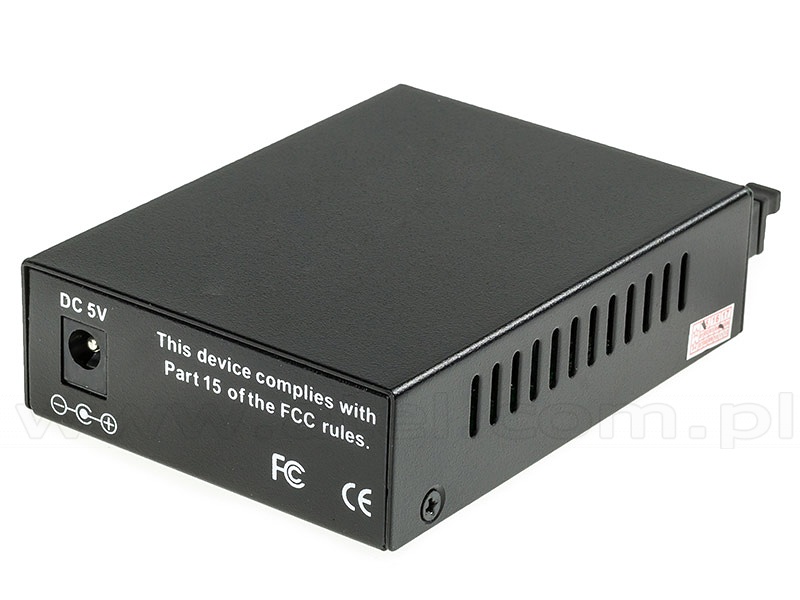

#07611

Media converter 10/100/1000 Mbps RJ-45/SC, SM 1310nm, 10km, WDM (Wave Optics, WO-KB-SWS-010K-A)

Standards IEEE 802.3/u/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1550nm
Port #2 max. distance 10km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100/1000 Mbps RJ-45/SC, SM 1310nm, 10km, WDM (Wave Optics, WO-KB-SWS-010K-A)
Net Price: 23.90 USD  Unit: pcs  VAT: 23%
product card»
#07613

Media converter 10/100/1000 Mbps RJ-45/SC, SM 1310nm, 20km, WDM (Wave Optics, WO-KB-SWS-020K-A)

Standards IEEE 802.3i/u/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1550nm
Port #2 max. distance 20km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100/1000 Mbps RJ-45/SC, SM 1310nm, 20km, WDM (Wave Optics, WO-KB-SWS-020K-A)
Net Price: 23.90 USD  Unit: pcs  VAT: 23%
product card»

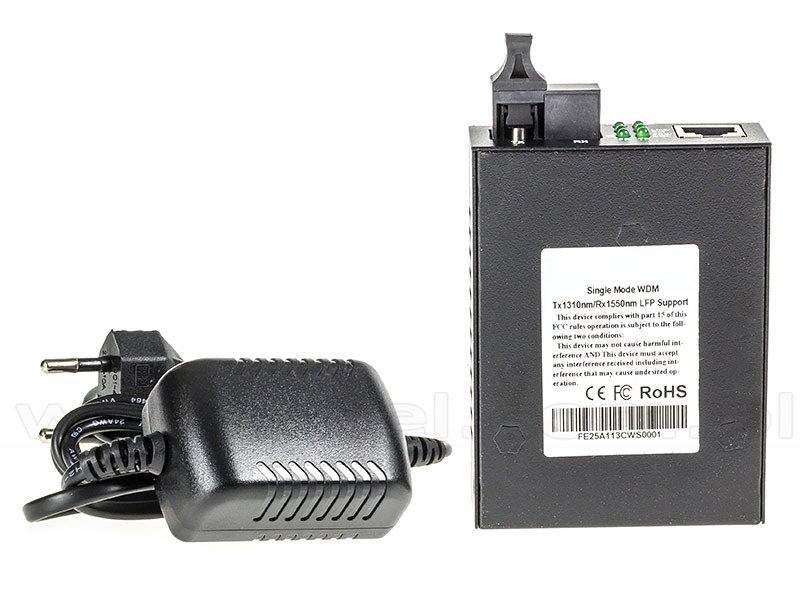

#07615

Media converter 10/100/1000 Mbps RJ-45/SC, SM 1310nm, 40km, WDM (Wave Optics, WO-KB-SWS-040K-A)

Standards IEEE 802.3/u/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1550nm
Port #2 max. distance 40km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100/1000 Mbps RJ-45/SC, SM 1310nm, 40km, WDM (Wave Optics, WO-KB-SWS-040K-A)
Net Price: 29.80 USD  Unit: pcs  VAT: 23%
product card»

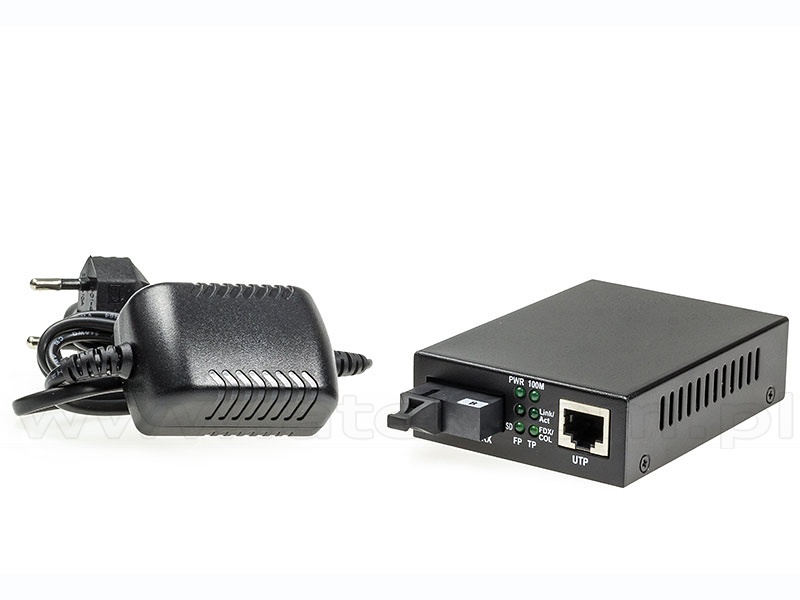

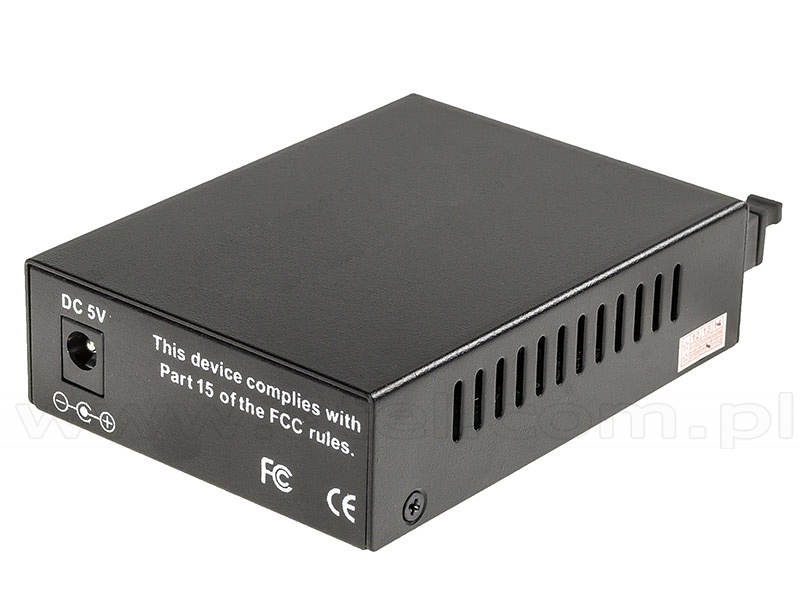

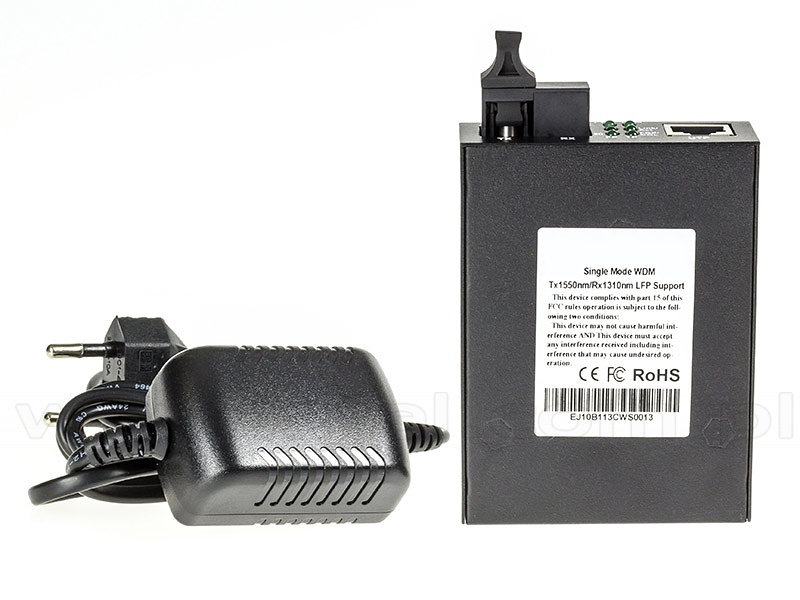

#07612

Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 10km, WDM (Wave Optics, WO-KB-SWS-010K-B)

Standards IEEE 802.3/u/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1550nm
RX wavelength 1310nm
Port #2 max. distance 10km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 10km, WDM (Wave Optics, WO-KB-SWS-010K-B)
Net Price: 28.80 USD  Unit: pcs  VAT: 23%
product card»
#07614

Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 20km, WDM (Wave Optics, WO-KB-SWS-020K-B)

Standards IEEE 802.3/u/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 150nm
RX wavelength 1310nm
Port #2 max. distance 20km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 20km, WDM (Wave Optics, WO-KB-SWS-020K-B)
Net Price: 28.80 USD  Unit: pcs  VAT: 23%
product card»

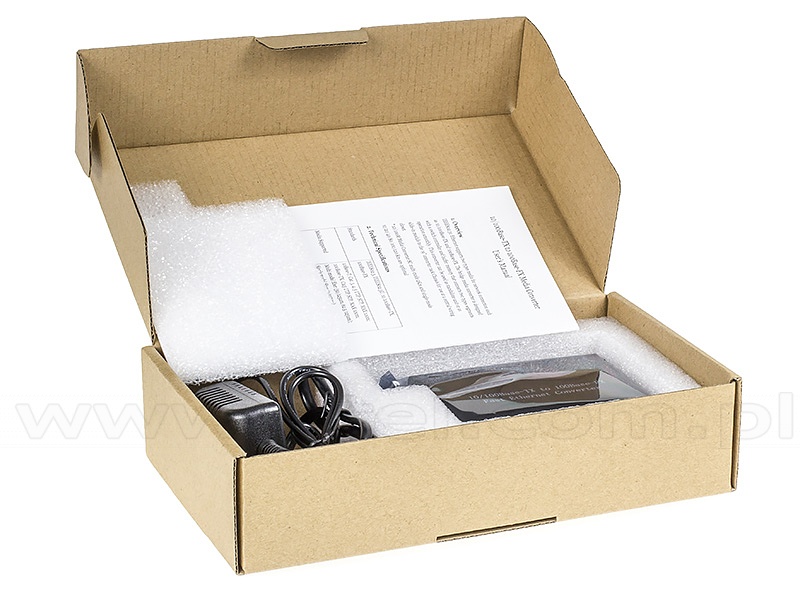

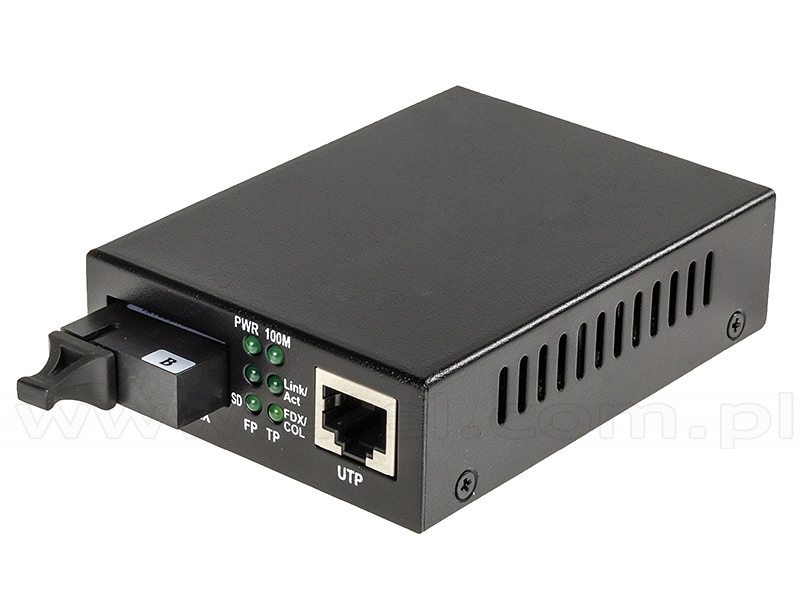

#07616

Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 40km, WDM (Wave Optics, WO-KB-SWS-040K-B)

Standards IEEE 802.3/u/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1550nm
RX wavelength 1310nm
Port #2 max. distance 40km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
WAVE OPTICS
Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 40km, WDM (Wave Optics, WO-KB-SWS-040K-B)
Net Price: 32.90 USD  Unit: pcs  VAT: 23%
product card»
 SFP MEDIA CONVERTERS
top
#07632

10G media converter SFP+/SFP+ slot (Wave Optics, WO-SFP+-SFP+)

Standards IEEE 802.3/ab/z
Port #1 SFP+
Port #2 SFP+
Link Fault Pass-thorugh (LFP) no
Housing / case type desktop / slot module
Dimensions 110x95x26 mm
Operating temperature -20°C ÷ 60°C
Operating humidity 5% ÷ 90%,
non-condensing
Power DC12V
Certificates FCC Class B,
CE
Warranty period 2 years
Manufacturer Wave Optics
WAVE OPTICS
10G media converter SFP+/SFP+ slot (Wave Optics, WO-SFP+-SFP+)
Net Price: 115.00 USD  Unit: pcs  VAT: 23%
product card»
#07629

Gigabit media converter SFP to SFP (Wave Optics, WO-SFP-SFP)

Standards IEEE 802.3/ab/z
Port #1 1G SFP slot
Port #2 1G SFP slot
Supporting full duplex and half-duplex transmission
Transmission distance depends on installed transceivers
Link Fault Pass-thorugh (LFP) no
Housing / case type desktop / slot module
Dimensions 95x70x26 mm
Operating temperature 0°C ÷ 70°C
Operating humidity 5% ÷ 90%,
non-condensing
Power DC 5V
Certificates FCC Class B,
CE
Warranty period 2 years
Manufacturer Wave Optics
WAVE OPTICS
Gigabit media converter SFP to SFP (Wave Optics, WO-SFP-SFP)
Net Price: 26.80 USD  Unit: pcs  VAT: 23%
product card»

top
