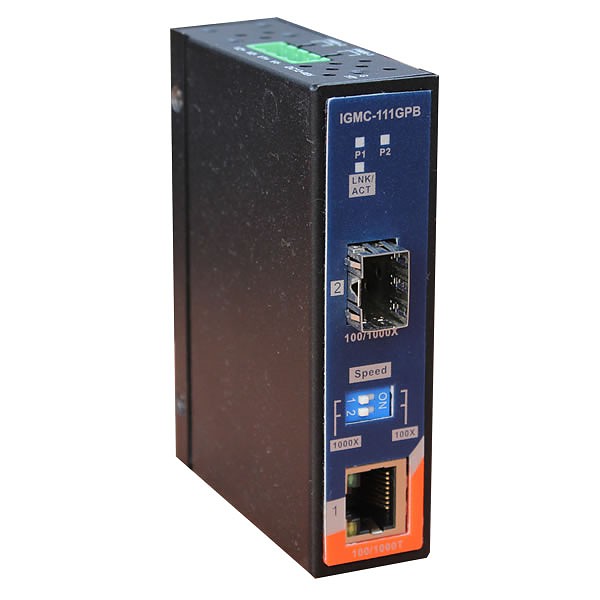

Media converter 1x 100/1000TX (RJ-45) + 1x 100/1000FX (SFP) (ORing IGMC-111GPB)
| Physical Ports | |
|---|---|
| 100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 1 |
| 100/1000Base-FX SFP ports | 1 |
| Technology | |
| Ethernet Standards | IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3ab for 1000Base-T, IEEE 802.3z for 1000Base-X |
| LED Indicators | |
| Power / Ready indicator | Green LED x 2 (ON) power input on-line / (OFF) power input off-line |
| 100/1000TX RJ45 port indicator | LED for Link/Act and Speed indicator, Green on only - 1000Mbps Link/Act - (ON) Link up / (Flash) Acting / (OFF) Link down, Green and Amber on - 100Mbps Link/Act - (ON) Link up / (Flash) Acting / (OFF) Link down, If amber on only - 10Mbps (This is not working mode) |
| 100/1000X Port Indicator | Green for port Link/Act |
| Power | |
| Input power | Dual DC inputs. 12÷48VDC on 4-pin terminal block |
| Power consumption (typical) | 3.6W |
| Overload current protection | present |
| Reverse polarity protection | present |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimension (W x H x D) | 26.1mm x 70mm x 95mm |
| Weight | 190g |
| Environmental | |
| Storage Temperature | -40÷85°C |
| Operating Temperature | -40÷70°C |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950-1 |
| Warranty | |
| Warranty period | 5 years |
Net Price: 184.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
