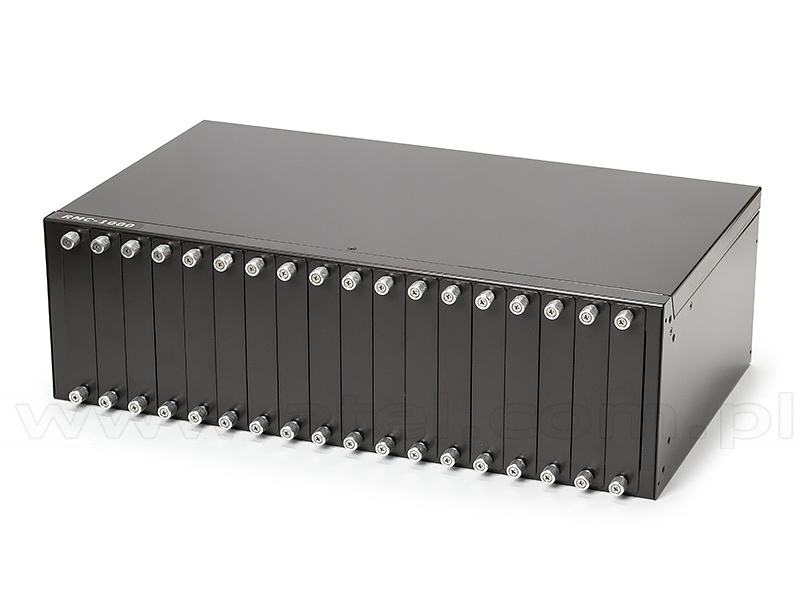

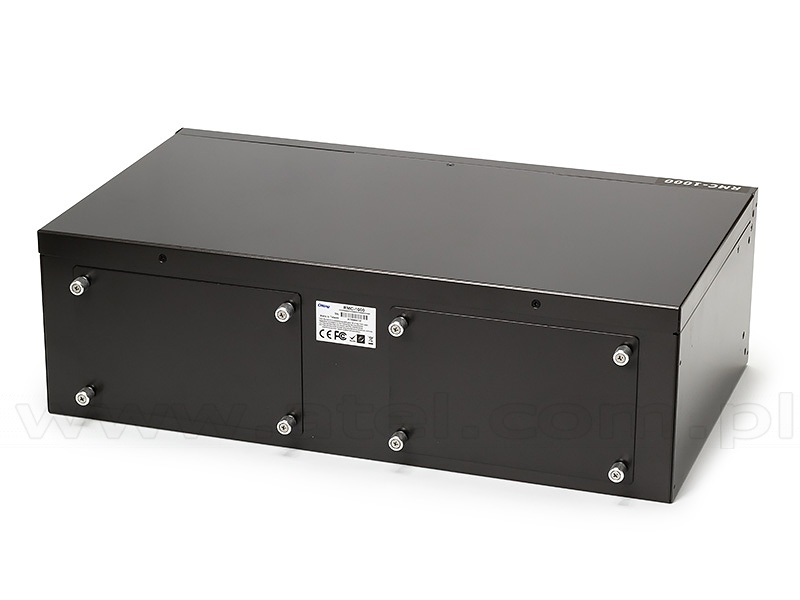

Media converter chassis, 18 slots, RACK-MOUNT (ORing RMC-1000)
| Physical Ports | |
|---|---|
| Slot number | 18 |
| Power | |
| Input power | Two optional 100~240VAC power inputs |
| Overload current protection | present |
| Physical Characteristic | |
| Dimension (W x H x D) | 430mm x 243mm x 132mm |
| Weight | 4955g |
| Environmental | |
| Storage Temperature | -40÷85°C |
| Operating Temperature | -10÷60°C |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C ) | 870520 |
| Warranty | |
| Warranty period | 5 years |
Products supports hot-swappable and easy installation to RMC-1000:
#08438 Media converter 2x 10/100TX (RJ-45) + 1x 100FX (MM SC) card type (ORing RMC-121FB-MM)
#08439 Media converter 2x 10/100TX (RJ-45) + 1x 100FX (SM SC) card type (ORing RMC-121FB-SS)
#08440 Media converter 1x 10/100Base-TX + 1x 100Base-FX fiber (MM SC), card type (ORing RMC-111FB-MM)
#08441 Media converter 1x 10/100Base-TX + 1x 100Base-FX fiber (SM SC), card type (ORing RMC-111FB-SS)
#08442 Media converter 1x 10/100Base-TX + 1x 100Base-FX fiber (SFP), card type (ORing RMC-111PB) LFP
#08443 Media converter 1x 100/1000TX (RJ-45) + 1x 100/1000FX (SFP) card type (ORing RGMC-111GPB)
#04677 Chassis Power Supply 130W (ORing RPM-130-AC)
#08438 Media converter 2x 10/100TX (RJ-45) + 1x 100FX (MM SC) card type (ORing RMC-121FB-MM)
#08439 Media converter 2x 10/100TX (RJ-45) + 1x 100FX (SM SC) card type (ORing RMC-121FB-SS)
#08440 Media converter 1x 10/100Base-TX + 1x 100Base-FX fiber (MM SC), card type (ORing RMC-111FB-MM)
#08441 Media converter 1x 10/100Base-TX + 1x 100Base-FX fiber (SM SC), card type (ORing RMC-111FB-SS)
#08442 Media converter 1x 10/100Base-TX + 1x 100Base-FX fiber (SFP), card type (ORing RMC-111PB) LFP
#08443 Media converter 1x 100/1000TX (RJ-45) + 1x 100/1000FX (SFP) card type (ORing RGMC-111GPB)
#04677 Chassis Power Supply 130W (ORing RPM-130-AC)
| * For special orders only
Net Price: 714.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
