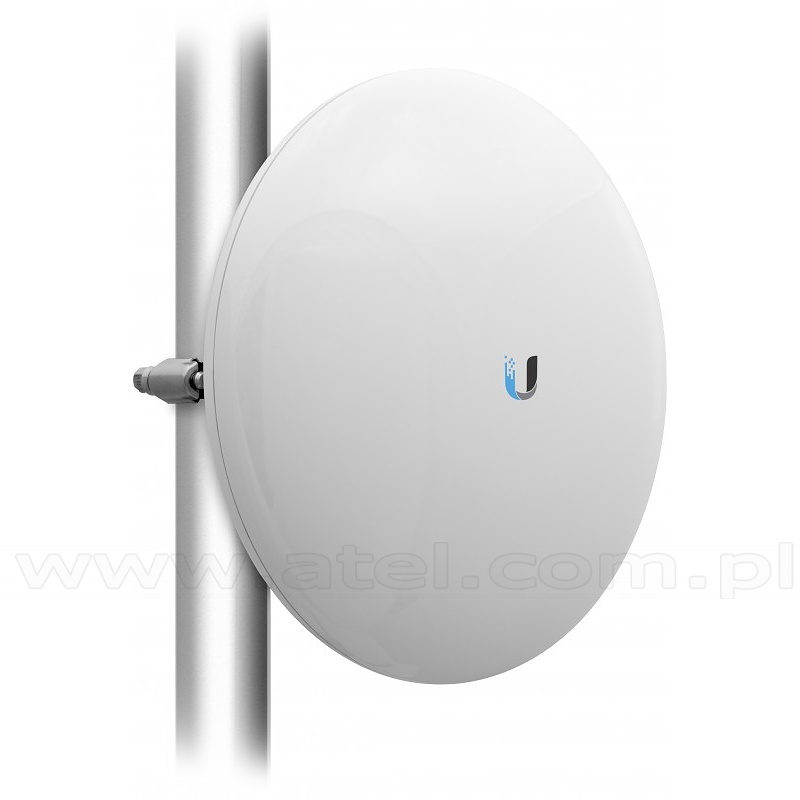

Wireless access point Ubiquiti NanoBeam M5 (Ubiquiti NBE-5AC-Gen2)
| Standards | IEEE 802.11ac/n |
|---|---|

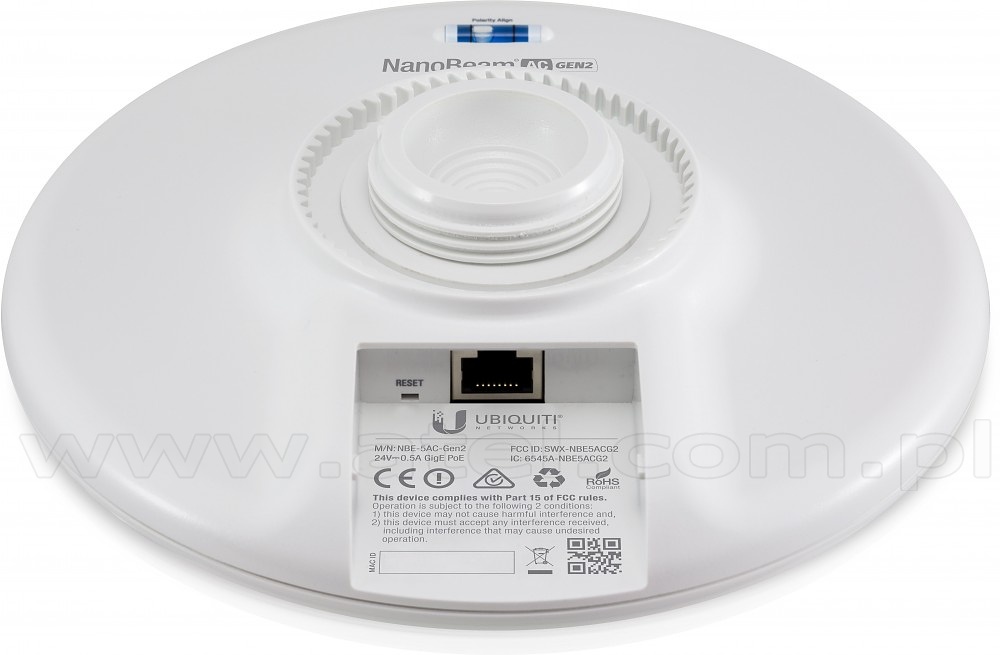

| Ports | 2x 10/100/1000 Mbps RJ-45 |
| Chipset | Atheros MIPS 74Kc, 720 MHz |
| Operating memory | 128 MB DDR2 |
| Flash memory | 8 MB |
| Antenna | build-in, 19 dBi |
| VSWR | 1.5 |
| Dimensions | 189 x 189 x 125 mm |
| Weight | 0.530 kg |
| Mounting | mast or wall with the aid of antenna wall support |
| Max. power consumption | 8.5 W |
| Power | PoE 24V 0.5A Gigabit PoE Adapter (Included) |
| Operating temperatures | -40°C ÷ 80°C |
| Operating humidity | 5% ÷ 95%, Non-condensing |
| Wind Loading | 45.4 N @ 200 km/h (10.2 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection Air | ± 24 kV, Contact ± 24 kV |
| Certifications | CE, FCC, IC |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent MIL-STD-810 G Method 506.5 |
| Manufacturer | Ubiquiti |
TAGS:
PoE
| * For special orders only
Net Price: 114.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
