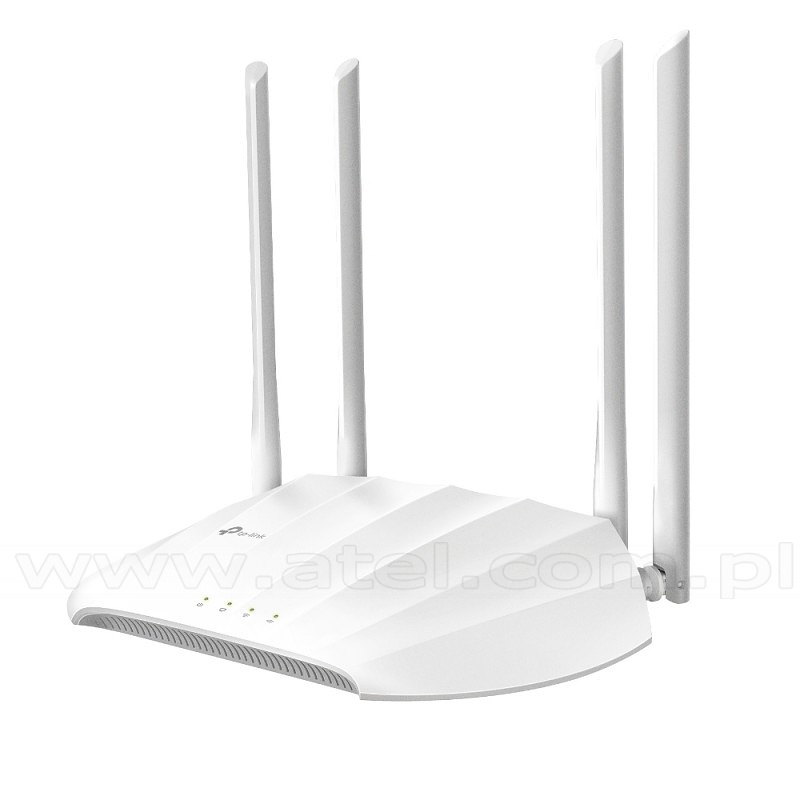

Wireless N Access Point AC1200(TP-Link TL-WA1201)
- AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
- Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
- Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
- MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.
- Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
- Captive Portal – Offers a designed portal page for heightened security and marketing.
| Standards | IEEE 802.11n, IEEE 802.11b/g 2,4 GHz, IEEE 802.11ac/n/a 5 GHz |
|---|---|
| Ports | 1x 10/100/1000 Mbps RJ-45 PoE (LAN) |
| Frequency range | 2,4 GHz and 5 GHz |
| Modulation | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Operating modes | AP Mode, Multi-SSID Mode, AP Client Mode, Repeater Mode (WDS / Universal), AP+ Bridge mode |
| Max. speed | 1200 Mbps (867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz) |
| EIRP | CE <20 dBm (2,4 GHz), <23 dBm (5,15 GHz~5,25 GHz), FCC <30 dBm (2,4 GHz & 5 GHz) |
| Antenna | 4 Fixed High Performance Antennas |
| WLAN security | WEP 64/128/152-bit, WPA, WPA-PSK, WPA2, WPA2-PSK, TKIP, AES |
| WLAN features | 3T3R MIMO, CCA, QSS button, 4x SSIDs, VLAN support |
| Auto MDI/MDIX | yes |
| Dimensions | 400×255×72 mm |
| Operating temperatures | 0°C ÷ 40°C |
| Operating humidity | 5% ÷ 90%, non-condensing |
| Power | 12 V/1,5 A |
| Certificates | CE, FCC, RoHS |
| Manufacturer | TP-Link |
