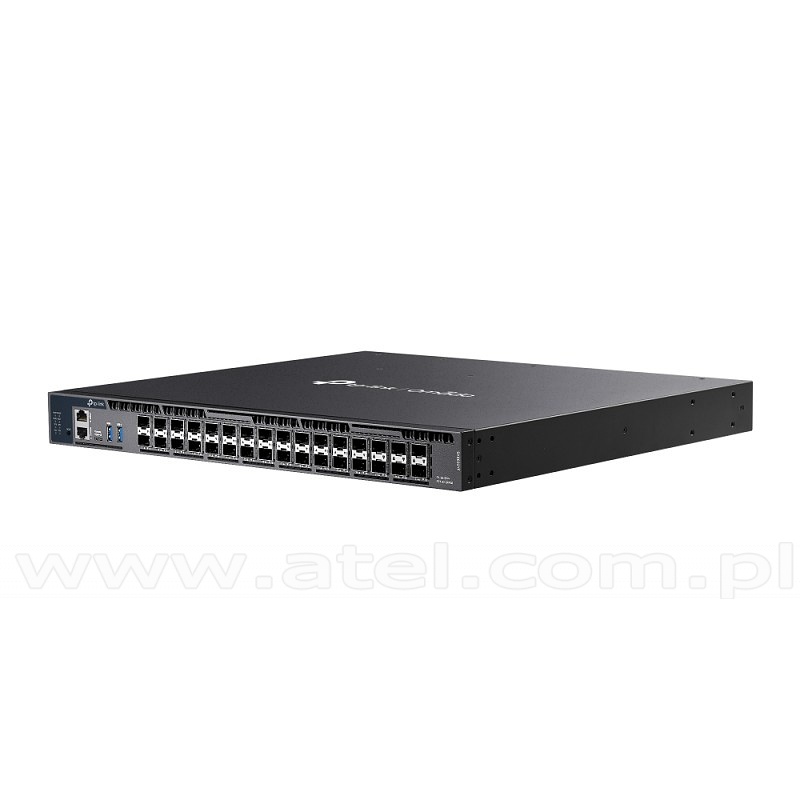

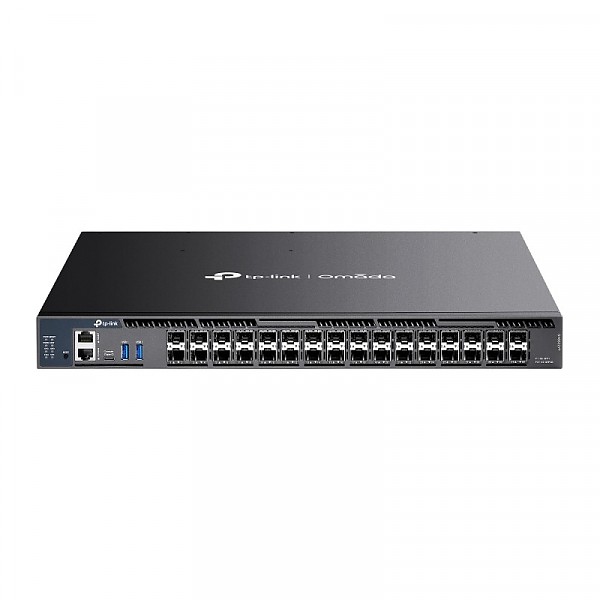

#09459
Managed switch, 26x slide-in 10G SFP+ slot, 6 slide-in SFP28 10/25G slot, 19" (TP-Link SX6632YF)
- 26× 10G SFP+ slots and 6× 25G SFP28 slots
- 820 Gbps switching capacity
- Physical Stacking up to 8 units for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two field-replaceable power supplies, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
| Ports |
6× 10/25G SFP28 Slots, 26× 1/10G SFP+ Slots, 2× USB 3.0 Ports, 1× RJ45 Console Port, 1× USB Type C Console Port, 1× RJ45 Management Port |
|---|---|

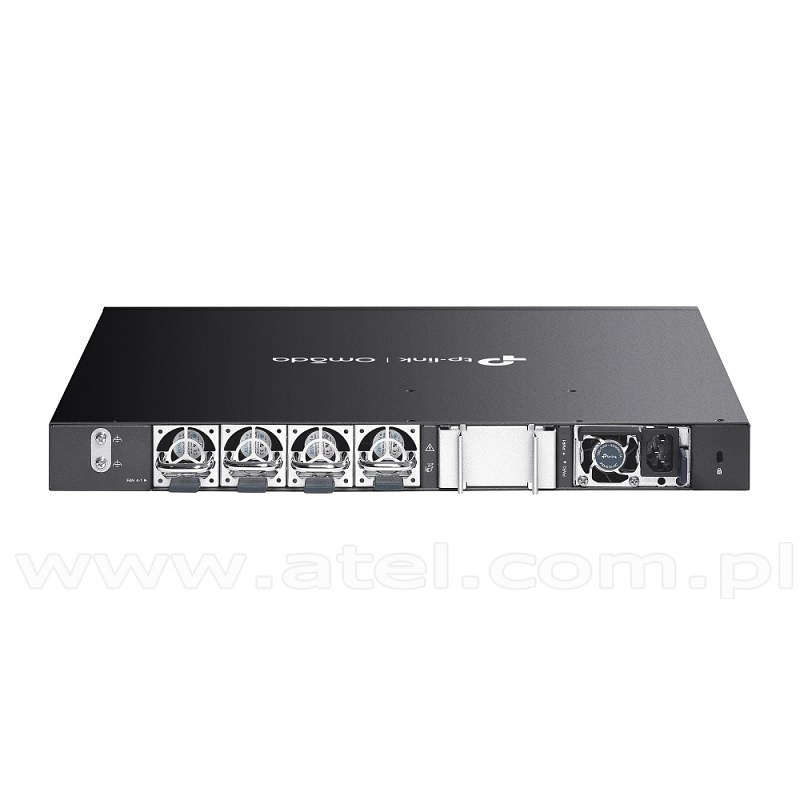

| Fan Quantity | Four field-replaceable and hot-swappable fans (N+1 redundant) |
| Software features | |
| Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L3 Features |
IP Interfaces, IPv4 Max 256, IPv6 Max 256, Static Routing, IPv4 Max 2,048, IPv6 Max 1,024, Host Route Table Max 15,300 entries, RIP Version v1/v2, Max 102,400, RIPng Max 51,200, OSPF Version v2/v3;, v2 Max 102,400, v3 Max 51,200, VRRP Version v2/v3, Max 64 groups, ECMP 256 entries, max 32 ECMP Nexhops per Destination, Static ARP, 1,024 static entries, Dynamic ARP, 24,576 dynamic entries, Proxy ARP, DHCP Server, Max 64 IP Pools, Max 1,000 Manual Binding Entries. DHCP Relay, Relayed Interface, Relayed VLAN |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Switching capacity [Gbps] | 820 Gbps |
| Stacking |
Number 8, Stacking Port 25G SFP28, Stack Bandwidth Up to 300 Gbps (6 stack ports) |
| Packet Forwarding Rate | 610,1 Mp/s |
| MAC Address Table | 128 K |
| Jumbo Frame | 9 KB |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) |
| Operating temperature | -5°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz), *Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase. |
| Max Power Consumption | 86.7 W (110 V/60 Hz) |
| Max Heat Dissipation | 295.85 BTU/hr (110 V/60 Hz) |
| Certificates |
CE, FCC, RoHS |
| Warranty period | 5 years |
| Manufacturer | TP-Link |

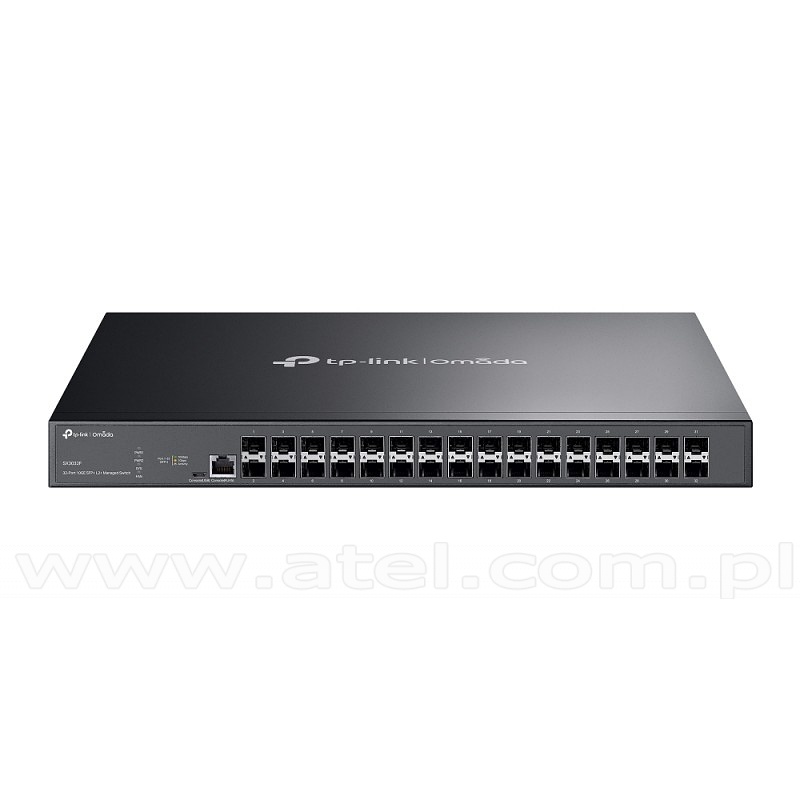

#09464
Managed switch, 32x slide-in 10G SFP+ slot, 19" (TP-Link SX3032F)
- 32× 10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Two internal fixed power supply modules back each other up
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
| Ports |
32× 1/10G SFP+ Slots, 1× RJ45 Console Port, 1× microUSB Console Port |
|---|---|
| Fan Quantity | 2 internal fixed fans |
| Software features | |
| Quality of Service |
8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR, Bandwidth Control Port/Flow-based Rating Limiting, Smoother Performance, Action for Flows QoS remark (802.1P Remark, DSCP Remark) |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Switching capacity [Gbps] | 640 Gbps |
| Packet Forwarding Rate | 240 Mp/s |
| MAC Address Table | 32 K |
| Jumbo Frame | 9 KB |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3×13.0×1.7 in (440×330×44 mm) |
| Operating temperature | -5°C ÷ 45°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |

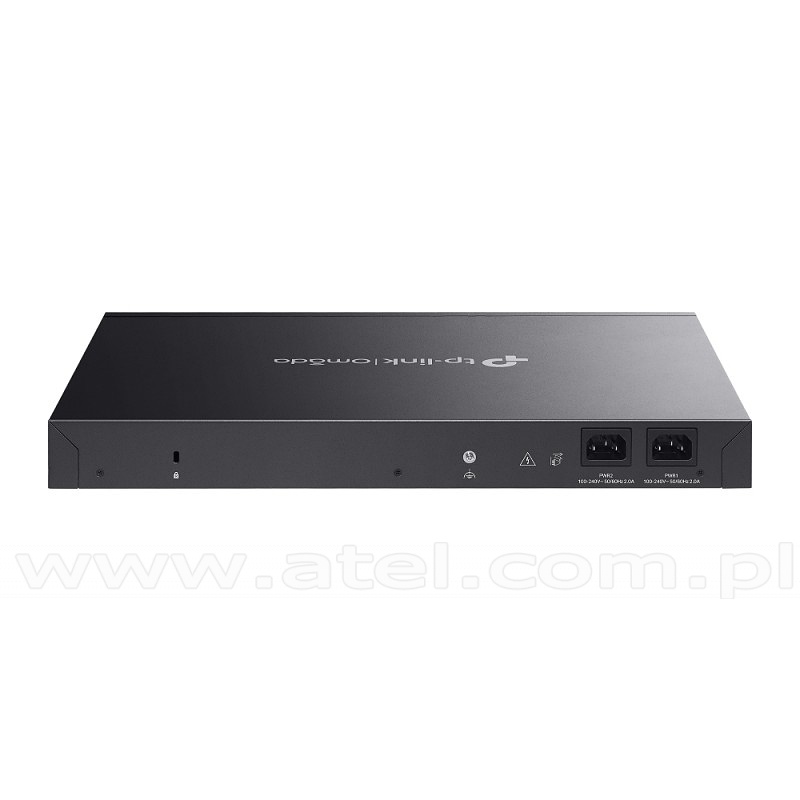

1+1 Redundant Power Supply (internal fixed) (100–240 VAC, 50/60 Hz) |
| Max Power Consumption | 49.4 W (110 V/60 Hz) |
| Certificates |
CE, FCC, RoHS |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
#09222
Managed switch, 48x 10/100/1000 RJ-45, 4 slide-in 10G SFP+ slot, 19" (TP-Link TL-SG3452X)
- Full Gigabit Ports: 48× gigabit RJ45 ports and 4× 10 gigabit SFP+ Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
| Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
|---|---|
| Copper ports | 48x 10/100/1000 Mbps RJ-45 |
| Free slots | 4x SFP+ 10G |
| Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
| Auto MDI/MDI-X | yes |
| Auto-negotiation (Nway) | yes |
| Software features | |
| Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Switching capacity [Gbps] | 176 |
| Packet Forwarding Rate | 130,9 Mp/s |
| MAC Address Table | 16K |
| Jumbo Frame | 9 KB |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Operating temperature | 0°C ÷ 45°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
internal, 100~230VAC 50/60Hz |
| Max Power Consumption | 32,8 W (110 V/60 Hz) |
| Max Heat Dissipation | 111,65 BTU/h (110 V/60 Hz) |
| Certificates |
CE, FCC |
| Warranty period | 5 years |
| Manufacturer | TP-Link |

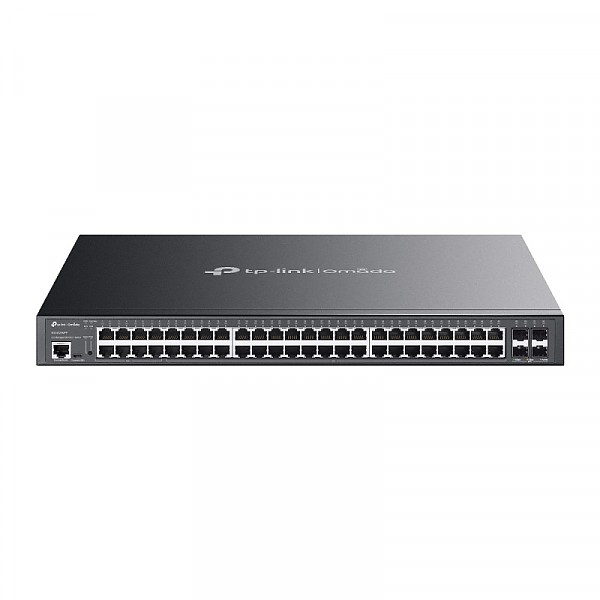

#09465
Managed switch, 48x 10/100/1000 RJ-45, 4 slide-in 10G SFP+ slot, PoE++, 19" (TP-Link SG3452XMPP)
- 4× 10 Gbps SFP+ slots
- 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
- 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
- 750 W total PoE budget*
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
| Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
|---|---|
| Copper ports |
48x 10/100/1000 Mbps RJ-45 (8× PoE++, 40× PoE+) |
| Free slots | 4x SFP+ 10G |
| Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | 3 |
| Porty PoE+ (RJ45) | |
| Standard | 802.3at/af/bt compliant |
| PoE Ports |
PoE++ Ports Ports 1~8 (up to 90 W PoE Output per Port), PoE+ Ports Ports 9~48 (up to 30 W PoE Output per Port) |
| Power Budget | 750 W |
| Max Power Consumption | 913.4 W (110V/60Hz) ( with 750 W PD connected) |
| Max Heat Dissipation | 3114.69 BTU/hr (110 V/60 Hz) (with 750 W PD connected) |
| Performance | |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.9 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Software features | |
| Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
internal, 100~230VAC 50/60Hz |
| Certificates |
CE, FCC |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
#09232
Managed switch, 48x 10/100/1000 RJ-45, 4 slide-in 10G SFP+ slot, PoE+, 19" (TP-Link TL-SG3452XP)
- 10G Lightning-Fast Uplink: Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots.
- PoE+ Output with 500 W Power Budget: Design your optimal network layout with forty-eight 802.3af/at PoE+ gigabit ports.*
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Abundant L2 and L2+ Features: It supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
- Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, and 802.1X Authentication.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
| Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
|---|---|
| Copper ports | 48x 10/100/1000 Mbps RJ-45 |
| Free slots | 4x SFP+ 10G |
| Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | 3 |
| Porty PoE+ (RJ45) | |
| Standard | 802.3at/af compliant |
| PoE+ Ports |
48 Ports, up to 30 W per port |
| Power Budget | 500 W |
| Max Power Consumption |
49.19 W (110V/60Hz) ( no PD device connected), 635.7 W (110V/60Hz) ( with 500 W PD device connected) |
| Max Heat Dissipation |
167.85 BTU/hr (110 V/60 Hz) (no PD connected), 2169.2 BTU/hr (110 V/60 Hz) (with 500 W PD connected) |
| Performance | |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.9 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Software features | |
| Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Operating temperature | 0°C ÷ 45°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
internal, 100~230VAC 50/60Hz |
| Certificates |
CE, FCC |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
#09461
Managed switch, 48x 10/100/1000 RJ-45, 6 slide-in SFP+ 10G slot, 19" (TP-Link SG6654X)
- 48× Gigabit RJ45 ports
- 6× 10 Gbps SFP+ slots
- Physical Stacking up to 8 units for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two field-replaceable power supplies, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
| Ports |
48× 10/100/1000 Mbps RJ45 Ports, 6× 1/10G SFP+ Slots, 2× USB 2.0 Ports, 1× RJ45 Console Port, 1× USB Type C Console Port, 1× RJ45 Management Port |
|---|---|
| Fan Quantity | Four field-replaceable and hot-swappable fans (N+1 redundant) |
| Software features | |
| Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L3 Features |
IP Interfaces, IPv4 Max 256, IPv6 Max 256, Static Routing, IPv4 Max 2,048, IPv6 Max 1,024, Host Route Table Max 15,300 entries, RIP Version v1/v2, Max 102,400, RIPng Max 51,200, OSPF Version v2/v3;, v2 Max 102,400, v3 Max 51,200, VRRP Version v2/v3, Max 64 groups, ECMP 256 entries, max 32 ECMP Nexhops per Destination, Static ARP, 1,024 static entries, Dynamic ARP, 24,576 dynamic entries, Proxy ARP, DHCP Server, Max 64 IP Pools, Max 1,000 Manual Binding Entries. DHCP Relay, Relayed Interface, Relayed VLAN |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Switching capacity [Gbps] | 216 Gbps |
| Stacking |
Number 8, Stacking Port 10G SFP+ Slot (all uplink ports can be used as stacking ports), Stack Bandwidth Up to 120 Gbps (6 stack ports) |
| Packet Forwarding Rate | 160,7 Mp/s |
| MAC Address Table | 32 K |
| Jumbo Frame | 9 KB |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) |
| Operating temperature | -5°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz), *Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase. |
| Max Power Consumption | 39,8 W (220 V/50 Hz) |
| Max Heat Dissipation | 135,81 BTU/godz. (220 V/50 Hz) |
| Certificates |
CE, FCC, RoHS |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
1.0_omada_enterprise_l3_switch-02_large_20231110060717j.jpg?1734526178)
1.0_omada_enterprise_l3_switch-03_large_20240109112856n.jpg?1734526173)
1.0_omada_enterprise_l3_switch-04_large_20231110060754l.jpg?1734526182)
#09460
Managed switch, 48x 10/100/1000 RJ-45, 6 slide-in SFP+ 10G slot, PoE+, 19" (TP-Link SG6654XHP)
- 48× Gigabit RJ45 PoE+ ports
- 6× 10 Gbps SFP+ slots
- Up to 1440W total PoE budget
- Fast PoE and Perpetual PoE
- Physical Stacking up to 8 units for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two field-replaceable power supplies, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
| Ports |
48× 10/100/1000 Mbps PoE+ RJ45 Ports, 6× 1/10G SFP+ Slots, 2× USB 2.0 Ports, 1× RJ45 Console Port, 1× USB Type C Console Port, 1× RJ45 Management Port |
|---|---|
| Fan Quantity | Four field-replaceable and hot-swappable fans (N+1 redundant) |
| PoE Ports (RJ45) |
Standard 802.3at/af compliant, PoE+ Ports 48 Ports, up to 30 W per port, PoE Power Budget up to 1440 W |
| Software features | |
| Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L3 Features |
IP Interfaces, IPv4 Max 256, IPv6 Max 256, Static Routing, IPv4 Max 2,048, IPv6 Max 1,024, Host Route Table Max 15,300 entries, RIP Version v1/v2, Max 102,400, RIPng Max 51,200, OSPF Version v2/v3;, v2 Max 102,400, v3 Max 51,200, VRRP Version v2/v3, Max 64 groups, ECMP 256 entries, max 32 ECMP Nexhops per Destination, Static ARP, 1,024 static entries, Dynamic ARP, 24,576 dynamic entries, Proxy ARP, DHCP Server, Max 64 IP Pools, Max 1,000 Manual Binding Entries. DHCP Relay, Relayed Interface, Relayed VLAN |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Switching capacity [Gbps] | 216 Gbps |
| Stacking |
Number 8, Stacking Port 10G SFP+ Slot (all uplink ports can be used as stacking ports), Stack Bandwidth Up to 120 Gbps (6 stack ports) |
| Packet Forwarding Rate | 160,7 Mp/s |
| MAC Address Table | 32 K |
| Jumbo Frame | 9 KB |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm) |
| Operating temperature | -5°C ÷ 45°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz), *Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase. |
| Max Power Consumption |
67.24 W (110 V/60 Hz) (With no PD connected), 1767.7 W (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC) |
| Max Heat Dissipation |
229.29 BTU/hr (110 V/60 Hz) (With no PD connected), 6,027.86 BTU/hr (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC) |
| Certificates |
CE, FCC, RoHS |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
1.0_10g_l3_poe_switch_02_large_20231110073633u.jpg?1734525864)
1.0_10g_l3_poe_switch_03_large_20231110073654v.jpg?1734525874)
1.0_10g_l3_poe_switch_04_large_20231110073800u.jpg?1734525736)
Page 16 of 16
|
