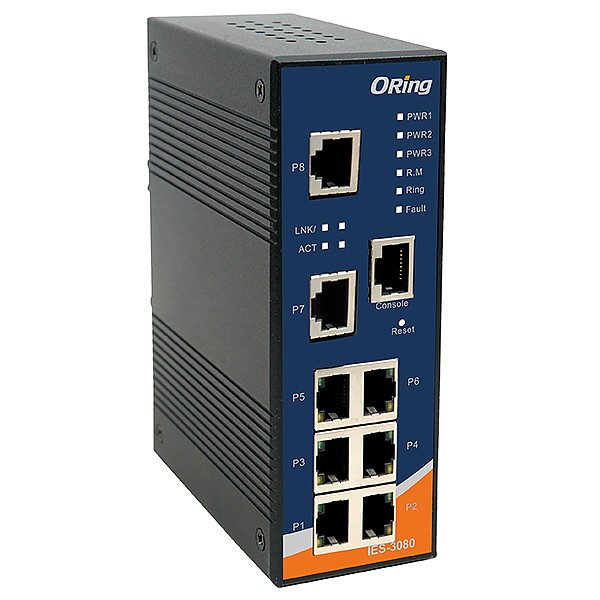

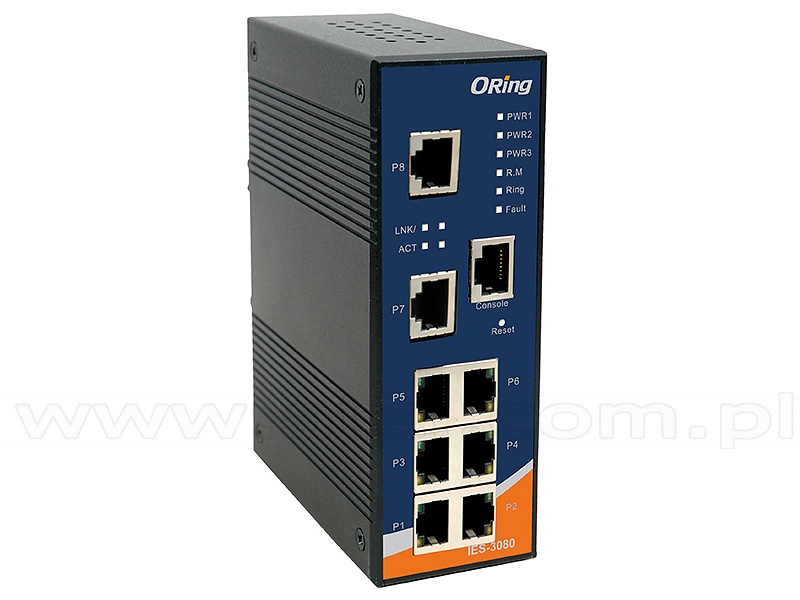

Managed switch, 8x 10/100 RJ-45, O/Open-Ring <10ms (ORing IES-3080)
IES-3080 / IES-3062 series are managed Redundant Ring Ethernet switches with 6x10/100Base-T(X) and 2x10/100Base-T(X), 100Base-FX, 1000Base-T, 1000Base-SX or 1000Base-LX ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. IES-3080 / IES-3062 series can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40°C to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choice for highly-managed Fiber Ethernet application.
| Physical Ports | |
|---|---|
| 10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 8 |
| RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (9600bps 8 N 1) |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow control, IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1X for Authentication, IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 1588 for Precise Time Protocol Client |
| MAC Table | 8192 MAC addresses |
| Priority Queues | 4 |
| Processing | Store-and-Forward |
| Switching latency | 7 µs |
| Switching bandwidth | 5.6 Gbps |
| Max. Number of Available VLANs | 4096 |
| Number of VLAN IDs | VID 1 to 4094 |
| IGMP multicast groups | 256 |
| Port rate limiting | User Define |
| Security Features | Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security |
| Software Features | STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
| Network Redundancy | STP, RSTP, O-Ring, Open-Ring, O-RSTP |
| LED Indicators | |
| Power / Ready indicator | Green - Ready LED x 3 |
| Ring Master indicator | Green - Flashing to indicate system operated in O-Ring Master mode |
| O-Ring indicator | Green - Indicate system operated in O-Ring mode |
| Fault indicator | Yellow - Indicate unexpected event occurred |
| 10/100TX RJ45 port indicator | Green for port Link/Act, Yellow for Duplex/Collision |
| Fault contact | |
| Relay | Relay output to carry capacity of 1A at 24VDC |
| Power | |
| Input power | Triple DC inputs. 12÷48VDC on 7-pin terminal block, 12÷45VDC on power jack |
| Power consumption (typical) | 5W |
| Overload current protection | present |
| Reverse polarity protection | present on terminal block |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimension (W x D x H) | 52mm x 106mm x 144mm |
| Weight | 710g |
| Environmental | |
| Storage Temperature | -40÷85°C(-40÷185°F) |
| Operating Temperature | -40÷70°C (-40÷158°F) |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950 |
| Warranty | |
| Warranty period | 5 years |
Net Price: 426.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
