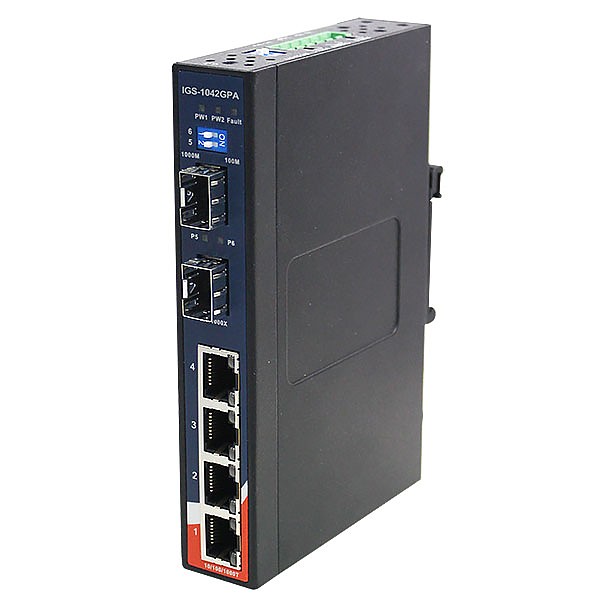

Unmanaged switch, 4x 10/1000 RJ-45 + 2x 1000 SFP, slim housing (ORing IGS-1042GPA)
IGS-1042GPA is an unmanaged Ethernet switch. IGS-1042GPA has 4x10/100/1000Base-T(X) and 2x100/1000Base-X SFP port. The SFP port optical network speed can be set by changing the settings of the DIP-Switch below. IGS-1042GPA supports wide range 12~48VDC power inputs. The wide operating temperature range from -40oC to 70oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for Ethernet application.
| Physical Ports | |
|---|---|
| 10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 4 |
| 100/1000Base-X SFP Ports | 2 |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX,, IEEE 802.3z for 1000Base-X, IEEE 802.3x for Flow control |
| MAC Table | 1024 MAC addresses |
| Processing | Store-and-Forward |
| LED Indicators | |
| Power indicator | Green - Power LED x 2 |
| Fault indicator | Amber - Indicate PWR1 or PWR2 failure |
| 10/100/1000TX RJ45 port Indicator | Green on only for 1000Mbit, Green and Amber on for 100Mbit, Amber on only for 10Mbit |
| 1000X SFP port Indicator | Green for port Link/Act |
| Fault contact | |
| Relay | Relay output to carry capacity of 1A at 24VDC |
| Power | |
| Input power | Dual DC inputs. 12÷48VDC on 6-pin terminal block |
| Power consumption (typical) | 6.4W |
| Overload current protection | present |
| Reverse polarity protection | present on terminal block |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimension (W x D x H) | 26.1mm x 94.9m x 144.3mm |
| Weight | 410g |
| Environmental | |
| Storage Temperature | -40÷85°C (-40÷185°F) |
| Operating Temperature | -40÷70°C (-40÷158°F) |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950 |
| Warranty | |
| Warranty period | 5 years |
| * For special orders only
Net Price: 211.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
