Managed switch, 24x 10/1000 RJ-45 PoE + 4 1G/10G SFP+ slots, O/Open-Ring <30ms, L3 (ORing RGPS-R9244GP+-LP)

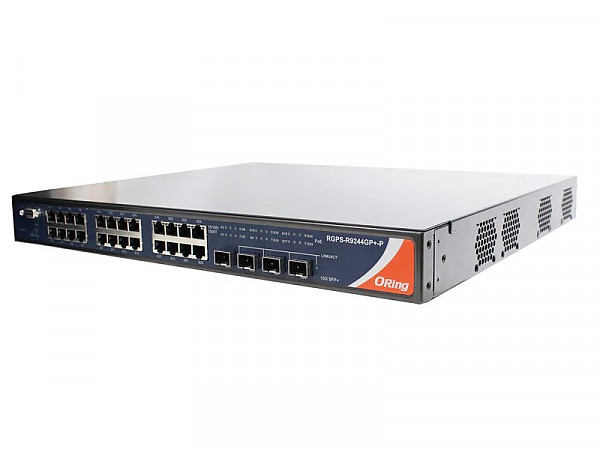

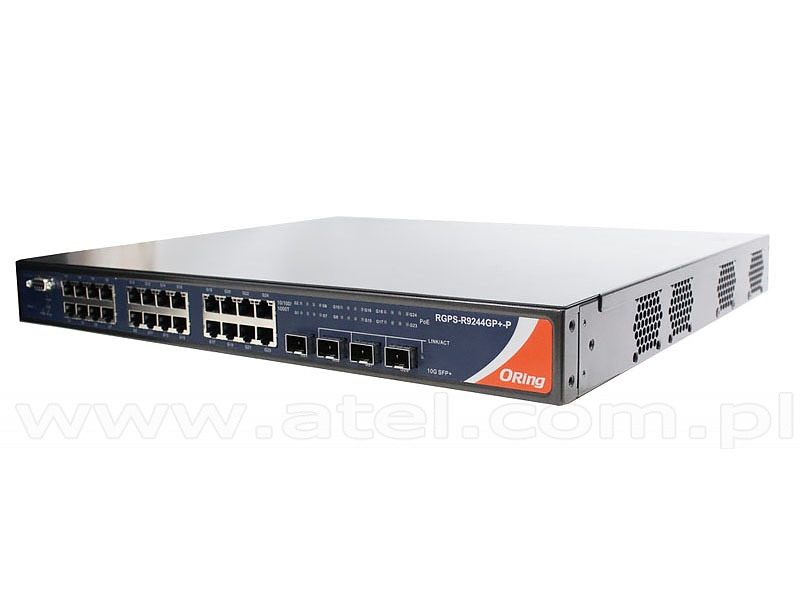

RGPS-R9244GP+-P is Layer-3 Gigabit managed redundant ring PoE Ethernet switch with 24x10/100/1000Base-T(X) IEEE802.3at P.S.E. ports and 4x1G/10GBase-X SFP+ ports. The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. RGPS-R9244GP+-P also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each RGPS-R9244GP+-P switch had 24x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE connection. And RGPS-R9244GP+-P support wide operating temperature from -40 oC to 60 oC. RGPS-R9244GP+-P can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber PoE Ethernet application.
| Physical Ports | |
|---|---|
| 10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX (with PoE) | 24 |
| 1G/10GBase-X with SFP+ port | 4 |
| RS-232 Serial Console Port | RS-232 in DB9 connector with console cable (115200bps, 8, N, 1) |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow control, IEEE 802.3ae for 10Gigabit Ethernet, IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1X for Authentication, IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.) |
| MAC Table | 8192 MAC addresses |
| Priority Queues | 8 |
| Processing | Store-and-Forward |
| Switching latency | 7 µs |
| Switching bandwidth | 128 Gbps |
| Max. Number of Available VLANs | 256 |
| IGMP multicast groups | 128/VLAN |
| Port rate limiting | User Define |
| Security Features | Hardware routing, RIP and static routing, IEEE 1588v2 clock synchronization, IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static), Multiple Registration Protocol (MRP), MSTP (RSTP/STP compatible), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging, IGMP v2/v3 Snooping, IP-based bandwidth management, Application-based QoS management, DOS/DDOS auto prevention, Port configuration, status, statistics, monitoring, security, DHCP Server/Client, DHCP Relay, Modbus TCP, DNS client proxy, SMTP Client |
| Network Redundancy | STP, RSTP, O-Ring, MSTP |
| LED Indicators | |
| Ring Master indicator | Green - indicates system operated in O-Ring Master mode |
| O-Ring indicator | Green - Indicate system operated in O-Ring mode, Green Blinking - Indicates that the Ring is broken. |
| Fault indicator | Amber - Indicates unexpected event occurred |
| 10/100/1000TX RJ45 port indicator | Green for port Link/Act, Amber for 100Mbps |
| Fiber port indicator 1G/10G | Green for port Link/Act |
| PoE indicator | Blue PoE LED x 24 |
| Power | |
| Input power | 100~240VAC with power socket |
| Power supply | 400W |
| Power consumption (typical) | 75Watts (Typ.) |
| Overload current protection | present |
| Reverse polarity protection | not present |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimension (W x D x H) | 431 x 342 x 44 mm |
| Weight | 6520 g |
| Environmental | |
| Storage Temperature | -40÷85°C(-40÷185°F) |
| Operating Temperature | -40÷60°C (-40÷140°F) |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950 |
| Warranty | |
| Warranty period | 5 years |
| * For special orders only
Net Price: 2 610.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
