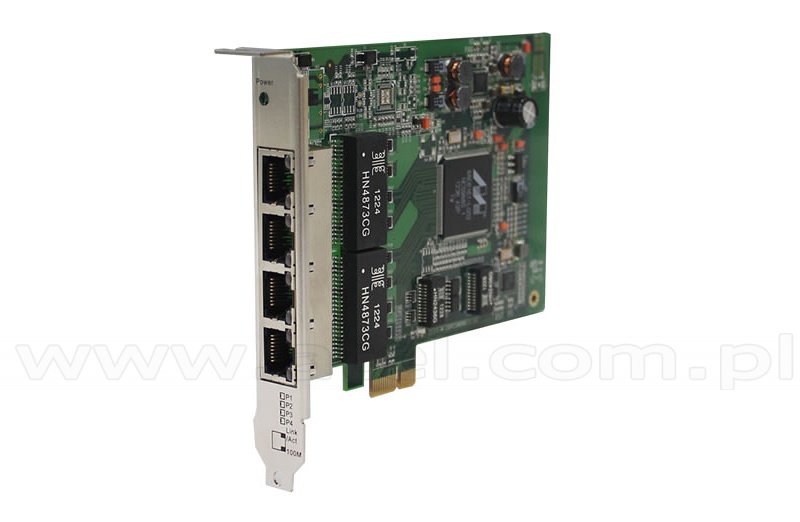

Unmanaged switch, 4x 10/100/1000 RJ-45, Gigabit Ethernet, PCIe slot (ORing IGCS-E140)
IGCS-E140 is an PCI-Express unmanaged Gigabit Ethernet switch card. The Ethernet switch card is a high performance LAN controller. IGCS-E140 provided 4x10/100/1000Base-T(X) auto MDI/MDIX Ethernet ports. IGCS-E140 could be installed on any IPC motherboard with PCIe socket to make the IPC/embedded system able to communication with other Ethernet devices. The IGCS-E140's full bandwidth capability boasts a robust 1000Mbps capability through the PCI-Express bus architecture. IGCS-E140 no need to purchase a new switch or broadband router because the auto-negotiation feature works with your existing switch, broadband router, or hub to provide the highest network speed available. The automatic full duplex capability further increases bandwidth and eliminates packet collisions by allowing data to flow in both directions at the same time. Therefore, IGCS-E140 is the best solution to IPC/embedded system to feature Ethernet network.
| Physical Ports | |
|---|---|
| 10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 4 |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control |
| MAC Table | 8192 MAC addresses |
| Processing | Store-and-Forward |
| LED Indicators | |
| Power indicator | Green - Power LED x 1 |
| 10/100TX RJ45 port indicator | Green for port Link/Act. Amber for Collision/Duplex indicator |
| Power | |
| Input power | PCIe bus powered |
| Power consumption (typical) | 4,2W |
| Overload current protection | present |
| Physical Characteristic | |
| Dimension (WxDxH) | 21.3mm x 136mm x 121mm |
| Weight | 98g |
| Environmental | |
| Storage Temperature | -40÷85°C (-40÷185°F) |
| Operating Temperature | -10÷60°C (14÷140°F) |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Operating System Supports | |
| Microsoft System | DOS / Win98 / WinMe / WinXP / Win2000 / WinServer2003 / Vista / WinServer 2008 / Win7 / Win8 |
| Unix (Linux) | Linux for Kernel 3.x / 2.6.x / 2.4.x, FreeBSD for 7.x / 8.0, SCO OpenServer for 6 / UnixWare 7.1.x |
| Novell | Novell client for DOS (ODI driver) / Novell server driver (Support OS 5.x and 6.x) |
| Others | MacOS 10.4 / 10.5 / 10.6 / 10.7 |
| Warranty | |
| Warranty period | 5 years |
| * For special orders only Net Price:
 Call |
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
