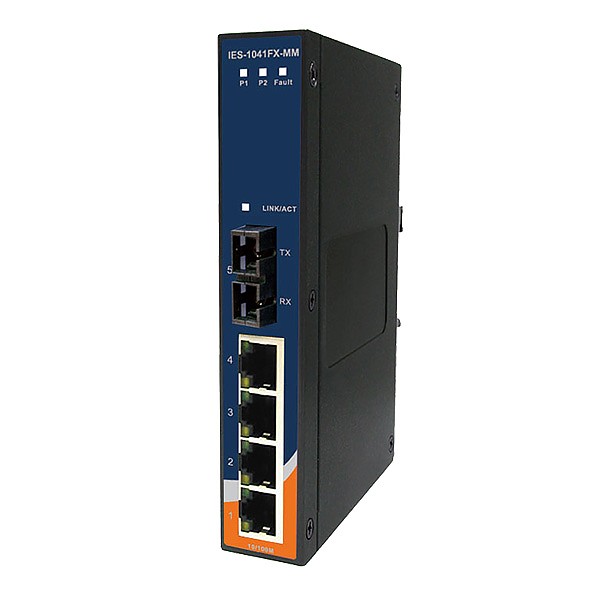

Unmanaged switch, 4x 10/100 RJ-45 + 1x 100 MM SC, slim housing (ORing IES-1041FX-MM-SC)
IES-1041FX/1042FX series are unmanaged Ethernet switches with 4 x 10/100Base-T(X) and 100Base-FX ports. IES-1041FX/1042FX series support redundant power inputs, configurable relay output alarm and rigid IP-30 housing. In addition, the wide operating temperature range from -40 to 70°C can satisfy most of operating environment
| Physical Ports | |
|---|---|
| 10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 4 |
| 100Base-FX Multimode ports (2km, 1310nm, SC connector) | 1 |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow control |
| MAC Table | 1024 MAC addresses |
| Processing | Store-and-Forward |
| LED Indicators | |
| Power indicator | Green - Power LED x 2 |
| Fault indicator | Yellow - Indicate PWR1 or PWR2 failure |
| 10/100TX RJ45 port indicator | Green for port Link/Act, Yellow for Duplex/Collision |
| Fiber port indicator | Green for port Link/Act, Yellow for Link |
| Fault contact | |
| Relay | Relay output to carry capacity of 1A at 24VDC |
| Power | |
| Input power | Dual DC inputs. 12÷48VDC on 6-pin terminal block |
| Power consumption (typical) | 5W |
| Overload current protection | present |
| Reverse polarity protection | present on terminal block |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimension (W x D x H) | 33mm x 95mm x 144mm |
| Weight | 378g |
| Environmental | |
| Storage Temperature | -40÷85°C (-40÷185°F) |
| Operating Temperature | -40÷70°C (-40÷158°F) |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950 |
| Warranty | |
| Warranty period | 5 years |
| * For special orders only
Net Price: 171.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
