MENU#06255

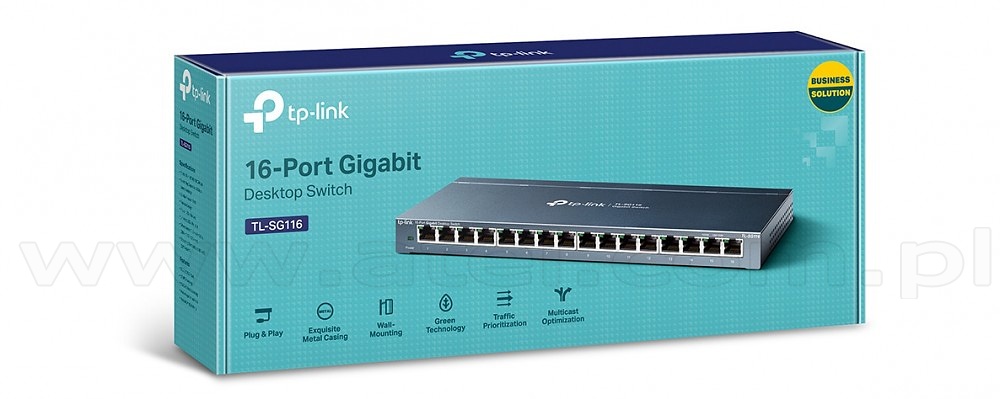

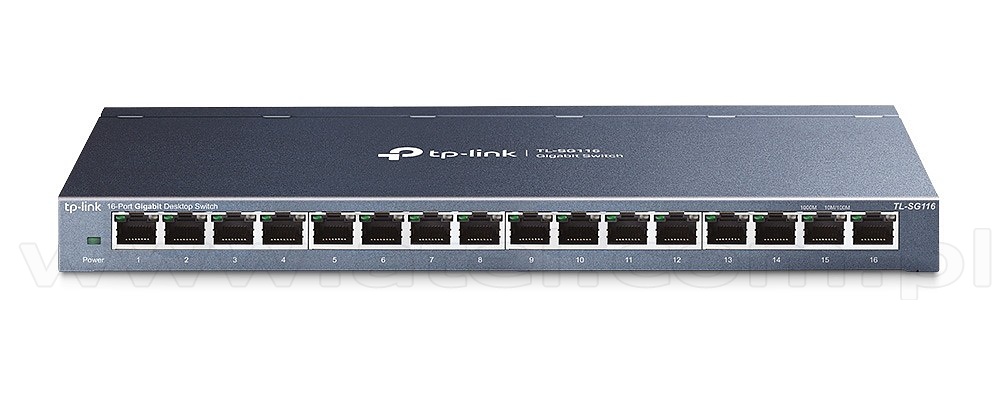

Unmanaged switch, 16x 10/100/1000 RJ-45, desktop (TP-Link TL-SG116)
- 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, with no configuration needed
| Standards | IEEE 802.3i/802.3u/ 802.3ab/ 802.3x/ 802.1p |
|---|---|
| Copper ports | 16x 10/100/1000 Mbps RJ-45 |
| Auto MDI/MDI-X | yes |
| Auto-negotiation (Nway) | yes |
| Performance: | |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mb |
| Jumbo Frame | 10KB |
| Software features: | |
| Advanced Features | Green Technology, 802.3X Flow Control, 802.1p/DSCP QoS, IGMP Snooping |
| Transfer Method | Store and Forward |
| Dimensions | 11.26 x 4.4 x 1.0 in. (286x111.7x25.4 mm) |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity | 10% ÷ 90%, non-condensing |
| Power | External Power Adapter (Output 12VDC / 1.0A) |
| Max Power Consumption | 10W(220V/50Hz) |
| Max Heat Dissipation | 34.12BTU/h |
| Certificates | CE, FCC, RoHS |
| Warranty | 5 years |
| Manufacturer | TP-Link |
1.0_02_large_1526630228466l.jpg?1636903972)
1.0_03_large_1526630238919t.jpg?1636244697)
Net Price: 57.60 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
