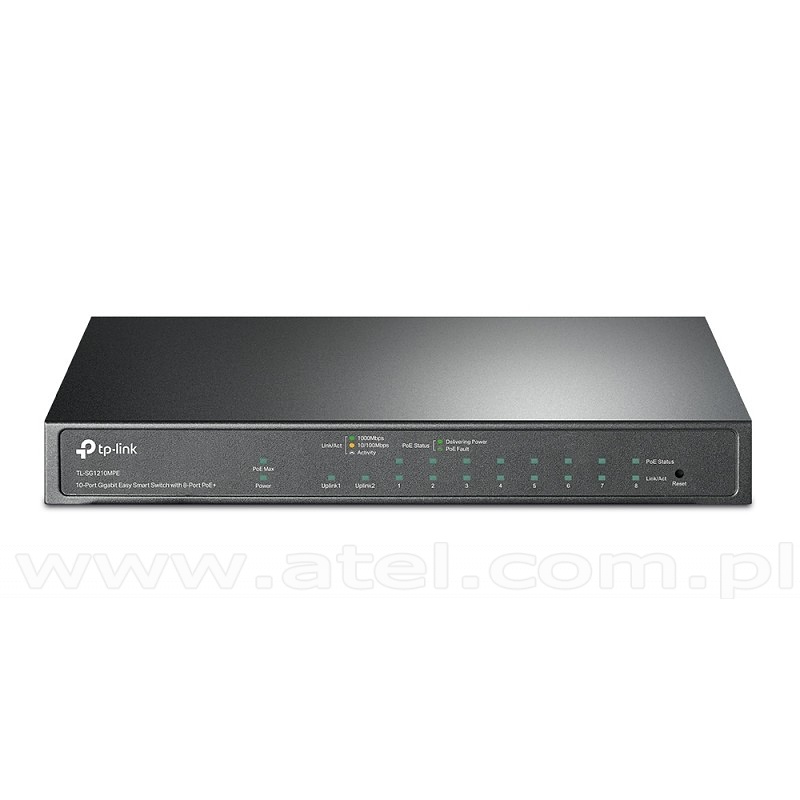

Smart switch, 9x 10/100/1000 RJ-45, 1 SFP slots, PoE+, desktop (TP-Link TL-SG1210MPE)
- 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port
- Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
- Supports PoE power up to 123 W for all PoE ports
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
| Standards | IEEE 802.3/i/u/ab/af/x/q/p/at/z |
|---|---|
| Copper ports | 9x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) PoE+, 1x 10/100/1000 Mbps RJ-45 |
| Free slots | 1x 1000 Mbps SFP |
| PoE Ports (RJ45) | |
| Standard | 802.3af/at compliant |
| PoE Ports | 8 Ports |
| Power Supply | 123W |
| Performance | |
| Packet Forwarding Rate | 14.88 Mpps |
| Bandwidth/Backplane | 20Gbps |
| MAC Address Table | 4k |
| Jumbo Frame | 16 KB |
| Software features | |
| Transmission Method | Store-And-Forward |
| Quality of Service | Support Port-Based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
| PoE | Extend Mode, PoE Auto Recovery |
| Management | Web-based GUI, Easy Smart Configuration Utility |
| Housing / case type | 19", metal |
| Dimensions | 209 x 126 x 26 mm |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity | 10% ÷ 90%, non-condensing |
| Power | 100~240VAC, 50/60Hz, External Power Adapter(Output 53.5V DC / 2.43A) |
| Power Consumption | Maximum (PoE on) 141.54W, Maximum (PoE off) 7.66W |
| Fan Quantity | 0 |
| Certificates | CE, FCC, RoHS |
| Manufacturer | TP-Link |
Net Price:
 Unit: pcs |
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
