MENU#09064

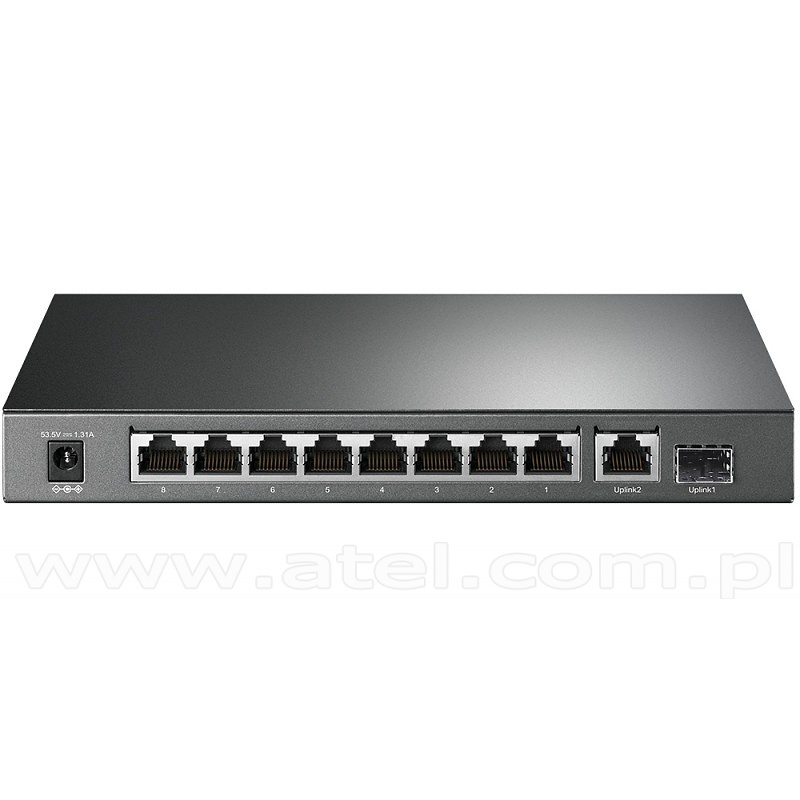

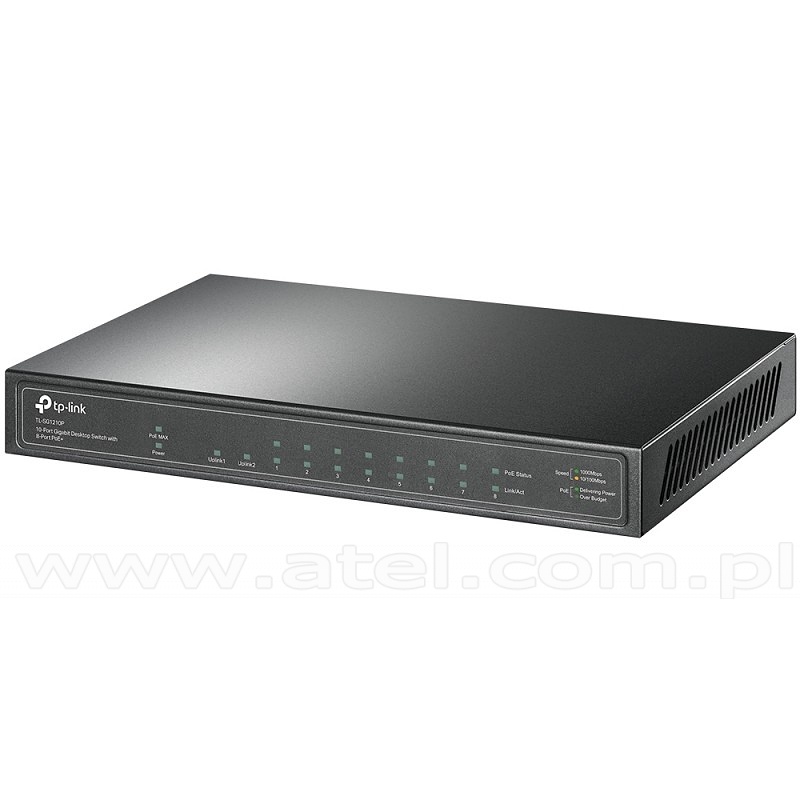

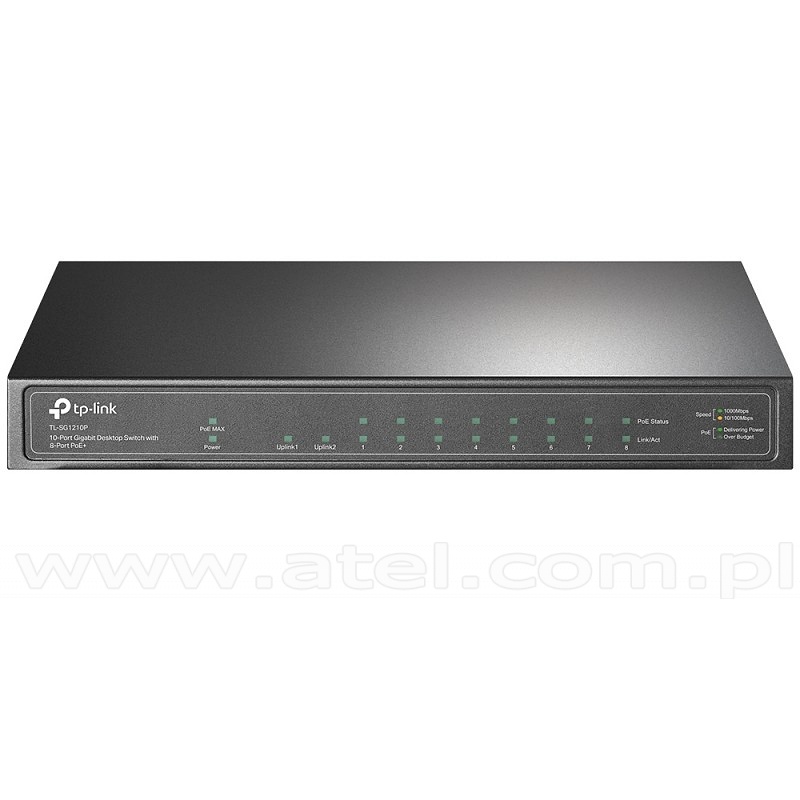

Unmanaged switch, 9x 10/100/1000 RJ-45, 1 SFP slots, PoE+, desktop (TP-Link TL-SG1210P)
- 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
- With 8 PoE+ ports, transfers data and power on one single cable
- Working with IEEE 802.3af/at compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
- Easy to use, with no configuration and installation needed
| Standards | IEEE 802.3/i/u/ab/z/ad/x/af/d/s/w/q/x/p |
|---|---|
| Copper ports | 8x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) PoE+, 1x 10/100/1000 Mbps RJ-45 |
| Free slots | 1x 1000 Mbps SFP |
| PoE Ports (RJ45) | |
| Standard | 802.3af/at compliant |
| PoE Ports | 8 Ports |
| Power Supply | 63W |
| Performance | |
| Bandwidth/Backplane | 20Gbps |
| MAC Address Table | 4k |
| Software features | |
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs, EEE802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping |
| Transmission Method | Store-And-Forward |
| Housing / case type | 19", metal |
| Dimensions | 209 x 126 x 26 mm |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity | 10% ÷ 90%, non-condensing |
| Power | 100~240VAC, 50/60Hz, External Power Adapter(Output 48VDC/1.25A) |
| Power Consumption | Maximum (PoE on) 78.13W, Maximum (PoE off) 7.11W |
| Fan Quantity | 0 |
| Certificates | CE, FCC, RoHS |
| Manufacturer | TP-Link |
__32972___38754__large_1576475519591z.jpg?1616743249)
__20391___38754_2_large_1576475539164d.jpg?1636635139)
Net Price:
 Unit: pcs |
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
