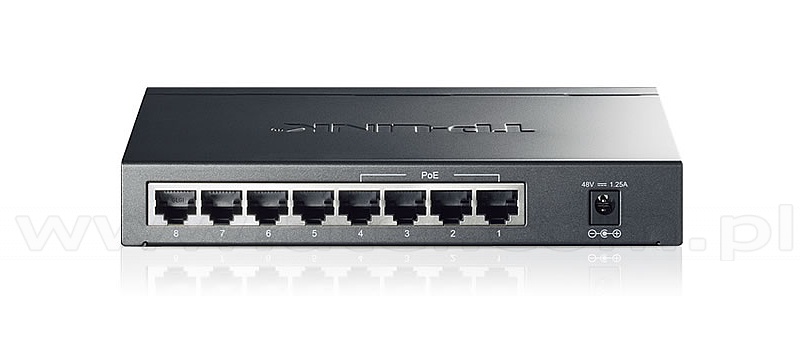

Unmanaged switch, 8x 10/100/1000 RJ-45, PoE (TP-Link TL-SF1008P)
- 8 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Requires no configuration and installation
| Standards | EEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
|---|---|
| Copper ports | 8x 10/100/1000 Mbps RJ-45 |
| Standard | 802.3af compliant |
| PoE Ports | Port1- Port4 |
| Power Supply | 53W |
| Advanced Features | Compatible With IEEE 802.3af Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| Auto MDI/MDI-X | yes |
| Auto-negotiation (Nway) | yes |
| Switching architecture / speed | Store and Forward |
| Packet flow control | Flow-Control, Back-Pressure |
| Forwarding rate | 14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
| Dimensions | 171x98x27 mm |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Power | internal, ~230V AC 50Hz |
| Power Consumption | Maximum (PoE on)- 58.8W (220V/50Hz), Maximum (PoE off)- 5.8W (220V/50Hz) |
| Certificates | CE, FCC, RoHS |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
