MENU#08575

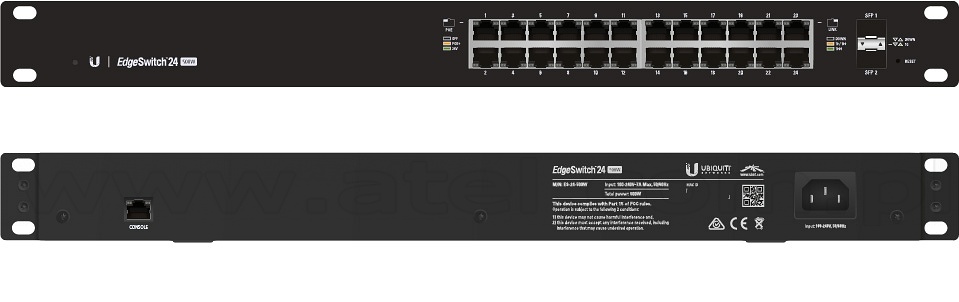

Managed switch, 24x 10/1000 RJ-45, 2x 100/1000 SFP, PoE+, 19" (Ubiquiti ES-24-250W)
| Ports | |
|---|---|
| RJ-45 (10/100/1000 Mbps) | 24 |
| SFP (100/1000 Mbps) | 2 |
| Management Interface | RJ45 Serial Port, Ethernet In/Out Band |
| Power over Ethernet (PoE) | |
| POE+ IEEE 802.3af/at | Pins 1, 2+; 3, 6- |
| 24VDC Passive PoE | Pins 4, 5+; 7, 8- |
| Power dedicated to PoE | 34.2W |
| Voltage Range 802.3at | 50–57V |
| Max. Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
| Performance | |
| Switching Capacity in Gigabits per Second (Gbps) | 52 |
| Forwarding Rate (Mpps) | 38.69 |
| Software Information | |
| Layer 2 Switching | Broadcast Storm Recovery, Broadcast/Multicast/Unknown Unicast Storm Recovery, DHCP Snooping, IGMP Snooping Querier, Independent VLAN Learning (IVL) Support, Jumbo Ethernet Frame Support, Port MAC Locking, Port Mirroring, Protected Ports, Static MAC Filtering, TACACS+, Voice VLANs, Unauthenticated VLAN, Internal 802.1X Authentication Server |
| Management | Web UI, Industry-Standard CLI, IPv6 Management, Password Management, Autoinstall Support for Firmware Images and Configuration Files, SNMP v1, v2, and v3, SSH 1.5 and 2.0, SSL 3.0 and TLS 1.0, Secure Copy (SCP), Telnet (Multi-Session Support) |
| Core Switching Features | ANSI/TIA-1057 - LLDP-Media Endpoint Discovery (MED), IEEE 802.1AB - Link Layer Discovery Protocol (LLDP), IEEE 802.1D - Spanning Tree Compatibility, IEEE 802.1S - Multiple Spanning Tree Compatibility, IEEE 802.1W - Rapid Spanning Tree Compatibility, IEEE 802.1Q - Virtual LANs with Port-Based VLANs, IEEE 802.1p - Ethernet Priority with User Provisioning and Mapping, IEEE 802.1X - Port-Based Authentication with Guest VLAN Support, IEEE 802.3 - 10BASE-T, IEEE 802.3u - 100BASE-T, IEEE 802.3ab - 1000BASE-T, IEEE 802.1ak - Virtual Bridged Local Area Networks - Amendment 07 - Multiple Registration Protocol, IEEE 802.3ac - VLAN Tagging, IEEE 802.3ad - Link Aggregation, IEEE 802.3x - Flow Control, IEEE 802.1D-2004 - Generic Attribute Registration Protocol - Clause 12 (GARP), IEEE 802.1D-2004 - Dynamic L2 multicast registration - Clause 10 (GMRP), IEEE 802.1Q-2003 - Dynamic VLAN registration - Clause 11.2 (GVRP), RFC 4541 - Considerations for Internet Group Management Protocol (IGMP) Snooping Switches, RFC 5171 - Unidirectional Link Detection (UDLD) Protocol |
| General | |
| Dimensions | 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24") |
| Weight | 4.7 kg (10.4 lb) |
| Weight With Mount Brackets | 4.8 kg (10.6 lb) |
| Power | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 250W DC |
| Operating temperature | -5 ÷ 40°C |
| Operating humidity | 5% to 95% , relative, noncondensing |
| Certification | CE, FCC, IC |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Manufacturer | Ubiquiti |
TAGS:
PoE plus
| * For special orders only
Net Price: 408.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
