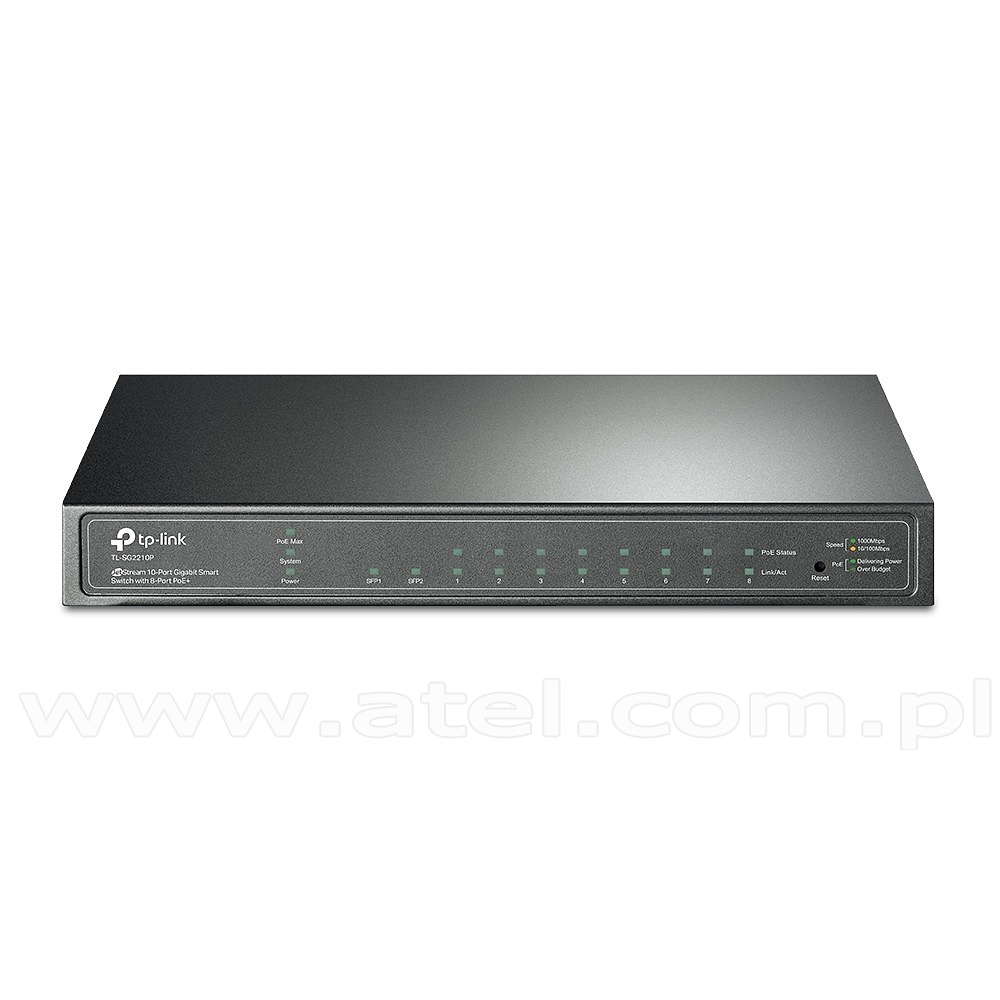

Smart switch, 8x 10/100/1000 RJ-45, PoE+, desktop (TP-Link TL-SG2210P)
- 61 W PoE Budget: 8× 802.3af/at-compliant PoE+ ports with a total power supply of 61 W*.
- Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.
| Standards | IEEE 802.3/i/u/ab/ad/x/d/s/w/q/p |
|---|---|
| Copper ports | 8x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) |
| PoE Ports (RJ45) | Standard 802.3af/at compliant, PoE Ports 8 Ports, Power Supply 61 W |
| Performance | |
| Bandwidth/Backplane | 20Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8k |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| Software features | |
| Quality of Service | Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L2 Features | IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group), Spanning Tree STP/RSTP/MSTP, LLDP, LLDP-Med, BPDU Filtering/Guard, TC/Root Protect, Loop back detection, 802.3x Flow Control, VLAN Voice |
| VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
| Security | SSH v1/v2, SSL v2/v3/TLSv1, Port Security, Broadcast/Multicast/Unknown-unicast Storm Control |
| Management | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features | Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Dimensions | 8.2x4.9x1.0 in. (209x126x26mm) |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity | 10% ÷ 90%, non-condensing |
| Power | External Power Adapter (Output 53.5 VDC/ 1.31 A) |
| Power Consumption | 10,5 W (220 V/50 Hz), 75,3 W (220 V/50 Hz) (with 58 W PD connected) |
| Fan Quantity | Fanless |
| Certificates | CE, FCC, RoHS |
| Warranty period | 5 years |
| Manufacturer | TP-Link |

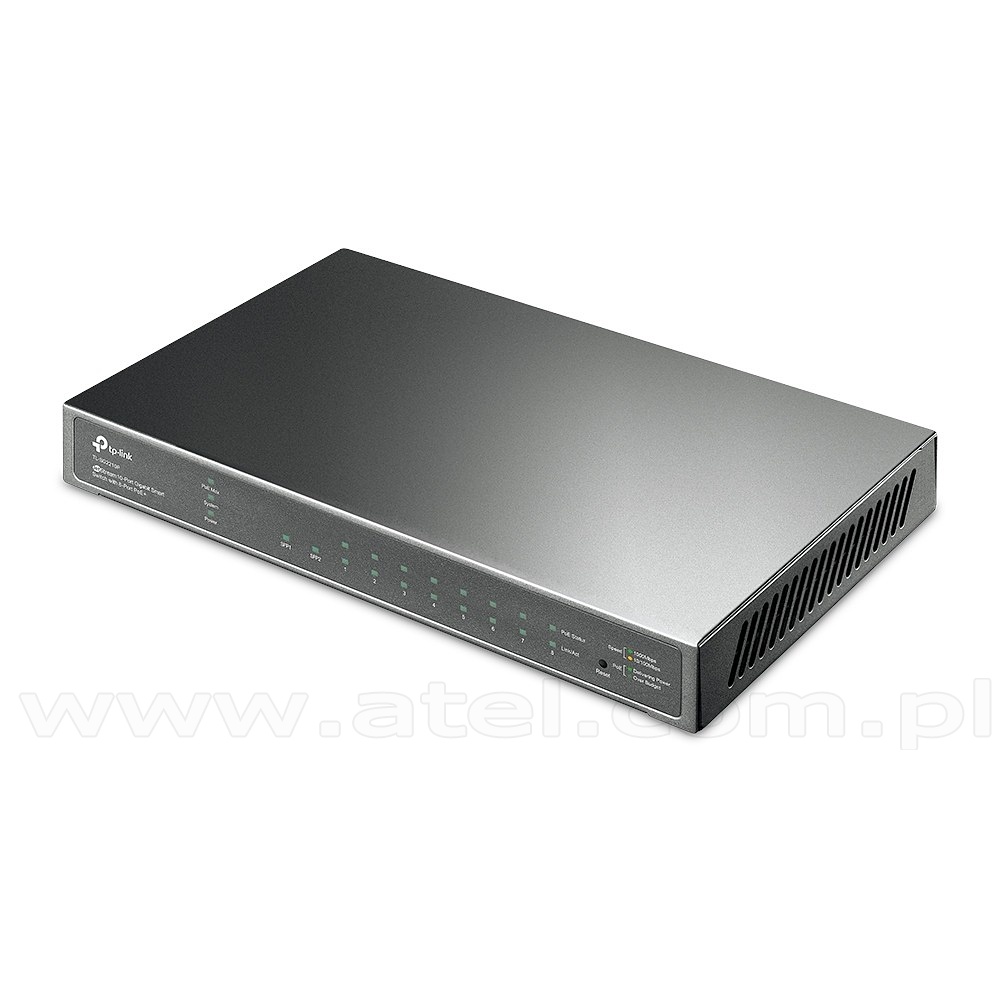

3.2_02_large_1594974341872e.jpg?1620815379)

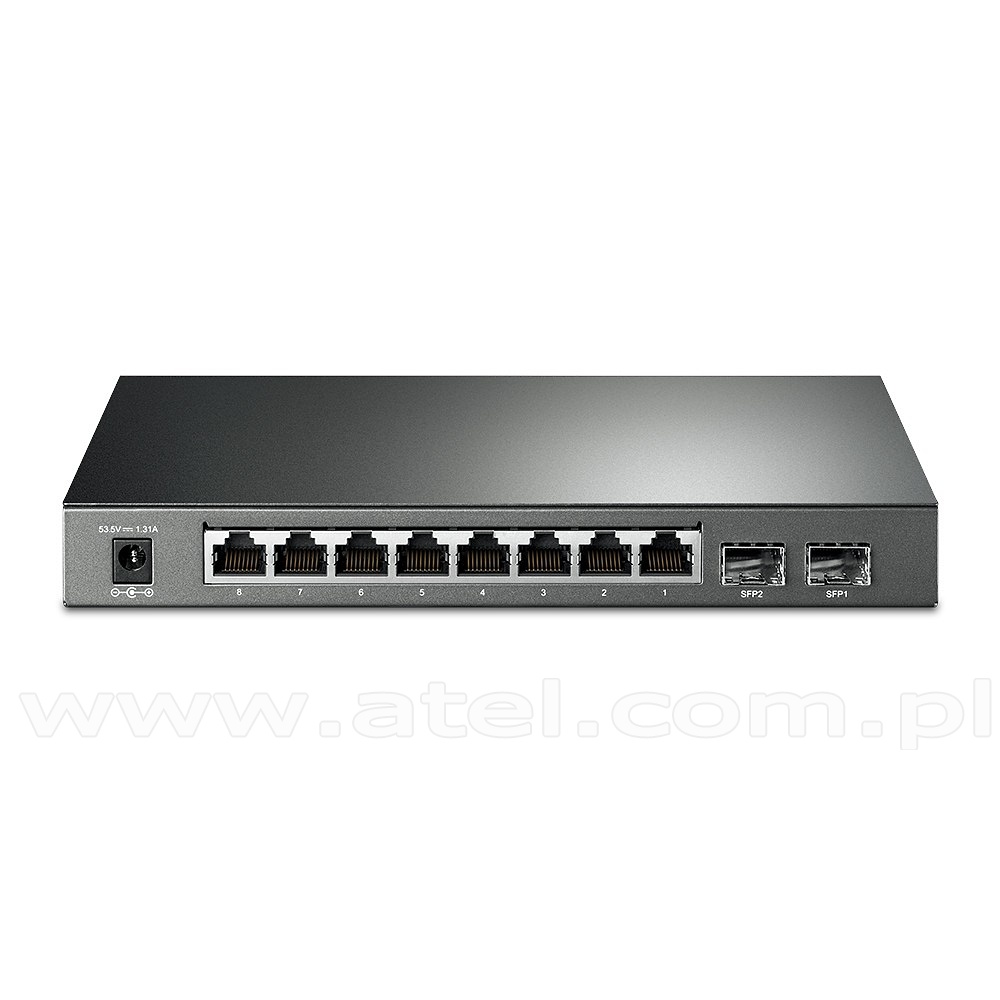

3.2)_03_large_1594974359538r.jpg?1620815381)
Net Price: 120.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
