MENU#09305

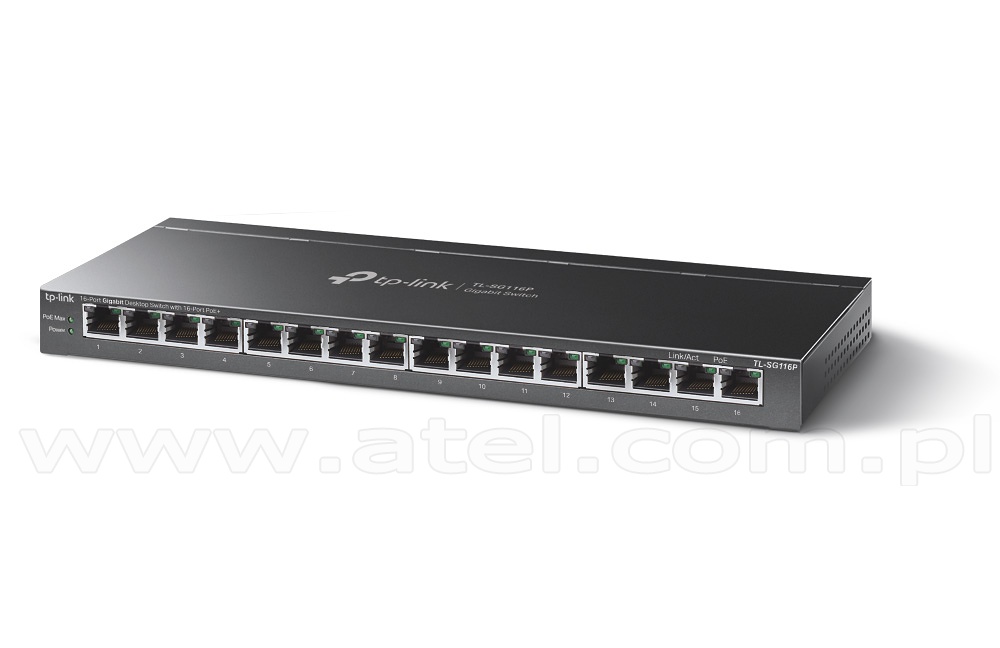

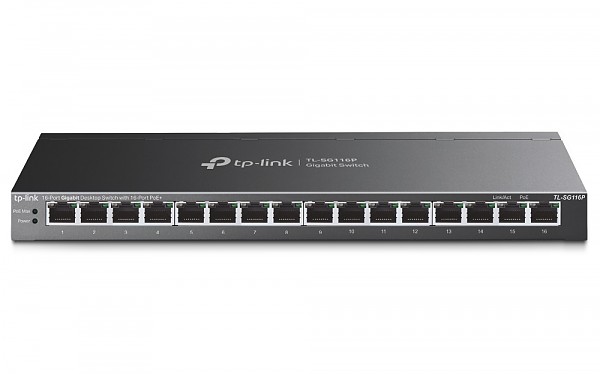

Unmanaged switch, 16x 10/100/1000 RJ-45, PoE+, desktop (TP-Link TL-SG116P)
- 16× 10/100/1000 Mbps RJ45 ports
- With 16 PoE+ ports, transfers data and power on one single cable
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 120 W for all PoE ports
- Up to 250 m data and power transmission range under Extend Mode
- Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Plug and play with no configuration required
Copper ports: 16x 10/100/1000 Mbps RJ-45
Auto MDI/MDI-X: yes
Auto-negotiation (Nway): yes
Performance:
Packet Forwarding Rate: 23.8Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4.1Mb
Jumbo Frame: 10KB
Software features:
Advanced Features: Green Technology, 802.3X Flow Control, 802.1p/DSCP QoS, IGMP Snooping
Transfer Method: Store and Forward
Dimensions: 11.26 x 4.4 x 1.0 in. (286x111.7x25.4 mm)
Operating temperature: 0°C ÷ 40°C
Operating humidity: 10% ÷ 90%, non-condensing
Power: External Power Adapter (Output: 53.5 VDC / 2.43 A)
Max Power Consumption: 11.72 W (220 V / 50 Hz no PD connected), 142.51 W (220 V / 50 Hz with 120 W* PD connected)
Max Heat Dissipation: 39.85 BTU/h (220 V / 50 Hz no PD connected), 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected)
Certificates:CE, FCC, RoHS
Warranty: 5 years
Manufacturer: TP-Link
_2.jpg?1686564071)
Net Price: 124.00 USD Unit: pcs
|
|
