MENU#09533

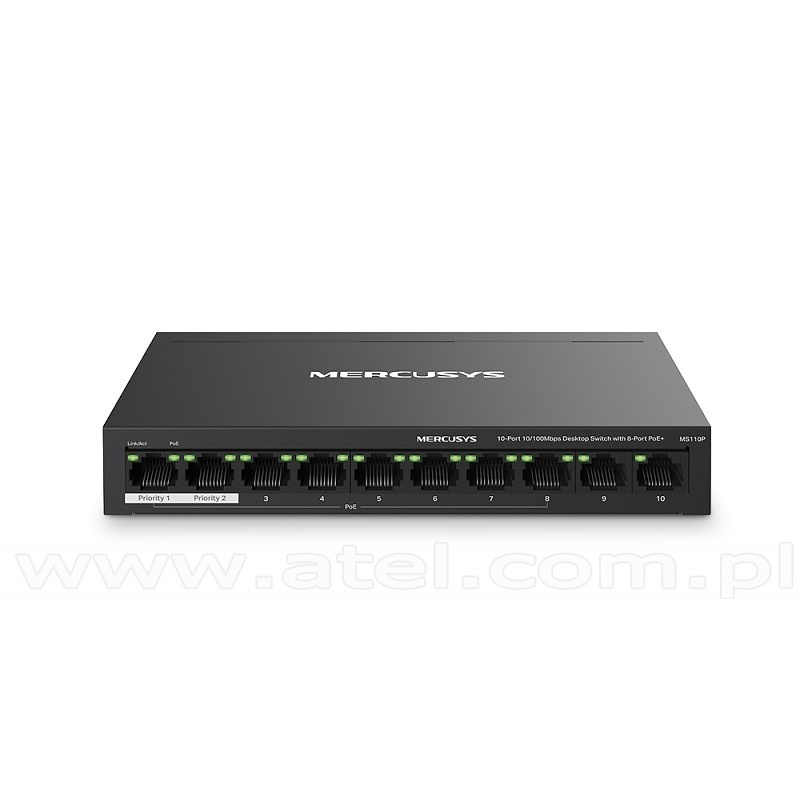

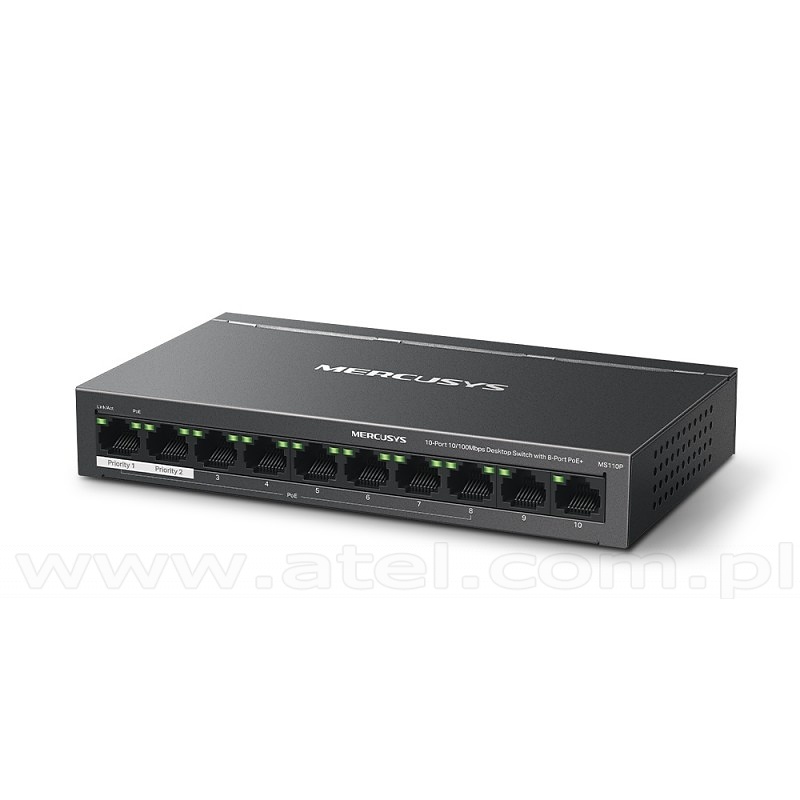

Unmanaged switch, 10x 10/100 RJ-45, PoE+, desktop (TP-Link Mercusys MS110P)
- 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
- Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports
- 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
| Standards | IEEE 802.3/x |
|---|---|
| Copper ports | 10x 10/100 Mbps RJ-45 |
| PoE Ports | RJ45, Standard Compliant with 802.3 af/at Powered Devices, PoE Ports Port 1- Port 8 |
| PoE Power Budget | 65 W |
| Auto MDI/MDI-X | yes |
| Auto-negotiation (Nway) | yes |
| Switching architecture / speed | Store and Forward |
| Data Rates | 10/100Mbps at half duplex, 20/200Mbps at full duplex |
| Mac Address Table | 2K |
| Jumbo Frame | 2KB |
| Dimensions | 171 * 98 * 27 mm |
| Operating temperature | 0°C ÷ 40°C |
| Storage Temperature | -40°C ÷ 70°C |
| Operating humidity | 10% ÷ 90%, non-condensing |
| External Power Supply | External Power Adapter (Output 53.5V/1.31A) |
| Max Power Consumption | 2.96W（220 V / 50 Hz, no PD connected, 77.52W（220 V / 50 Hz, with 65W PD connected） |
TAGS:
PoE plus
Net Price: 24.30 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
